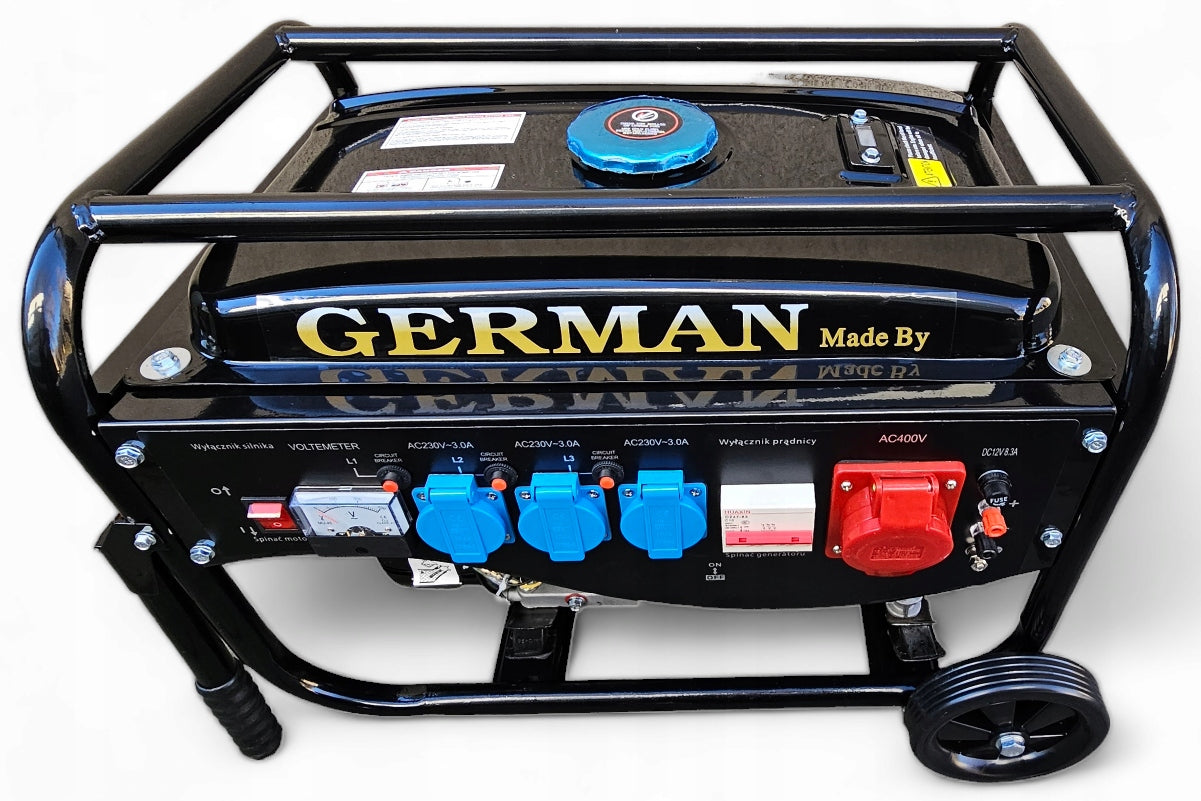

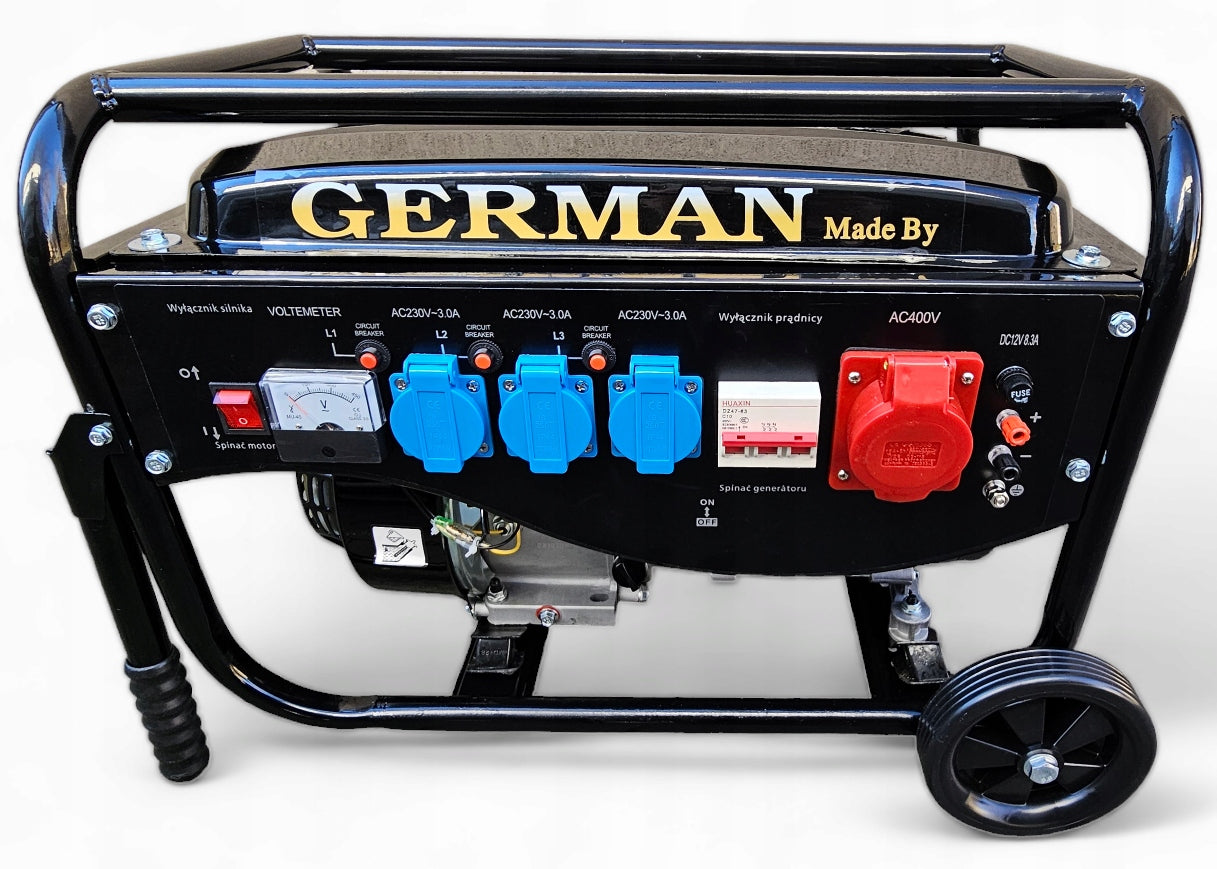

Benzininis generatorius A8, 5,2 kW, ratukai, varinė apvija, AVR, varinis statoriaus apvadas

Trumpai apie prekę

Prekė: Benzininis generatorius A8, 5,2 kW, ratukai, varinė apvija, AVR, varinis statoriaus apvadas. Kategorija: Elektros generatoriai.

• Gamintojas: German
• Modelis: LB2600
• Įtampa: 400 V

MAX ENGINE POWER: 5,2kW

POWER MAX GENERATORS: 3,5kW

✅NEW model with extended generator

✅COPPER stator winding

✅Engine power of 5,2kW!

✅EQUIPPED WITH 230/400V SWITCH

✅BILITY-BOUND sleeved wheels

✅MODERNIZED FEET/SUCTION CUPS to guarantee the stability of the device during operation.

✅Obtained increased true power max. generator up to 3,5kW

✅EQUIPPED with AVR voltage stabilizer at 400V

✅Socket short-circuit protection 400V

✅12V CHARGING!

✅MUTED silencer chamber

✅NEW MODEL A8 equipped with an intelligent throttle system responsible for maintaining constant rotation! (constant frequency value 50Hz)

The stator and rotor account for nearly half of the value of the unit. Many companies only have a "copper" winding on the stator with a width of 70-100mm. All GERMAN units with an engine power of 5,2kW use a stator with a length of up to 120mm. The stand wound fully copper drutem.Miedziana generator cooperates with a very popular engine with the symbol: Fy170, which, on behalf of the GERMAN brand, is made of the highest quality spare parts as well as the main elements of składowych.tj: shaft, piston, connecting rod, valves. Details later in the auction.

The latest model uses extended generators. The power of the unit increases directly in proportion to the length of the stator core that is in it - thanks to which the A8 model has reached the maximum power of 3,5kW! When connecting the same devices to the unit compared to other weaker models, this one is much less loaded and thus the life of the device is significantly extended and fuel combustion is reduced, which makes the generator more economical.

GERMAN Polska aggregates are characterized by reliability, uninflated parameters and are equipped with many systems that guarantee the best possible power parameters and current quality while maintaining the lowest possible combustion. This is due to the stator in which an additional circuit equalizing power and voltage between phases and intelligent throttle operating automatically, which maintains constant rotation regardless of load, are used. The unit is additionally equipped with a voltage switch 230/400V.

⭐

Thanks to the use of these and many other solutions described later in the auction, GERMAN aggregates have quickly become one of the most popular aggregates in the country.

⭐

They are successfully used both on construction sites, plots or as an emergency power supply at home. We have a wide selection thanks to which everyone will find an aggregate for their needs.

• motor power / max generator power at 60Hz: 5,2 kw / 3,5 kw
• constant power at 50Hz: 2800 watt
• Maximum power at 230v: 3 x 1000watt
• fuel: PURE PETROL 95 OR 98
• fuel tank capacity about 15 L
• start: manual
• power supply 12 / 230 / 400 volt
• built-in AVR - voltage regulator at 400v
• weight with packaging approx. 45 kg
• dimensions: 45cmx60cmx44cm
• built-in rectifier output 12 volt
• engine displacement approx. 200cc
• used oil 10w-40 or SAE30
• oil pan capacity approx. 0,6 L
• oil condition equal to the lower edge of the infusion
• 1 replacement after 5 hours, then every 50.
• automatic regulation of rotation and voltage
• voltmeter
• Quiet engine operation
• Relaxer for easy start-up
• embedded on cushioning cushions
• high engine power
• high quality of workmanship
• engine speed approx. 3.000 r/min
• low combustion: from 0,7 - 1,1 L/h
• Please refer to the instruction manual before using!

model A8 professional version!

✅new original look

✅new generation silencer, quieter engine operation. Tolerates much better long intensive work

✅thicker frame

✅harder valves, are not prone to burnout and do not require adjustment for a longer time than is the case with other similar devices

✅Bold castings of the internal combustion engine body and stator base

✅third generation voltage regulator (99% stabilization)

✅additional pair of shock-absorbing rubbers (under generator and motor)

✅new type of generator, more wire wound

Intelligent Throttle Technology (Throttle Change Control). Unlike most other generators that operate at a variable speed per minute, our portable generator is equipped with a system of Intelligent Engine Throttle Technology, which, depending on the load of the generator, adjusts the fuel dose to keep the engine at a constant speed of 3000 r/min. This is very important while maintaining a constant frequency [Hz], so that it is possible to properly power the devices. In addition, thanks to the intelligent throttle, with less power consumption, it is set to EKO mode, which results in much less combustion! All these activities take place automatically without unnecessary user intervention!

The bushing wheels guarantee lightness in handling and practically no operation of the suspension system. Fully cast (not pumped) wheels are not prone to punctures or deformation. The rubber additive improves the cushioning of the unit, which in turn goes hand in hand with less noise.

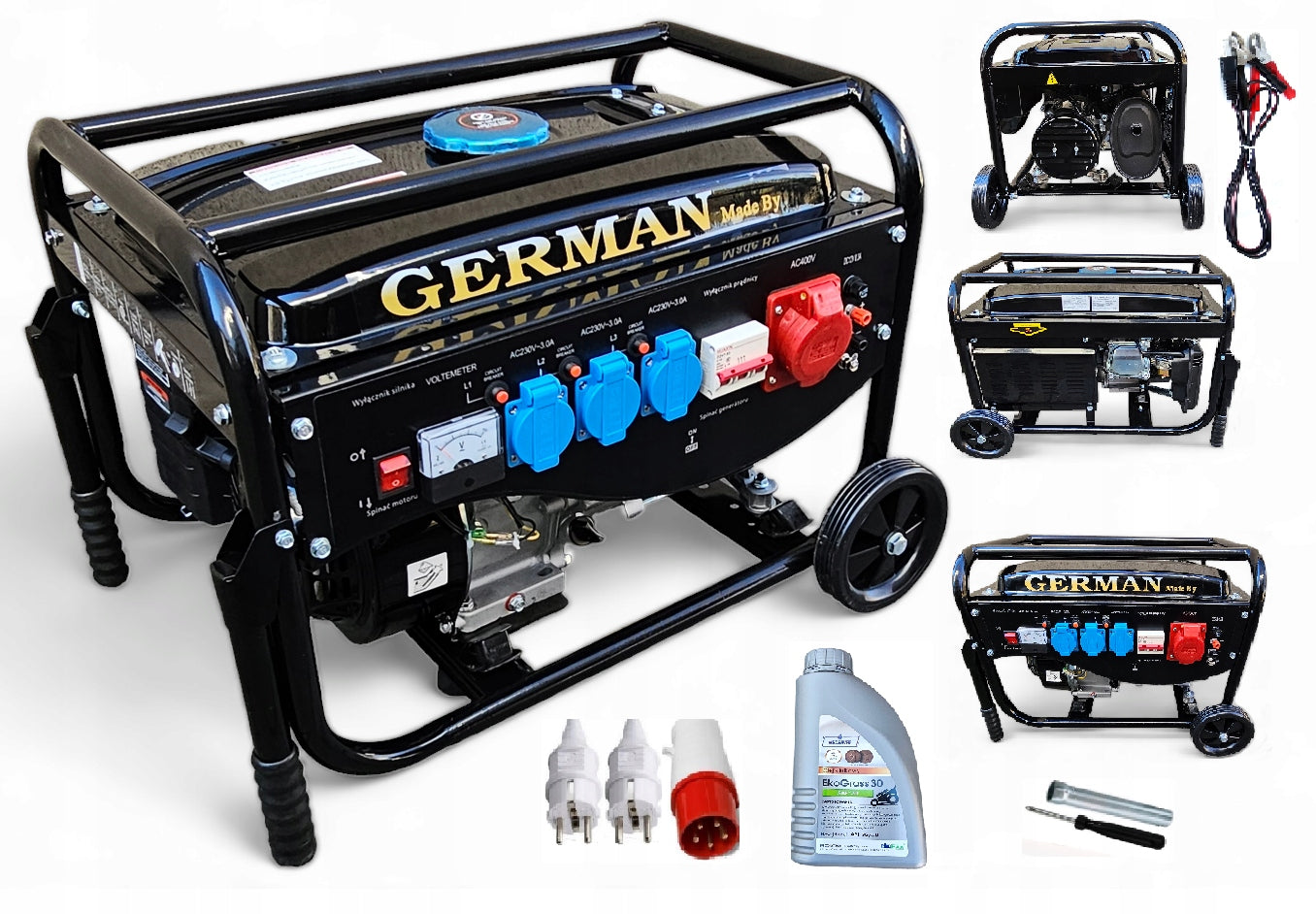

✅3x 230v plug

✅400v plug

✅12V cables

✅key for candles

*

✅3x socket 230v

✅400v socket

✅fuel filter

✅candle wrench

✅wheels (2 pieces)

✅transport handles

✅double-sided screw driver (flat )

✅oil bottle 0,6 L

✅2 anti-vibration feet

✅nuts and mounting screws

✅instruction PL

✅ Warranty card

✅Manufacturer's declaration of conformity

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	German
Parametry	Model	LB2600
Parametry	Kind	portable
Parametry	Generator type	three-phase
Parametry	Engine	4-stroke
Parametry	Startup	manual
Parametry	Maximum power	3500 W
Parametry	Nominal power of the alternator	2800 W
Parametry	Engine power	7 KM
Parametry	Gasoline tank capacity	0.21 l
Parametry	Device weight	38 kg
Parametry	Fuel type	petrol
Parametry	Frequency	50 Hz
Parametry	Operating time on the tank	12 h
Parametry	Lc IEC noise level	95 dB
Parametry	Product height	45 cm
Parametry	Product width	60 cm
Parametry	Product depth	45 cm
Parametry	Average combustion	1.25 l/h
Parametry	Number of 1-phase outlets	3
Parametry	Number of 3-phase outlets	1
Parametry	European emissions standard	EURO 5
Parametry	Supply voltage	400 V
Parametry	Manufacturer code	AGREGAT PRĄDOTWÓRCZY A8 5,2kW MIEDŹ AVR
Parametry	Product weight with unit packaging	40 kg
Parametry	Packaging status	original
Parametry	Additional information	voltage regulation (AVR),12 V outlet
