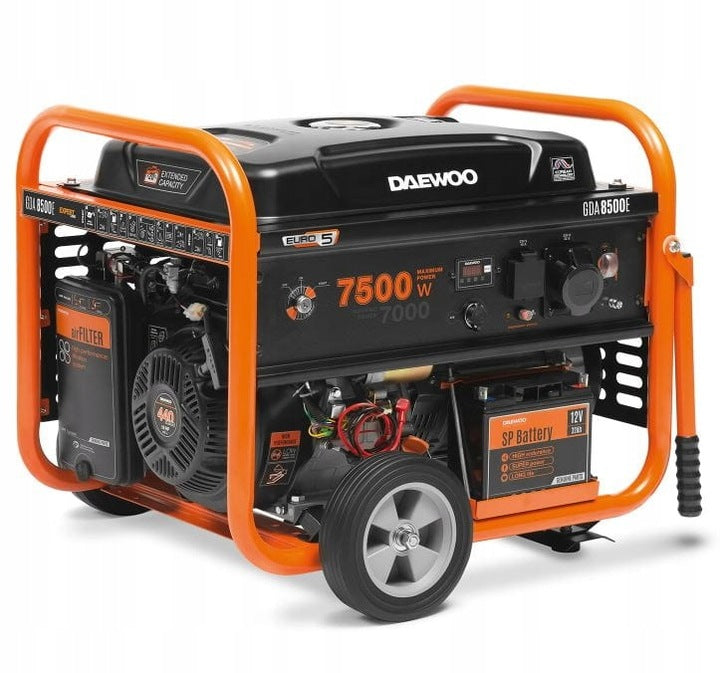

Benzininis generatorius DAEWOO GDA 8500E, 7500 W

Trumpai apie prekę

Prekė: Benzininis generatorius DAEWOO GDA 8500E, 7500 W. Kategorija: Elektros generatoriai.

• Gamintojas: Daewoo
• Modelis: GDA 8500E
• Įtampa: 230 V

The GDA 8500E is a powerful and functional petrol generator set designed for intensive use. It will work in situations where there is a need for independent electricity supply.

The unit is equipped with a display that allows you to control the parameters and quality of the output current, as well as a 12 V battery with a built-in starter, thanks to which the device can be started by turning the key, without the need to pull the cable.

✔ Reliable four stroke engine 440 series DAEWOO Euro 5

✔ Enlarged fuel tank 30 l

✔ Electric start-up

✔ Multifunction display

✔ AVR - automatic voltage stabilization

✔ Overload protection

✔ Oil level sensor

✔ Possibility to connect SZR module (to be purchased at a separate allegro auction)

✔ Low noise and vibration

✔ Strong frame

✔ Copper winding generator

✔ Engine and generator cover

✔ Transport kit (standard equipment)

✔ 12 V socket

Maximum power: 7.5 kW

Rated power: 7 kW

Engine Type: 4-stroke gasoline engine

Voltage: 220-240 V

Engine manufacturer: Daewoo

Engine model: series 440

Engine power: 18 HP

Engine displacement: 445 cm³

European emission standard: Euro 5

Starting: manual/electric

Fuel Type: Gasoline

Fuel tank capacity: 30 l

Operating time at 50% load: 17 h

Display: 3 in 1

Power factor: 1 Cosφ

Sockets: 1x16 A/1х32 А

Battery: yes

Possibility to connect the SZR module (ATS): yes

Transport kit: yes

Dimensions D/S/W: 680х520х540 mm

Weight: 93.4 kg

RELIABLE 4-STROKE ENGINE DAEWOO

DAEWOO units are equipped with 4-stroke OHV engines. They are characterized by a long service life (over 1500 hours), which is evidenced by an extended warranty, and thus a longer period of stable operation without a decrease in power

The engine meets the EURO 5 standard, thanks to which the exhaust emissions are much lower and the use of the unit becomes more comfortable.

ELECTRIC START-UP

With a built-in electric starter and battery, the unit can be started by turning the key, without having to pull the cord.

MULTIFUNCTION DISPLAY

It indicates the most important current measurement parameters of the generator: voltage, current and frequency, as well as the load and operating time of the motor.

ENGINE AND GENERATOR COVER

Additional metal covers protect important unit assemblies from mechanical damage.

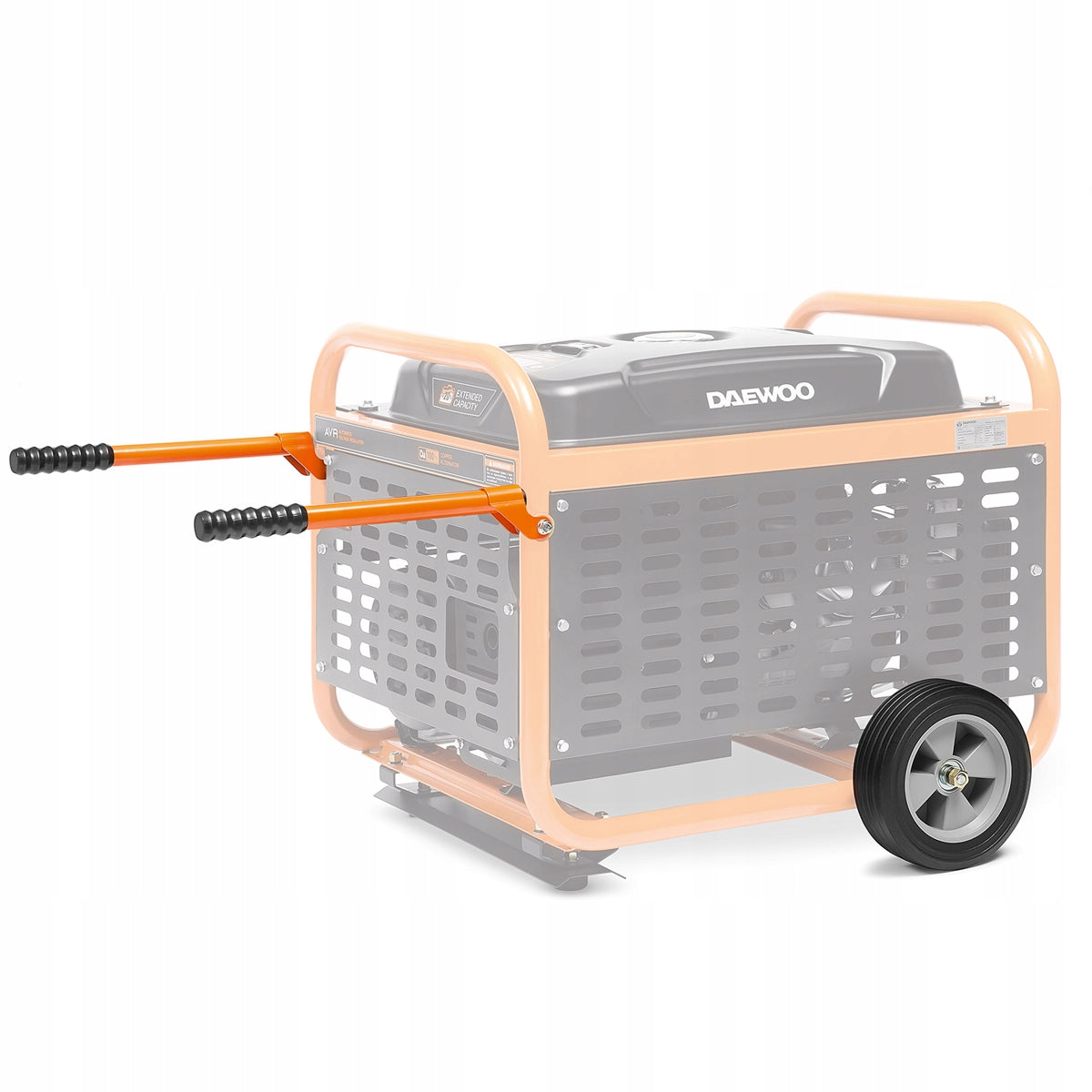

TRANSPORT SET (STANDARD EQUIPMENT)

The set mounted on the aggregate makes it easy to transport and carry the device, and also significantly reduces the level of vibration during operation.

The set includes:

• rubber wheels (2 pcs. )
• Parking supports (2 pcs. )
• folding rubberized handles (2 pcs. )

Possibility to connect the SZR module (ATS)

The unit is compatible with the automatic reserve switching module. SZR starts the unit in the event of a power failure or voltage drop in the primary network.

Available at our other auctions

ATS15-220GDA

The DAEWOO ATS15-220GDA automatic generator set control module is designed to work with DAEWOO gasoline generator sets of the GDA series:

• DAEWOO GDA 7500E
• DAEWOO GDA 8500E

The automation module, also called ATS (Automatic Transfer Switch) or SZR (Reserve Switching Controller), is used to automatically switch the power supply between the primary and backup sources.

In the event of a power failure or voltage drop in the primary network, the module starts the generator. After resuming the supply of electricity, the return switch to the primary power supply track takes place, and the unit is switched off and goes into standby mode.

The module also constantly monitors the voltage of the starter battery of the unit and, if necessary, switches on charging.

The device has convenient mounting wall brackets and a solid metal housing with a key.

1. Lock to protect the module from unauthorized opening
2. Operating mode switch (manual/auto)
3. Indicator of the presence of voltage in the primary network
4. Indicator of the presence of voltage at the generator output
5. Automatic mode operating indicator
6. Module overload indicator
