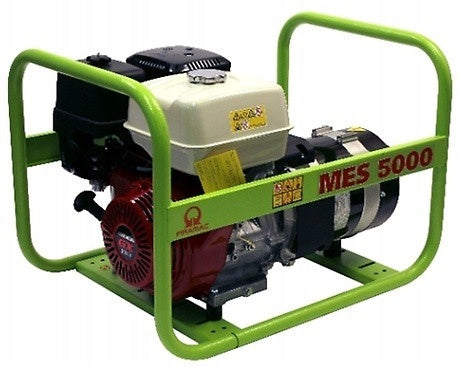

Benzininis generatorius Pramac MES5000, 4,6 kW, 230V, Honda GX270

Trumpai apie prekę

Prekė: Benzininis generatorius Pramac MES5000, 4,6 kW, 230V, Honda GX270. Kategorija: Elektros generatoriai.

• Gamintojas: Pramac
• Modelis: MES5000
• Įtampa: 230 V

Are you looking for uncompromising equipment that will work in the most difficult conditions? Pramac MES 5000 is a single-phase generator set designed for intensive professional use.

At the heart of this generator is the legendary Japanese Honda GX270 engine – synonymous with reliability, durability and easy start-up. It is an ideal solution for powering power tools on the construction site, equipment for renovation teams, as well as a solid emergency protection for your home or workshop. Choose a proven design that never fails at a crucial moment.

The Pramac MES series is characterized by a simple, extremely durable design that minimizes the risk of failure and guarantees full readiness for operation.

• Commercial engine Honda GX270: The upper-valve unit (OHV) ensures maximum efficiency, low fuel consumption and drastically reduced emissions.
• High working power: The maximum power of 4,6 kW (5,1 kVA) allows for trouble-free power supply to demanding construction machinery, grinders, impact hammers or pumps.
• Reinforced protective frame: The robust steel tubular construction protects the motor and generator from mechanical damage, while facilitating transport and handling on site.
• Working safety: Built-in oil level sensor automatically turns off the engine in the absence of lubrication, protecting the unit from blurring.

Technical data:

• Frequency: 50Hz
• Voltage: 230 V
• Power factor cos: 0.9 ϕ
• Number of phases: 1
• Maximum ESP power: 5.1 kVA
• Maximum ESP power: 4.6 kW
• Continuous power COP: 4.2 kVA
• Continuous power COP: 3.9 kW

Engine data:

• Engine manufacturer: Honda
• Model: GX270 Recoil
• Engine cooling system: Air
• Capacity: 270 cm³
• Power supply: Free-aspirated
• Rated rotation: 3000 rpm
• Rotation controller: Mechanical
• Fuel: Gasoline
• Lubrication system capacity: 1.1 l
• Boot system: Manual

Prądnica:

• Generator manufacturer: NSM
• Type: Brushless
• Insulation class: H
• Class: 23
• Poles: 2
• Frequency: 50 Hz
• Voltage: 230 V
• Voltage regulator: Capacitor
• Voltage tolerance: +5, - 10 (cosϕ1) %

Dimensional data:

• Length (L): 750 mm
• Width (W): 543 mm
• Height (H): 520 mm
• Weight (dry): 61 kg
• Fuel tank capacity: 5.3 l

Working time:

• Fuel consumption at 75% load: 1.67 l/h
• Fuel consumption at 100% load: 2.22 l/h
• Working time At 75% Load: 3.17 h
• Working time At 100% Load: 2.39 h

Control:

• OFF-ON start switch
• Fuel Tap
• Manual starter

Security:

• Installation circuit breaker
• Oil level sensor

Choose the professionalism of the Pramac brand – a global leader in power supply, combined with the reliability of Honda technology. By investing in the MES 5000 model, you can be sure of the continuity of your company’s operation, easy access to authorized service and guarantee the highest quality of components.

Contents of the set:

• Generator set Pramac MES 5000 (PA432SH100D)
• Original instruction manual in Polish
• Manufacturer's warranty card
