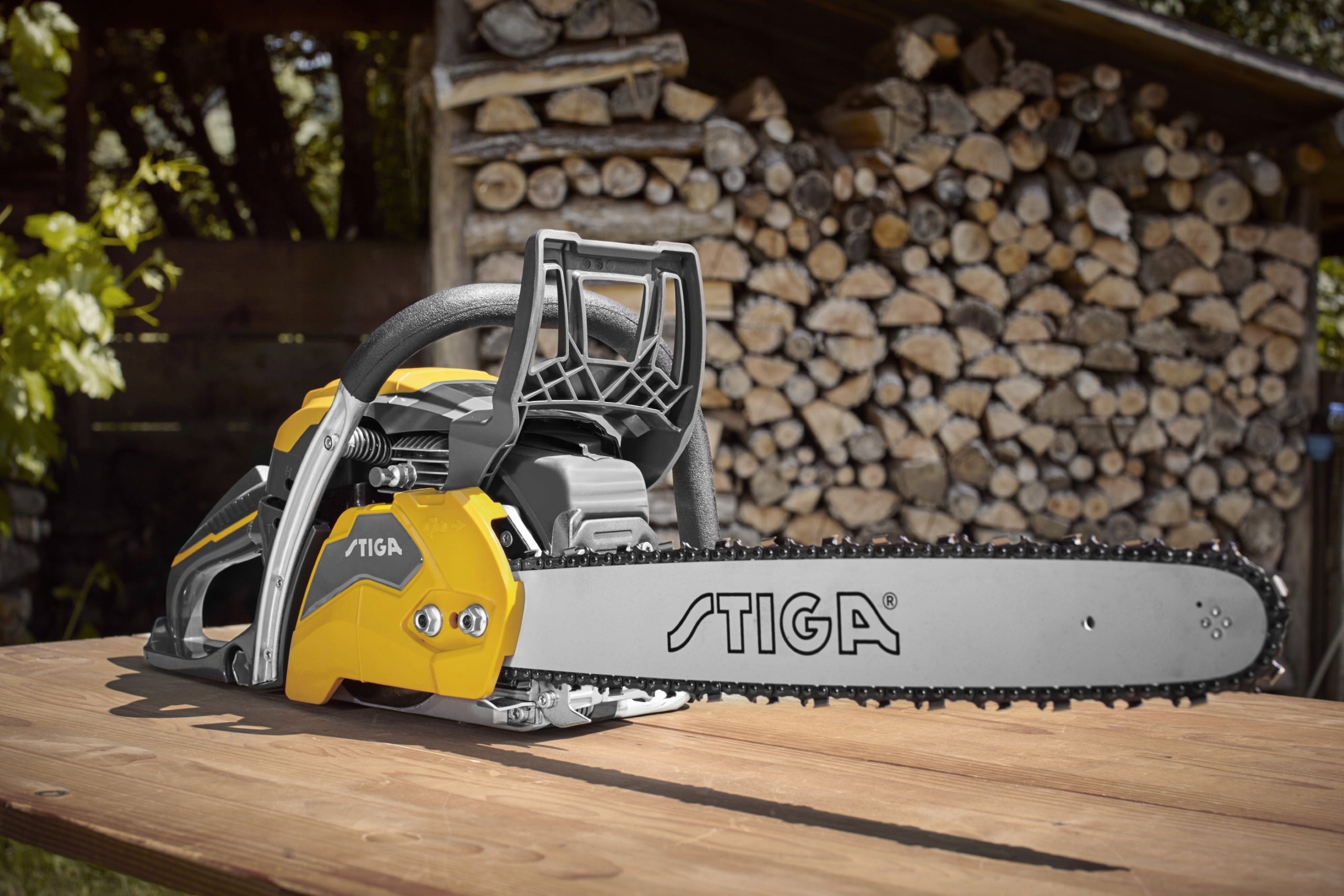

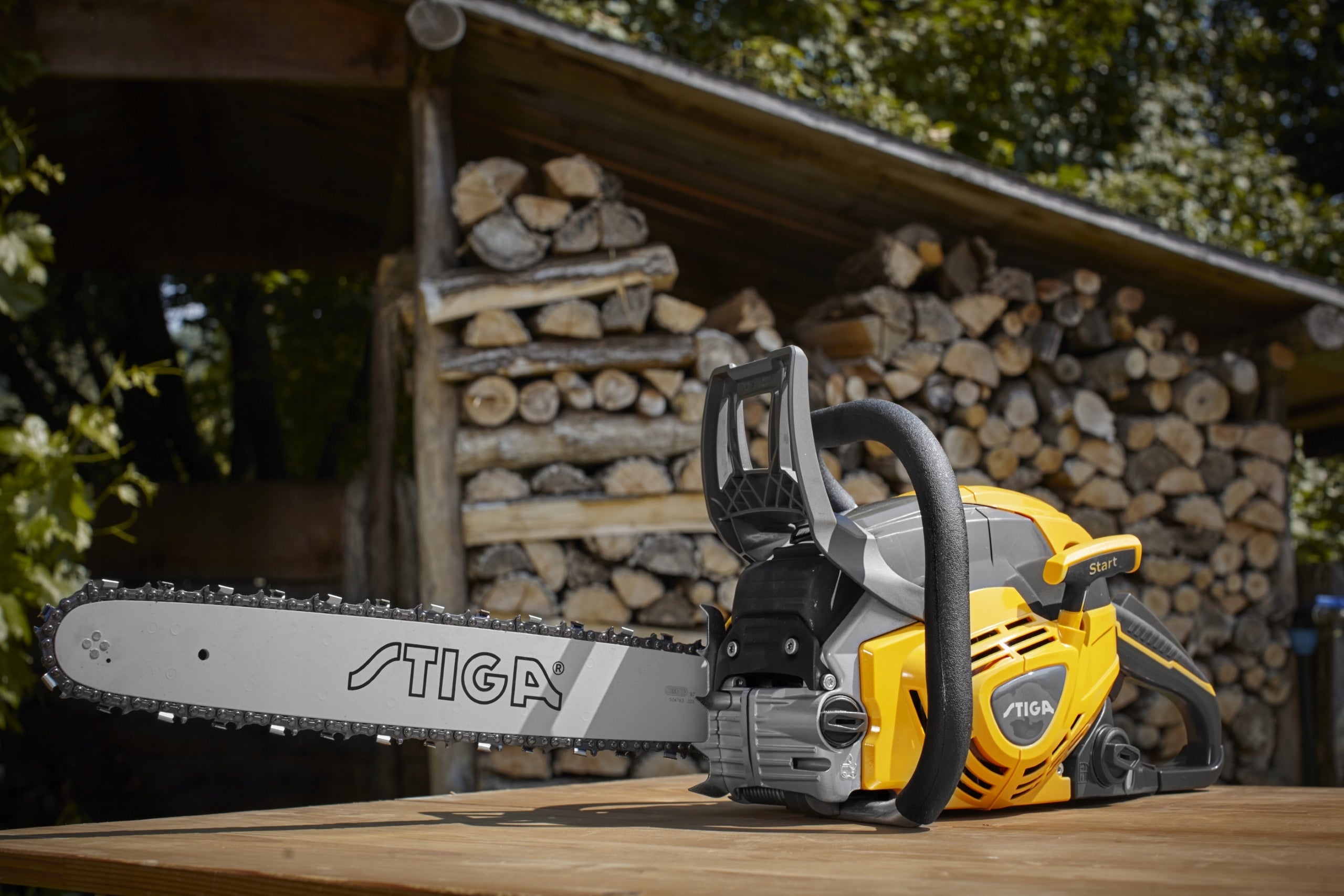

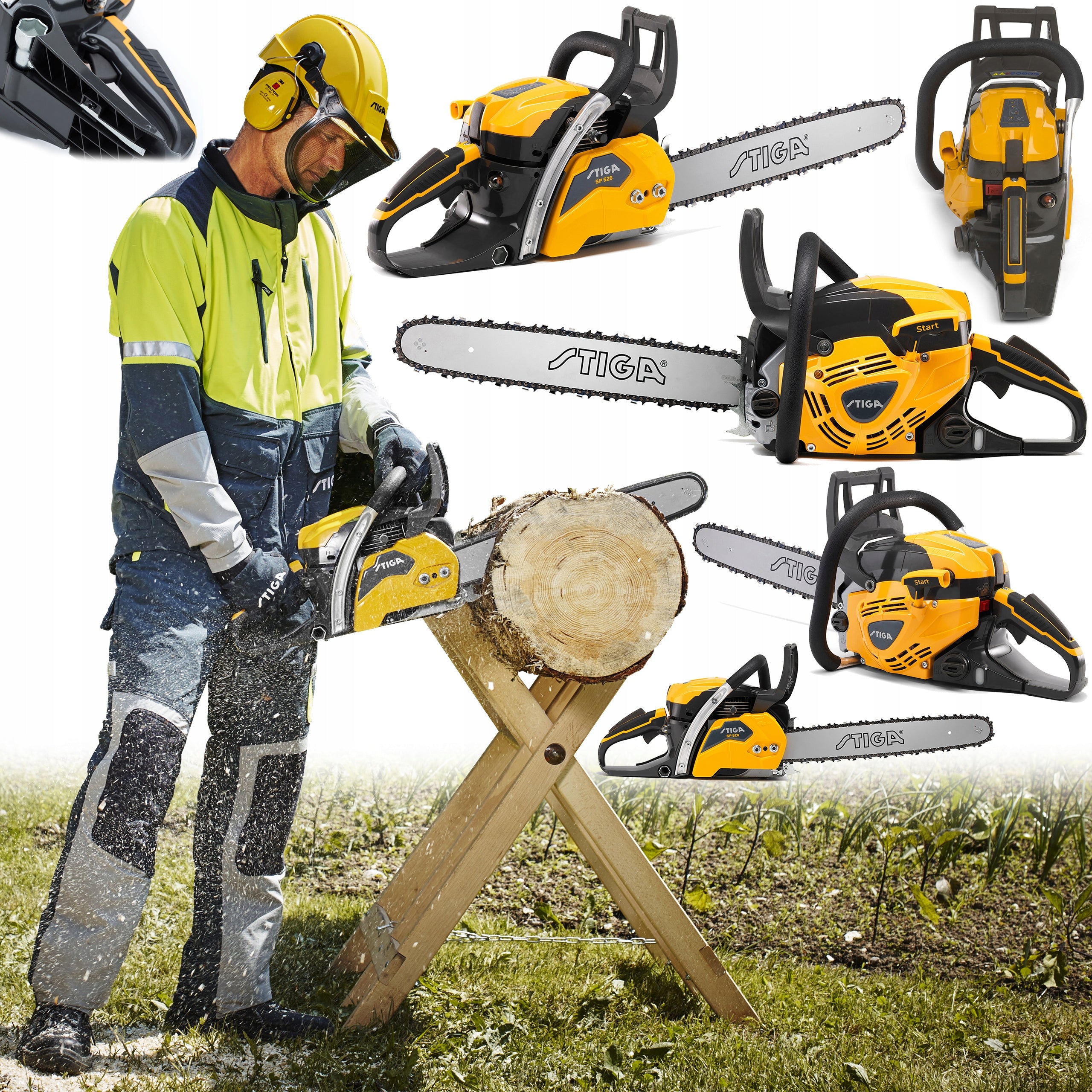

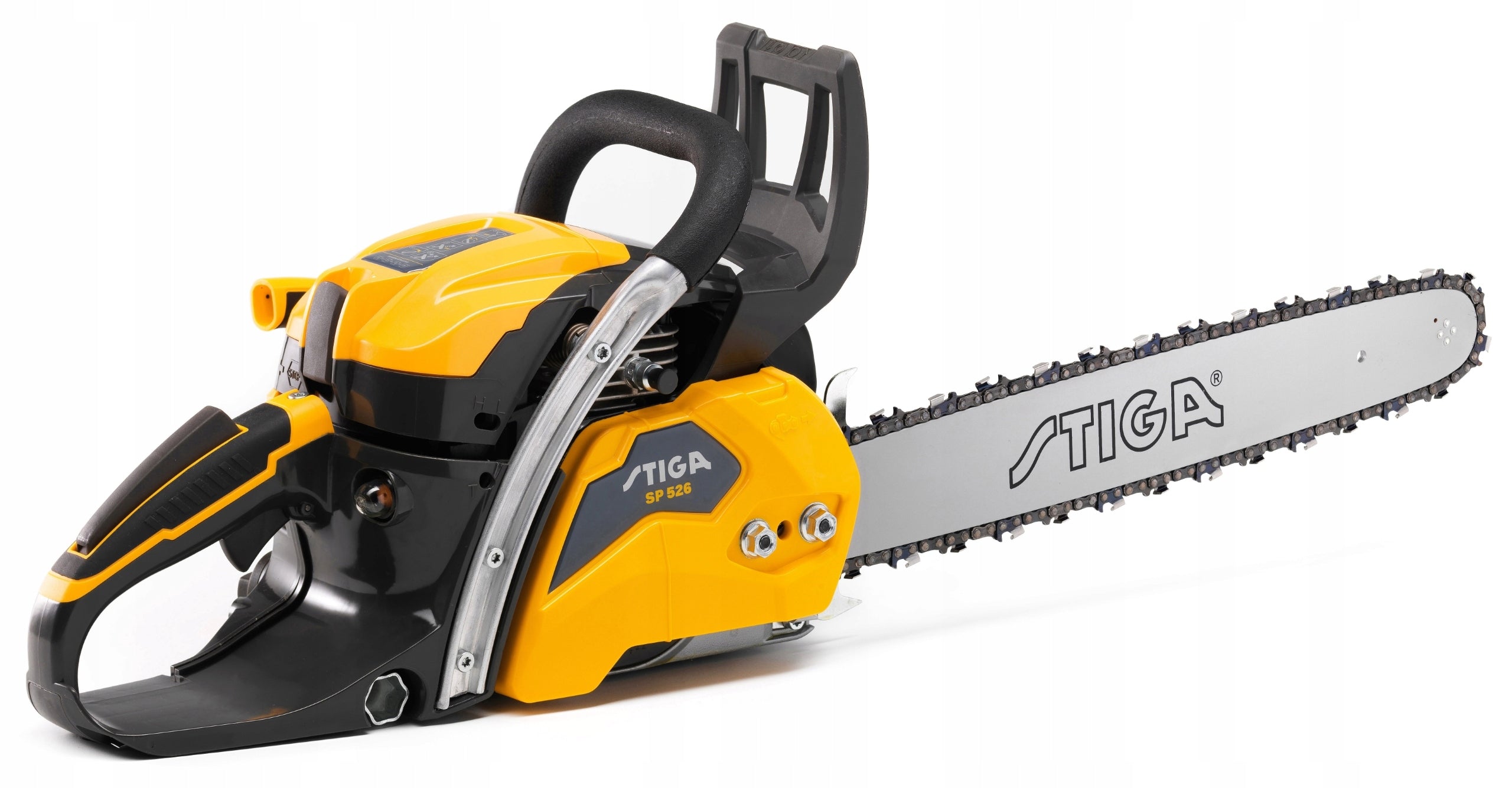

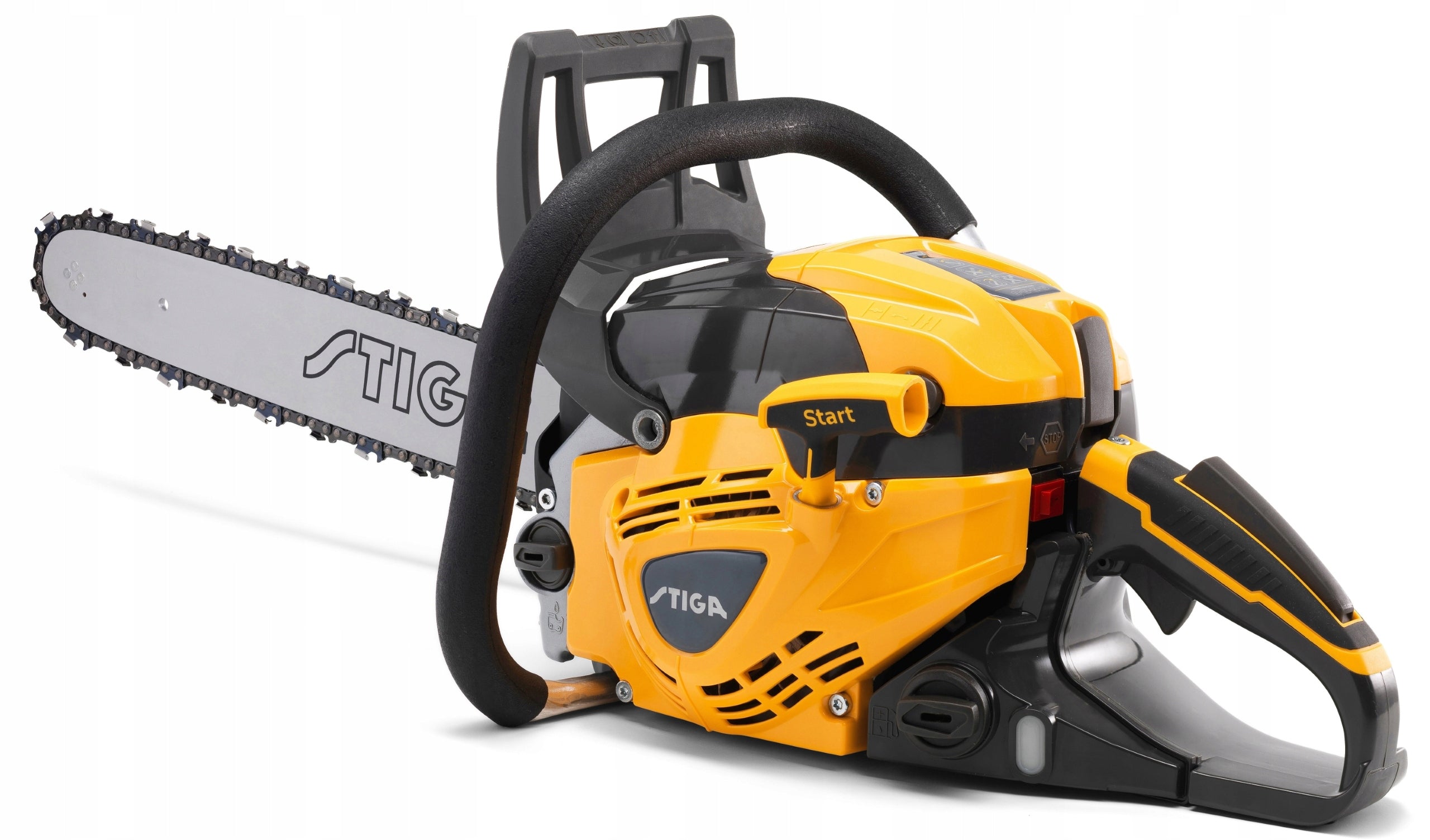

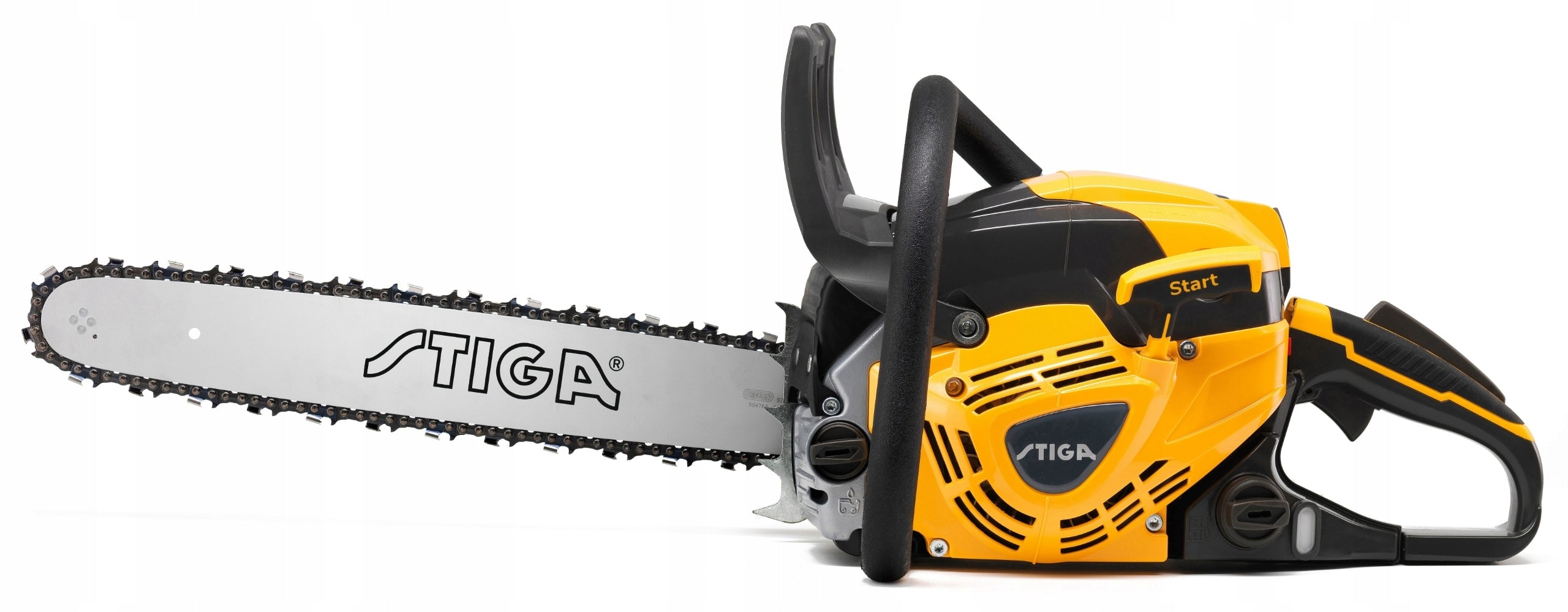

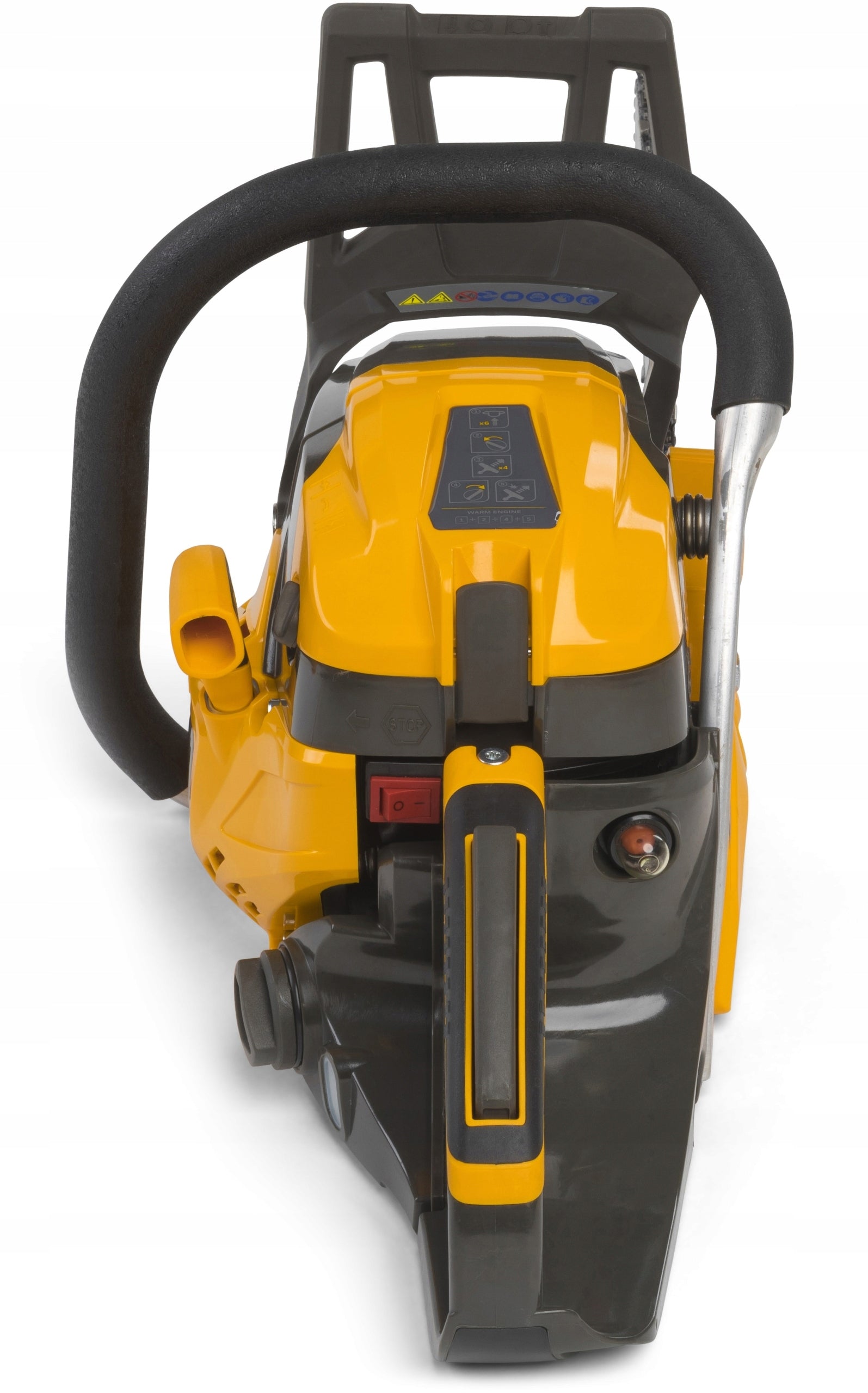

Benzininis grandininis pjūklas STIGA CS 755, 45 cm, 3,13 AG, magnio korpusas, 23,1 m/s

Trumpai apie prekę

Prekė: Benzininis grandininis pjūklas STIGA CS 755, 45 cm, 3,13 AG, magnio korpusas, 23,1 m/s. Kategorija: Pjūklai.

• Gamintojas: Stiga
• Modelis: 240521802/ST1
• Galia: 2300 W

Goods available at auctions are shipped within 2 4 hours or the next working day.

❓Do you have any further questions? We are happy to help!

Particularly efficient device for very demanding garden work. Its weight is only 8 kg, which in combination with an anti-vibration system and ergonomic handle will ensure high comfort of work. With a long guide and a powerful motor, this model can handle large pieces of wood with ease.

The main advantages of the STIGA CS 755:

• ❗Powerful, reliable engine with 3,13 HP
• ❗Long guide o length 45 cm can handle tough tasks
• ❗Manual and inertial chain brake with hand guard provide protection during operation
• ❗Automatic pump will easily distribute oil around the device
• ❗Magnesium engine cover provides fast cooling of the device
• ❗ Ergonomic handle makes work a pleasure, not a heavy duty.
• ❗Tensioning key always at hand, placed in the saw holder
• ❗Little weight, just 8 kg

We are an authorized store and service STIGA, which offers a complete and ready to work product at this auction. It consists of:

1. ✅Combustion saw STIGA CS 755 packed in the original manufacturer's carton
2. ✅ 45 cm long guide
3. ✅Łchain .325" .058"
4. ✅Tension key
5. ✅instruction in Polish

The saw is ready for use after preparing the appropriate mixture of fuel and 2T oil. You can buy the appropriate and original STIGA 2T oil at our other auctions.

The saw is powered by a 2-stroke engine combustion engine with spark ignition and manual suction, with a capacity of 52 cm3 generating a power of 2,3 kW. The most important point is the use of the magnesium engine cover, which ensures durability, reliability and fast cooling.

The carburetor used in the drive unit is a butterfly valve. The device is fired thanks to the starting cable. It is worth noting that pistons and cylinders are covered with a layer of chromium, providing high resistance to thermal loads and abrasion. This solution guarantees the engine a longer service life.

The saw is equipped with a 45 cm long chain driven by a chain wheel moving at speed of 23,1 m/s. The whole is complemented by an automatic, fully adjustable oil pump.

The inertial brake and hand protection handle with quick chain stop is a guarantee of operator safety and thus – pleasant and accident-free operation.

The main advantage of the device is its compact size and weight. Ergonomic handle ensures pleasant work. The soft upholstery guarantees a secure grip, and the anti-vibration system reduces hand fatigue.

The quick release system facilitates access to the air filter and spark plug significantly facilitates the maintenance of the device.

The infusion was placed in an easily accessible place. Thanks to the small window at the bottom of the saw, you can easily check the fuel level.

Underneath the device is a key for tensioning the chain. The saw housing is properly profiled so that the tool does not interfere with work. This way, there is no need to look for the right key among other tools.

GENERAL INFORMATION

• Group: Experience
• Series: Series 7

ENGINE

• Engine: Combustion, 2 stroke
• Displacement: 52 cm³
• Rated engine power: 2,30 kW
• Engine speed: 12500 rpm
• Fuel tank capacity: 0,47 L
• Carburetor type: Butterfly valve
• Starter: Handheld
• Suction: Manual

CUTTING SYSTEM

• Guide length: 45 cm
• Guide Length (inches): 18"
• Guide type: Chain wheel
• Chain Type: .325" .058" (21BPX0-72X)
• Chain brake: Manual and inertial
• Chain speed: 23,1 m/s
• Oil tank capacity: 0,26 L
• Oil pump: Automatic, adjustable
• Chain tensioner: Side

EQUIPMENT

• Handle Type: Rear Handle
• Soft grip: Yes

TOTAL DIMENSIONS

• Dimensions: 831 X 275 X 315 mm
• Package size: 470 X 275 X 315 mm
• Weight without guide and chain: 6,60 kg
• Weight: 8,02 kg

VIBRATION AND NOISE LEVEL

• Anti-vibration system (AVS): Yes
• Vibration level: 6,04 / 6,49 m/s²
• Noise level: 114 dB(A)
