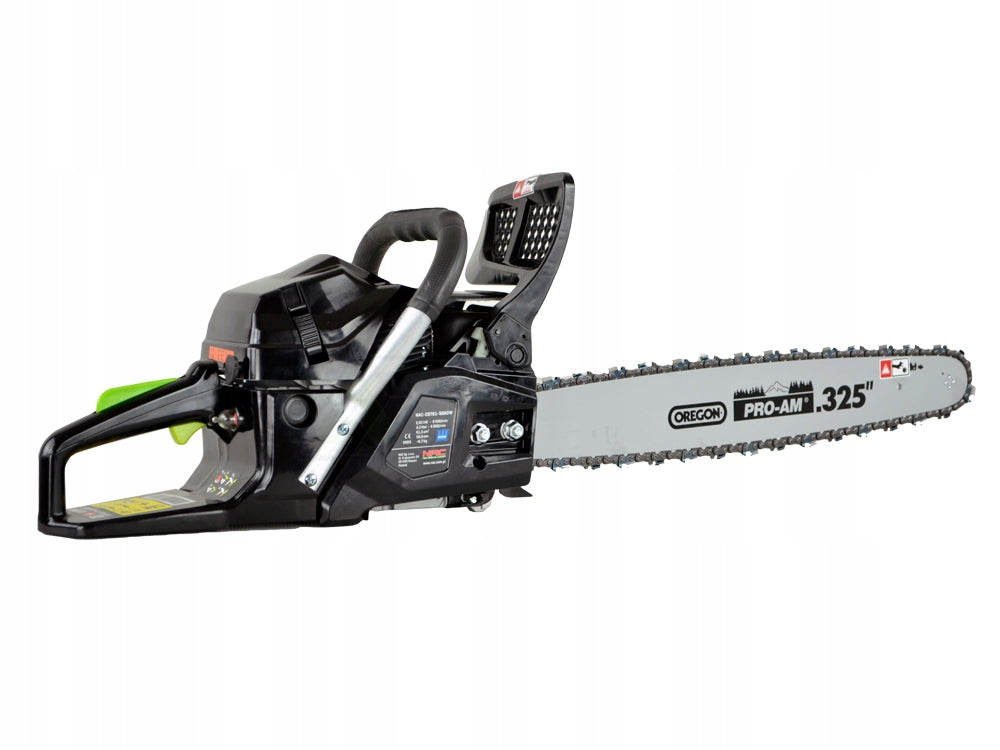

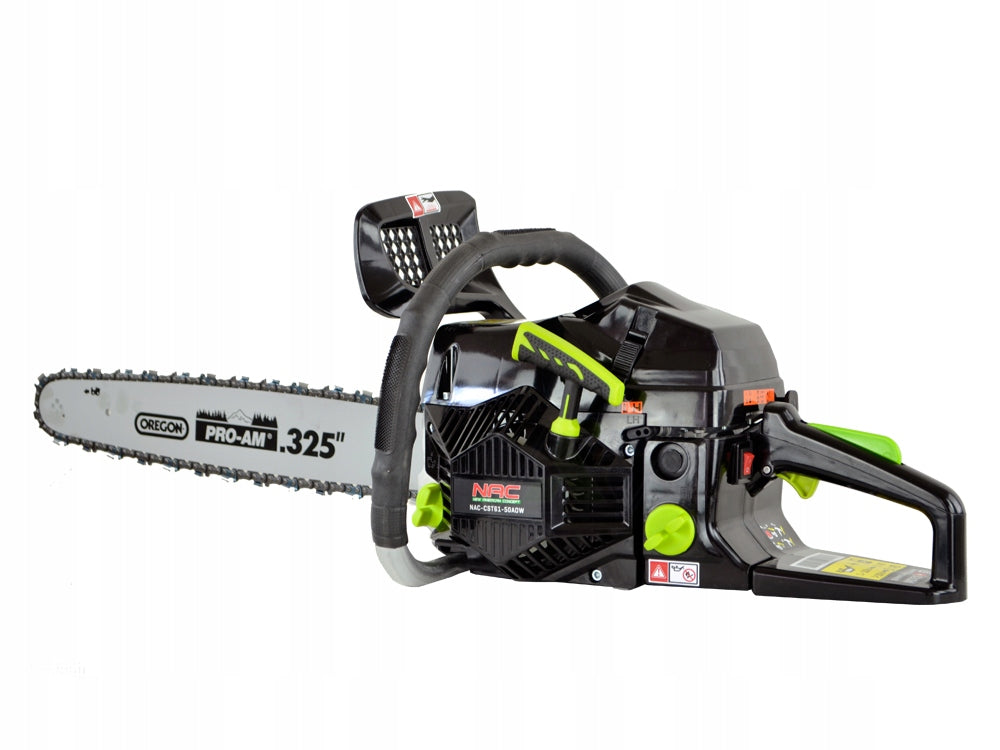

Benzininis pjūklas NAC POWER 3,88 AG, 61,5 cm³, 51 cm Oregon juosta, priedai

Trumpai apie prekę

Prekė: Benzininis pjūklas NAC POWER 3,88 AG, 61,5 cm³, 51 cm Oregon juosta, priedai. Kategorija: Grandininiai pjūklai.

• Gamintojas: no brand
• Modelis: 40006A

• Type of saw - chain
• Power supply - exhaust
• Engine capacity - 61,5 cm
• Rated engine power - 2,85 KW at 8500 rpm
• Maximum engine power - 3,88 hp at 8 500 rpm
• Maximum engine speed - 10 300 rpm
• Maximum torque - 3,3 Nm at 6500 rpm
• Guide length - 50,8 cm
• Guide manufacturer - OREGON
• Chain manufacturer - OREGON
• Carburetor manufacturer - WALBRO
• Chain split - 325 "
• Chain width - 1,5 mm
• Number of chain links - 78 pieces
• Oil tank capacity - 260 ml
• Fuel tank capacity - 550 ml
• Chain lubrication - automatic
• Service in the system - "door to door"

• Automatic suction
• Additional fuel pump to help start the cold engine
• Floating chain drive wheel
• Reusable air filter
• Comfortable main handle
• Automatic chain lubrication with adjustable oil dosage
• Safety brake
• Metal resistance fangs
• Metal drive wheel
• Possibility of reversing the guide for even wear
• LOW KICKBACK anti-reflection system - The special shape of the chain cutting tooth protects against guide reflection during cutting.
• Chain guide equipped with needle bearing
• The set includes a guide guard and a handy toolbox with a candle wrench, service keys and a chain sharpening file.

saw accessories : Oregon chain, Oregon guide, Walbro carburetor

It is equipped with a durable internal combustion engine with a chrome cylinder with a maximum power of 3,88 hp and a capacity of 61,5 cm. The device uses the highest quality cutting chain and guide with a length of 50,8 cm ( 20" ) American company OREGON, which guarantees a long time of their use.

The very precise carburetor of the Japanese company WALBRO with suction system reduces fuel combustion and makes the start-up of the device does not cause any problems to the user.

The saw has a metal resistance comb, an automatic lubrication system with the possibility of its adjustment and built-in shock absorbers that minimize vibrations generated during normal operation.

The included guide from OREGON is equipped with needle bearings mounted on the rotary tip, thanks to which its service life is significantly increased and the design of lubrication holes allows it to be reversed, which extends the service life.

The main handle is coated with a non-slip material to make it more secure in the hand. The device is also equipped with a safety guard (anti-reflection) with a brake acting immediately in the event of the operator's hand slipping from the main handle.

• Device model - CST61-50-AOW
• Type of engine - two-stroke combustion engine
• Engine capacity - 61,5 cm
• Maximum engine power - 3,88 hp
• Rated power of the machine - 2.85 KW at 8500 rpm
• Maximum motor speed - 10 300 rpm
• Maximum torque - 3,3 Nm at 6500 rpm
• Cylinder type - chrome plated
• Carburetor manufacturer - WALBRO
• Guide length - 50,8 cm ( 20" )
• Guide manufacturer - OREGON
• Chain manufacturer - OREGON
• Chain and Guide Size - .325" inch
• Width of guide groove - 1.5 mm
• Number of chain links - 78 pieces
• Chain speed - about 19,3 m/s
• Fuel tank capacity - 550 ml.
• Oil tank capacity - 260 ml.
• Oil pump - automatic with adjustable dosage
• Fuel - a mixture of gasoline and oil
• Mixture ratio - 40:1
• Weight of saw - 6,7 kg
• Sound power level guaranteed - 117 dB (A)
• Housing - plastic
• Producer - NAC

1. Metal drive wheel and swivel guide for even wear
2. Emergency starter for easy starting of the device
3. Comfortable handle to hold the device equipped with a safety brake acting immediately in the event of the operator's hand slipping off the handle.
4. Convenient handle with easy access to the ignition switch and suction lever
5. Features a metal engine carter
6. Metal resistance fangs for easy cutting
7. Additional fuel pump to help start the cold engine
8. The saw has a anti-reflection system LOW KICKBACK - The special shape of the chain cutting tooth protects against the reflection of the guide when cutting.
9. Reusable air filter - reusable cleaning
10. Original manufacturer's packaging

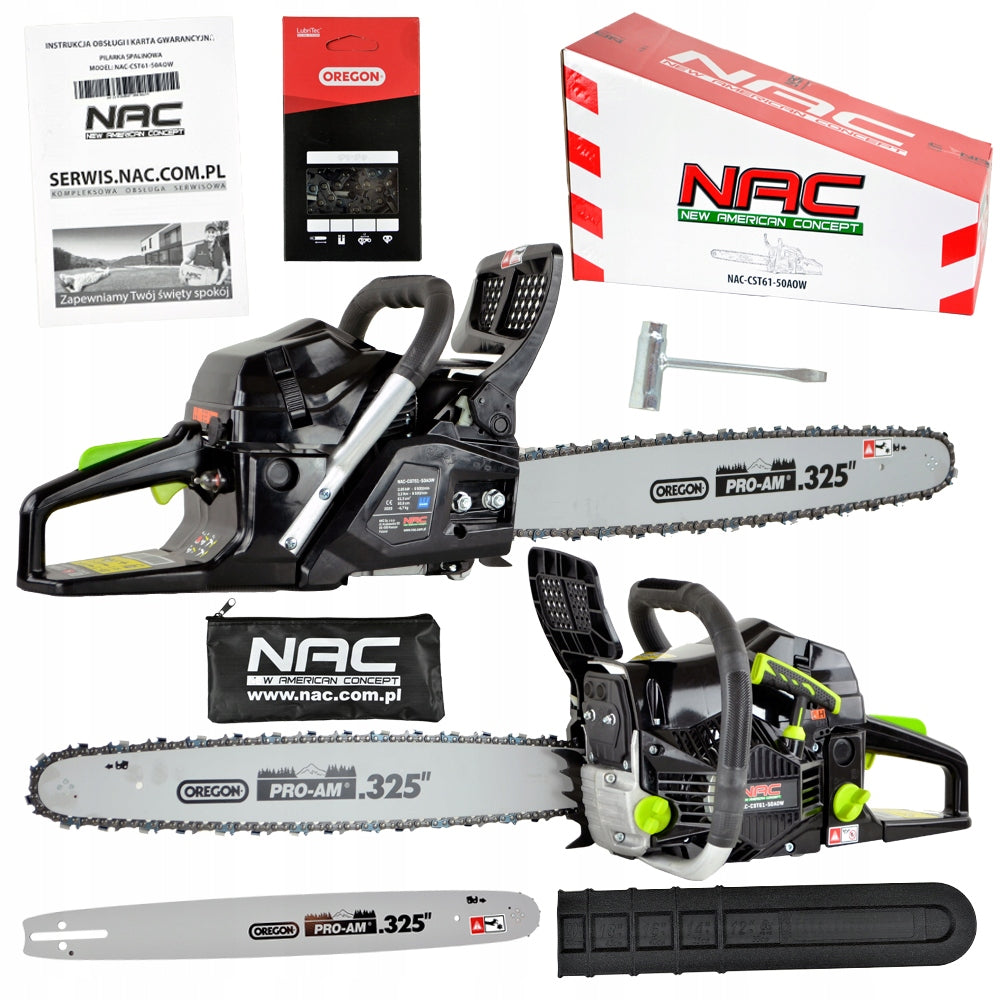

11. Includes guide and chain American company OREGON, chain guard and toolbox with keys
12. Simple chain tensioning system without having to remove the side guard

• Diesel Saw
• Chain guide
• Cutting chain
• Metal resistance fangs
• The Key to the Candle
• Container for making a fuel mixture
• Universal screwdriver
• Mounting Wrenches
• Chain Sharpening File
• Guide guard
• Mounting screws
• Warranty card
• EC declaration of conformity
• Instruction in Polish
• Original packaging
