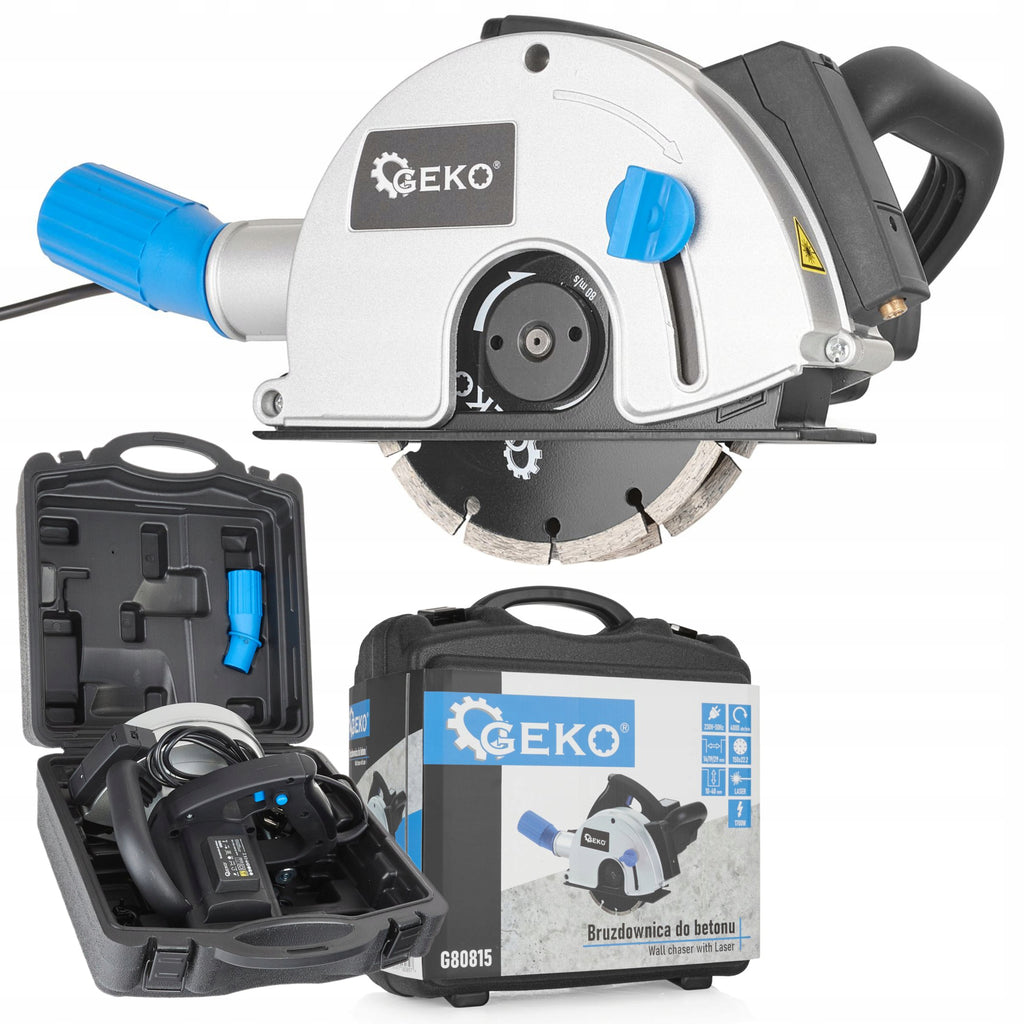

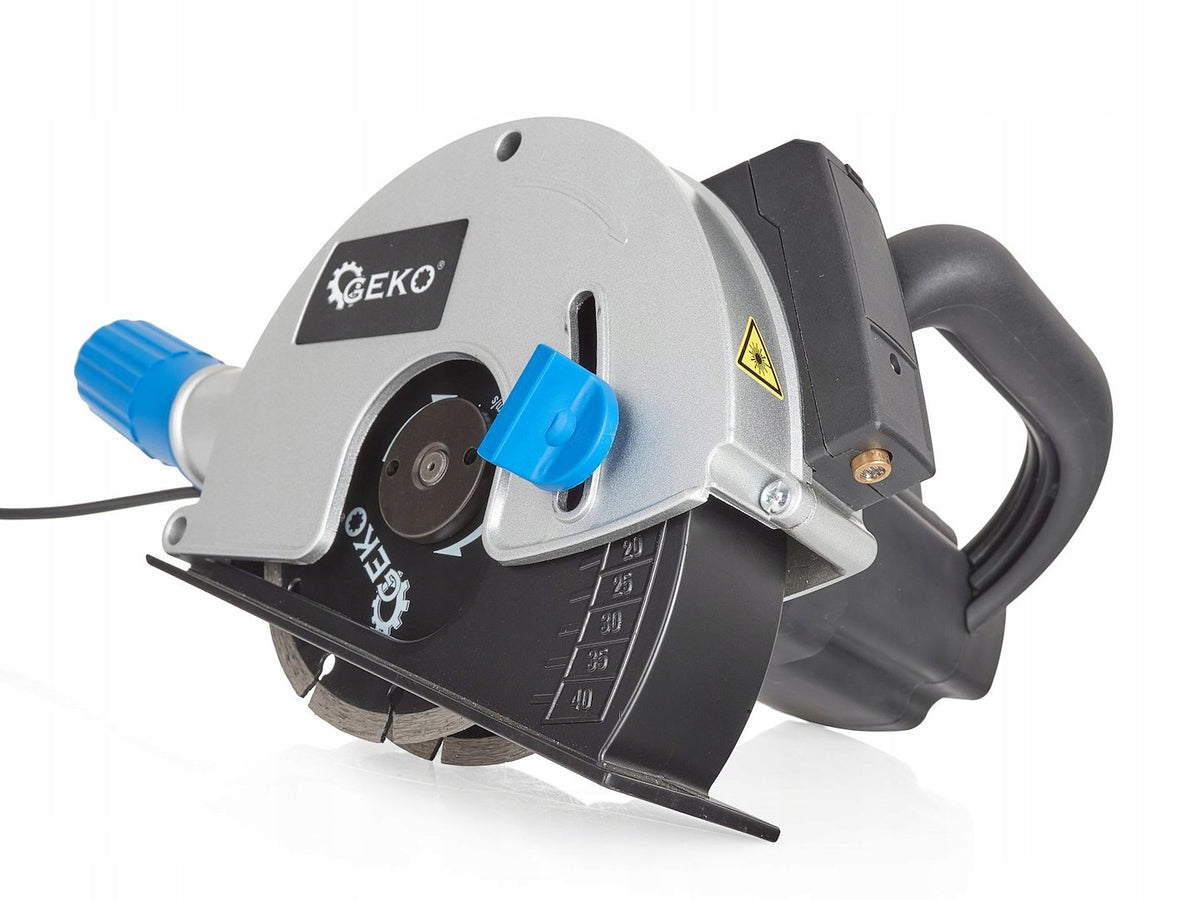

Betono frezavimo įrenginys GEKO, 2 diskai, lagaminas, 1700W

Trumpai apie prekę

Prekė: Betono frezavimo įrenginys GEKO, 2 diskai, lagaminas, 1700W. Kategorija: Sienų frezos.

• Gamintojas: Geko
• Modelis: G80815

Product code: G80815

Concrete groover brand GEKO with laser indicator is a device that is used to precisely and effectively create furrows in concrete and other building materials. It is an indispensable device when performing electrical and hydraulic installations, etc.

Power 1700W

The furrow is equipped with a engine with a power of 1700W, which provides enough power for cutting concrete. Thanks to the high engine speed (up to 4000 revolutions per minute), the tool is effective and efficient in the furrowing process.

The stated power (1700W) is the real power of the device, not overstated as in the case of Chinese counterparts with an alleged power of 3100W.

Shields

The device allows the installation of two diamond discs with dimensions of 150x1,9x22,2 mm. Two discs working simultaneously allow for faster and more efficient furrow formation compared to single-disc tools. Thanks to this, work on larger areas can be carried out much faster. In addition, two blades allow for parallel furrows of fixed width, which is important for projects requiring precision. With two discs, the cutting process is decomposed into both discs, which reduces the load on one blade and increases the tool life.

Depth adjustment: 10-40 mm

Ability to adjust the depth of furrowing in the range from 10 to 40 mm. For many projects, it is important that the furrows are cut exactly at a certain depth. The depth adjustment allows the tool operator to fine-tune the cutting depth, which is important for jobs that require precision. By adjusting the depth, you can avoid too deep cuts that could damage structural concrete components or other elements under the concrete surface, such as pipes or pipes.

Laser pointer

The laser pointer built into the device helps to achieve very high precision when cutting furrows. The tool operator can track the laser point, which allows for accurate and parallel cutting, which is especially important in projects that require precision, such as laying pipes or cables.

In addition, the laser pointer makes the operation of the tool easier for the operator, especially for people who do not have much experience in working with furrows. The laser pointer makes it easy to guide the tool accurately. Thanks to the laser pointer, the risk of making mistakes when cutting furrows is reduced. This prevents unnecessary adjustments and re-cutting, which can be costly and time-consuming.

Connection to vacuum cleaner

The connection to the vacuum cleaner allows you to connect an industrial vacuum cleaner or a specialized dust extraction device directly to the furrow. This allows for effective and immediate removal of dust during operation. Dust reduction is important for the health and safety of the operator, as concrete dust can be harmful to the respiratory system.

Dust reduction with a vacuum cleaner means that the operator does not have to interrupt work to clean the work area. This increases work efficiency and allows you to continue without interruptions.

Width of furrows: 14, 19 and 29 mm

The groover allows you to create furrows of different widths, allowing you to flexibly adjust it to different needs. Adjusting the width of the furrows to the design can help reduce the amount of material used to fill the furrows, which translates into cost savings.

Product characteristics:

• The power of 1700W and high rotational speed (up to 4000 revolutions per minute) ensure efficiency in concrete furrowing.
• Possibility of mounting two diamond discs, which speeds up work on larger surfaces creating parallel furrows of fixed width.
• Depth adjustment from 10 to 40 mm.
• Creation of furrows of different widths (14, 19 and 29 mm).
• Laser pointer for very high precision furrow cutting.
• Vacuum cleaner connection to remove dust directly from the tool.

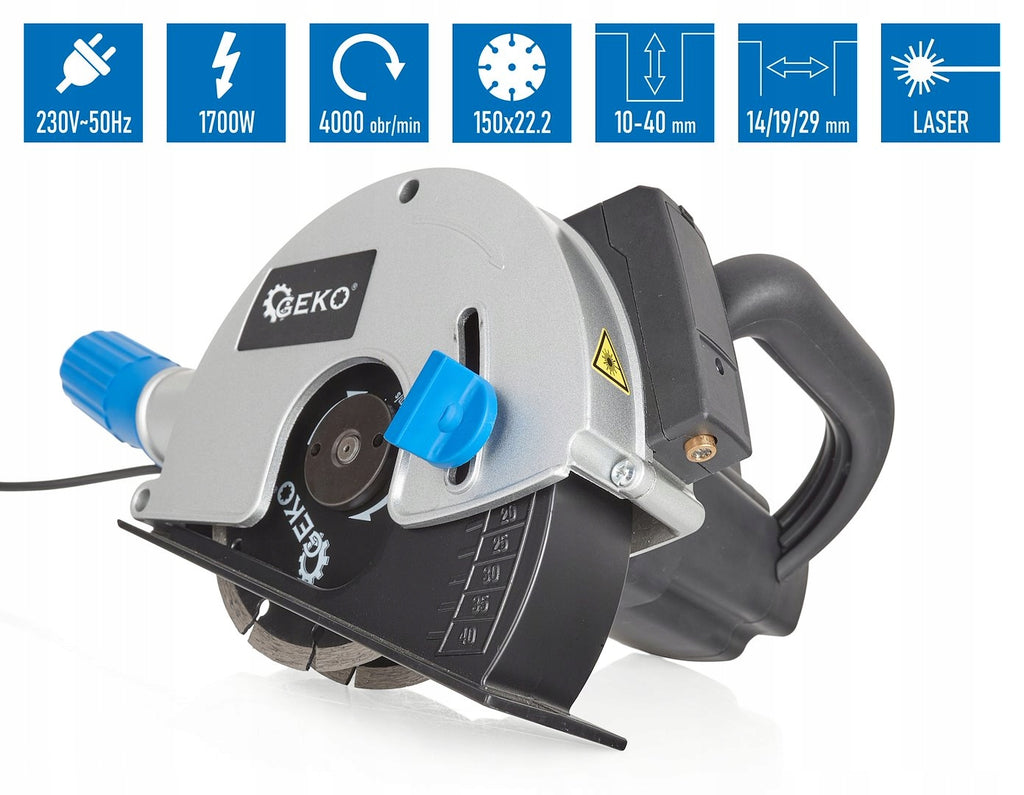

Technical specification:

Brand: GEKO

Power: 1700W

Power supply: 230V / 50Hz

Rotation speed: 4000 rpm /min

Width of furrow: 14/19/29 mm

Cutting depth: 10 - 40 mm

Disc dimensions: 150x1,9 mm

Mounting hole diameter: 22,2 mm
