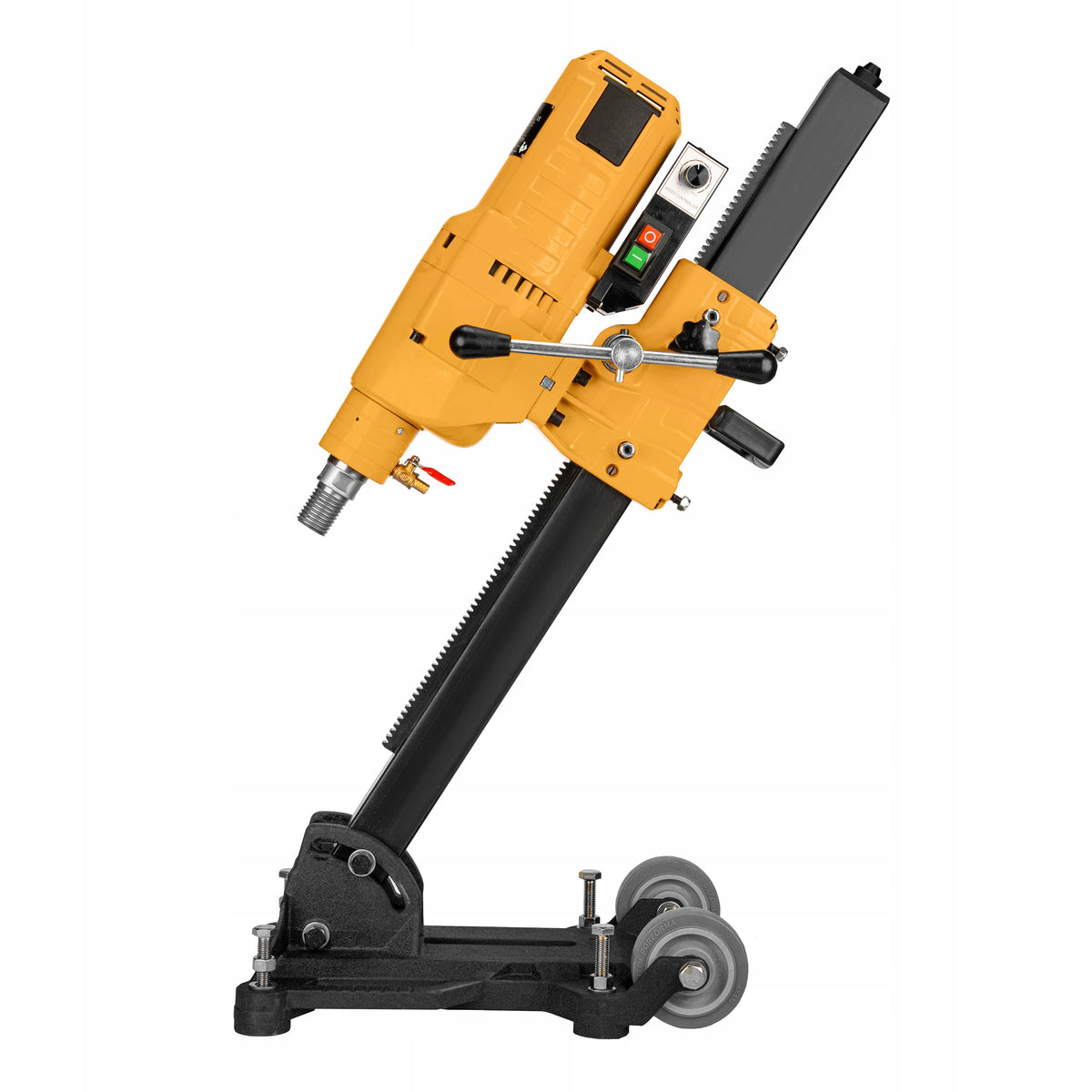

Betono gręžimo stovas WABROTECH WT255E, 255 mm, 3950 W

Trumpai apie prekę

Prekė: Betono gręžimo stovas WABROTECH WT255E, 255 mm, 3950 W. Kategorija: Grunto grąžtai.

• Gamintojas: WABROTECH
• Modelis: WT255E
• Svoris: 32 kg

SPECIFICATION

Engine power: 3950 Watt

2 spindle threads:

External thread- 1 ¼” VNC

Internal thread- ½”

Power supply: 230 V / 50 Hz / C20

Soft start: YES

Speed control: YES | max. 580 rpm.

Drilled hole diameter range:

with a straight tripod – 12mm – 255mm

with the tripod tilted – 12mm – 240mm

Maximum drill length: 450mm

Max. Tripod angle: 70º

Vertical and horizontal drilling capability:Yes

Max. dimensions: 600 x 250 x 1100 mm

WT255E is a drilling rig with an inclined tripod, designed for drilling into hard and demanding materials. The powerful 3950 W motor and robust steel and die-cast aluminum construction make it possible to make holes with diameters from 12 to 255 mm. The tripod with adjustable angle of inclination up to 70° significantly expands the range of applications of the device, which makes it perfect for construction companies, workshops and wherever precision and maximum power utilization are crucial.

The heart of the WT255E drilling rig is a 3950 W motor, equipped with windings made of pure coil copper. This solution not only provides higher efficiency, but also significantly reduces the risk of failure compared to machines that use copper-coated aluminum windings. The durable gearbox and clutch effectively protect the device from the effects of overloads, while the additional overload protection ensures reliability and safety.

The WABROTECH WT225E drill bit in the version with an inclined tripod offers smooth rotation adjustment in the range of 0 – 580 mm, which allows you to adapt the device to work with drills of different diameters and a wide range of materials, such as asphalt, natural stone or reinforced concrete. The rotation control function also acts as a soft start, thanks to which the machine gradually reaches full power, eliminating the risk of unnecessary triggering of overcurrent circuit breakers, which often occurs at high starting current. In addition, the safety of the user during wet operation is ensured by the PRCD residual current circuit breaker, which effectively protects against electric shock.

The tilt tripod in the WT225E model offers angle adjustment in the range of 70°, and the feed lever can be mounted both on the left and on the right, adjusting the device to the preferences of the operator and the available space. High-quality castors make transportation much easier, eliminating the problem of cumbersome moving of the machine on the construction site. The set also includes a set of necessary anchoring accessories, ensuring that you are ready to work immediately after unpacking.

Model WT255E from WABROTECH is equipped with a spindle with ½” and 1 ¼” VNC threads and the following operating parameters:

• range of diameters of drilled holes at a straight tripod – 12-255 mm,
• range of diameters of drilled holes at the inclined tripod – 12-240 mm,
• maximum drill length – 450 mm,
• possibility of vertical and horizontal drilling, dry and wet.

The use of high-quality machine bearings guarantees stable operation and increases the service life of drills. As a result, the WT255E has gained wide recognition among professionals performing construction, construction, plumbing and stonemasonry work.

1 x Drilling Rig WT255E

1 x Inclined Tripod

1 x Feed Lever

1 x Water Drain Hose/Cable

1 x Anchor Kit

1 x PRCD residual current circuit breaker (on power cable)

1 x Brush Set

1 x Expansion screw

1 x Manual

Specifications
