Bevielio įtampos matuoklis SONEL VT-3 WMGBVT3

Trumpai apie prekę

Prekė: Bevielio įtampos matuoklis SONEL VT-3 WMGBVT3. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMGBVT3

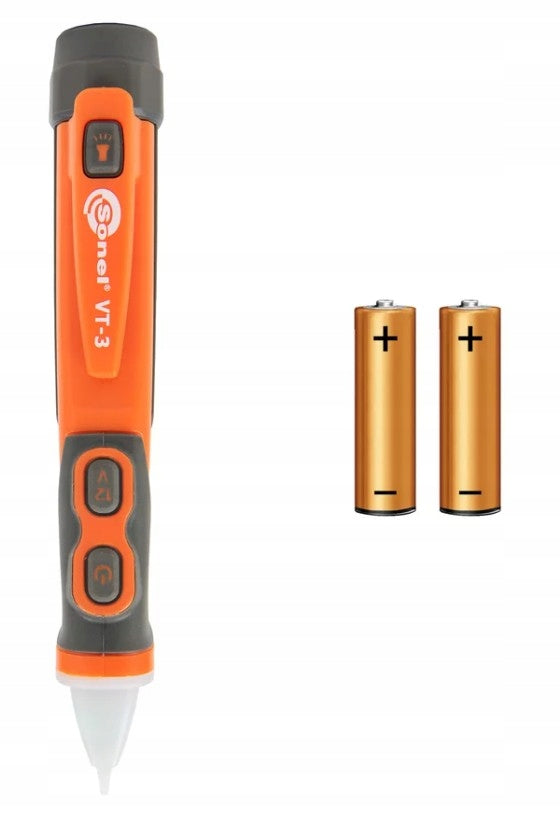

Contactless voltage indicator Sonel VT-3

Catalog index WMGBVT3

EAN 5907624029644

Specification

• indicators: LED and sounder
• voltage range: 100...1000 V AC, 12...1000 V AC, 50/60 Hz
• Measurement category according to PN-EN 61010-1: CAT IV 1000 V
• degree of protection according to PN-EN 60529: IP67
• Operating temperature: 0°C...+50°C
• humidity: max. 80%
• power supply: 2x 1,5 V battery (AAA, NEDA 24A or IEC LR03) - batteries included
• flashlight: single white LED

New incarnation of neon

Pocket-sized, non-contact voltage indicator Sonel VT-3 is a newer version of the popular "neonówka". The device is characterized by rich functionality, as well as lightness and ease of use. The device is designed to detect alternating voltage in wires and electrical equipment. The indicator has a basic detection range of 100...1000 V, but the lower threshold can be lowered to 12 V by pressing a special button. Colorful LEDs placed at the tip of the instrument inform about the operating mode and the level of detected voltage.

Sonel VT-3 is a fully functional, professional device hidden in an inconspicuous form and compact dimensions. Very durable housing made in IP 67 degree of protection provides a high level of protection against various types of mechanical damage, falls and even against water flooding. A special advantage of this tool are pocket dimensions, thanks to which its storage and transport are extremely easy. An additional convenience is a flashlight placed on the front, which allows you to illuminate the place of measurements. The device is also equipped with a rear flashlight useful when moving in dimly lit spaces.

The Sonel VT-3 voltage indicator makes it easy to measure even in narrow and hard-to-reach places where testing with a regular meter might not be possible. Combining basic measurement functions, solid construction and high comfort of use, the device works well in many areas, and is also characterized by trouble-free operation and competitive price. It is a complementary equipment for specialists in the electricity industry and despite its small dimensions, it will certainly often prove useful during work.

Application

The VT-3 indicator is a new incarnation of the classic “neonówka”. Lightweight, functional and easy to use, it is used to detect alternating voltage in wires and electrical equipment. The basic detection range is 100...1000 V. However, the lower threshold can be lowered to 12 V by pressing a special button. The operating mode and the level of detected voltage will be informed by colored LEDs hidden in the tip of the instrument.

Thanks to the improved design, the VT-3 maintains IP67 tightness, and its strength and ergonomics are no strangers to it. The built-in flashlight also plays an important role.

Characteristics

• two AC voltage detection ranges: 12V / 100...1000V
• Durable, two-composite housing
• waterproof with IP67 rating
• tip with backlight, adapted to power sockets
• traffic lights and sound signals when voltage is detected
• built-in LED flashlight
• ergonomic housing with the possibility of attaching to the belt
• work in 50/60 Hz networks
• power supply: 2x AAA 1,5 V battery
