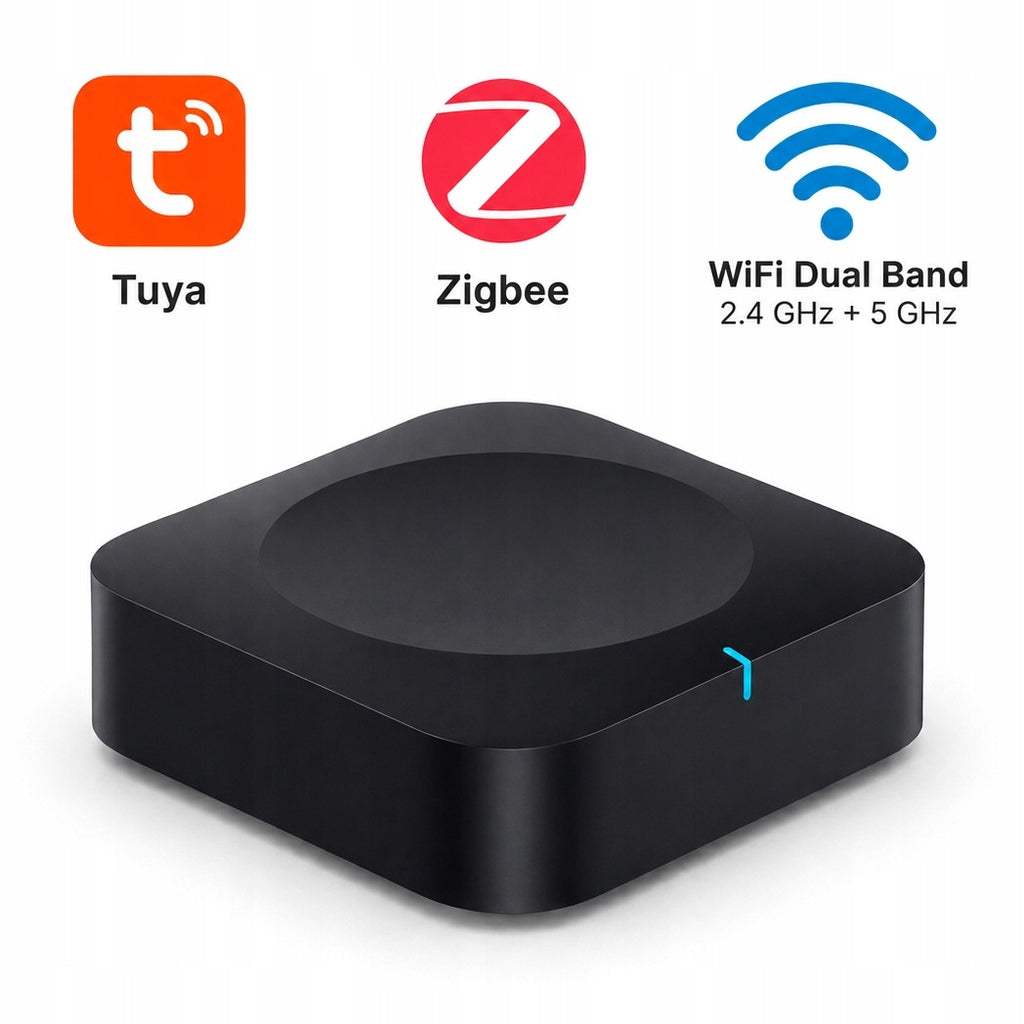

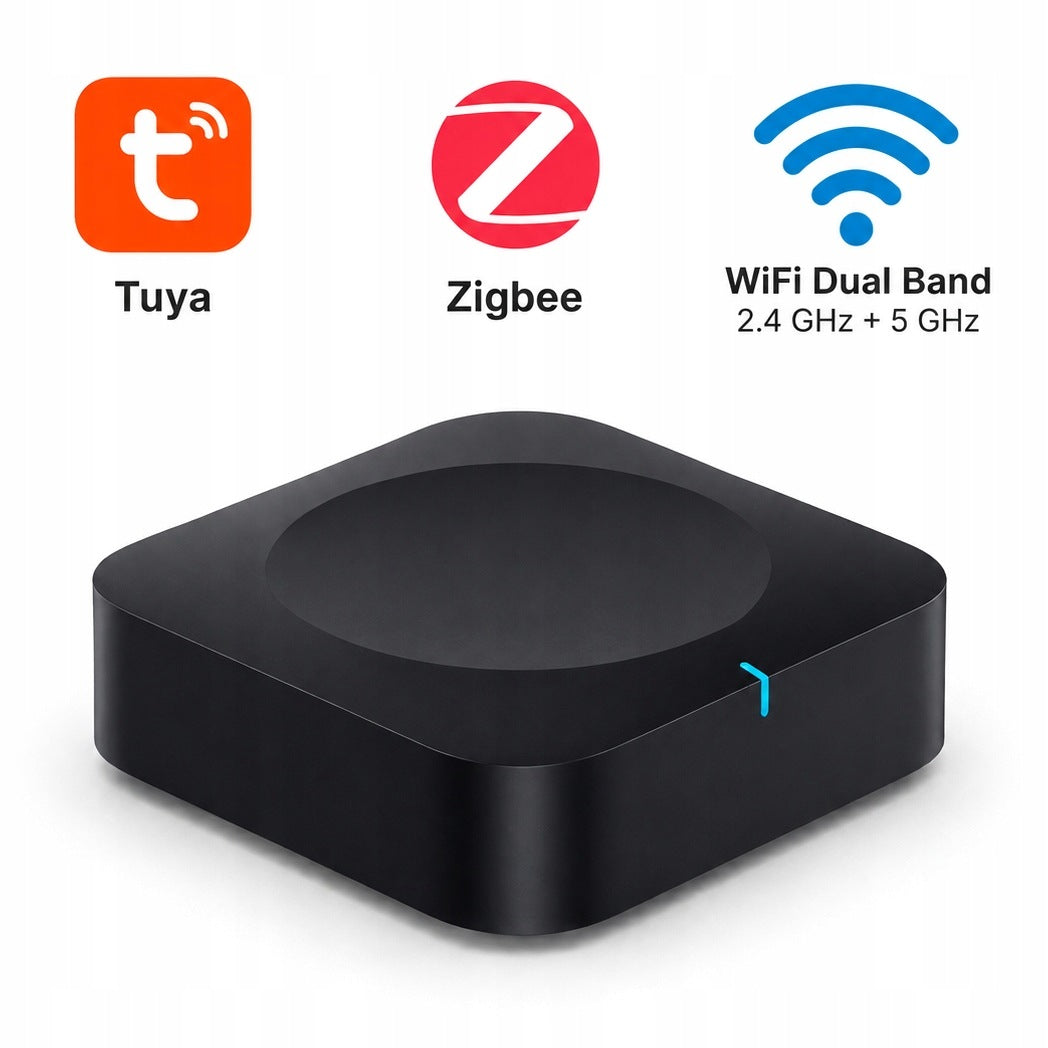

Bevielis ZigBee Tuya adapteris, WiFi 2.4/5GHz, Bluetooth BLE Sigmesh, USB-C

Trumpai apie prekę

Prekė: Bevielis ZigBee Tuya adapteris, WiFi 2.4/5GHz, Bluetooth BLE Sigmesh, USB-C. Kategorija: Centriniai blokai.

• Gamintojas: Tuya
• Modelis: Bramka Zigbee Tuya WiFi Dual Band 2.4 + 5GHz

WiFi 2.4/5GHz | ZigBee 3.0 | BLE (Bluetooth) Long Range | Sigmesh

Create the hub of your smart home with the latest official gateway from Tuya . Integrate lighting systems, security sensors, climate control, roller shutter drives, curtain drives, and many other smart devices into one stable gateway and mobile app.

• ⭐ Unique dual-band model that supports 2.4 GHz and 5 GHz Wi-Fi .

• ✅ Zigbee: Supports up to 128 permanently powered devices and up to 32 battery-powered devices.

• ✅ Sigmesh (Bluetooth Mesh): Supports up to 128 devices .

• ✅ BLE (Bluetooth Low Energy) Long Range: Support up to 4 devices .

▶ Communication and Protocol

• Multisystem: One device supports Zigbee, Bluetooth BLE 5.0 and Sigmesh for the smart home ecosystem in TUYA / Smart Life.

• Dual-Band Wi-Fi: The gateway connects to the router in both the 2.4 GHz, and fast 5 GHz bands, which eliminates range problems.

▶ Performance and Compatibility

• Local automation: Scenarios and automations work even without internet access.

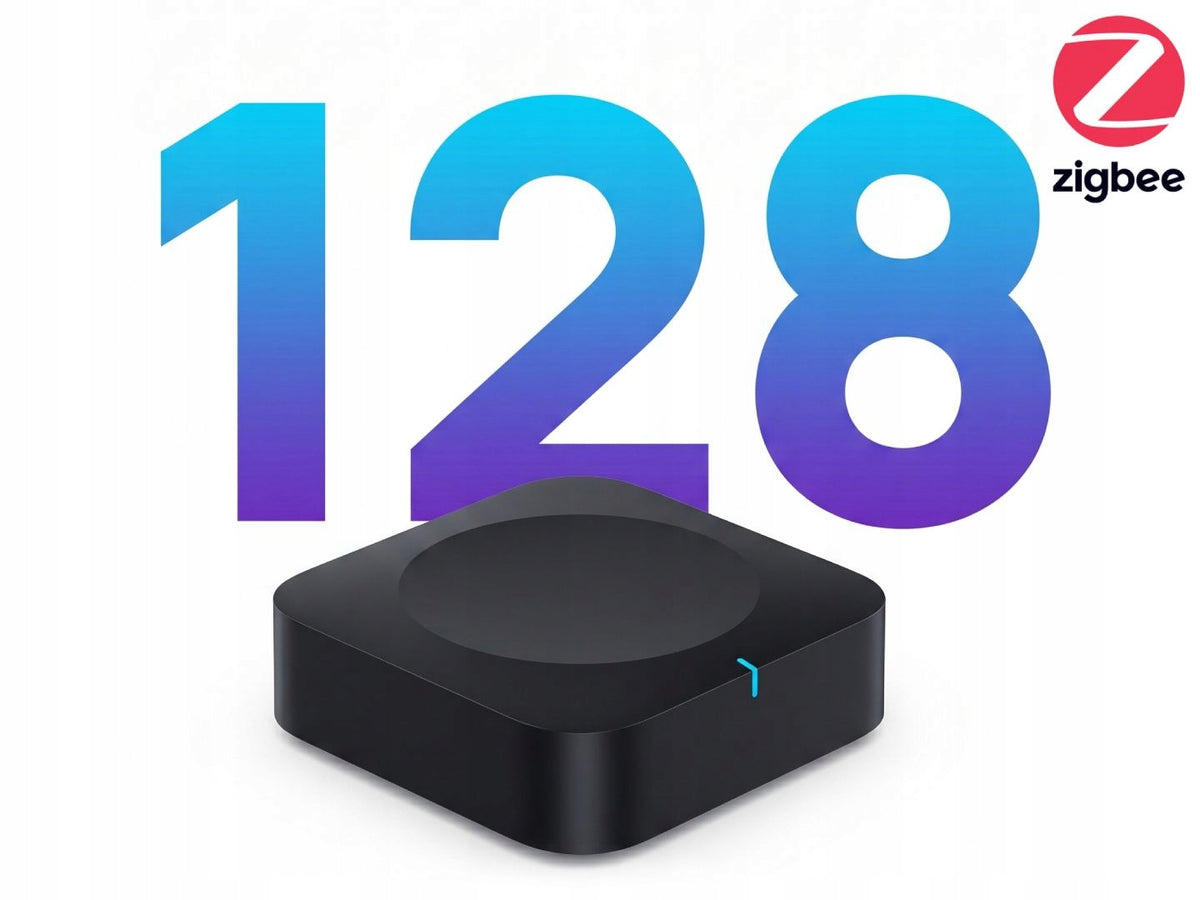

• Powerful capacity: Stable connection of up to 128 ZigBee devices at the same time.

▶ Management and Service

• Remote management: Full control by the application, remote restart functions and wireless OTA updates.

• Voice compatibility: Works with the most popular assistants: Amazon Alexa, Google Assistant and Siri.

ℹ Goal in Numbers:

Zigbee – Reliable standard for Smart Home

This is the most important protocol in your home. Most IoT devices rely on it to create an intelligent, on-premises network.

• Range: to 180m | Permeability: to 17m through walls.

Sigmesh – Smart lighting

Smooth management of multiple light points at the same time. Perfect solution if you are building advanced light scenes.

• Range: to 170m | Permeability: to 5m through walls.

BLE (Bluetooth Low Energy) Long Range – Longer battery life:

Provides an energy-efficient connection. This ensures that your mobile accessories and battery-powered sensors last much longer without replacing the cells.

• Range: impressive 190m in open space / no obstacles or disturbances.

Wi-Fi 2.4 GHz – Proven Network Foundation

Safe range even through thicker walls (30m).

• Power: +18 dBm | Sensitivity: -99 dBm.

Wi-Fi 5 GHz – Data transfer rate

Dedicated to tasks requiring rapid exchange of large amounts of data in close proximity to the gateway.

• Power: +16 dBm | Sensitivity: -99 dBm.

▶ Intelligent functions and signal diagnostics

It has a built-in signal diagnostic function. Directly in the Tuya / Smart Life app, you will check the signal strength for each protocol (Wi-Fi, Zigbee, BLE, Sigmesh), which facilitates optimal placement of devices in the house and eliminates "dead zones".

Thanks to local memory, once configured scenarios (up to 1000 automations) will be executed by the gateway even after the loss of Internet connectivity.

ℹ Status indicator

• Pulsing orange: Wi-Fi pairing mode (ready to set up)

• Pulsing blue: Adding child devices

• Red: No Internet connection

• Blue: Operating mode

Specification:

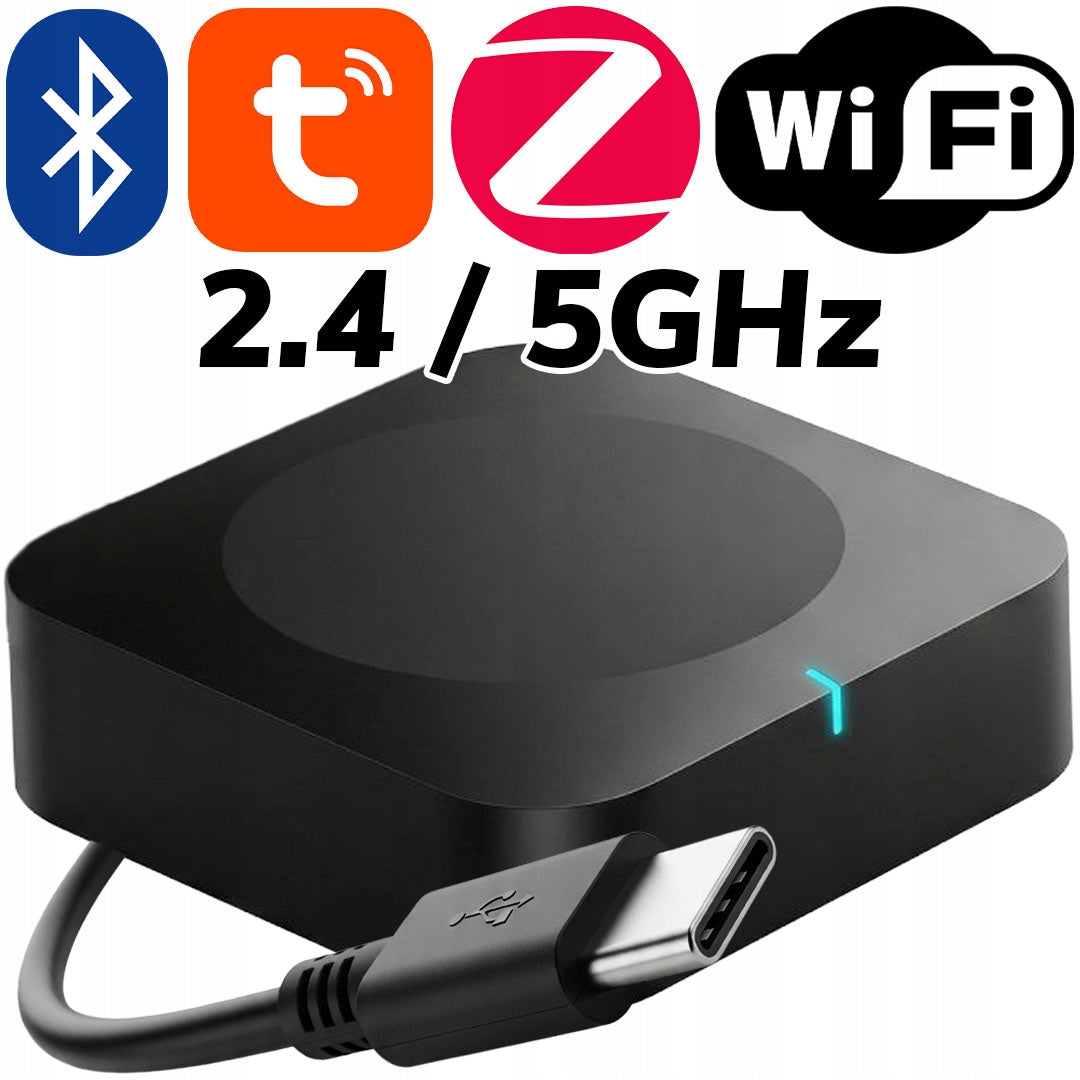

• Power Supply: 5V DC/1A (USB-C)

• CPU frequency: 330 MHz

• Flash memory: 128 Mbit

Wireless connectivity:

• 2.4 GHz Wi-Fi: 2400.0 – 2483.5 MHz | +18dBm

• 5 GHz Wi-Fi: 5150 – 5875 MHz | +16dBm

• BLE 5.0: 2402 – 2480 MHz | +10dBm

• Zigbee: 2400 – 2483 MHz | +11.5dBm

Network node limit:

• Zigbee: up to 160 devices (128 with constant power + 32 batteries).

• Sigmesh (Bluetooth Mesh): up to 128 devices.

• BLE (Bluetooth) Long Range: up to 4 devices.

Physical parameters:

• Dimensions: 66 mm × 66 mm × 19,8 mm

• Weight: 101 g

• Working temperature: 0 – 40°C

• Working humidity: max. 75%

• Antenna: High Gain IPEX Antenna

Included:

• Multigate ZigBee TUYA WiFi 2.4/5GHz Bluetooth BLE Sigmesh

• USB-C power cable

• Instructions

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Tuya
Parametry	Series	Home
Parametry	Kind	control switchboard
Parametry	Power supply	mains
Parametry	Communication	ZigBee
Parametry	Additional features	WiFi connection
Parametry	Manufacturer code	Bramka Zigbee Tuya WiFi Dual Band 2.4 + 5GHz
Parametry	EAN (GTIN)	5906268997203
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
