Aprašymas
Trumpai apie prekę

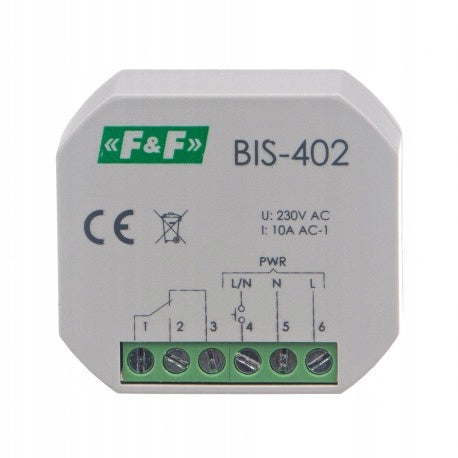

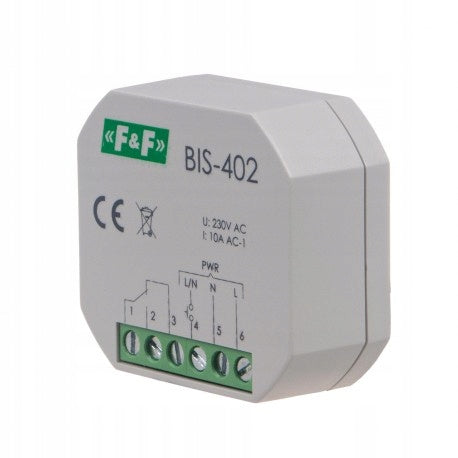

Prekė: Bistabilus relė BIS-402 F&F. Kategorija: Išoriniai moduliai.
- Gamintojas: F&F
- Modelis: 5908312594062
Electronic bistable relay enables switching on lighting or other device from several different points by means of control buttons connected in parallel.
Power supply: 230 V
Max load: 10 A.
Connection: screw terminals.
Technical data:
- Supply voltage: 165 ÷ 265 V AC
- Local control: YES
- Maximum load current AC-1: 10 A
- Executive element: relay
- Contact configuration: 1 × NO / NC
- Contact separation: YES
- Impact current resistance - cooperation with LED: NO
- Number of channels: 1
- Functionality: enable / disable
- Trip delay: 0.1 ÷ 0.2 s
- Control pulse current: less than 1 mA
- Cooperation with illuminated buttons: NO
- State memory after power failure: NO
- ON time function: NO
- Dedicated central control inputs: NO
- Radio control: NO
- Connection: 2.5 mm² screw terminals
- Tightening torque: 0.4 Nm
- Power consumption: 0.4 W
- Working temperature: -25 ÷ 50 ° C
- Dimensions: Ø54 (48 × 43 mm), height: 20 mm
- Installation: in a Ø60 flush-mounted box
- Protection degree: IP20
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | other |
| Parametry | Series | przekaźnik |
| Parametry | Brand | F&F |
| Parametry | Manufacturer code | 5908312594062 |
| Parametry | EAN (GTIN) | 5908312594062 |
| Parametry | Product weight with unit packaging | 0.2 kg |
