Bluetooth adapteris Volkswagen, Skoda, RCD 210/300/310, RNS2, 300/310, MFD2

Trumpai apie prekę

Prekė: Bluetooth adapteris Volkswagen, Skoda, RCD 210/300/310, RNS2, 300/310, MFD2. Kategorija: Siųstuvai.

• Gamintojas: SSYET
• Modelis: ADAPTER BT RCD200/300/310/500 RNS300/310 MFD2 RNS2

ADAPTER BLUETOOTH MODULE Audi Skoda Seat Vw

• Operation from the radio and steering wheel
• BLUETOOTH ver. 5.0
• POSSIBILITY OF CONVERSATION
• AND SENDING MUSIC A2DP

Tidal, Spotify, Youtube, Deezer, Yanosik, music from your phone, etc.

• USB (SUPPORT PEN DRIVE to 64 gb)

formats MP3 , FLAC , WAV

• AUX

FOR VAG CARS (VOLKSWAGEN,AUDI , SKODA, SEAT)

WITH CONNECTOR

12 PIN (plug & play in dedicated radio port)

The interface is connected directly to the factory radio in a dedicated port (plug&play) , the device can be placed in the glove compartment and the microphone can be removed in a convenient place

The changer allows us to play songs directly from the phone (streaming).

We change the transmitted songs from the radio and steering wheel.

or with usb from media up to 64gb in Flac, mp3, wav formats

Conducting conversations via hands-free (when the call arrives, we answer the conversation with the button >> )

The most important functions

• Connection to factory player plug & play
• Conducting conversations w hands-free
• Stream music from your phone wirelessly from the app (youtube, tidal, etc) or music tracks, voice messages, etc.
• Playing songs from usb do 64 gb, in the format : mp3 , flac
• Support with steering wheel and radio level

Connection on the back of the radio with a 12 pin plug (plug & play)

VOLKSWAGEN Vw

BEETLE 2009-2011

EOS 2007-2011

FOX 2004-2011

GOLF/GTI/R32 2004-2011

JETTA 2003-2011

PASSAT 2002-2011

POLO 2005-2011

RABBIT 2007-2011

TOURAN 2003-2011

TOUAREG 2002-2011

TIGUAN 2004-2011

T5 2003-2011

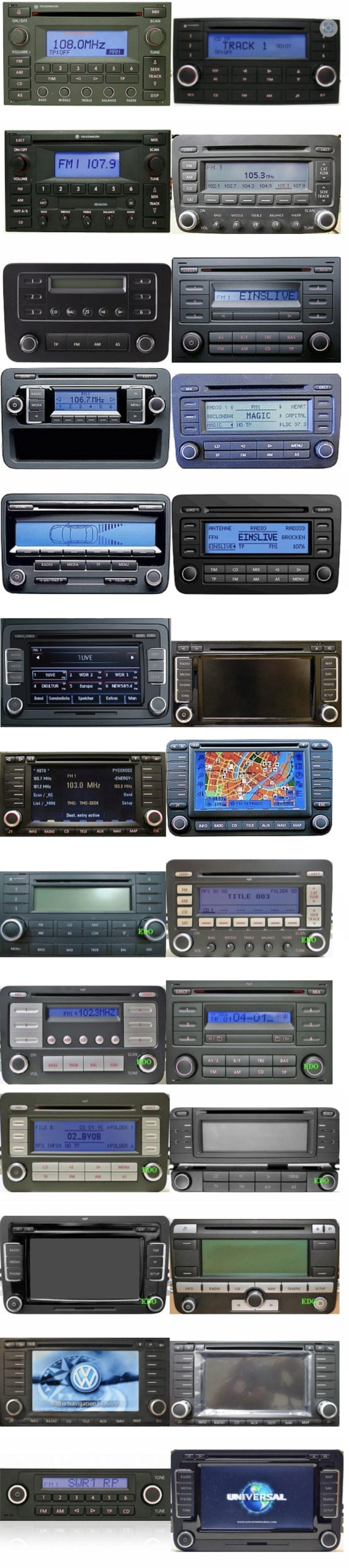

Cooperating radio with bluetooth adapter Vw (VOLKSWAGEN 12PIN):

Delat6, Delta 7,

Premium 6 , Premium 7,

R100, R110,

RCD100, RCD200, RCD210, RCD300, RCD310, RCD500, RCD510.

NAVIGATION 7L6, Z6Z7, NEW PHAETON, RNS2, MFD2

RNS 300 ,RNS310 ,RNS510 (without mmi)

. .

AUDI

A3                      2008-2010

A4/S4                2007-2009

R8                     2006-2009

TT                     2007-2010

Compatible Radios for the Bluetooth Adapter Audi (AUDI RADIOS 12PIN):

Concert 3, Chorus 3, Symphony 3,

Chorus 2 Plus, Concert 2 Plus , Symphony 2 Plus

Navigation Plus 3,

Delta 6, Delta 7,

Navi Bns 5.0 (WITHOUT MMI), Navi Rns-E (WITHOUT MMI), Altea CD01

..

SKODA

FABIA

OCTAVIA 2007-2011

SUPERB 2008-2011

YETI

Cooperating radio with bluetooth adapter Skoda

(12PIN RADIO):

Beat, Blues, Cruise, Amundsen

Dance, Stream , Stream Mp3 ,

Swing, Bolero, Columbus

Symphony Mp3

Melody CC, Melody CD,

MFD 2, Nexus DVD,

Rhapsody,

RCD 300, RCD 500,

RNS2, RNS 300

. .

SEAT

ALTEA 2005-2010

LEON 2006-2010

TOLEDO 2006-2010

Cooperating radio with bluetooth adapter Seat

(12PIN RADIO SEAT):

Audio CD1 CD2 CD3 system,

Rns2, Rns4, Mfd2,

Pn1(monochrome),

Pn3 (multicolor)

Altea CD 02, Lena

Soundsystem 2

Rcd200 Rcd210, Rcd300

SE250, SE350 ,SE359, SE360,

Radio CD1/CD2/CD3

• Plug & play installation
• Steering wheel operation
• A2DP wireless music streaming
• Conducting hands-free conversations
• support up to 594 songs (6 folders of 99 songs)
• memory of the last played track
• small dimensions of the device
• power supply from the radio
• plays mp3, wma, flac format
• support pen drive (64GB), jack-jack (AUX cable)
• Folder support
• Simple navigation from the radio
• clear sound

-DAC resolution:20BIT

- Harmonic distortion: 0,05%

-S/N ratio: 90db

- 20Hz-20Khz frequency response

Assembly

1. Turn off the ignition in the car, pull out the radio

2. We connect the mass cable to the screws on the radio.

3. Place the pen drive in the changer and connect the changer to the radio.

4. Start the ignition and check the correct operation of the device.

5. If the test passes correctly, it will wipe the wire from the changer and place the radio in your pocket.

In order for songs to be properly recognized by the changer, they must be placed in CD01, CD02, CD03, CD04, CD05, CD06 folders, each folder is able to fit up to 99 songs.

-Changer with bluetooth

-microphone

-jack-jack cable

-Instructions in language. Polish

Specifications
