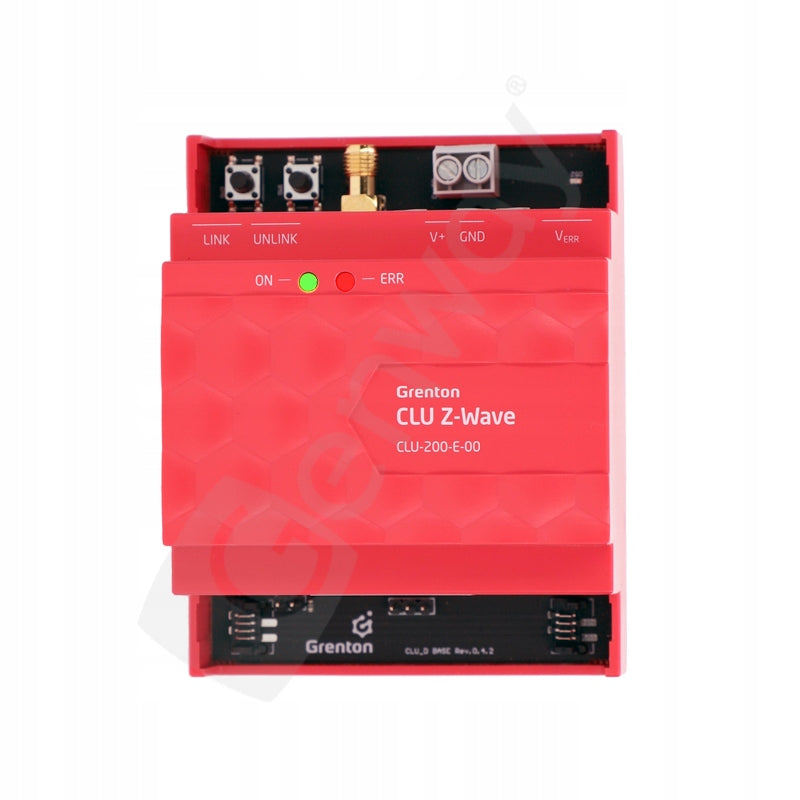

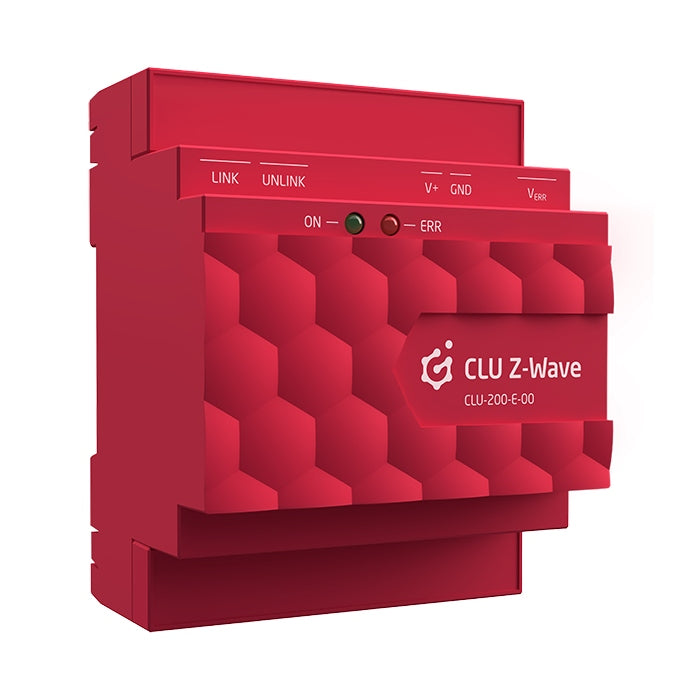

Centrinis valdymo blokas Grenton CLU-Z-WAVE 2.0

Trumpai apie prekę

Prekė: Centrinis valdymo blokas Grenton CLU-Z-WAVE 2.0. Kategorija: Centriniai blokai.

• Gamintojas: Grenton
• Modelis: CLU-200-E-00

The main module of the GRENTON system for mounting on DIN rail - CLU (COMMON LOGIC UNIT) with Z-Wave wireless communication interface.

• stores your smart home setup
• stores data (privacy)
• enables connection of the system to the Internet (remote management of the smart home)

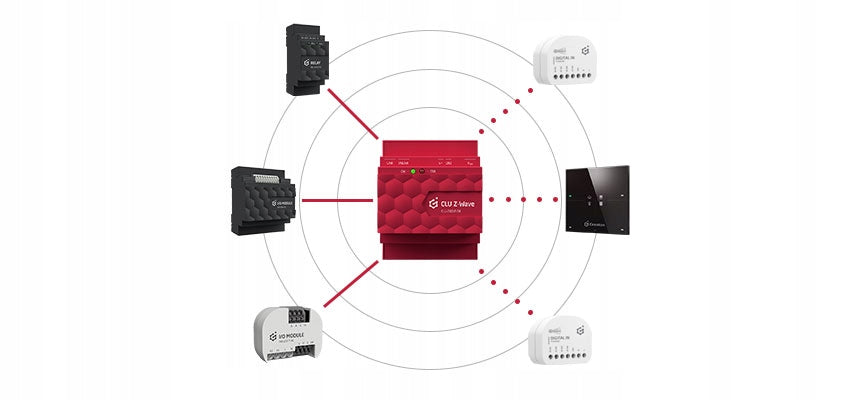

• communicates with other elements of the Grenton system wired or wirelessly
• allows you to connect up to 48 modules (or 128 inputs/outputs) forming the system
• Communicates with subsequent CLU modules for larger systems (scalability)
• Equipped with Z-Wave radio interface (e.g. for connecting roller shutters and roof windows FAKRO)
• It has an Ethernet port

Why Grenton?

It’s time for a smart revolution in your home! Discover how technology can serve you every day. Explore a system that works perfectly with you and create your own world with it.

Foundations are important, and these Grenton have excellent

Grenton is a system that not only does everything that other smart home systems can do, but it does it in a completely new, unique way. The completely object-oriented architecture of the system makes what was difficult or even impossible in the existing systems, in Grenton is simple and intuitive.

Wired where possible, wireless where needed

Grenton uniquely combines the best of cable and wireless systems.

It's your smartphone, take control of it

With Grenton Visual Builder, you can quickly create individual interfaces for yourself, your wife and children, and arrange icons and buttons differently in each of them.

Grenton object manager

You can easily configure your system because we give you extraordinary tools.

Smartphone, panel or remote control? Grenton gives you a choice

Smart home systems give you a lot of control options. But only GRENTON gives you them all in one system! Choose how to control your smart home as comfortably as possible.

Technical data

Power supply DC: 24 V

Maximum energy consumption 2.4 W

Maximum current consumption (@24V): 100 mA

Maximum connection wire cross-section: 2.5 mm^2

Maximum radio signal power: 1 mW

Weight: 145 g

Size DIN 4

Dimensions (H /lat. /main ) 58/71/90mm

Operating temperature range: 0 – 45 °C

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Grenton
Parametry	Series	TF-Bus Z-Wave
Parametry	Kind	control switchboard
Parametry	Additional features	radio communication
Parametry	Product weight with unit packaging	0.145 kg
Parametry	Manufacturer code	CLU-200-E-00
Parametry	EAN (GTIN)	5902983719083
Parametry	Batteries included	no
