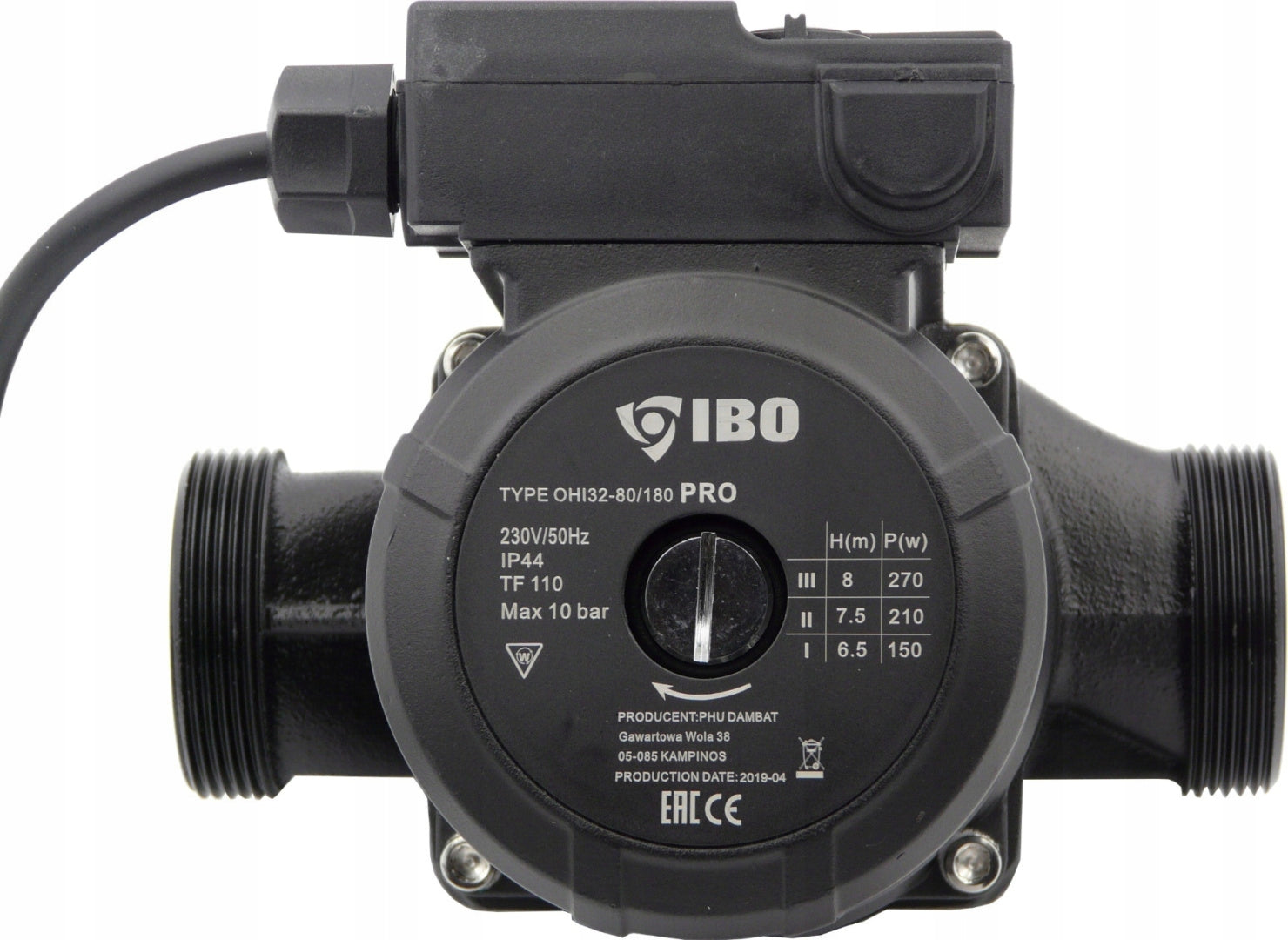

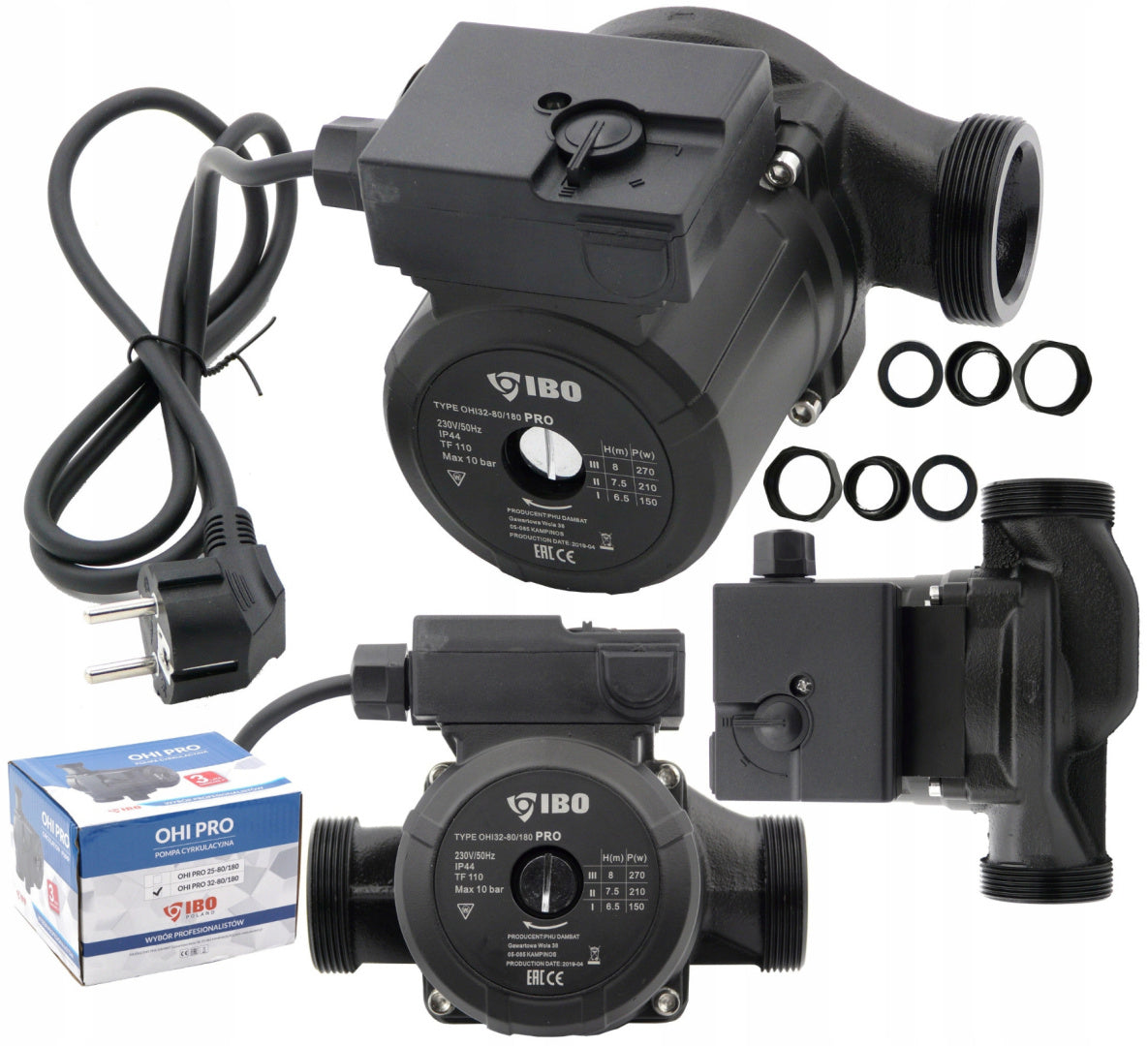

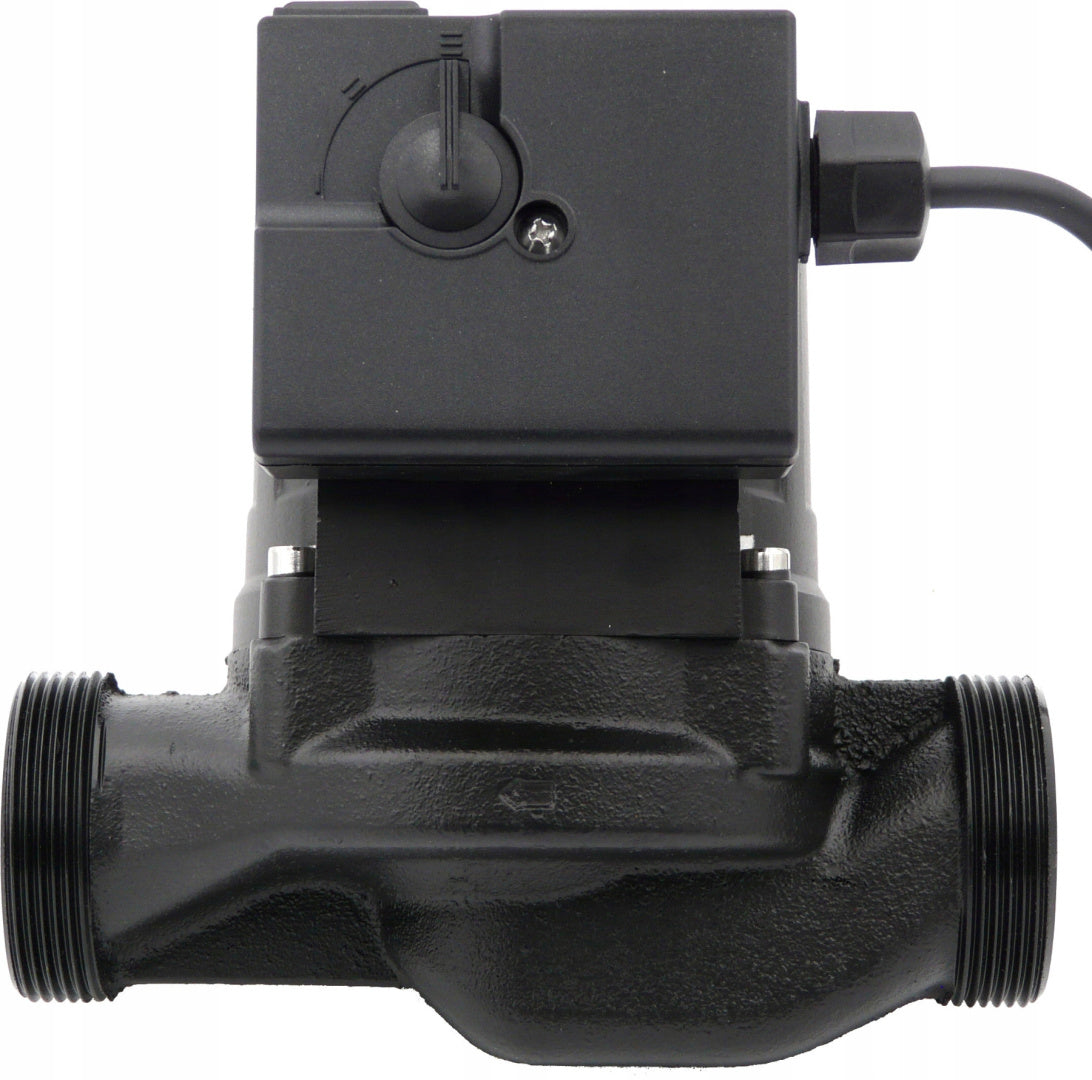

Cirkuliacinis siurblys OHI 32-80/180 PRO su varžtais

Trumpai apie prekę

Prekė: Cirkuliacinis siurblys OHI 32-80/180 PRO su varžtais. Kategorija: Elektrinių įrankių rinkiniai.

• Gamintojas: IBO
• Modelis: OHI PRO 32-80/180

+ SCREWS

OHI circulation pumps are designed to force circulation in small and medium-sized central heating circuits in single-family buildings. Pumps can only work in water circuits.

Maximum water temperature 110ºC.

Maximum pressure in the CO 10 bar system.

It is not permitted to use OHI pumps in circuits containing a factor other than water (e.g. glycol, transformer oil, etc. ).

Pumps must not operate in water circuits where solid contaminants may occur (e.g. pieces of rust, boiler stone).

Before the pump, a settling filter should always be installed to protect the device from possible contamination.

Thanks to the use of special construction materials, the pump is very resistant to high temperature and high pressure.

• durable and proven construction materials (noryl rotor, ceramic shaft, body made of cast iron)
• adjustable rotational speed (3 operating ranges)
• standard connection spacing (180mm)
• simple and quick installation (gaskets included)
• low power consumption
• reliable
• resistant to corrosion
• Quiet operation of the pump

• Capacity max 88 L/min
• Lifting height nax 8 m
• Power supply 230V
• Mounting distance 180 mm
• Max temp. water 110°C
• Max installation pressure CO 10bar

1 GEAR

• lifting 6,5 m
• capacity 43 l/min
• Engine power 150 W

2 GEAR

• lifting 7,5m
• capacity 103 l/min
• Engine power 210 W

3 GEAR

• lifting 8m
• capacity 160 l/min
• Engine power 270 W
