Daugiaetapis hidraulinis siurblys IBO MH 2200 INOX 400 V

Trumpai apie prekę

Prekė: Daugiaetapis hidraulinis siurblys IBO MH 2200 INOX 400 V. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: IBO
• Modelis: 1387

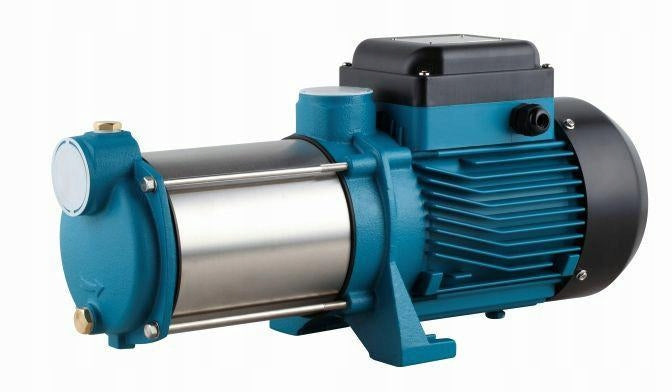

MULTISTAGE HYDROPHORE PUMP MH 2200 INOX 400 V IBO

The MH 2200 INOX pump from IBO is a multi-stage pump that uses a three-phase motor with a power of 2,2 kW. The device can be used to pump clean water from deep-sea intakes or water reservoirs. Due to its high power, it will work well in larger water supply systems and extensive land irrigation systems. The pump can successfully cooperate with a hydrophore tank of any capacity. Recommended for use at home, in the garden, on the plot, in the workshop or in an industrial or craft enterprise.

The MH 2200 INOX pump has steel rotors. The stainless steel body and motor shaft are also available. The whole has high resistance to corrosion and mechanical damage. The pump is easy to install and remove. In addition, the service itself does not cause major problems. Everything is intuitive. The device can work in any conditions. It is equipped with a thermal switch, so that the motor is not exposed to overheating and working at too high a temperature. The MH 2200 INOX pump is energy-efficient and very quiet during operation, which has a positive effect on the environment. Proper operation of the device is a guarantee of long-term reliability. The pump operates at a capacity of up to 180 l/min, reaches high pressure, has the ability to lift water to a maximum height of 60 meters and can suck it from a depth of up to 8 meters. The suction and discharge nozzles have a diameter of 1 ¼”.

PRODUCT FEATURES :

Pump parameters

• Maximum capacity [l/min] : 180

• Maximum lifting height [m] : 60

• Maximum pressure [bar] : 6

• Maximum suction depth [m] : 8

• Voltage [V] : 400

• Rated motor power [kW] : 2,2

• Suction nozzle: DN32 (1¼")

• Piston connector: DN32 (1¼")

• Impellers: Stainless Steel

• Number of rotors: 5

• Producer: IBO

• Height [cm] : 18

• Width [cm] : 21

• Length [cm] : 46

• Weight [kg] : 19,5

Specifications
