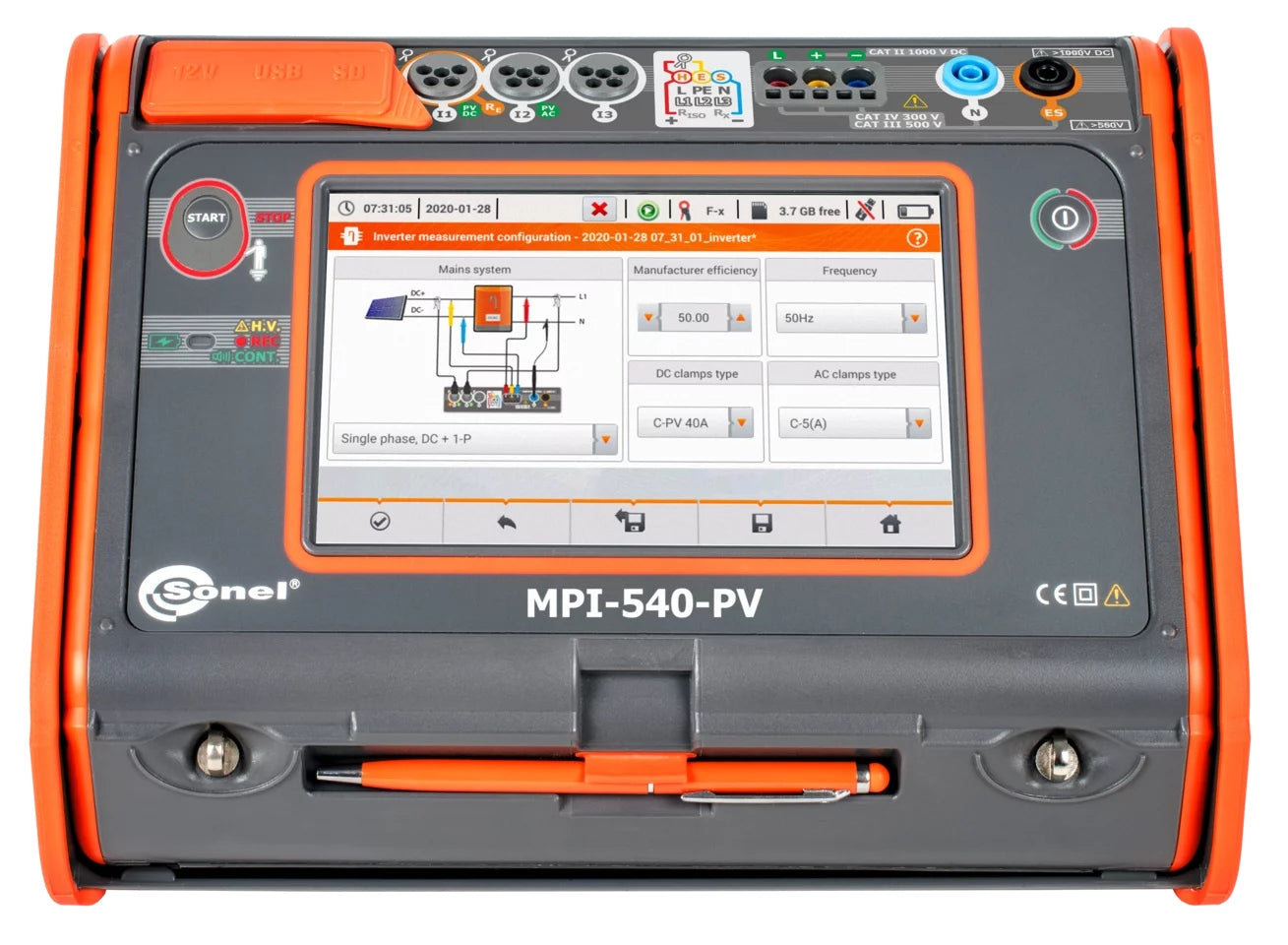

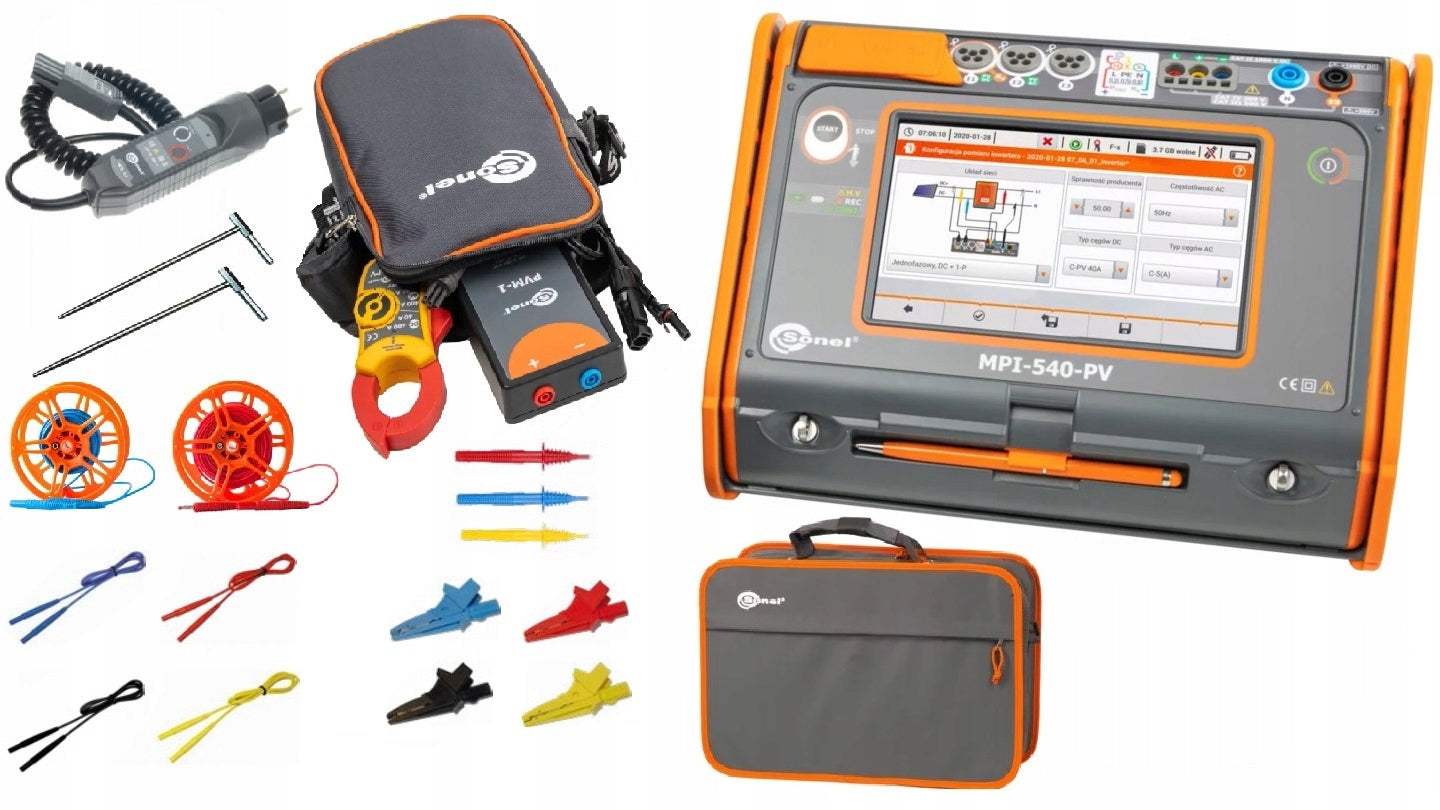

Daugiafunkcis matuoklis Sonel MPI-540-PV Start su priedais ir sertifikatu

Trumpai apie prekę

Prekė: Daugiafunkcis matuoklis Sonel MPI-540-PV Start su priedais ir sertifikatu. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI540PVS

Multifunctional meter for electrical installation parameters without flexible clamps Sonel MPI-540PV Start WMPLMPI540PVS

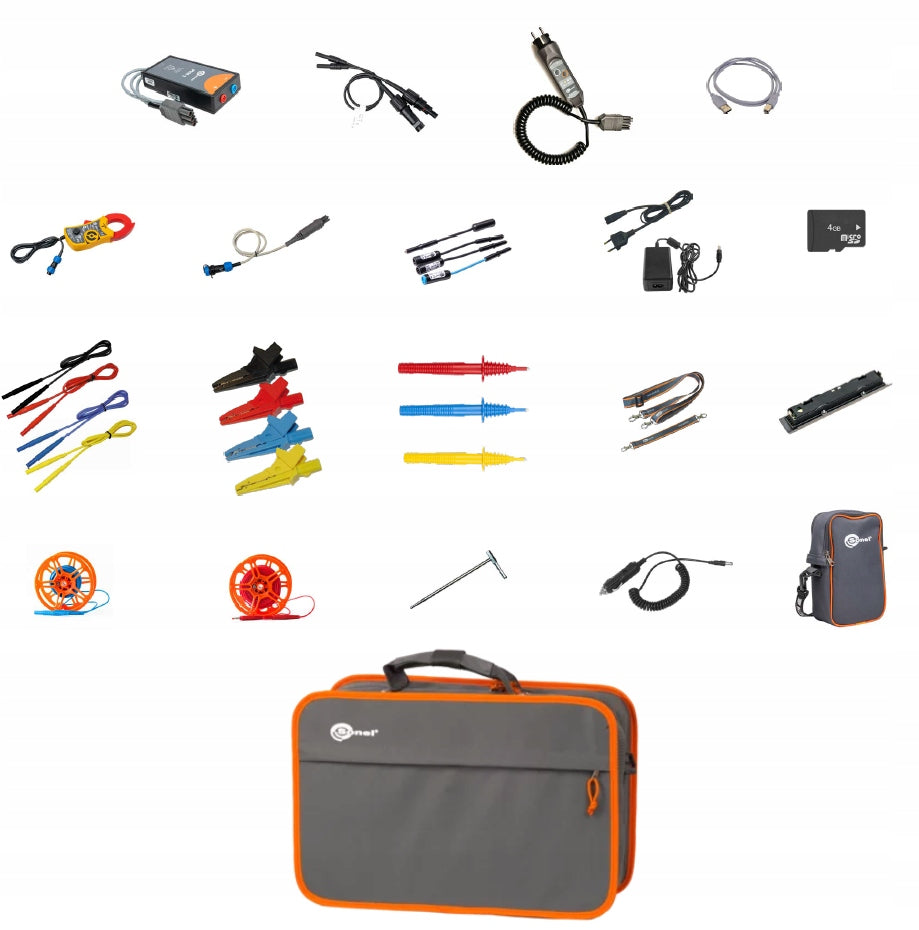

MPI-540-PVS with standard equipment, without 3 pieces of flexible clamps Sonel F-3A.

AUTHORIZED DISTRIBUTOR OF SONEL - YOU RECEIVE SUPPORT, CERTAINTY OF PURCHASING FULL-FLEDGED EQUIPMENT AND PROFESSIONAL ADVICE.

By purchasing a meter in Merazet, you receive a 10% discount on calibration in the Merazet laboratory.

The Merazet laboratory operates in accordance with the quality management system PN-EN ISO 9001:2009 and based on the requirements of PN-EN ISO/IEC 17025:2005, ensuring measurement consistency and high parameters of the obtained results.

Multifunctional meter of electrical installation parameters Sonel MPI-540-PV is an advanced tool designed in particular to measure the parameters of photovoltaic installations. With the help of one device, it is possible to perform a whole range of tests on the DC and AC side in accordance with the guidelines of PN-EN 62446. In addition, the Sonel MPI-540-PV is also used to carry out all measurements for determining the state of home and industrial electrical safety. The presented meter is a device with advanced capabilities, dedicated to specialists operating in the installation and electrical industry.

When measuring the parameters of a photovoltaic installation, the automatic meter converts the parameters to the STC (Standard Test Conditions) reference conditions. Measurements of voltages, currents and power on the AC and DC side of the inverter will verify its efficiency. After transferring the data stored in the meter’s memory to the Sonel PE6 program, it is possible to generate a report on the tests of photovoltaic installation parameters.

With a view to automating measurements, the Sonel MPI-540-PV meter has been additionally enriched with the function of testing residual current circuit breakers in Auto mode. The instrument also has pre-programmed measuring sequences (so-called. self-tests), which can be expanded with their own sequences if necessary. The capabilities and functionality of the meter will additionally increase the properly selected accessory, e.g. in the form of an AutoISO-1000C adapter, which allows automatic measurements of insulation resistance of 3-, 4- and 5-wire wires.

Significantly more than a multifunction meter

• The largest touch panel on the market (7”) – extraordinary ergonomics and ease of use
• Removable microSD card – easily increase memory capacity
• Li-Ion battery – longer operation of the meter
• Measurements of photovoltaic installations in accordance with PN-EN 62446
• Cooperation with the insolation and temperature meter
• Report on the research of photovoltaic installations after transferring data to the Sonel Electrical Measurements program
• Three-phase power grid parameter recorder – advanced diagnostics of power quality
• Reading data of current network parameters – immediate evaluation of the tested device
• Parameters measured in class S of PN-EN 61000-4-30 – high accuracy of measurements
• Energy Loss Calculator – quick diagnosis of potential savings
• Measurement of all parameters of shock protection – one instrument instead of several
• Quick short-circuit loop measurement with RCD switch without triggering (up to a few seconds) – saving time
• Self-tests – possibility of automatic measurements in sequence – simplification of measurements
• Fast track from measurements to report – saving time

Features

The meter is characterized by above-average capabilities in the field of functionality. It combines the measurement capabilities of several devices, while ensuring equally good accuracy.

The MPI-540-PV instrument can be used to measure photovoltaic installations in accordance with PN-EN 62446:

• continuity of protective connections,
• ground resistance,
• insulation resistance on the DC side,
• voltage of open UOC circuit,
• short-circuit current ISC,
• operating currents and powers on the DC and AC side,
• efficiency of the inverter.

The MPI-540-PV instrument can record the electrical energy quality parameters 50/60 Hz in class S of EN 61000-4-30:

• voltages L1, L2, L3 – average values in the range up to 500 V,
• currents L1, L2, L3 – average values, current measurement in the range up to 3 kA (depending on the current clamps used),
• frequency in the range of 40 Hz – 70 Hz,
• active power (P), reactive power (Q), apparent power (S),
• power factor (PF), cosφ, tgφ,
• harmonic (up to 40th in voltage and current),
• THD harmonic distortion coefficient for current and voltage,
• recording of events for current and voltage,
• energy flow – 4 quadrants.

The MPI-540-PV apparatus can perform all acceptance measurements of electrical installations in accordance with applicable regulations:

• Short-circuit loop impedance (also in circuits with RCD circuit breakers),
• parameters of RCD circuit breakers,
• insulation resistance,
• ground resistance (4 measurement methods + ground resistivity measurement),
• continuity of protective and compensatory connections,
• illuminance,
• phase order test,
• engine direction test.

Specifications
