Aprašymas
Trumpai apie prekę

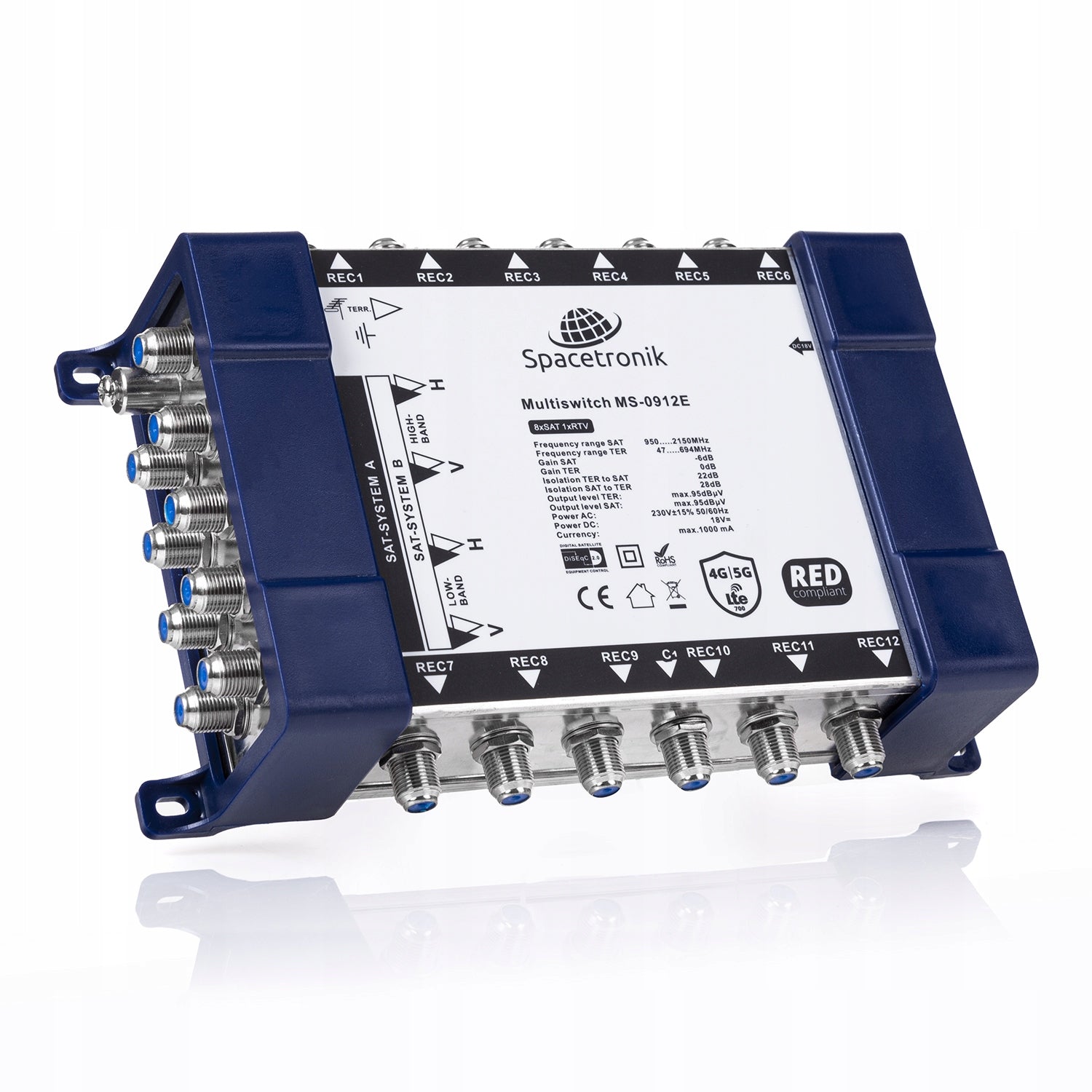

Prekė: Daugiakanalis jungiklis 9/12 Spacetronik E-Series MS-0912E. Kategorija: Multijungikliai.
- Gamintojas: Spacetronik
- Modelis: MS0912E
The subject of the sale is:
MS0912E; Multiswitch 9/12 Spacetronik E-Series MS-0912E.
Terminal 9/12 Multiswitch Spacetronik E-Series MS-0912E
The multiswitch is intended for the expansion of the internal antenna installation of the DVB-S2 satellite TV system and the DVB-T / T2 terrestrial TV system. The device enables satellite-terrestrial signal distribution and connection to 12 RTV-SAT subscriber sockets , satellite tuners, DVB-T tuners, etc.
What to connect the E-Series multiswitch to?
The multiswitch automatically recognizes the type of signal that will be transmitted to the tuners. The installation should include the connection of the multiswitch to a satellite dish with a diameter of at least 0.8 m or a terrestrial TV antenna. Separation of the satellite and terrestrial signals coming from the multiswitch takes place by means of subscriber end sockets. The multiswitch is powered via an external power supply, thanks to which the phenomenon of increased operating temperature, which is a frequent cause of damage to the device, is eliminated
Where to install the Spacetronik multiswitch?
When installing the device, the existing installation conditions for the power supply must be taken into account:
- location away from the influence of weather conditions
- protection against unauthorized access
- adequate ventilation
Installation scheme

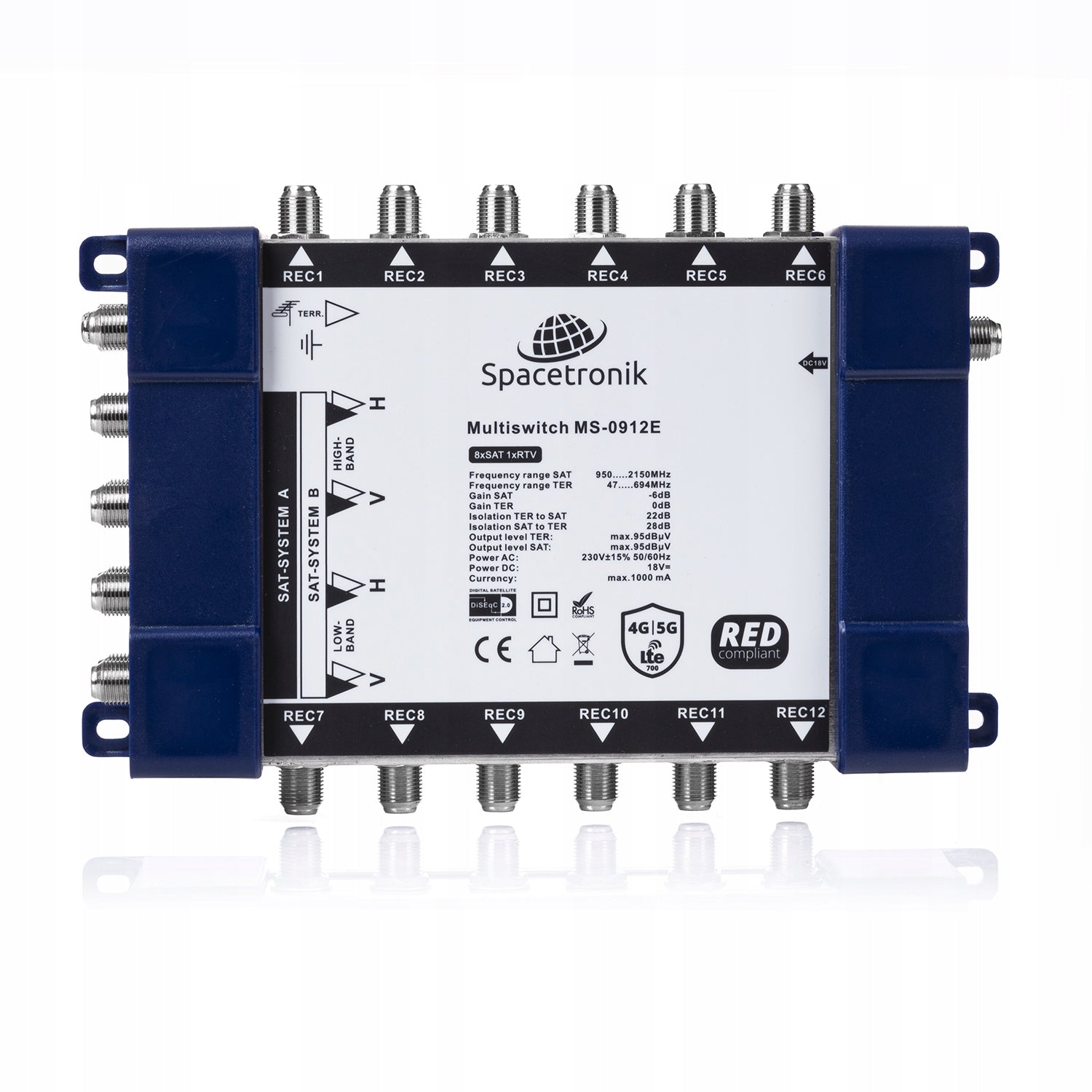

Installing the Spacetronik Eco version multiswitch is very easy. On the left side of the multiswitch we can find 8 satellite inputs and 1 Terriestal input. On the right side is the power input socket. The other elements are the summed signal outputs - SAT + DVB-T / T2
What can be connected to the multiswitch?
- two signal inputs from the SAT Quattro converter
- one terrestrial DVB-T / T2 input
- 12 total SAT + DVB-T / T2 outputs

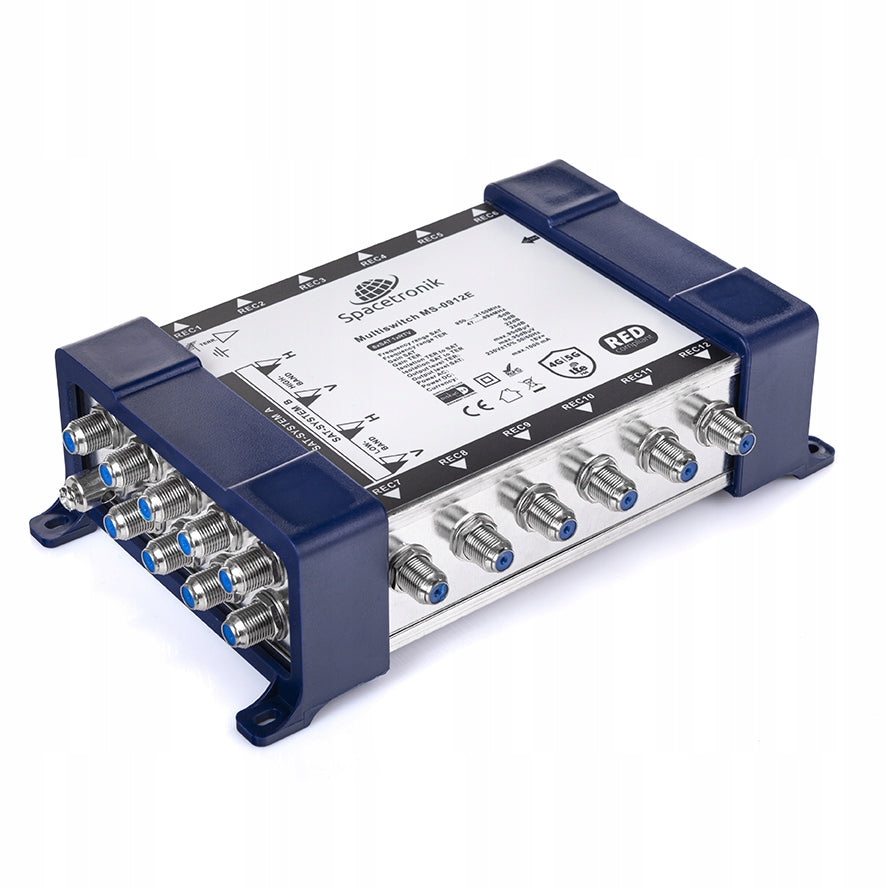

ATTENTION! Illustrative photo
Technical specification of the 9/12 multiswitch
- Number of inputs: 8 SAT, 1 TER
- Number of outputs: 12
- Connectors: F female
- SAT frequency range: 950-2150MHz
- TER frequency range: 47-694MHz
- SAT gain: -3 to 6dB
- TER profit: -5 to 3dB
- Isolation TER to SAT: 30dB
- SAT to TER isolation: 28dB
- H / V Polarization Separation Isolation: 25dB
- Out - out TER isolation: 22dB
- SAT out - out isolation: 30dB
- SAT reflection loss input: 10dB
- Return loss SAT output: 7dB
- Return loss TER input: 11dB
- Return loss TER output: 8dB
- SAT output level (IMD3 - 35dB): 100dBµV
- TER output level (IMD3 - 60dB): 88dBµV
- Input / output impedance: 75Ohm
- Power supply: max. 18V
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | MS0912E |
| Parametry | Brand | Spacetronik |
| Parametry | Model | MS0912E |
| Parametry | EAN (GTIN) | 5903031033519 |
