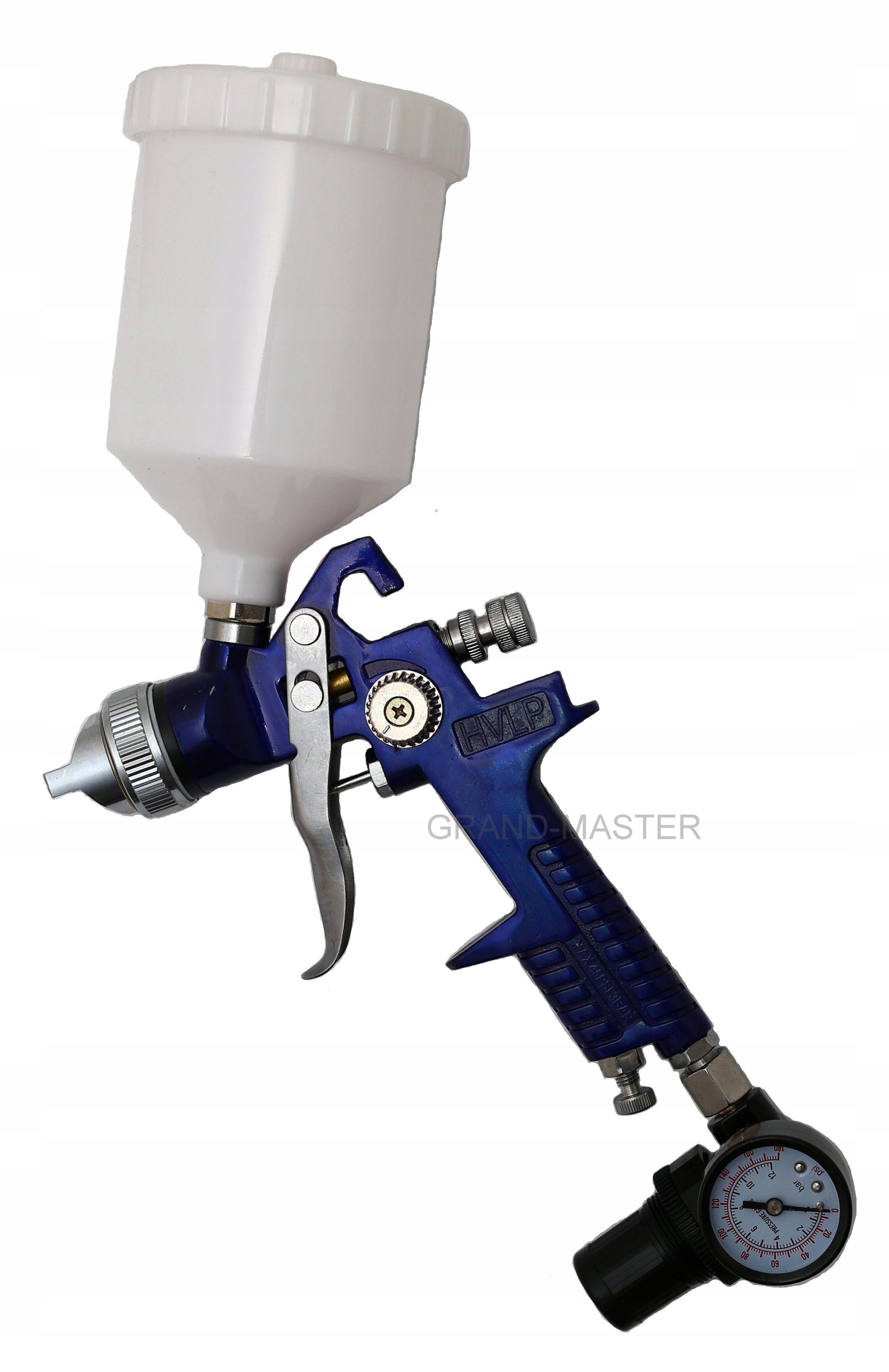

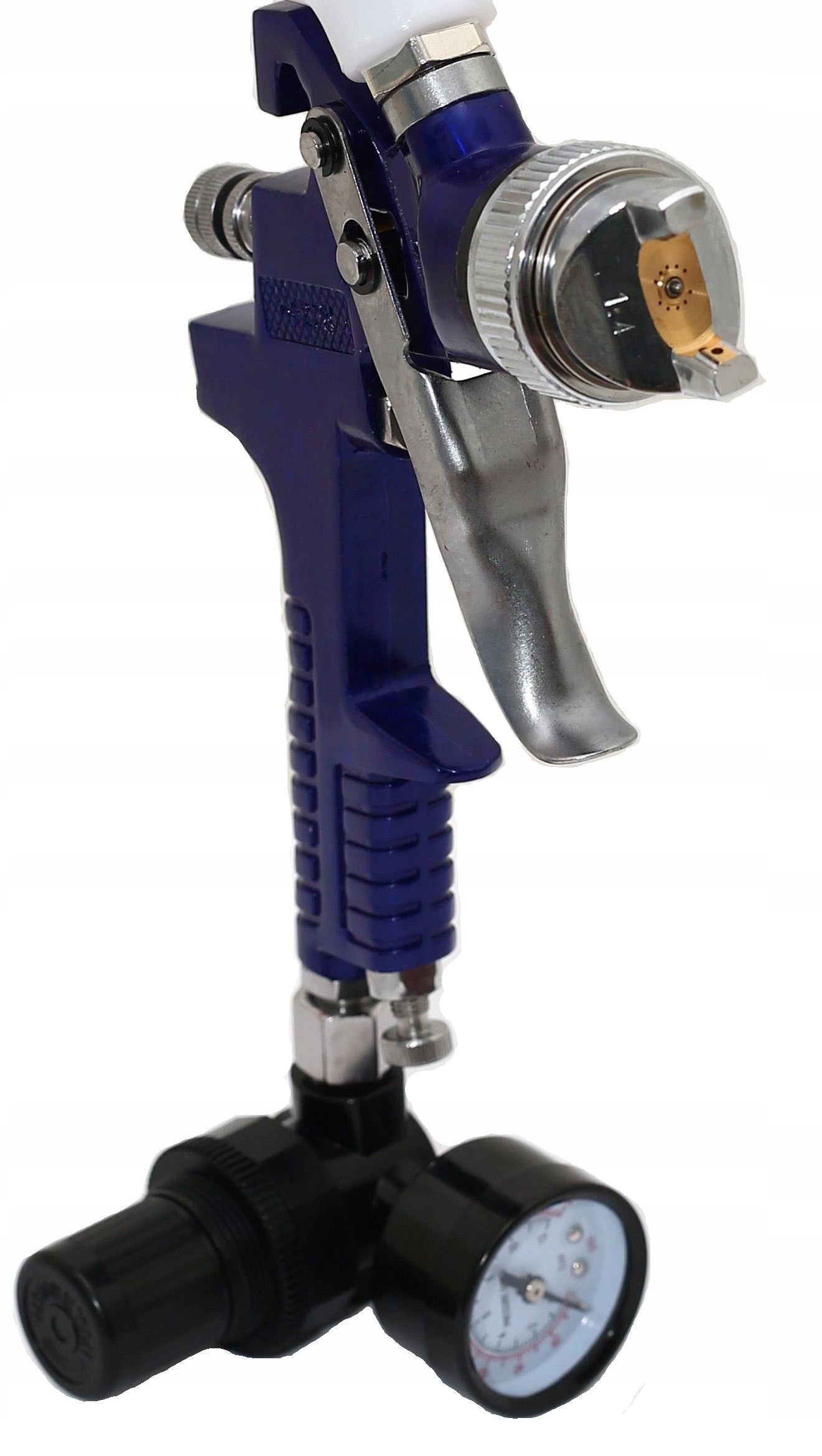

Dažų purkštuvas HVLP su 1.4 ir 1.7 antgaliais, 600 ml

Trumpai apie prekę

Prekė: Dažų purkštuvas HVLP su 1.4 ir 1.7 antgaliais, 600 ml. Kategorija: Dažymo purkštuvai.

• Gamintojas: Falon-Tech
• Modelis: FT827301

WITH HIGH QUALITY WORKMANSHIP AND DURABILITY

NEW LOW-PRESSURE PAINT GUN H.V.L.P

with two nozzles 1.4 mm and 1.7 mm

• Designed for maximum performance and quality with reduced operator fatigue, these pistols feature high-quality components for long-lasting reliability.
• Low pressure gun (works from 2 atm. ) and requires about 200-250 liters of air per minute to work properly.
• The gun has regulation of air pressure, the amount of varnish and the shape of the paint stream - varnish.
• Designed with the user in mind.

Gun made in HVLP technology - adapted to lower pressure, which

allows you to save up to 30% of varnish. To operate the gun, it is necessary to properly pneumatic installation with compressed air with adjustable pressure up to 0,3 MPa.

The principle of operation of the device is the suction by compressed air of appropriate

quantity of paint emulsion from the paint reservoir and the formation of paint mist

(fine paint and gas) at the outlet from the nozzle of the gun.

The fog covers the painted surface with a tight and even layer of varnish.

TECHNICAL DATA:

1. PAINT GUN

• nozzle diameter 1,4 mm (1,7 mm )
• regulation of the amount and flow of varnish
• regulation of air pressure
• aluminium body, 600 ml tank
• recommended operating pressure from 2 to 3.5 bar
• air flow 200-250 l/min
• 1/4 inch quick release thread

2. REDUCER

• Connection threads: 1/4"
• Nominal pressure: 0-8bar
• Maximum pressure: 10,3 bar

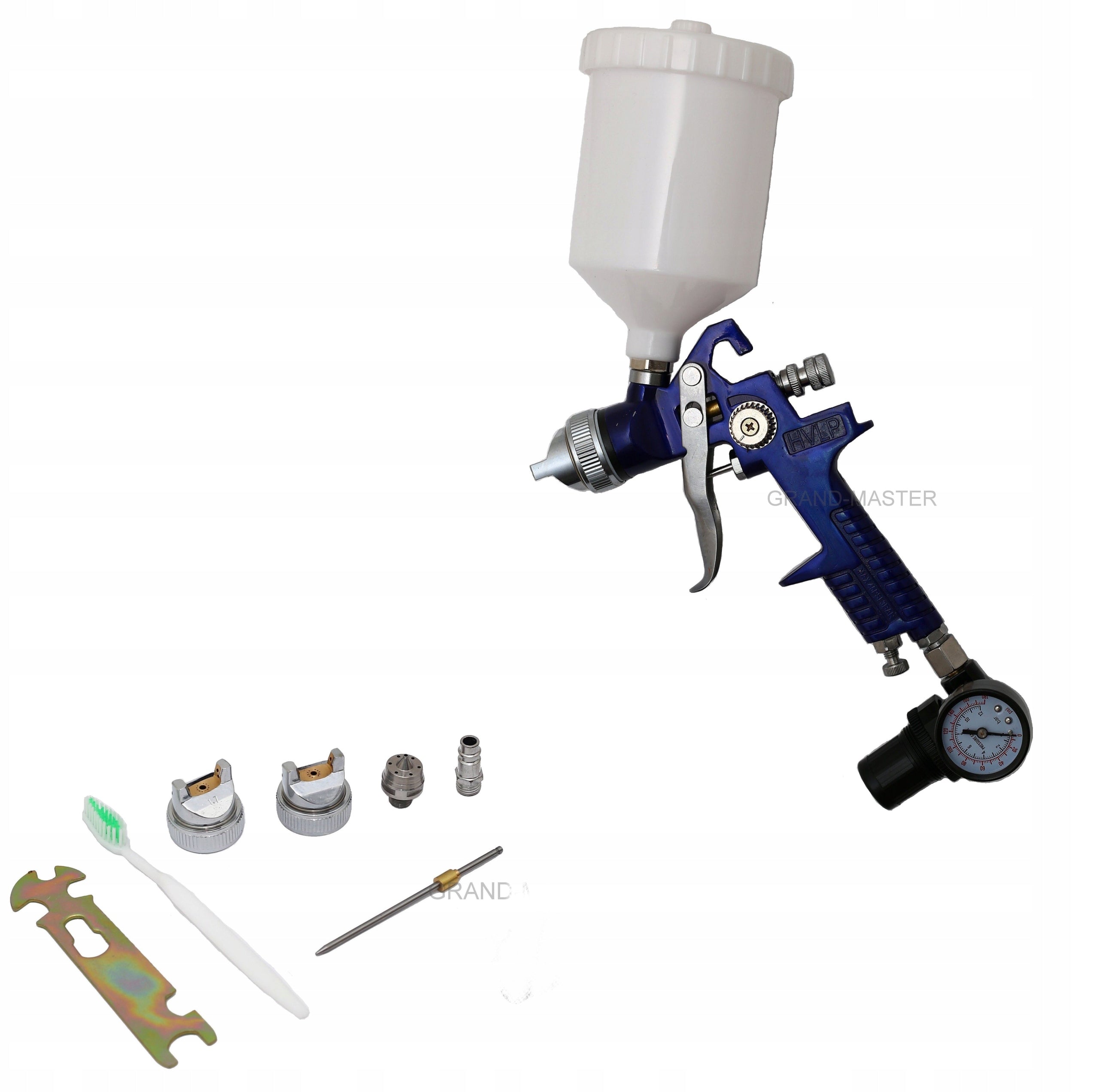

SET CONTENTS:

• 1.4 mm HVLP pistol
• Additional nozzle 1.7mm
• Varnish container with a capacity of 600ml
• Reducer with clock
