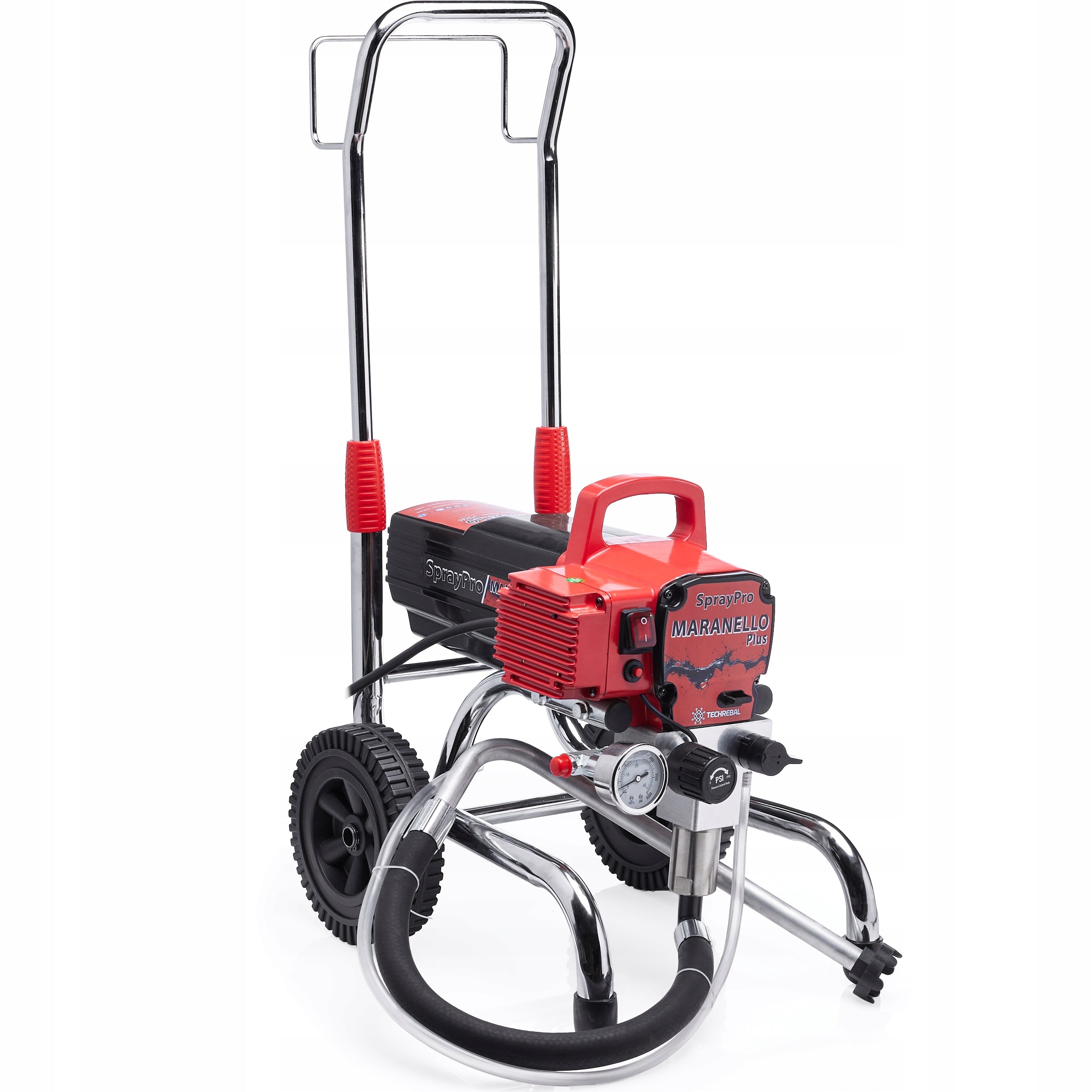

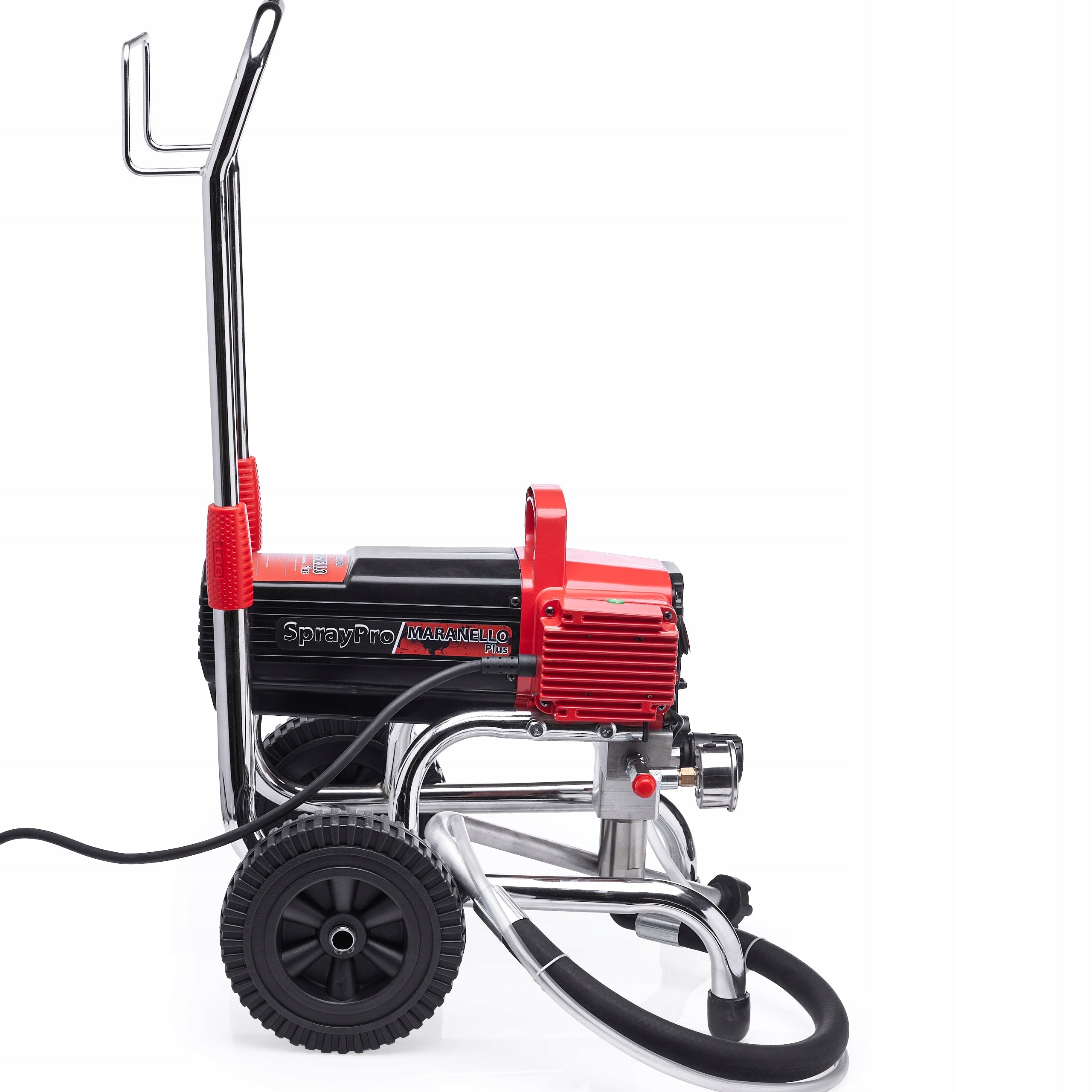

Dažų purkštuvas Techrebal Maranello Plus, 2000W, su stūmokliu, vežimėliu ir 10 m žarna

Trumpai apie prekę

Prekė: Dažų purkštuvas Techrebal Maranello Plus, 2000W, su stūmokliu, vežimėliu ir 10 m žarna. Kategorija: Dažymo purkštuvai.

• Gamintojas: Techrebal
• Modelis: 63D0-82815
• Galia: 2000 W

Looking for an efficient and reliable aggregate that will allow you to work faster and achieve the perfect finish? The Maranello Plus combines 2000W power, 2,4 l/min efficiency and maximum comfort thanks to its trolley design.

The hydrodynamic spray technology ensures even distribution of paint, eliminating streaks and stains while reducing material loss. The long hose with a length of 10 meters allows you to work comfortably even on large areas without having to constantly rearrange the device.

The trolley design provides greater mobility compared to standard models, making the unit an ideal choice for both professionals and demanding users who value speed, precision and comfort.

❇ Product Features:

✅ Advanced piston technology ensures even surface coverage, eliminating the need for rollers and brushes, which significantly reduces working time and increases efficiency. It allows even application of paint even with denser materials. Thanks to its design, it minimizes pulsations and ensures stability of work.

✅ The 2000W motor increases work efficiency and allows you to efficiently execute even larger orders without decreases in efficiency.

✅ The maximum pressure of 230 bar allows for accurate paint distribution, resulting in even coverage and a professional effect on a variety of surfaces.

✅ The maximum flow rate of 2,4 l/min speeds up the pace of painting, saving you time while maintaining a high-quality finish.

✅ Transport trolley with wheels with a diameter of 19 cm made of plastic makes it easier to move the device around the workplace, which increases your comfort and mobility.

✅ Chrome-plated solid frame with comfortable handle with smooth height adjustment from 60 to 75 cm allows you to adjust the equipment to your height and work style.

✅ Large and convenient pressure control knob located next to the head pressure gauge makes it easy to quickly and precisely set the spray parameters according to your needs.

⚙ TECHNICAL DATA OF THE AGGREGATE:

• Power of the device: 2000W
• Power supply: 230V/50Hz
• Operating pressure: up to 230 bar/ 3300psi
• Aggregate capacity: 2,4L/ min
• Maximum nozzle size: 0,023”
• Engine Type: brushless
• Compression mechanism: piston pump
• Maximum supported hose length: horizontal 30m / vertical 15m
• Hose length for gun: 10m
• Weight of aggregate with accessories: 20kg
• Stroller dimensions: 43x37cm
• Wheel diameter: 19cm
• Dimensions: 50x42x49 cm
• Maximum frame height: 75cm
• Minimum frame height: 60cm
• Power cord length: 170cm

⚙ TECHNICAL DATA OF THE GUN:

• Maximum pressure: 248 bar (3600 psi)
• Trigger: 4-finger
• Max gun unloading pressure flow: 8 l/min
• Max gun spray flow: 4 l/min
• Hose connection thread: 1/4"
• Head thread: 7/8"
• Built-in filter: Yes

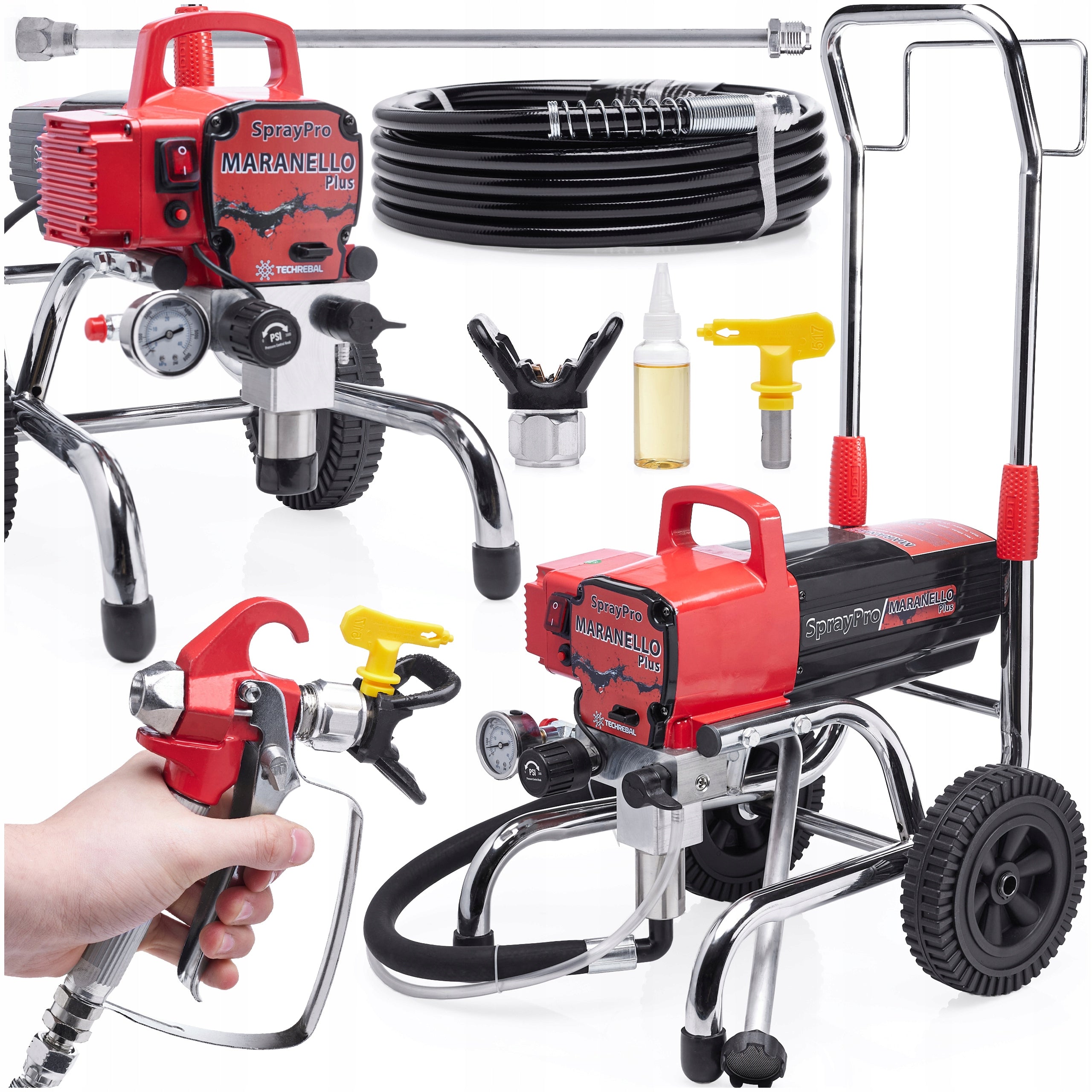

✅ In the set you will receive:

• Painting unit Maranello Plus
• Gun for aggregate
• Painting nozzle - model 517
• Finger filter for gun
• Nozzle seal
• Nozzle cover
• Lance 50 cm
• Hose for paint sprayer 10m
• Suction hose with filter
• Overflow hose 83 cm
• Pressure gauge
• Bottle of oil
• Polish manual

✅ High Standard and Quality Craftsmanship

Our generator stands out from the competition by meeting rigorous standards and certification requirements. It has certificates confirming its high quality and safety:

✅ ISO 9001

✅ ISO 45001

✅ ISO 14001

✅ TÜV SÜD

✅ Powerful 2000W power – reliability and efficiency

2000W power ensures stable and smooth operation even under heavy loads. Thanks to this, the device is able to handle a wide range of paints, from water emulsions to denser decorative coatings.

No need to worry about overheating or performance degradation – the piston aggregate is designed for long-term use. The high power of the motor allows you to paint large areas in a short time, which significantly speeds up the implementation of your projects.

✅ Piston technology

With the spray piston system, you can paint faster and more precisely than ever before. No need for rollers and brushes saves you time, and the surface is covered with paint in a uniform and aesthetic way.

This type of technology also reduces material loss, so you use less paint, which translates into real savings. The painting aggregate is ideal for painting walls, ceilings, facades or fences.

✅ Capacity up to 2,2 l/min – effective painting

With a capacity of 2,2 l/min, you can cover large areas with paint without unnecessary interruptions. The high speed of application makes painting much more effective compared to traditional methods.

Thanks to this, the paint sprayer is perfect for both renovation works and construction sites, where time and quality of workmanship count.

✅ Precision spray gun – full control over painting

The set includes a professional 4l/min spray gun, which allows you to adjust the paint stream. This allows you to adjust the spray intensity to match the painted surface for maximum precision.

The gun is comfortable to use, which minimizes hand fatigue even during prolonged work. Ergonomic design makes it easy to paint corners, edges and hard-to-reach places with precision.

✅ The unit will work well for the following types of paints:

• Pigments
• Stains, Varnishes, Oils
• Ground
• Urethanes, Epoxies
• Enamels, Emulsions
• Acrylics
• Lateks
• Hydroisolators
• Multicolor paints for construction

✅ Stable structure and convenient transportation

With the transport trolley, you can easily move the paint sprayer between rooms or workstations. The 19 cm diameter wheels make it easy to maneuver, while the sturdy chrome frame adds durability to the structure.

Adjustable handle from 60 to 75 cm allows you to adjust the height to your height, which improves ergonomics and reduces fatigue during work. Rubber stabilizing feet help keep the unit in place when you spray. Thanks to this, you have more control over the painting process and work in more comfortable conditions.

✅ Precise control of parameters

The large and convenient electronic pressure control knob located next to the pressure gauge allows you to quickly adjust the settings to the type of paint and surface. You do not have to waste time on complicated adjustment, because everything is within your reach.

Precise parameter control allows you to achieve an even spray and reduce material loss. This is a solution that increases your control over the final result. You work more efficiently and with greater confidence to get the desired result.

⚪ Cleaning

For several minutes of interruptions in work, it is important to lock the trigger of the gun and immerse the nozzle in a container with the appropriate solvent or water (if you use water-based paints). This will prevent the paint from drying out in the nozzle. Also, do not forget to release the pressure in the device before starting the break.

If the nozzle gets clogged, turn it 180 degrees

from the SPRAY position (arrow pointing towards the gun outlet) to the CLEAN position (arrow in the opposite direction). Then clean the nozzle to remove any blockages. If the problem persists, check the filter located in the handle of the gun—it may also need to be cleaned.

Are you thinking about replacing a traditional brush or roller with a modern solution?

With the TECHREBAL paint sprayer you get:

✅ Speed – high pressure allows you to quickly cover large areas of paint.

✅ Perfect coverage – precise distribution of paint guarantees the effect as after the work of a professional.

✅ Universality – suitable for paints, primers, stains and even very rare putty.

✅ Working comfort – ergonomic design and simple operation make painting easy and pleasant.

Forget about uneven coverage and fatigue after hand painting. Bet on the Techrebal aggregate and achieve an excellent effect in a much shorter time!

NOTE!

We are a manufacturer of Techrebal units and provide full service of our devices.

✳ Choosing the right nozzle is extremely easy with us! Here are a few steps to help you make the right choice:

1 The first digit (A) specifies the width of the paint stream, which we call "A". To calculate the width of the stream, it is enough to multiply the first digit by 5 cm. The result will indicate how wide the paint stream will be if the gun is 30 cm from the painted surface. This can be written as:

Stream width = A x 5 cm

Example: If the first digit "A" is 5, the stream width is: Stream width = 5 x 5 cm = 25 cm.

This means that by holding the gun 30 cm from the surface, we will get a stream with a width of 25 cm.

2 The last two digits (B) refer to the size of the nozzle hole and the type of paint that can be applied. The larger the number, the denser the paint that the nozzle can handle. For example, the nozzle "517" means the jet width of 25 cm and the nozzle hole diameter of 0,017 inches.

✳ Range of nozzle holes for different types of sprayed material:

• Pigments: 0,009″
• Stains, Varnishes, Oils: 0,009″ – 0,011″
• Ground: 0,013’’
• Urethanes, Epoxies: 0,013″ – 0,015″
• Enamels, Emulsions: 0,015″
• Acrylics: 0,015″ – 0,019″
• Lateks: 0,017″ – 0,019″
• Exterior facade paints: 0,021'' – 0,029''
• Hydroisolators: 0,023″ – 0,031″
• Multicolor paints for construction: 0,023″ – 0,031″
• Fire protection: 0,029″ – 0,035″
• Elastomers: 0,025″ – 0,033″
• Spatulas, smooth: 0,027″ – 0,035″
• Bituminous masses: 0,055'' – 0,065''

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Techrebal
Parametry	Power	2000 W
Parametry	Power supply	electrical
Parametry	Maximum flow	2.4 l/min
Parametry	Maximum pressure	230 bar
Parametry	Voltage (V)	230 V
Parametry	Manufacturer code	63D0-82815
Parametry	EAN (GTIN)	5905902342942
Parametry	Batteries included	no
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
