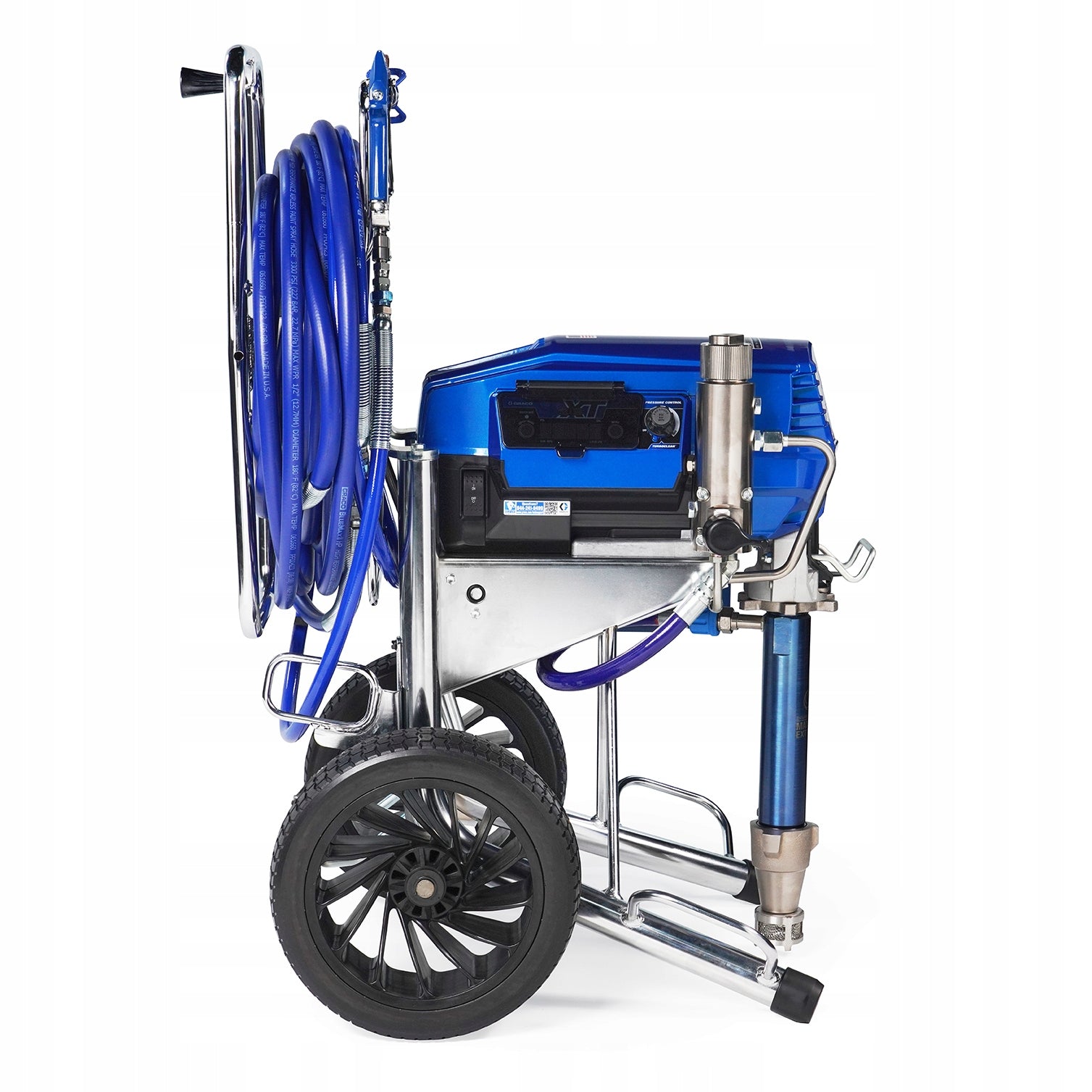

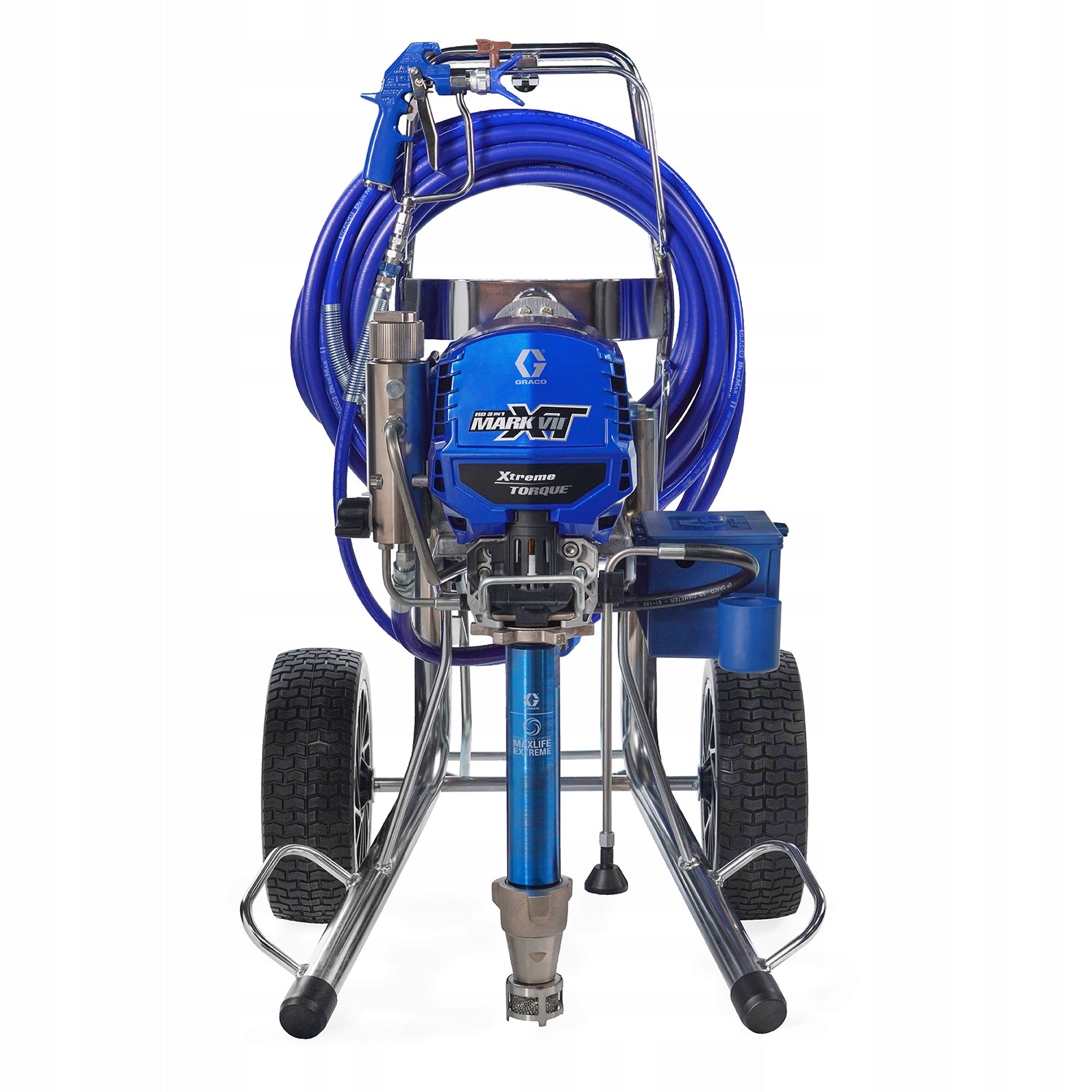

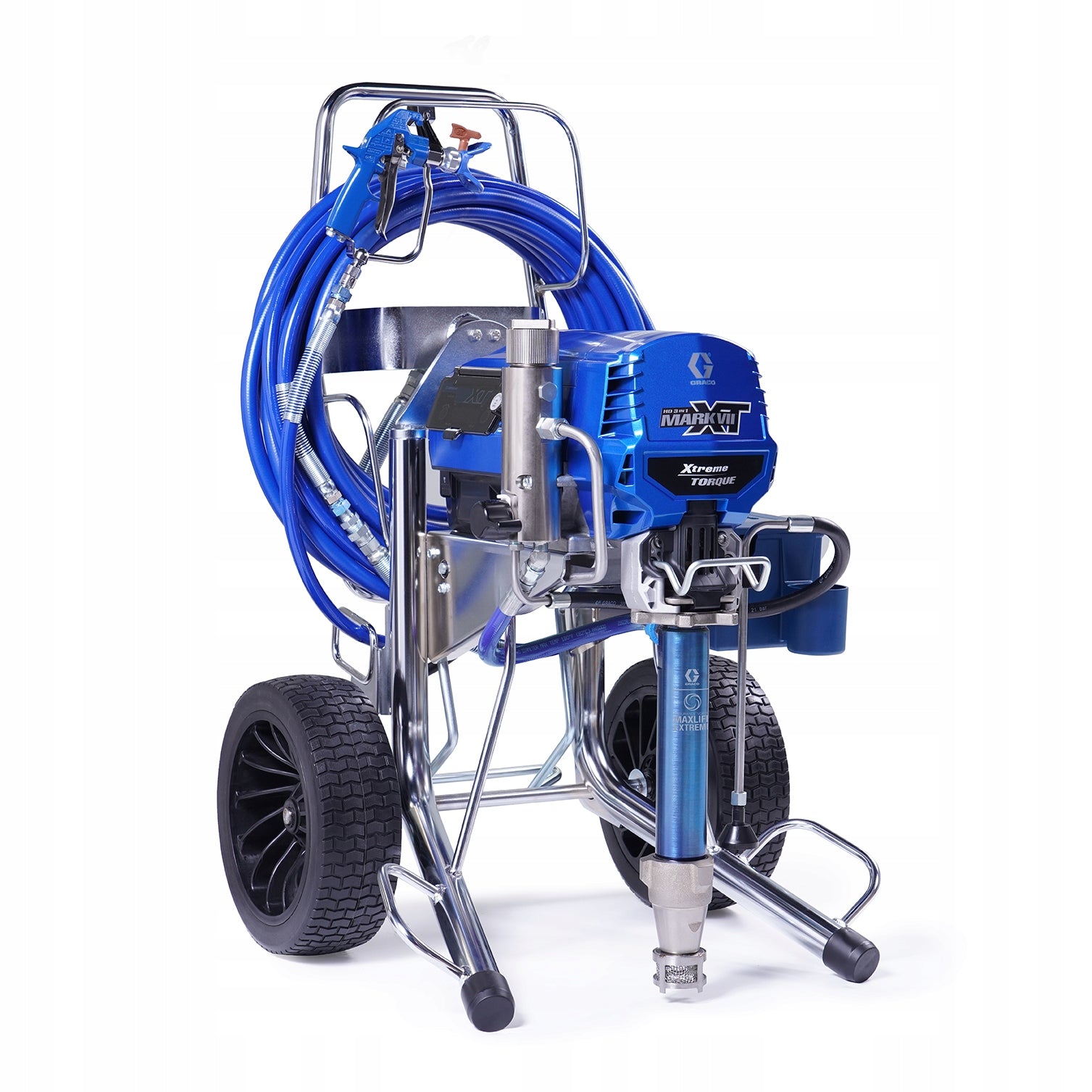

Dažymo ir glaistymo aparatas GRACO MARK VII XT PROCONTRACTOR 19F744

Trumpai apie prekę

Prekė: Dažymo ir glaistymo aparatas GRACO MARK VII XT PROCONTRACTOR 19F744. Kategorija: Dažymo purkštuvai.

• Gamintojas: Graco
• Modelis: 19F744

PAINT AND PUTTY UNIT GRACO MARK VII XT PROCONTRACTOR 19F744

Equipment

➡ BlueMax II 3/8" putty hose, 15 m

➡ 1/4" whip hose, 0,90 m

➡ HD Blue pistol

➡ Graco RAC X nozzle holder

➡ Graco HDA nozzle

➡ Filter: suction strainer, main filter and gun filter (60M)

➡ Oil for piston Graco TSL - 118 ml

➡ Key

➡ User Manual

Xtreme Torque Motor Technology :

➡ Equipped with an exceptional torque motor that delivers 15 times more power than traditional solutions.

➡ With 8 magnets, the motor delivers unparalleled power and efficiency, while the 90% reduced rotational speed extends lifespan and reduces noise by up to 10 times.

RapidResponse control system:

➡ Provides immediate response and precise pressure adjustment, which translates into excellent finish quality.

➡ The pump supports a wide operating pressure range from 3 to 227 bar, which allows flexible adaptation to different types of paints and putty.

Choosing performance mode:

➡ The unit offers two spray modes: low pressure mode (3-140 bar) allows for material savings and precise control, while high pressure mode (35-227 bar) ensures maximum efficiency and fast speed of operation.

Readable LED digital display:

➡ Allows you to easily monitor settings and control the painting process, even in difficult lighting conditions.

Endurance Vortex piston pump with ProConnect system:

➡ Endurance Vortex pump provides three times more durability compared to competing solutions.

➡ The ProConnect system enables quick and tool-free pump replacement, which speeds up field service.

TurboClean cleaning system:

➡ The fastest cleaning system in the industry, operating three times faster and using half as much water for efficient and cost-effective cleaning.

WatchDog pump protection:

➡ Automatically turns off the pump when it needs filling, protecting it from damage.

Permanent Easy Out filtration:

➡ Easy Out filter facilitates maintenance and minimizes the risk of clogging.

ProContractor design:

➡ Robust construction with ProContractor trolley and large wheels ensures mobility and convenience of transport of the unit on the construction site.

Technical data:

➡ Maximum capacity: 6.4 l/min

➡ Maximum working pressure: 228 bar

➡ Maximum nozzle size: 0,041"

➡ Voltage: 230 V/50 Hz

➡ Weight: 67 kg

➡ Dimensions (L. x W x H ): 71 x 61 x 105 cm

➡ Noise level: 78 dBa

Specifications
