Dažymo pistoletas MAPOWER, 550 W, 3 antgaliai

Trumpai apie prekę

Prekė: Dažymo pistoletas MAPOWER, 550 W, 3 antgaliai. Kategorija: Dažymo purkštuvai.

• Gamintojas: MAPOWER
• Modelis: MPSG02
• Galia: 550 W

📢Buy from the product set - we add something useful for every DIYer! 🆓🎁

+ three nozzles 1.0 mm, 1.8 mm, 2.5 mm

+ 1200 ml tank

+ viscosity measuring cup

‼ Paint the walls yourself!

‼ The MAPOWER pistol will allow you to get results like from a professional painter!

Key features of the product:

✔ POWER 550 W - you have a stable air expenditure from the turbine, so you maintain equal atomization with continuous operation. Fewer “holes” in the spray on wider belts.

✔ MAXIMUM VISCOSITY 80 DIN-secs - the gun can handle thick paint after a little dilution. With a properly selected nozzle, there will be no “spitting” and evenly spray the material.

✔ SPACIOUS PAINT TANK 1200 ML - you perform longer runs without refills, which maintains a constant density and color on the working field. Fewer “wet to dry” joints.

✔ ROTATIONAL SPEED UP TO 32000 RPM - higher speed means higher air volume for HVLP, i.e. finer drops and a repeatable spray fan. Less paint consumption with the same dry coating thickness.

✔ SUCTION TUBE WITH A DIAMETER OF 8 mm! - large cross-section reduces pressure drops and the risk of airing the system. You maintain a stable flow of material with denser paints and reduce the formation of blisters.

✔ COPPER MOTOR WINDING - higher conductivity and better heat dissipation. The motor keeps the rotation under load and degrades more slowly, which extends its service life.

✔ HVLP TECHNOLOGY – works at low pressure and high air volume. Thanks to this, more paint reaches the surface, less floats in the air, the edges are cleaner, and the material consumption actually decreases.

Technical data:

• Brand: MAPOWER
• Model: MPSG02
• Voltage: 220-240 V ~50/60 Hz
• Motor power: 550 W
• Engine speed: 32000 rpm /min
• Tank capacity: 1200 ml
• Maximum viscosity : 80 DIN-secs
• Maximum paint flow: up to 1000 ml/min

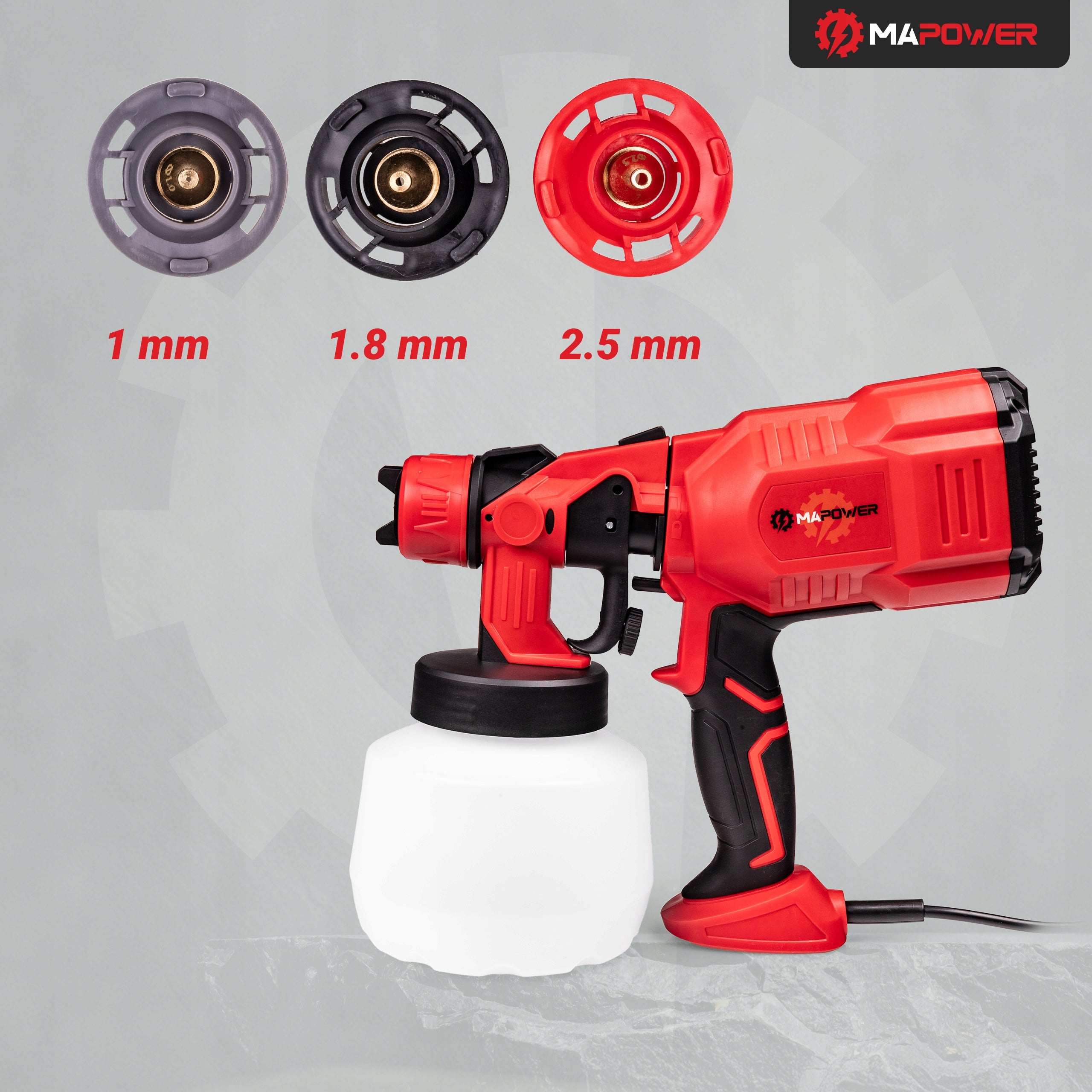

• Nozzle sizes: 1.0, 1.8, 2.5 mm
• Suction tube width: 8 mm
• Cable length: 1.7 m
• Device weight: 1.2 kg
• Set weight: 1.56 kg
• Equipment: viscosity measuring funnel, 3 spray nozzles, paint tank, nozzle cleaning needle, safety glasses, instruction manual in Polish , original manufacturer's packaging.

► HVLP technology: saving material and time

• This technology gives air in large quantities, but at low pressure.

• Thanks to this, paint is sprayed on very fine drops, and reflection from the surface (so-called spray in the air) is smaller.

• IN practice, MORE PAINT GOES TO THE WALL AND LESS IS WASTED. This translates into real material savings (often by up to about a third compared to high-pressure painting), cleaner edges and faster coverage of large areas – fewer corrections and shorter run time.

► Paint gun for special tasks – even spray, fewer corrections

You can use the MAPOWER MPSG02 gun with (according to the manufacturer's instructions and after possible dilution to the correct viscosity):

• waterborne paints,
• varnishes,
• Foundations,
• finishing paints,
• fillers,
• stains

and other spray coatings that are approved for low-pressure painting.

► Powerful motor with COPPER WINDING for efficient operation

The MAPOWER pistol is equipped with a strong motor, with a copper rotor winding. This design is UNBEATABLE, in combination with its aluminum counterpart.

• Has a LONGER SERVICE LIFE – produces less heat, which reduces the risk of thermal damage, including insulation, allowing longer operation.
• Smaller dimensions – higher conductivity of copper used in the rotor and the associated smaller required volume of steel made it possible to reduce the dimensions of the engine.
• The copper winding motor used in the MAPOWER pistol has a 1-5% higher rated efficiency, and therefore CONSUMES LESS ENERGY!

► Adjust Settings. Achieve Professional Results!

The spray gun features an **intuitive dial**. You can adjust it **quickly**. The effect will be **consistent**.

• Paint Flow Control - You decide how much paint goes to the nozzle. Reduce flow for edges. Increase for large areas. This prevents drips and ensures an even coat.

► Set the shape of the stream. Paint precisely!

You have two fan modes. You can change them with one rotation of the nozzle.

• Horizontal ellipse - wide horizontal range. You paint with vertical strips – fast coverage of high surfaces.
• Vertical ellipse - wide vertical range. You paint with horizontal stripes – ideal for long walls.

This allows to choose the width and direction of the spray for the task. You cover narrow and wide fields without streaks and excess paint.

► More painting, fewer breaks, thanks to the 1200 ml tank

• The 1200 ml tank allows you to paint longer without having to add paint frequently.

• Thanks to this you maintain even belts and limit “wet to dry” joints.

• The tank holds an whole liter can, so you pour paint once and work in constant density and color throughout the field.

• The gun body is designed for fast assembly and easy cleaning, which shortens service stops and really increases work efficiency.

► Quickly check the viscosity of the paint – Ford mug included

The process is very simple. The mug measures outflow time paints in seconds.

1. Mix the paint.
2. Fill the cup to the brim.
3. Open the hole and count seconds until the stream is no longer continuous. That's your score.
4. Compare this result with the range of our gun (80 DIN-secs).

What if the result is out of range?

• It flows too slow → the paint is too thick. Add approx. 5% water, mix, measure again.

Well-chosen viscosity = equal spray, no stains and better coverage.

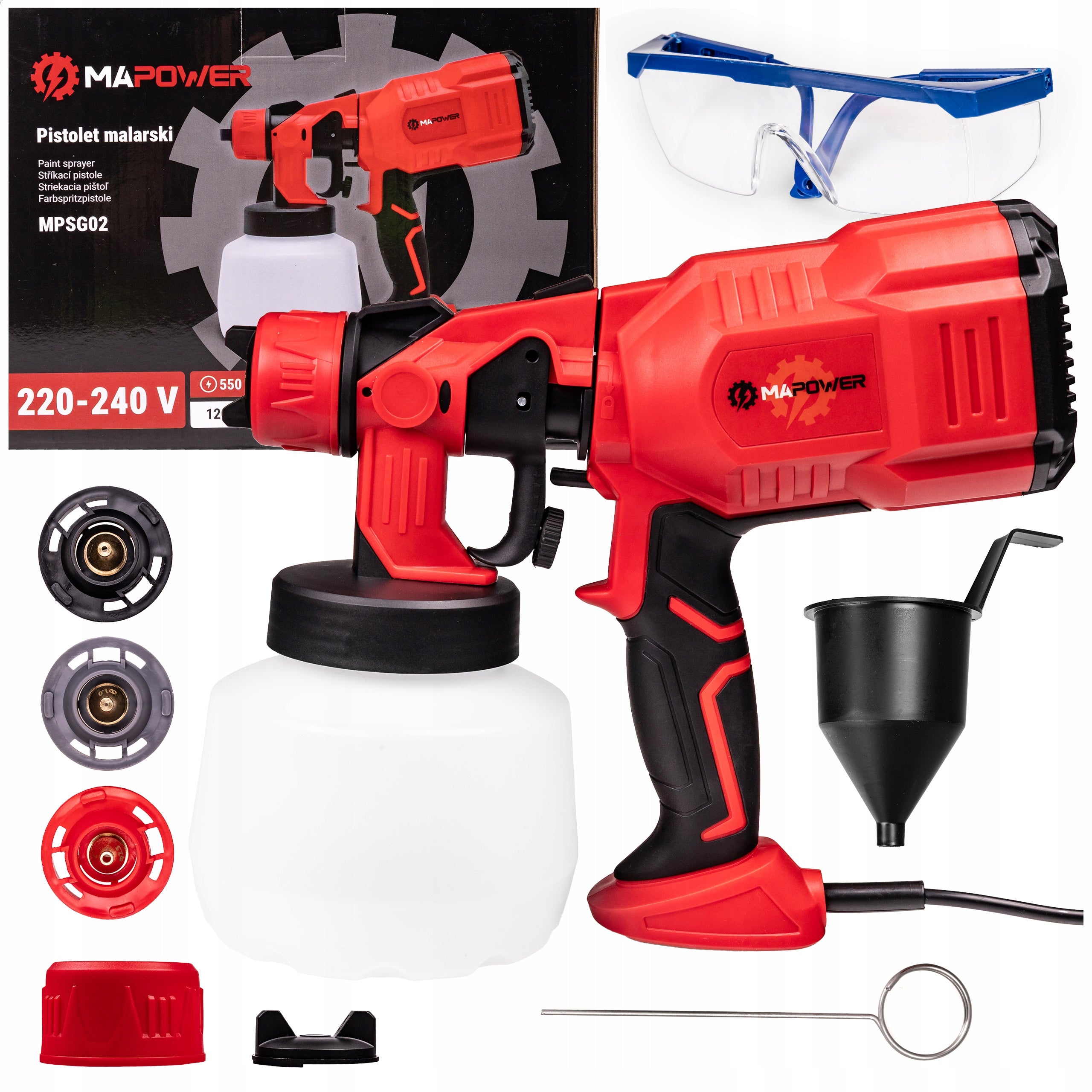

THE SET INCLUDES:

• Painting gun MAPOWER MPSG02
• 3 spray nozzles
• Leek for viscosity measurement
• Reservoir for paint
• Needle for cleaning nozzles
• Safety glasses
• Instruction for operating in Polish
• Original manufacturer's packaging
