Dažymo pistoletas Yato YT-2340, HVLP, 0,6 l, 1,4 mm

Trumpai apie prekę

Prekė: Dažymo pistoletas Yato YT-2340, HVLP, 0,6 l, 1,4 mm. Kategorija: Dažymo purkštuvai.

• Gamintojas: Yato
• Modelis: YT-2340
• Galia: 0 W

Product code: YT-2340

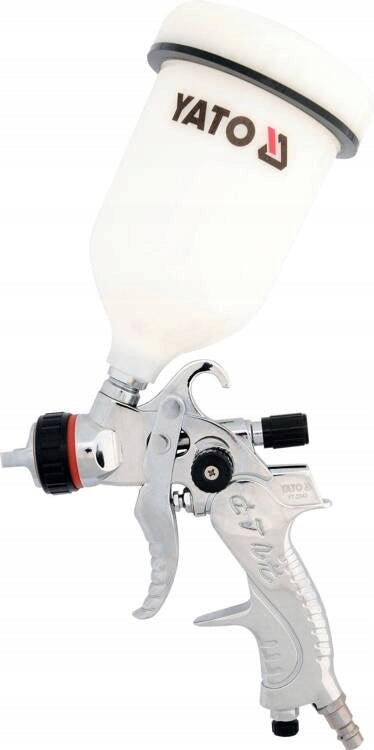

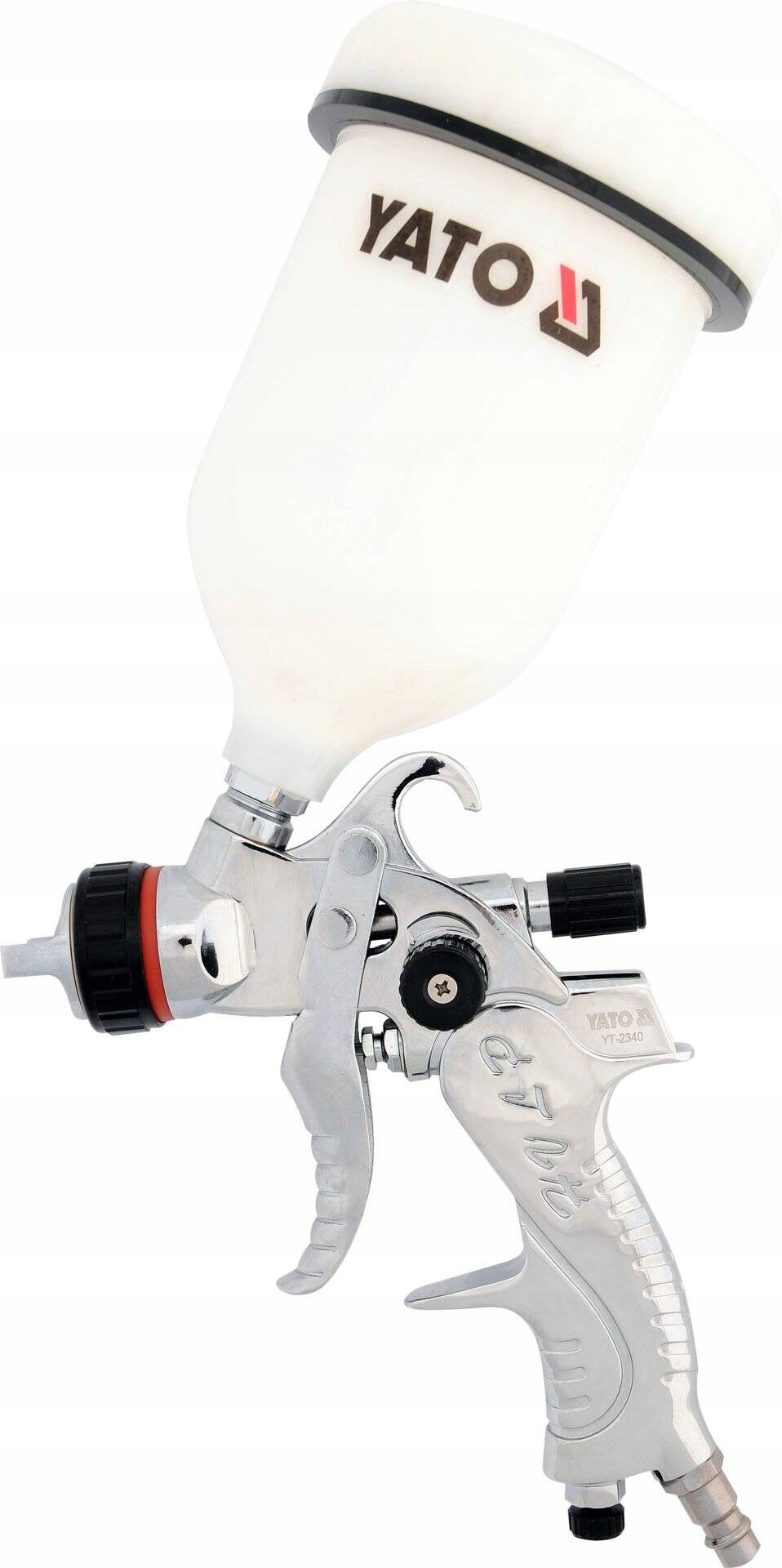

Yato YT-2340 Paint Spray Gun HVLP 0,6L 1,4

The spray gun is used to perform paint work.

The factor necessary for the proper operation of the gun is compressed air.

The paint from the gun tank and the compressed air brought to the gun form a mixture of paint and air particles at the outlet of the gun nozzle.

Instructions for use

Start work Using a flat wrench, tighten the nozzle. Check the tightness and reliability of the compressed air supply system connections. Blow the air supply hose before connecting it to the installation. Before using the gun, make sure that it has been properly cleaned and maintained. Ensure that the tank with the coating material has been connected in a way that ensures proper tightness.

Adjustment of spray jet width Changing the width and shape of the spray jet can be achieved by rotating the air nozzle. The shape of the stream can be smoothly adjusted from flat to round depending on your needs. The knob for adjusting the amount of coating material determines the amount of coating material delivered to the air stream. On the other hand, the spray adjustment knob sets the intensity of the mixture of coating material with air. It is recommended to set the mixture stream so as to obtain as small particles of the coating material as possible, this will ensure better distribution of the coating material on the surface.

Pistula work When using the gun, keep the distance between the gun outlet and the coated surface in the range of 10 to 15 cm. Try to guide the gun outlet perpendicular to the coated surface. Avoid movements on the arch, they will cause uneven distribution of the coating material. It is recommended to apply several thin layers than one thick one.

Air flow control Depending on the type of coating material, the amount of compressed air should be selected by adjusting the air pressure control knob.

Nozzle replacement Make sure that the entire nozzle set is replaced. The set includes a shell material nozzle, a spire, and an air nozzle.

Sealing of the spire During operation, the tightness of the spire seal should be checked. In case of significant wear, the gasket should be replaced during periodic inspection of the gun using a flat wrench to dismantle the seal assembly

Cleaning and maintenance After finishing work, disconnect the gun from the compressed air system and empty the tool tank from the remaining coating material. Thoroughly clean the tank from the remains of the coating material. Carefully clean the entire transmission path of the coating material. Inaccurate cleaning will reduce the parameters of the coating material stream. Clean the air nozzle with a brush soaked in solvent. Never immerse the entire gun in solvent. Never clean clogged holes using hard objects because even slight internal damage can adversely affect the parameters of the spray jet. After washing the gun, apply a small amount of lubricant to the moving parts of the seals. Tighten the nozzle of the coating material to such an extent as to avoid leaks, and at the same time ensure smooth movement of the spire.

• Coating material flow (water): 0.19-0.25 l/min
• Material: aluminium|stainless steel
• Type: HVLP
• Acoustic power: 85.0 dB(A)
• Nozzle diameter: 1.4 mm
• Capacity of tank: 0.6 l
• Air connection diameter (PT): standard
• Internal diameter of air supply hose: 3/8" (10.0 mm)
• Mass: 0.74 kg
• Twisting: < 2.5 m/s²
• Characteristics: Automatic retry of the number air pressure: 0.3 MPa
• Acoustic pressure: 74.0 dB(A)
• Air flow required: 410 l/min

Specifications
