Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: Pristatymas nemokamas
Aprašymas
Trumpai apie prekę

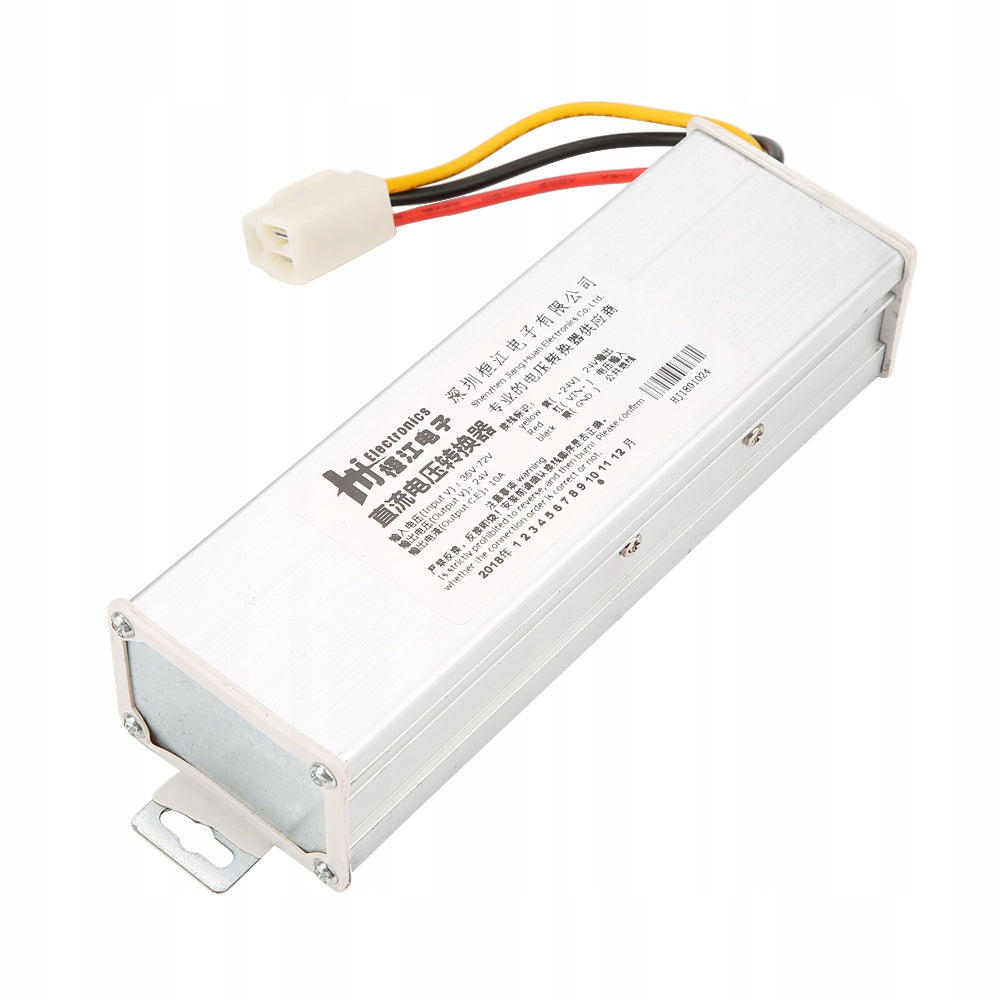

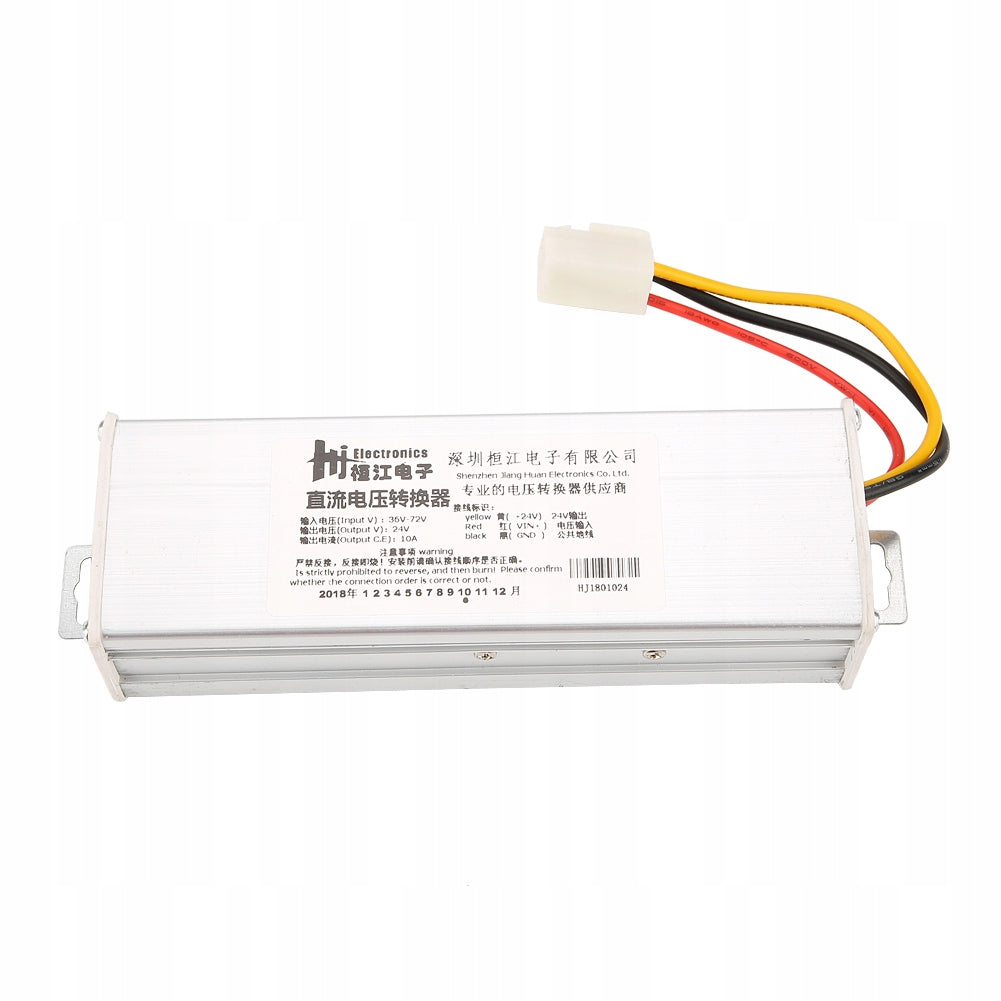

Prekė: DC-DC keitiklis 36V/48V/60V/72V į 24V, 10A, 240W, Step-down. Kategorija: Įtampos keitikliai.
- Gamintojas: no brand
Features:
1. This voltage converter in dó will convert 36 V/48 V/60 V/72 V DC to 24 V DC.
2. High power and stable output, output power is 240W.
3. High-quality components ensure high conversion efficiency, up to 92.
4. Sturdy housing is mae and atwe to mount.
5. Commonly used for electric motors, fans and many other devices.
Specification:
Model: HDC-2410
Type: DC/DC power supply
Modulation mode: pulse frequency modulation (PFM)
Transistor Connection Mode: Single End
Input Voltage: 36-72v
Output power: 240 W.
Output voltage: 24 V.
Working efficiency: 92
Ripple Output Noise: 1dB
Output Voltage Accuracy: 3
Voltage Adjustment: 2
Load Adjustment: 4
Output Current: 10a
Operating temperature45~80
Size: 150*35*50 mm / 5,9*1,4*2 inches
Weight: 188G / 6,6 oz (approx. )

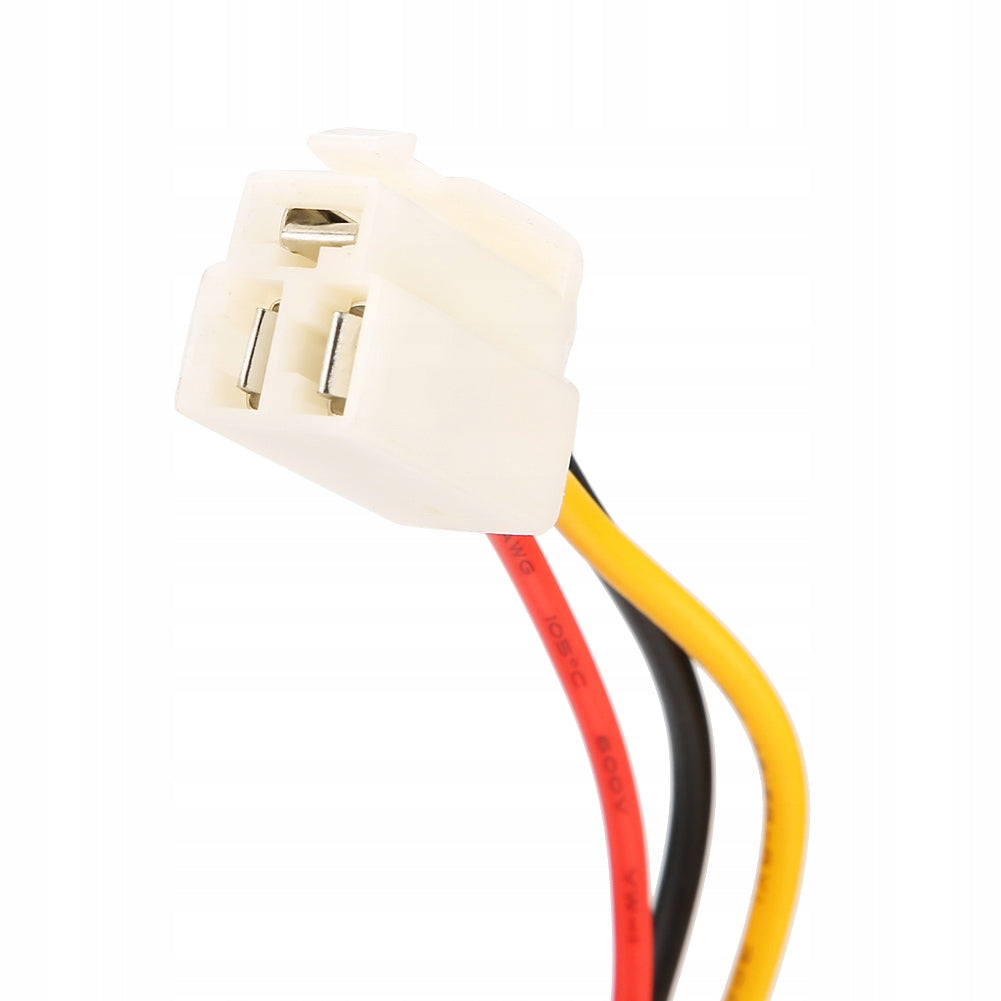

Wiring:
Yellow (+24 V): 24 V output.
Red (VIN+): Voltage input
Black (GND): Ground
List of packages:
1 * Converter
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Effective power | 240 W |
| Parametry | Brand | no brand |
| Parametry | EAN (GTIN) | 0792172955096 |
| Parametry | Packaging status | original |
