Deimantinė gręžimo karūnėlė DISTAR 50 mm, Gres keramikai, 0,8 mm, 11120159106

Trumpai apie prekę

Prekė: Deimantinė gręžimo karūnėlė DISTAR 50 mm, Gres keramikai, 0,8 mm, 11120159106. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: no brand
• Modelis: 11120159106

distar 11120159106, diamond disc 50mm buttoncut, mini ceramic stoneware disc, thin disc for cutting sockets 0.8mm, diamond disc for proxxon engraving, precision cutting without distar chipping, distar 50x0.8f hole 5.8 3.2, milling flush buttons in tiles.

Create perfect holes for flush buttons, outlets and switches up to 3 times faster! The ultra-thin diamond blade DISTAR 50 ButtonCut (Article 11120159106) with a thickness of only 0,8 mm is a specialized microtool designed for uncompromisingly clean cutting of stoneware and ceramics. Thanks to the use of fine diamond of the highest quality and wet work, the disc guarantees perfect edges completely without chipping, eliminating the need for time-consuming finishing grinding. Designed to work with miniature engravings (optimal rotation is 10 000 rpm. /min), brings the quality of glazing details to the level of absolute perfection!

Cutting small, round or rectangular holes for flush-mounted toilet flush buttons, hidden sockets or light switches in hard stoneware is one of the most demanding stages of glazing work. Standard foraminifera or thick discs leave chipped edges, which later require hours of manual refinement and grinding with diamond sponges or cutters. In this craft, the smallest margin of error means the crack of an expensive large format tile.

The miniature diamond blade DISTAR 50 ButtonCut redefines the standards of precision in micro format. Its unique, ultra-thin design (0,8 mm) combined with a specially selected mix of fine diamond grain makes the tool literally delve into the structure of ceramics without generating stress. Forget about tedious edge correction – cutting made with this disc is immediately ready, smooth and aesthetically pleasing. To fully exploit the technological potential of the disc, it is required to work with continuous water supply, which cools the delicate body and immediately drains the excavation from the working zone.

• Cutting without chipping – 0,8 mm thick and ultra-fine diamond embankment give a perfect cutting line that does not require further processing and grinding.
• Work 3x faster – shortening the process of formatting ceramic haberdashery and installation holes to a minimum.
• Universal mounting hole – special design of the socket 5,8 / 3,2-3,0F mm facilitates stable embedding on spindles of engraving machines and microgrinders.
• Optimized for hard materials – sensational effects in the most difficult coatings: polished stoneware, glazed stoneware and delicate wall ceramics.
• Professional visual effect – made elements look like factory cut on CNC machines.

For a flawless result and maximum disc life, professional working procedures should be strictly followed:

• Optimal rotation: Reduce the engraving speed to about 10 000 rpm /min to prevent overheating of the diamond and microcracks.

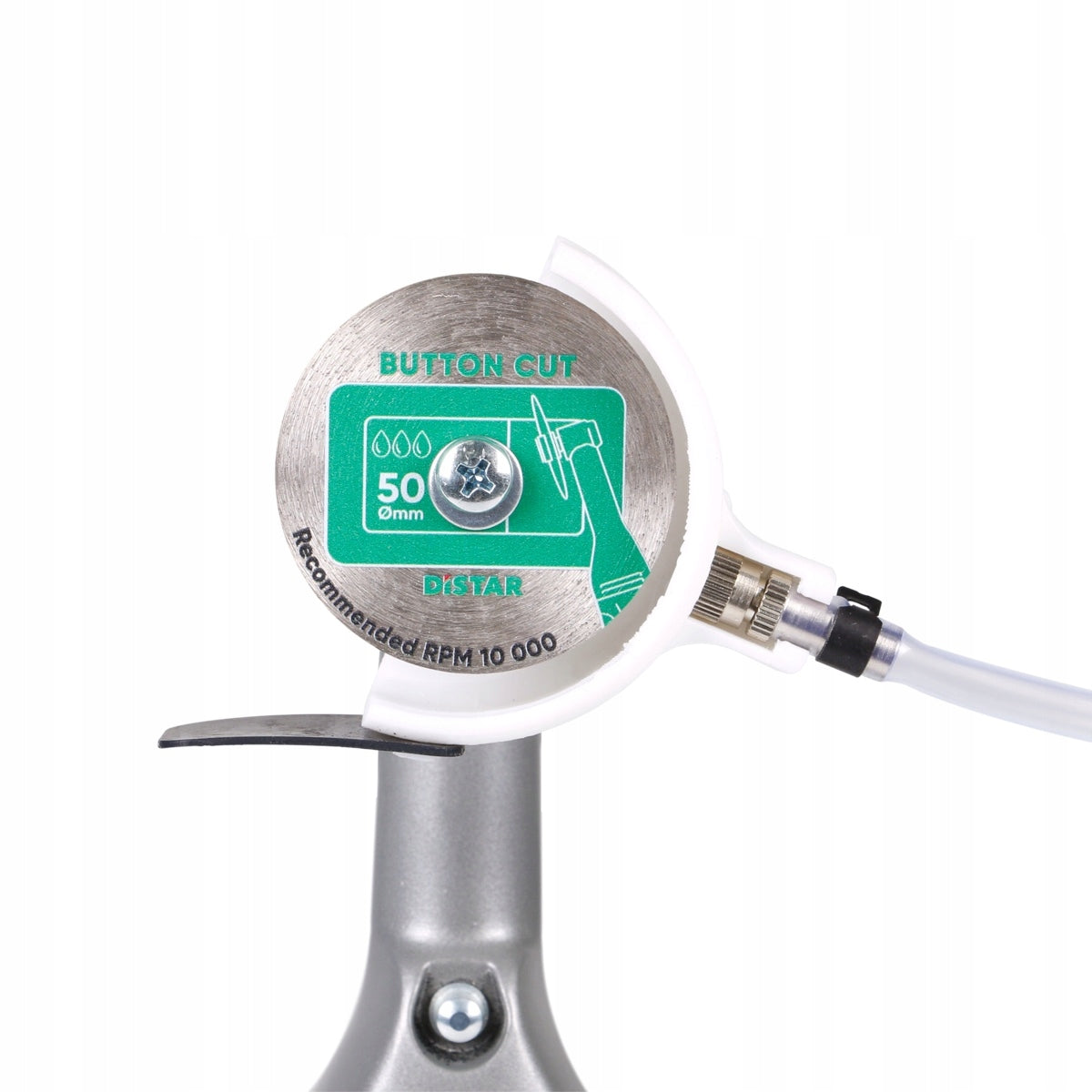

• Constant cooling: Provide a generous and uninterrupted supply of water. Even a temporary reduction in cooling results in the formation of chipping (manual washers are not recommended – a dedicated DISTAR Cover will work best).
• Elimination of vibration: The ceramic plate during processing should be placed on a shock-absorbing and vibration-dampening material (e.g. Styrofoam sheet), and the engraving itself guide using the Support positioning adapter.

• Certified tilers and premium installers – for precise fitting and cutting of luxurious fittings, cistern buttons and sockets pasted into the tile structure.
• Masonry workshops and design studios – for the production of personalized details, decors, stoneware switches and kitchen finishing elements.
• Application:

  Cutting the ideal edges of flush buttons, electrical outlets and switches

  Precise curvilinear notching and wet routing of stoneware, ceramics, glass

The DISTAR brand is synonymous with innovation in the field of construction materials processing. The 50 ButtonCut disc is not an ordinary consumable accessory – it is a specialized instrument that allows contractors to enter the luxury services segment, where every millimeter of the perfect edge counts. By choosing this product, you get a tool that instantly monetizes itself, saving you valuable time and eliminating the risk of costly damage to the investor's material.

• Brand: DISTAR
• Model: 50 ButtonCut
• Article / Catalog code: 11120159106
• Diameter of the disc: 50 mm
• Body thickness: 0,8 mm
• Diameter of mounting hole: 5,8 / 3,2 - 3,0F mm
• Working mode: Wet (absolute water cooling)
• Recommended rotational speed: approx. 10 000 rpm /min
• Compatibility: Mini-grinders, engravings (e.g. Proxxon)
• Purpose: Ceramics, stoneware, porcelain stoneware

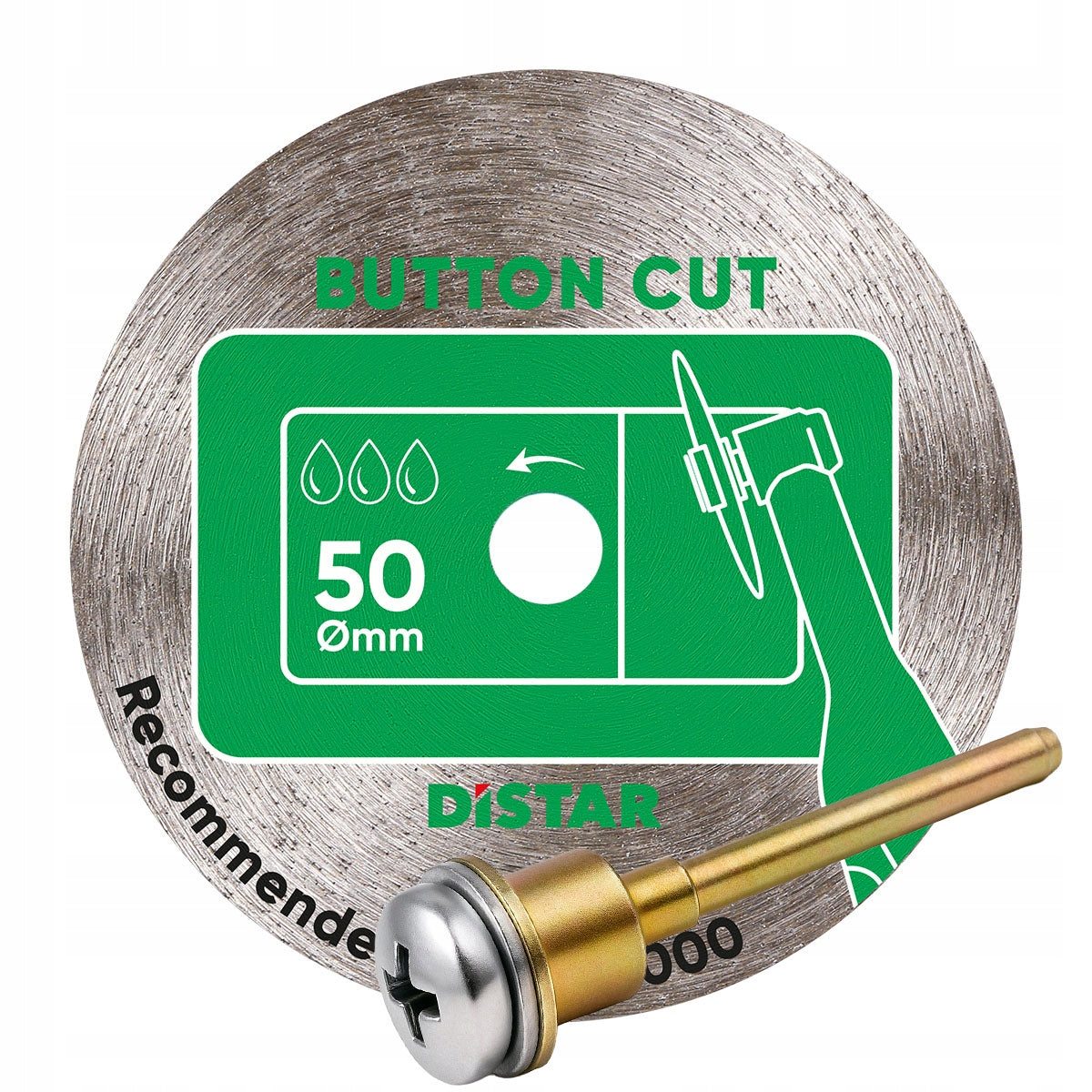

• Diamond blade DISTAR 50x0,8F ButtonCut.

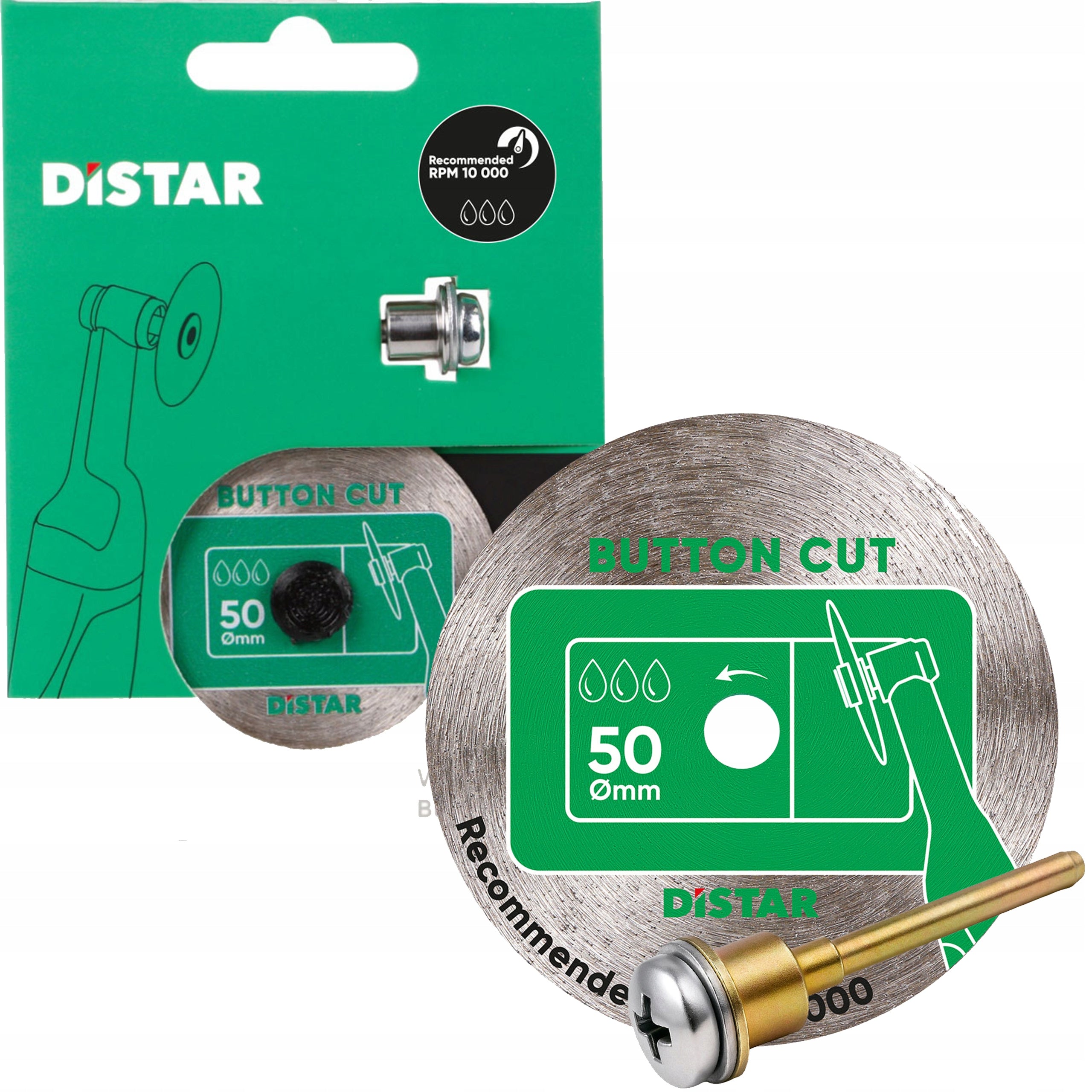

• Original protective packaging.

🎁 In addition, you get

• Certainty of perfect cutting – no risk of enamel nicks on visible edges.
• Colossal time saving – zero sanding corrections after the kerf.
• Comfort of working with micro-format – lightness of handling and excellent visibility of the routing line during cutting.

Q: Why does the dial require rotations of only 10 000 rpm? /min, when the engravings spin faster?

A: With a diameter of 50 mm and an extremely thin body (0,8 mm), too high rotation (e.g. 20 000 - 30 000 rpm /min) would generate a powerful centrifugal force and vibrations that, in contact with hard stoneware, would cause beating and immediate nicking of the edge of the plate. Reduce rotations to 10 000 rpm. /min provides an ideal fine diamond working culture and stability of the cutting path.

Q: Can I cool the shield by spraying water from the atomizer bottle?

A: The manufacturer strongly advises against the use of manual washers. Cutting hard stoneware generates an immediate increase in temperature at the point of contact. The manual sprayer administers water pulsatingly, which causes the so-called. Thermal shocks of metal and diamond – this leads to immediate chipping and even cracking of the disc. A continuous, stable water film is required, which is most convenient to obtain using the DISTAR Cover system cover.

Q: Why is it recommended to lay the cut tile on polystyrene?

A: When working with miniature rotary tools, vibration is the biggest enemy of precision. Rigid medium (e.g. workbench, concrete) reflects vibrations and transfers them back to the ceramic tile, which causes micro-chipping on the bottom and top of the enamel. Flexible polystyrene perfectly dampens and absorbs these microshocks, stabilizing the workpiece material.
