Dekoratyvinė sodo abisinka DECORATIVE GARDEN DELUX, juoda, su pagrindu ir žarna

Trumpai apie prekę

Prekė: Dekoratyvinė sodo abisinka DECORATIVE GARDEN DELUX, juoda, su pagrindu ir žarna. Kategorija: Siurbliai ir hidroforai.

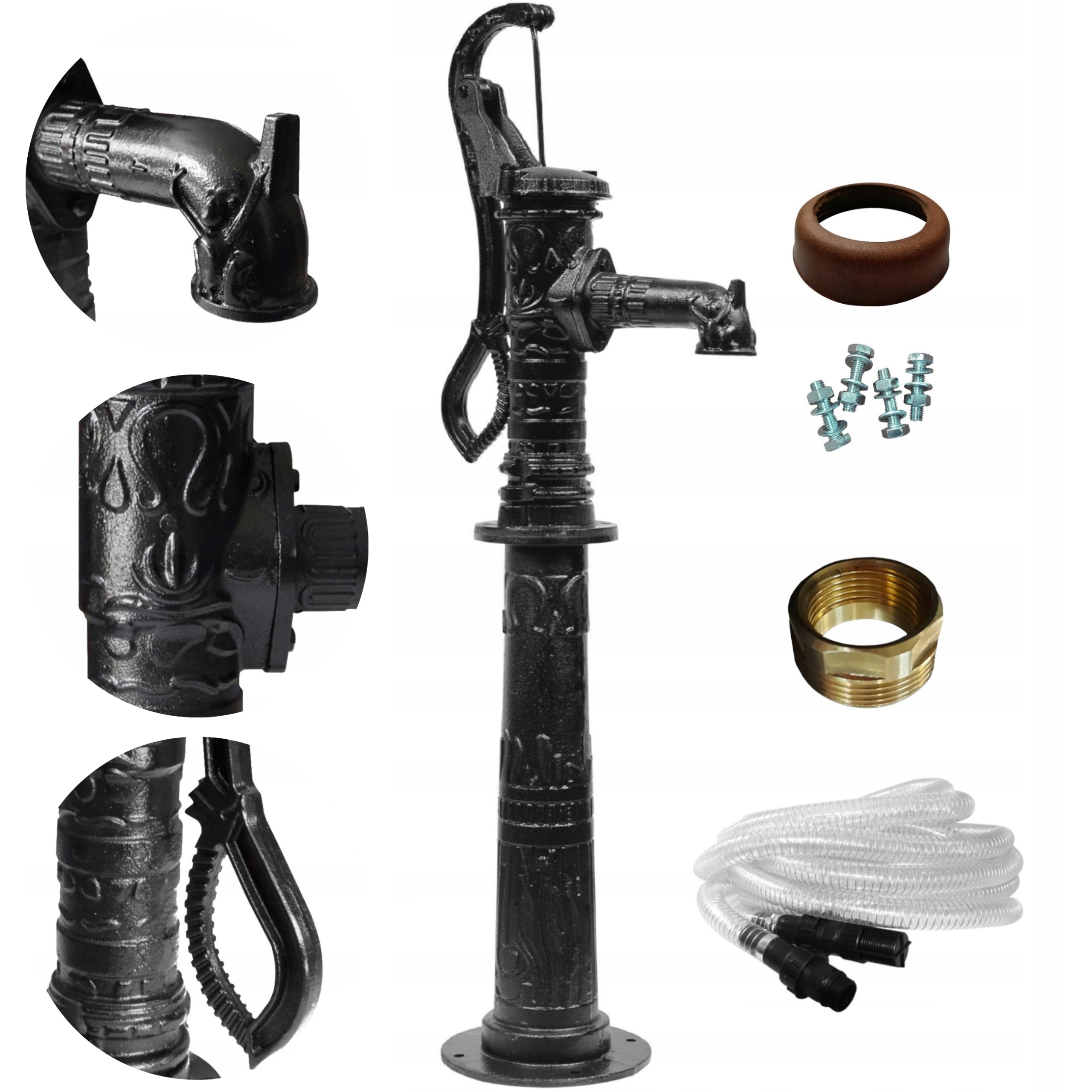

• Gamintojas: no brand
• Modelis: PS0003

.

• HAND PUMP (ABYSSINIAN TYPE)
• PUMP BASE
• 7 METER SUCTION HOSE
• BRASS REDUCER COUPLING 5/4" x 1" MALE/FEMALE THREAD
• OX-HIDE GASKET
• HEX BOLTS FOR MOUNTING (4 bolts, 8 washers, 4 nuts)

.

The pump stands out from other Abyssinians on the market. It is made of high quality cast iron and unlike other popular Abyssinians available on the market, all decorations are made with great care. Additionally, the design of the Abyssinian is devoid of unsightly "seams" connecting the elements of the device, which are visible in other Abyssinian decorative pumps.

Why choose this pump from all the Abyssinians:

• robust, durable construction made of high-quality cast iron
• high quality paint coating
• efficient suction of water from a depth of up to 7 meters
• aesthetic workmanship with attention to every detail
• corrosion resistance
• failure-free operation

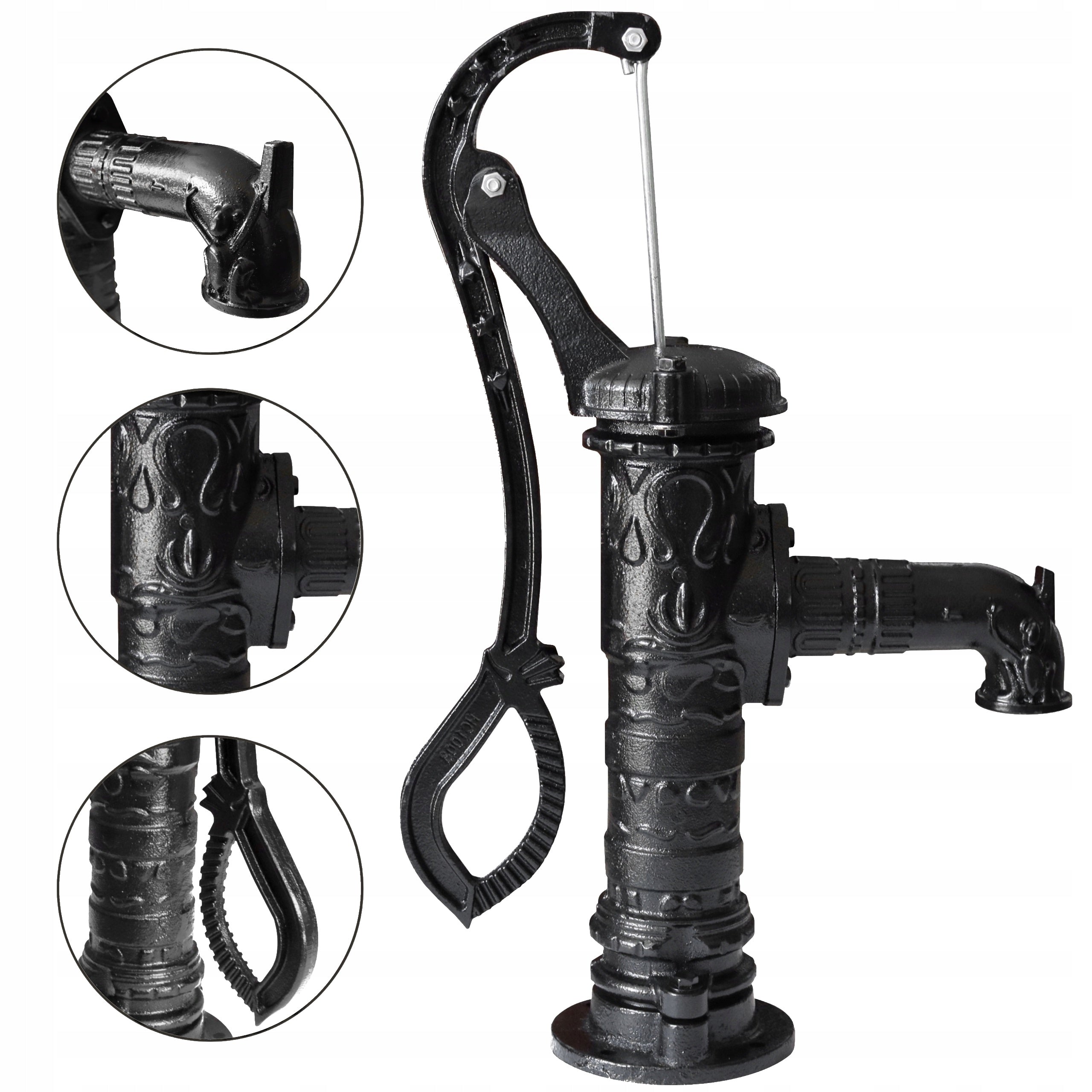

DECORATIVE ABISINKA

Abyssinian, or manual piston pump, is used to pump clean, cold water from the well. It is used wherever there is a free flow of water, so it can be used both on plots and in home gardens. It is used to pump water without the use of electricity - the piston is driven manually by the person operating the pump.

The pump features a durable construction made of high-quality cast iron and high wear resistance. The Abyssinian can pump cold, clean water with a maximum capacity of up to 28l/min (efficiency depends on the force put into the movement of the arm). The pump sucks water from a depth of no more than 7 meters.

There is a handle at the end of the spout for easy mounting of the bucket.

Construction of the pump:

• Cast iron body with spout
• Piston made of cast iron and cowhide

Features and advantages:

• Simple and robust construction
• High durability
• Ease of assembly and disassembly
• High aesthetics of execution
• Affordable price in relation to the quality of workmanship
• Good suction parameters (4 meters)
• Reliability during use
• Alternative, environmentally friendly way of supplying water

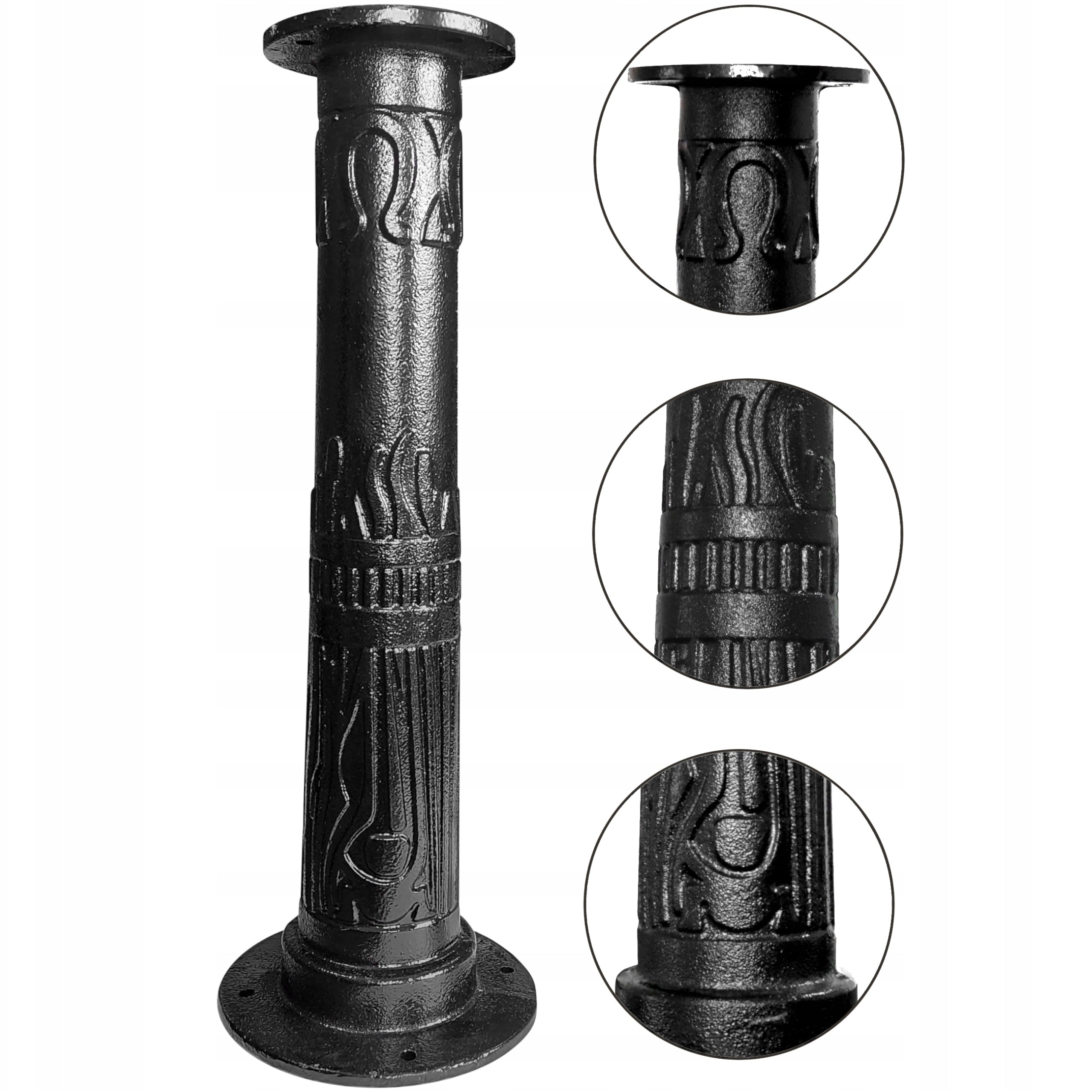

BASE FOR DECORATIVE ABYSSINES

The base for the decorative Abyssinka causes that the Abyssinka pump is fixed at a height that gives comfortable pumping conditions. The pump on the riser also gives better visual effects, pleasing to the eye.

.

It is a round, cast iron pedestal, the lower part of which has four holes through which it is attached to the ground and the upper part, whose four holes have the right spacing for screwing the Abyssinian pump.

.

FEATURES:

• robust, durable construction
• high reliability of the paint coating
• aesthetic workmanship with attention to every detail
• Quick and easy installation
• corrosion resistance

Technical parameters:

• Max. capacity - 28 l/min
• Max. suction depth - 7 m
• Pump weight with base 22 kg

SUCTION HOSE 7 METERS

Practical suction hose is an essential component for the proper functioning of your garden pump. Thanks to it, you can easily create a well-functioning system, which will supply water from a source other than the water supply network, e.g. from the well.

The product is made of durable PVC material, which will not lose its functionality due to contact with water.

The hose is finished with a suction basket, which prevents contaminants of larger sizes from entering, e.g. Like leaves. On the other hand, the snake is terminated with a 1” screw allowing the hose to be screwed into the pump suction port. The hose is also equipped with a check valve.

Application:

The practical suction hose is designed to connect to a standard garden pump. It will allow you to create an efficient system, thanks to which you can easily bring water from a source other than the water supply network, e.g. from digging wells, deep wells, lakes, rivers and reservoirs

Advantages:

• The hose features a flexible form that allows it to be rolled up, making it easy for you to store the tool when you don't need it
• It is characterized by high resistance to adverse effects of water

Parameters:

• Diameter: 1"
• Length: 7 m
• Reinforced plastic
• Check valve with basket
• Connector 1" GZ

QUALT BRASS REDUCTION 5/4" x 1" GZ/GW

.

Proven and recommended by specialists brass fittings with a thick wall, so there are no "cracking threads" as in the case of the cheapest replacements.

.

Qualt brass reduction is used in cold and hot water installations intended for human consumption and in heating installations. Has a hygienic certificate.

.

• Material: brass
• Diameter: 5/4" x 1" GZ/GW
• Maximum operating temperature: 110°C
• Cooperation with medium: water, glycol, air
• Hygienic certificate: BK/W/0094/01/2019

Cowhide leather seal

Due to the fact that the gasket is the part of the pump that is most exposed to mechanical damage, we attach the gasket to the kit, which will provide you with a longer, trouble-free operation of the Abyssinian pump

Screws for fixing ABYSSINKI with BASE

A set of screws dedicated to fixing popular Abyssinian pumps. Made from the highest quality steel, these screws are extremely resistant to corrosion, ensuring a durable and reliable connection. With this kit, you can ensure that the pump connects to its base, which is crucial for the stability and efficiency of the device.

Operating instructions:

• Mount the pump vertically, with the discharge nozzle facing downwards.
• Pumping is carried out thanks to the work of the piston embedded together with the leather gasket in the pump body.
• By pumping water thanks to the handle and the lever attached to it, we set the piston in motion, which sucks water from the well. Special bayonet valve, blocks the return of pumped water back to the well.
• The piston is moved through a steel pull and external levers/hand, human work.
• At the bottom of the pipe there is a conical blade or drill, which is gradually recessed into the ground.
• At temperatures below 0°C, the pump should be emptied of water.
• Before the first pumping and after a long stop, the pump should be poured and wait a few hours for the gasket to soak and fit into the pump.
• For maximum efficiency, pump the entire range of lever stroke.
• The pump can be installed in various types of tanks, digging or drilling wells using a suitable suction basket or filter.

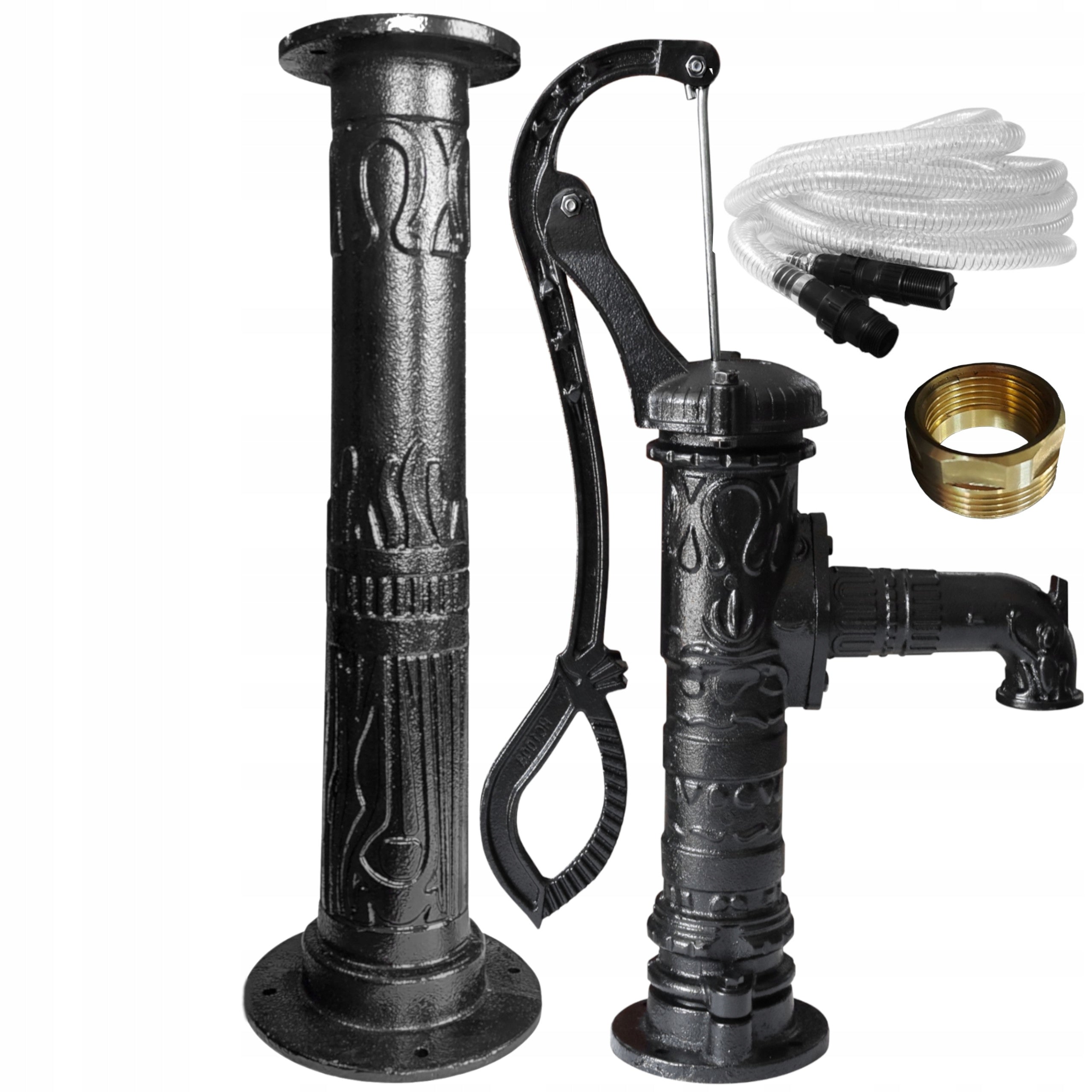

We present you a mounted hand pump with a base. By mounting an additional base, the pump will be located on the riser. Thus, it will allow you to hang the bucket on the spout and pump without bending over. Installation of the pump along with the elevation gives a huge decorative effect.

(PREVIEW PHOTO)

Connection diagrams:

1. Abyssinka hand pump
2. The basis of the Abyssinian
3. Flexible pipe with valve and suction basket
4. Well pipe
5. Check valve with basket
6. PE pipe

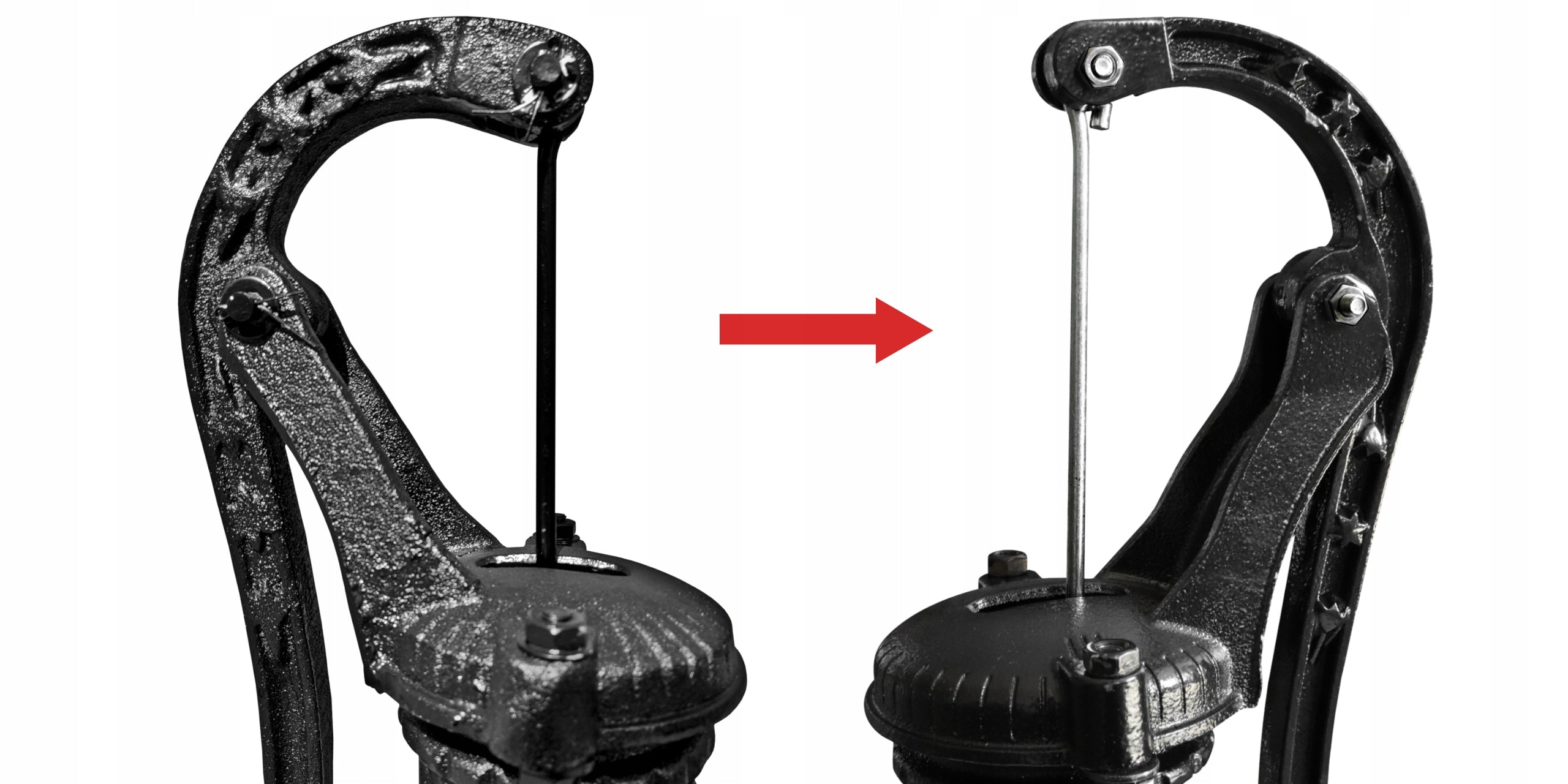

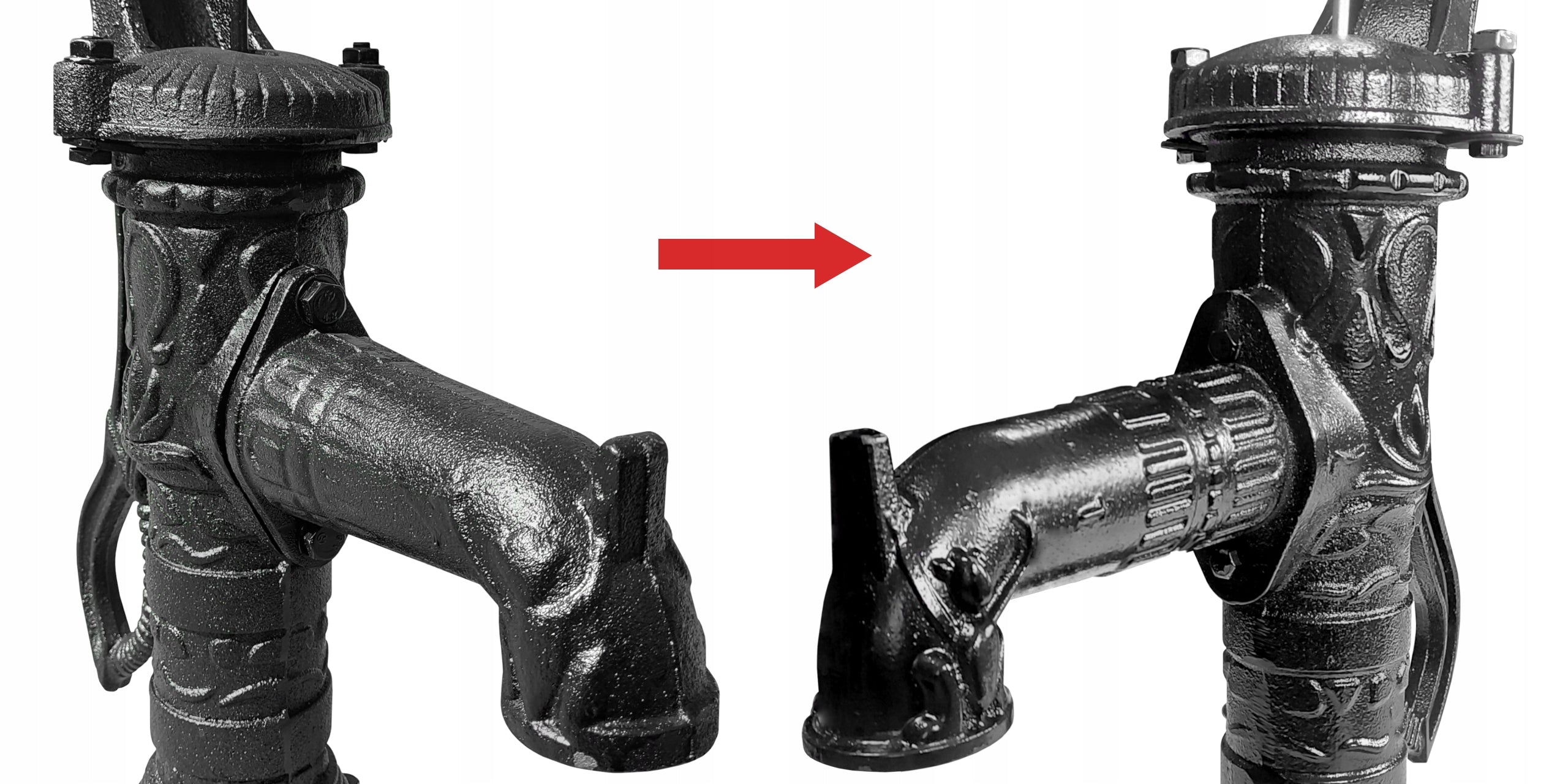

Due to the desire to ensure the safety of the goods during its transport, the pump body and spout are unscrewed - after receiving the shipment, you need to tighten these elements to the pump body yourself. Transport in this form minimizes the risk of damage to the pump during transport.
