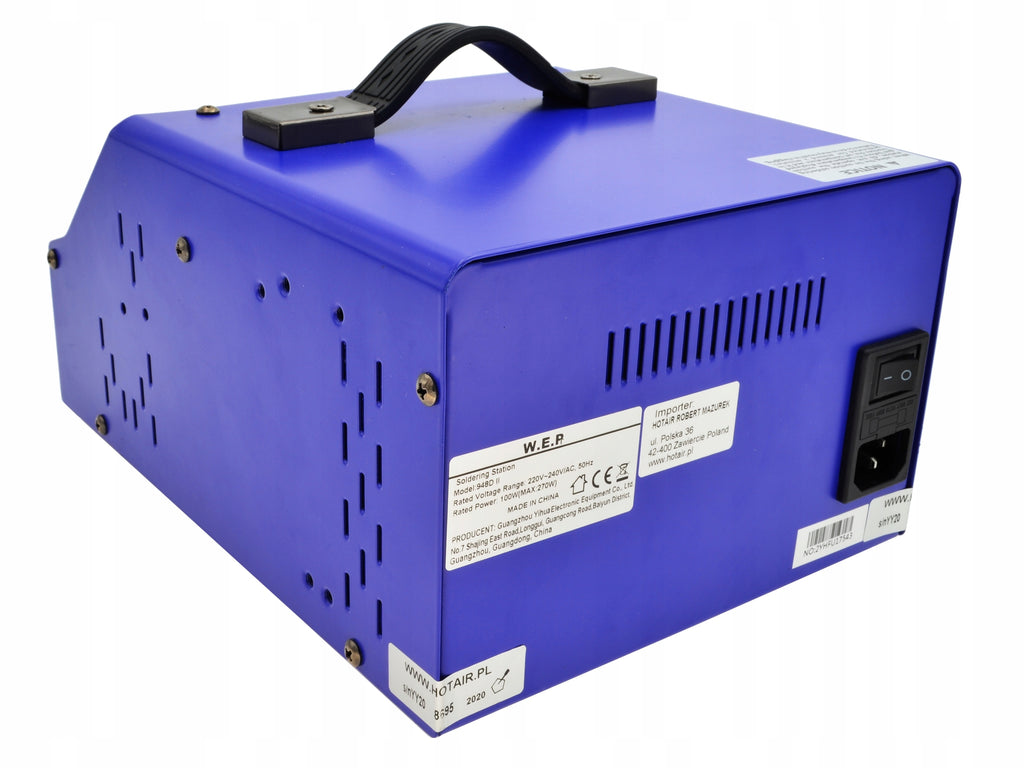

Desolderavimo stotelė WEP 948D-II 3in1, 90W indukcinė

Trumpai apie prekę

Prekė: Desolderavimo stotelė WEP 948D-II 3in1, 90W indukcinė. Kategorija: Lituokliai.

• Gamintojas: WEP
• Modelis: 948D-II
• Galia: 750 W
• Įtampa: 230 V

By buying from us at HOTAIR Robert Mazurek you can be sure of the guarantee and quality of the products sold. We are a Polish company operating since 2011

✅ Official representative of the soldering station manufacturer WEP

✅ WEP 948D-II is equipped with three flasks:

• Headwheel for precise work,
• 90W induction tip wheel with fast heating,
• Desoldering pistol wheel for removing tin,

✅ Easy desoldering of difficult elements – when dismantling, the head flask is helpful, which in combination with the desoldering machine facilitates quick and clean removal of tin,

✅ Full control over temperature and blowing – range 200 – 480 °C with instant reaction of PID system,

✅ ESD Safe system – full protection against electrostatic discharges, safe for SMD/BGA systems,

✅ 3 settings memory – the ability to save the operating parameters of the desoldering gun and tip flasks,

✅ Digital temperature correction – accurate control ensures compliance of the tip temperature with the display without the risk of damage to the elements,

✅ Automatic wake-up – just lift the flask or press the button so that the station is immediately ready to work,

✅ Automatic shutdown – energy saving, the station will turn itself off after a certain time (1 to 99 minutes),

✅ Block settings with password – protects against accidental change of operating parameters,

✅ High quality – robust housing, durable silicone wires, metal sockets,

✅ Ready to work immediately after unpacking – all accessories included!

✅ Contents of the set

• Soldering station WEP 948D-II 3in1 - 1pcs
• Power cord
• Tip flask with conical tip 907l 7pin
• Induction tip 90W with conical tip 7pin
• Tin spool space flask stand
• Cleaning sponge
• Cleaners

Desoldering gun with attached tip 7pin

• Spare filters - 2 pcs. white
• Spare spring filters - 2 pcs.
• Tip for pistol stock / desoldering machine 2pcs
• Pin for interlacing
• Set of cutters for cleaning tips of different thicknesses
• Rubber seals - 2 pcs.
• Silicone pack

WEP 948D-II 3in1 is a versatile and efficient soldering station designed for professionals and demanding users. It combines a tip flask, a 90W induction flask and a desolder gun, offering full control over the soldering and desoldering process. It provides comfort, safety and time savings while minimizing tip and energy consumption.

✅ Specification:

• Voltage: 220-240 V
• Dimension: 250x186x134 (L x W x H) ± 5mm
• Weight: 6.2kg

Desoldering machine :

• Heating power: 130W
• Temperature range: 350-480°C
• Temperature stability: ±1°C
• Display Type: LCD
• Resistance to grounding: ≤2 Ω
• Voltage on heating element: AC 26V ± 10%
• Length of flask cable: ≤ 120cm
• System: ESD safe
• Soldering flask: 7 pins
• Compressor power: 12W
• Vacuum power: Max . 12Mpa
• Length of flask cable: ≤ 120cm

907I tip soldering iron:

• Heating power: 60W
• Temperature range: 200-480°C
• Temperature stability: ±1°C
• Display Type: LCD
• Ground resistance: ≤2 Ω
• System: ESD safe
• Soldering flask: 7 pins
• Length of flask cable: ≤120 cm
• Voltage on heating element: AC 26V ± 10%
• Sleep mode: enabled after idle operation 1-99 minutes

Induction tip soldering iron 90W:

• Heating power: 90W
• Temperature range: 200-480°C
• Temperature stability: ±1°C
• Display Type: LCD
• Ground resistance: ≤2 Ω
• System: ESD safe
• Soldering flask: 7 pins
• Length of flask cable: ≤100 cm
• Voltage on heating element: AC 26V ± 10%
• Sleep mode: enabled after idle operation 2-99 minut

✅ Operation in °C / °F mode

The WEP 948D-II soldering station allows to select a temperature unit – Celsius (°C) or Fahrenheit (°F). Thanks to this function, the user can adjust the way the temperature is displayed on the screen to their own preferences

✅ Smart SLEEP function / automatic shutdown

Headpiece / Tip flask 90W/ Pistol desoldering machine

Each of them uses the intelligent SLEEP function, which automatically lowers the temperature to approx. 200°C after a specified period of inactivity (from 60 seconds to 99 minutes).

Faster resumption – after raising the flask, the temperature immediately returns to the previous level.

Energy saving – reduced power consumption when the flask is unused.

🔹 Longer life of tips and nozzles – lower temperature in sleep mode reduces their wear.

🔹 Automatic shutdown – if the flask remains in SLEEP mode for the set time (1 – 30 minutes), the station can self-off.

🔹 Full control – the ability to deactivate the function by setting the SLEEP time to “0”.

✅ Solid pistol stock

Designed for efficient and precise desoldering of elements, it ensures comfort and reliability even with prolonged use.

✅ Unique design and cleaning in 2 steps

The desolder flask has a special design of suction nozzle and heating pipe – the melted binder goes directly to the filter, so that the device works efficiently and does not require frequent maintenance.

✅ High temperature resistant cable

Tip flask cable made of silicone, resistant to high temperature in a short time, which increases safety and durability.

✅ Intelligent settings memory

After replacing the desolder gun with a 90W induction flask, the station automatically restores the last used temperature and settings, so you can immediately continue working without having to reconfigure.

✅ Use of desoldering pistol flask

1. Before: soldered elements remain on the tile.

2. After: quick and clean desoldering thanks to the pistol stock.

✅ Three memory channels (CH1–CH3)

The ability to save and recall three temperature settings for both soldering and desoldering flasks, which accelerates work with various components.

✅ When dismantling difficult elements, the head flask is helpful, which in combination with the desoldering machine facilitates the removal of tin

✅ Desolderer stock stand and pistol

The stand allows safe placement of the tip flask and desolder gun, has space for four 900M tips, sponge and brass cleaner, which ensures order, convenience and safety of work.

✅ Wide range of accessories

For the WEP 948D-II soldering station, we offer a large number of nozzles, tips and other elements at our other auctions, which allows you to fully adjust the device to your needs.
