Didelių plokščių transportavimo sistema Compact Light Plus su siurbtukais

Trumpai apie prekę

Prekė: Didelių plokščių transportavimo sistema Compact Light Plus su siurbtukais. Kategorija: Plytelėms skirtos siurbtukai.

• Gamintojas: Battipav
• Modelis: 11007

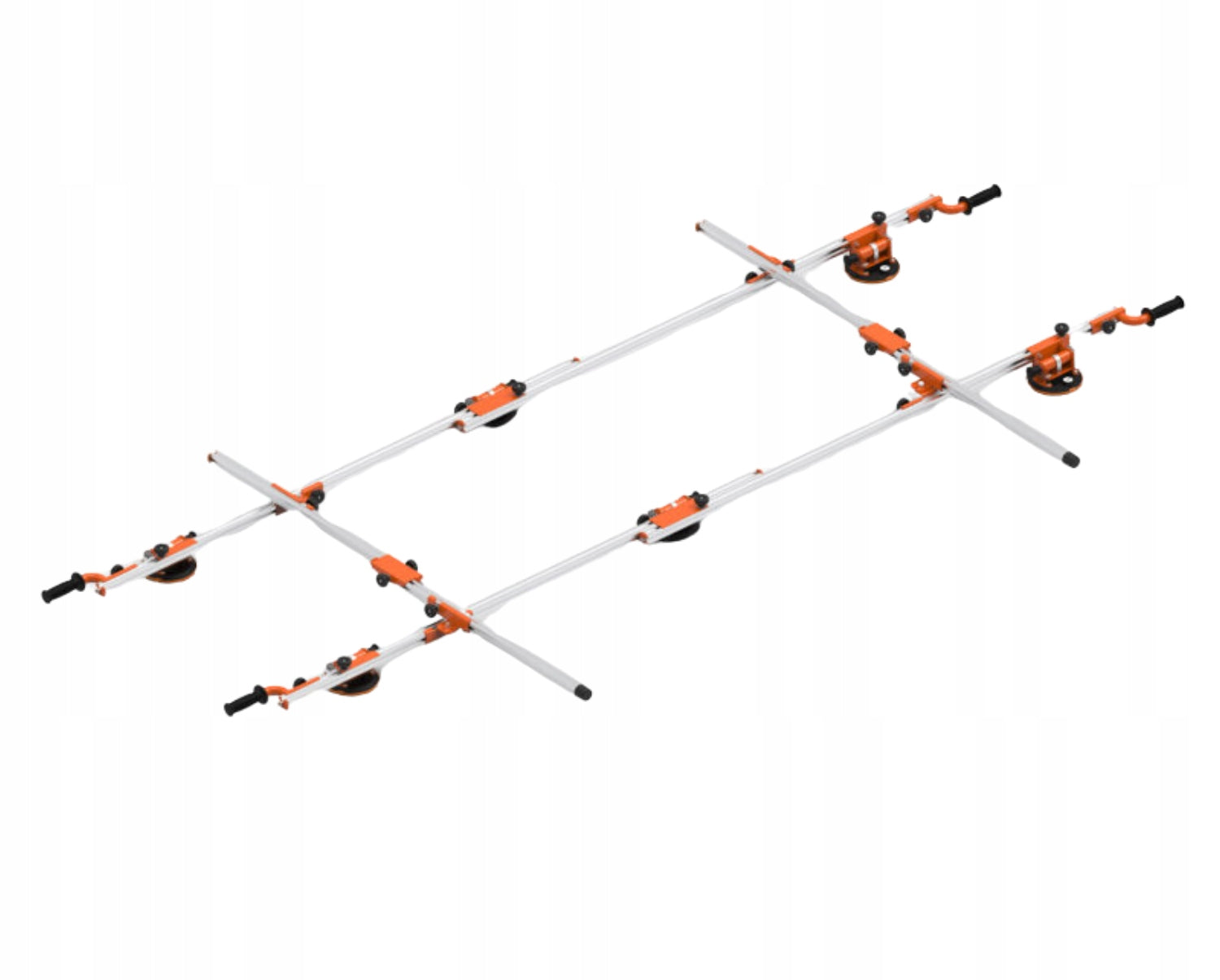

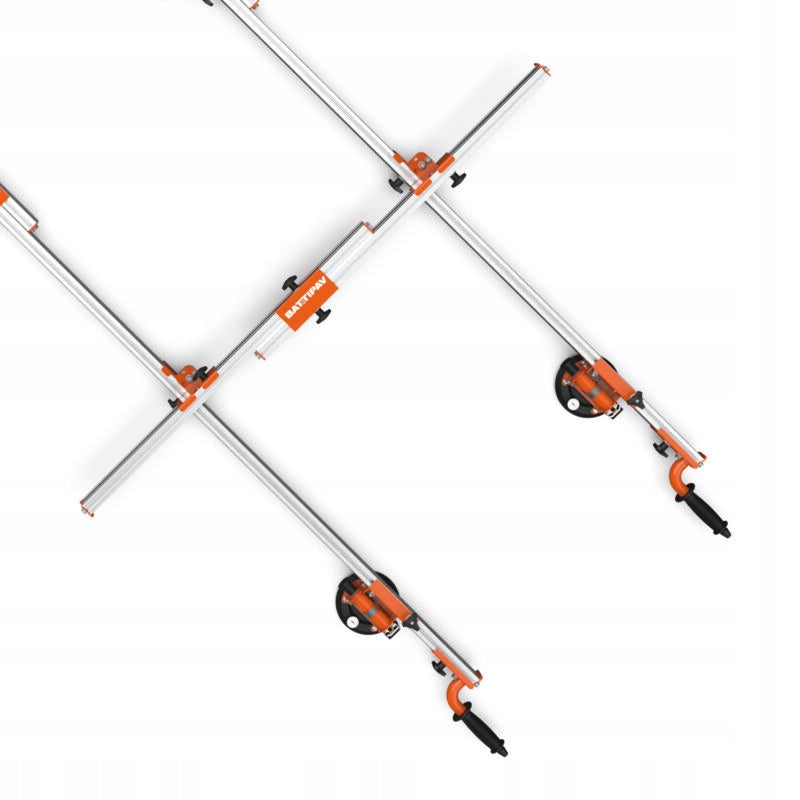

BATTIPAV Compact Light Plus – Stable transport system for large format plates

Compact Light Plus is a multifunctional frame for transporting large-format plates. It provides high rigidity, even under pressure, eliminating dangerous deflections that could lead to plate breakage. The construction is made of aluminum, which ensures high rigidity. The 30x30 mm cross-section is designed to perfectly balance between large-format tiles and high material resistance.

The new system is even lighter than the Agile Light Plus, while allowing loads up to 80 kg to be transported.

All Battipav tools are entirely designed and manufactured in Italy.

Key Features:

• Ergonomic handles – with rubber instep, position adjustment and lock.

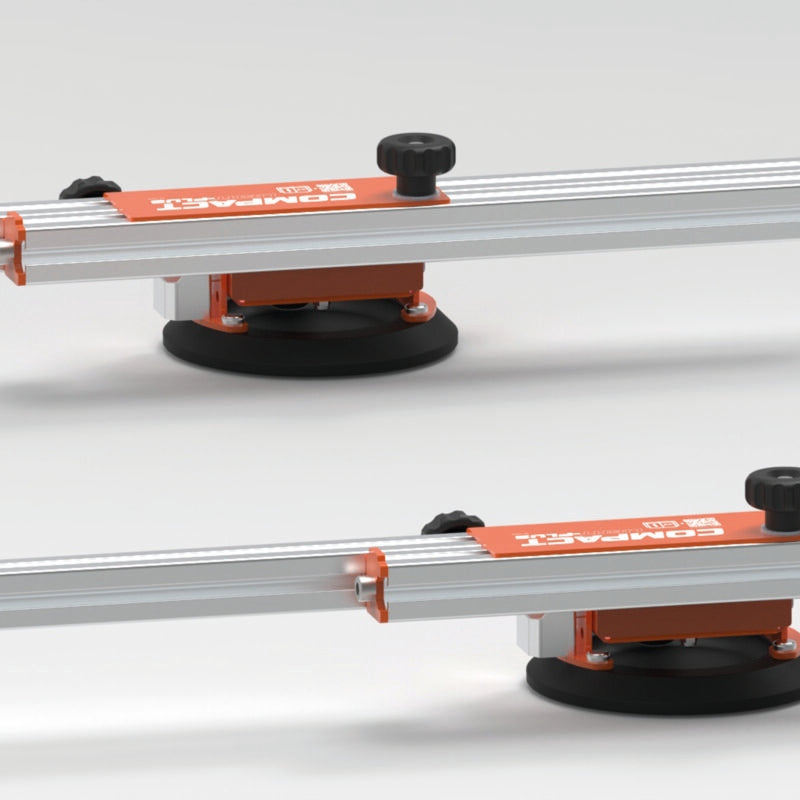

• Powerful vacuum suction cups – with pressure gauge and additional sealing, ideal for rough surfaces.
• Robust stabilizers and cross connectors – ensuring rigidity of the structure and precise fit.
• Thoughtful design – minimizes the number of elements with maximum stability.
• Compatibility – the system works with Mini Multi Bench, Multi Bench, Compact family, which increases its functionality and versatility.

Technical data:

• Weight: 23,5 kg
• Beam length adjustment range: 2030 – 3300 mm
• Beam width adjustment range: 890 – 1660 mm
• It allows you to transport loads up to 80 kg.

The set includes:

• 2 telescopic beams with 2 handles
• Crossbar set (Kit Crossbars 11003/1)
• 6 suction cups

Compact Light Plus is a reliable tool for professionals who value precision, safety and convenience when transporting large format boards

QUALITY, RELIABILITY, INNOVATION

The philosophy of construction and design of Battipav is something very solid and important. A series of rigorous quality controls throughout the production process avoids defects, which ensures COMPLETE RELIABILITY.

All Battipav products are designed, tested and manufactured in ITALY
