Didelių plytelių pjaustyklė RAIMONDI Raizor MTC2X, 153 cm

Trumpai apie prekę

Prekė: Didelių plytelių pjaustyklė RAIMONDI Raizor MTC2X, 153 cm. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Raimondi
• Modelis: 433CP00AM2

RM-433CP00AM2

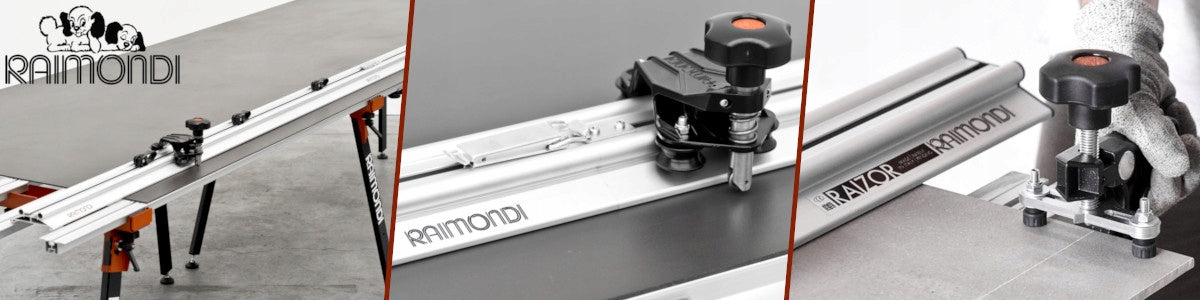

Description of Raimondi Raizor MTC2X tile cutter

• For tiles and large formats – Raimondi RAIZOR MTC2X is a rail system designed for precise cutting of ceramic tiles, stoneware and large-format slab.
• Cutting range 50 - 153cm – the set allows you to make cuts from 50cm to 153cm, making it suitable for many popular tile formats.
• Cutting on one or two rails – on one rail the maximum cutting length is 66cm, and after connecting two rails you can get a cut up to 153cm.
• Stable attachment to the plate – 4 suction cups ensure secure adhesion of the guide to the surface and help maintain a straight cutting line.
• Suction cups stain-free – traceless suction cups reduce the risk of leaving dirt or marks on the material being processed.
• Smooth operation of the trolley – bearing cutting element with titanium coating ensures precise, smooth and controlled cutting.
• Breaker included – the included breaker allows you to break tiles from 3mm to 15mm thick after a previous cut.
• Convenient transport system – the rail set is practical to carry and works well for assembly and finishing work.
• Precision when assembling – RAIZOR MTC2X makes it easy to make straight cuts without the need for large stationary machines.
• For tilers and contractors – the product is a good choice for people working with larger tile formats, where accuracy and stability of handling count.

Technical data

• Cutting length: from 50 to 153cm
• One Rail: maximum 66cm cut
• Two rails: maximum 153cm cut
• Number of Rails: 2 rails
• Number of Suction Cups: 4 suction cups
• Type of Suction Cup: traceless for tiles
• Breaker Range: 3 to 15mm
• Cutting element: titanium with bearing
• Working Trolley: precise and smooth
• Purpose: cutting large formats

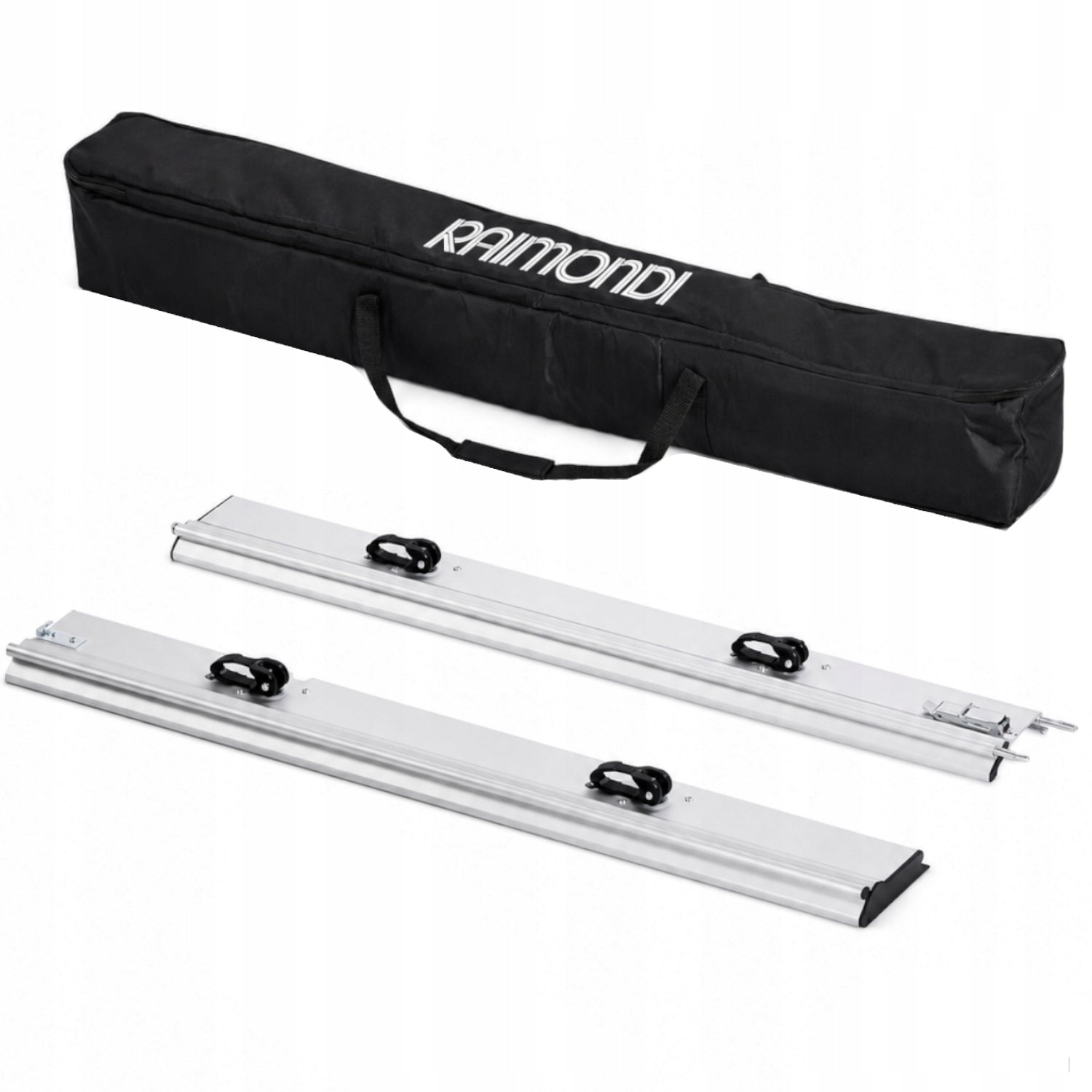

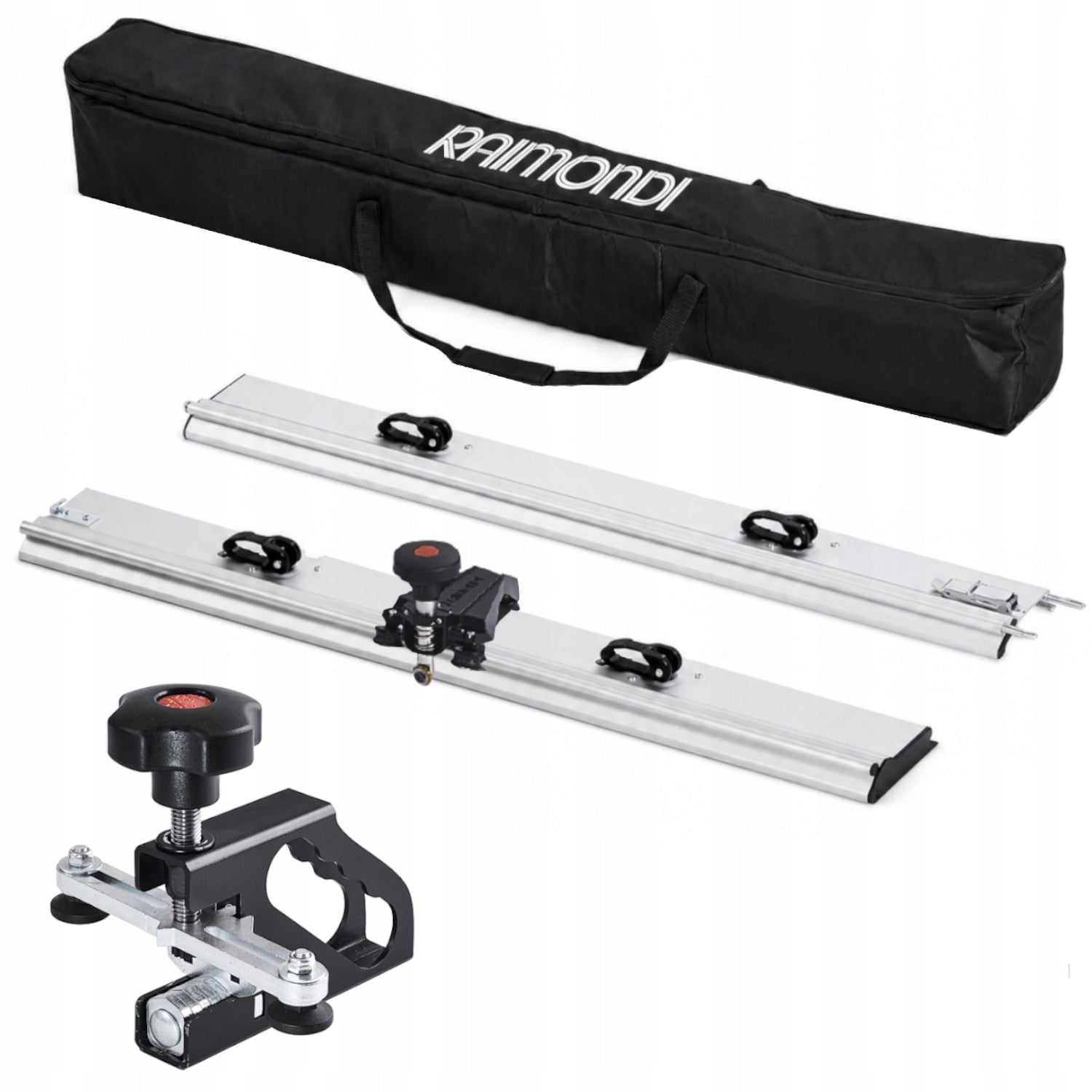

RAIZOR MTC 2x consists of

• Two joined rail sections with a total cutting length of 153 cm
• Hand cutting trolley equipped with titanium wheel Ø 20 mm (3/4'), wheel with integrated bearing and calibrated screw.
• Tile/plate breaker with a thickness of 3 to 15mm (1/8”-19/32”).
• Padded bag with shoulder straps.

Description of the Raimondi tile breaker

• For tiles 3 - 15mm pliers are designed for breaking tiles with a thickness of 3 to 15mm. They will work well with precise work with tiles after previous cutting of the surface.
• Solid steel body ensures durability during regular use. An additional coating with high resistance protects the tool from rapid wear.
• Ergonomic handle improves comfort and allows you to control pressure confidently. Thanks to this, the tool fits well in the hand even when breaking tiles accurately.
• Adjustable pressure is carried out by means of a special knob, which gradually increases the clamping force. This allows you to precisely break the plate along the previously made incision.
• Delicate work with the surface reduces the risk of damage to the face of the tile. The gradual action of pressure helps to maintain control over the cracking of the material.
• Adjustable rubber feet allow you to adjust the support points to the width of the plate. Thanks to this, the force is distributed more stable and effective when breaking.
• Compact design makes it easy to store and transport the tool. The pliers are lightweight and fit in the RAIZOR carry bag.
• Professional use makes the tool well suited for tilers and finishing teams. It is a practical accessory for working with ceramic, stoneware and large format tiles.

Technical data

• Tile thickness: 3 - 15mm
• Body: Reinforced steel
• Handle: Ergonomic and comfortable
• Pressure: Adjustable knob
• Foots: Rubber adjustable
• Breaking: After previous incision
• Transport: Compact design

Application

Review photos

In delivery

• Hand cutter for tiles Raizor MTC2x 153cm RAIMONDI 433CP00AM2
