Didelių plytelių pjaustytuvas RAIMONDI RAIZOR MK II

Trumpai apie prekę

Prekė: Didelių plytelių pjaustytuvas RAIMONDI RAIZOR MK II. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Raimondi
• Modelis: 433CP00AR

By choosing this offer you can be sure that you are buying a product 100% ORIGINAL from an Authorized Brand Distributor in Poland.

Raimondi cutter for sinters LARGE Format RAIMONDI RAIZOR MK II

Cutter for large format boards Raimondi Raizor MK. II

• Large format tile cutting system up to 336 cm (451 cm with

optional extension), lightweight (5,4 kg) and easy to transport.

• RAIZOR MkII consists of:

- 2 guides with a cutting length of 160 cm each and 336 cm when combined.

- cutting trolley made of die-cast aluminum, equipped with

Titanium wheel Ø 20 mm, wheel with integrated bearing and calibrated

high-strength steel screw;

- tile breaker with a thickness of 3 to 12 mm;

- packed in a bag.

• the trolley moves on the guide thanks to 3 rollers.

• the cutting trolley is designed to carry all the pressure exerted

by the operator on the board, without any restrictions and without losses caused

mechanical interference.

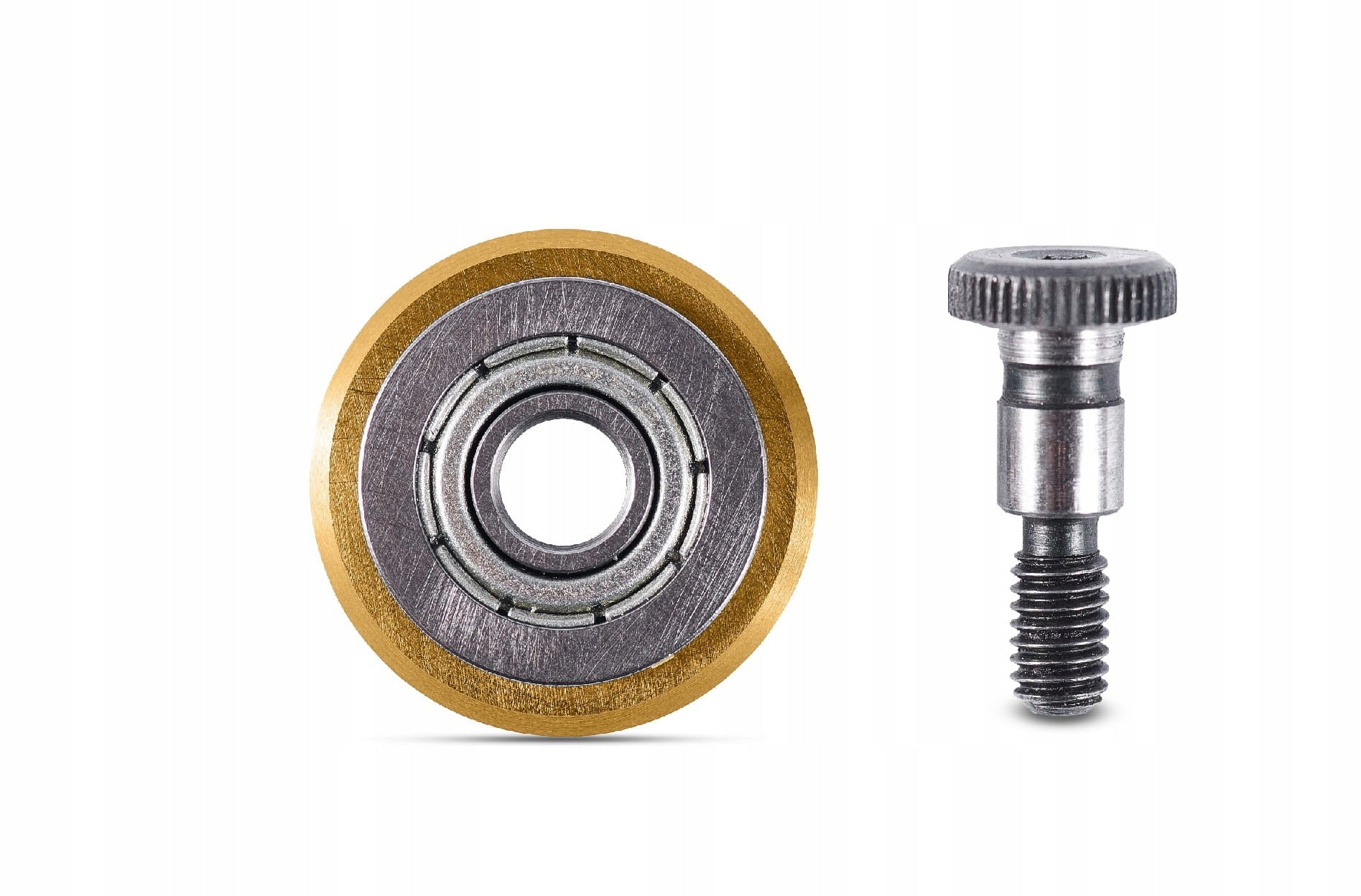

• 20 mm diameter titanium coated cutting wheel is equipped with

integrated bearing and is mounted on a calibrated steel screw o

high strength; this guarantees maximum smoothness, exceptional

precision and efficiency of cutting and easy and quick replacement.

• Rails are made of extruded aluminum. Each rail is equipped

in 3 two-lip rubber suction cups Ø 95 mm, which gives a total of 6 suction cups.

They do not stain and are even suitable for structural tiles.

• Suction cups, in addition to being very useful when measuring cutting, which

is to be made, prevent the Raizor MkII from moving during

notching, which ensures maximum precision and efficiency. Moreover,

suction cups (placed in the middle of an aluminium rod/chain)

prevent the rail from tipping over and/or moving during undercutting,

which ensures maximum precision and efficiency in any situation. Thanks to this

The Raizor MkII is effective even with the most complex cuts and

tiles of considerable thickness.

• Distance between incision line and aluminum rail: 20 mm. Allows for

simple and quick calculation of the dimensions of the cut element (in the system)

metric).

• Each suction cup comes with a release latch that can be

use if sticking to the tile.

• Suction cup holders make a 180° movement so as not to interfere with the trolley

• All rails equipped with side end caps to protect against

accidental damage.

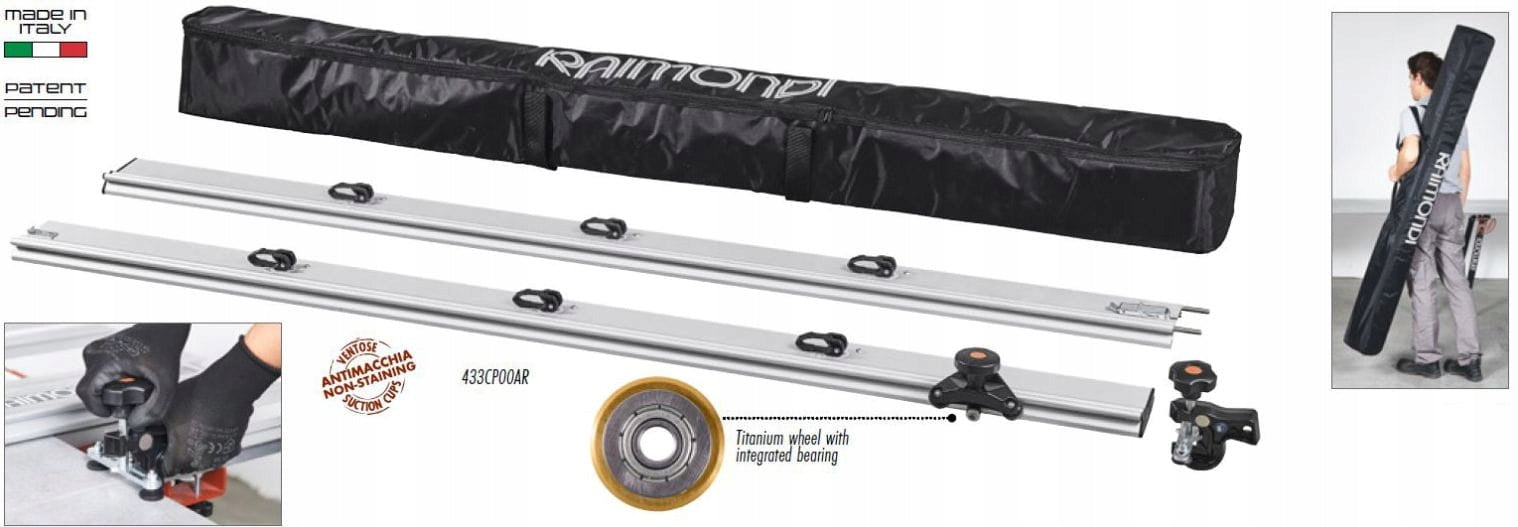

The Raimondi RAIZOR MkII cutter set includes

• 2 guides with a cutting length of 160 cm each and 336 cm when combined.
• Cutting trolley made of die-cast aluminum, equipped with titanium wheel Ø 20 mm, wheel with integrated bearing and calibrated
• High-strength steel screw
• Tile breaker with a thickness of 3 to 12 mm
• Carrying bag

In delivery

• Large format tile cutter 336cm RAIMONDI RAIZOR MK II





Optionally, a trolley with an angle grinder Power Raizor can be used for the cutter

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Raimondi
Parametry	Series	Raizor
Parametry	Kind	manual cutter
Parametry	Maximum tile cutting thickness at 90 degrees	12 mm
Parametry	Maximum cutting length	3360 mm
Parametry	Device weight	5.4 kg
Parametry	Manufacturer code	433CP00AR
Parametry	EAN (GTIN)	8050532030398
Parametry	Packaging status	original
