Dome tipo analoginė vaizdo kamera BCS EA15FR3L3-G, 5MP, HD-CVI/AHD/HD-TVI, 30 m IR

Trumpai apie prekę

Prekė: Dome tipo analoginė vaizdo kamera BCS EA15FR3L3-G, 5MP, HD-CVI/AHD/HD-TVI, 30 m IR. Kategorija: Fotoaparatai.

• Gamintojas: BCS
• Modelis: 2477

🎥 BCS-EA15FR3L3-G – analogHD 5 Mpx dome camera with built-in microphone, IR 30m and WhiteLight 30m

📝 Abbreviated description of the device

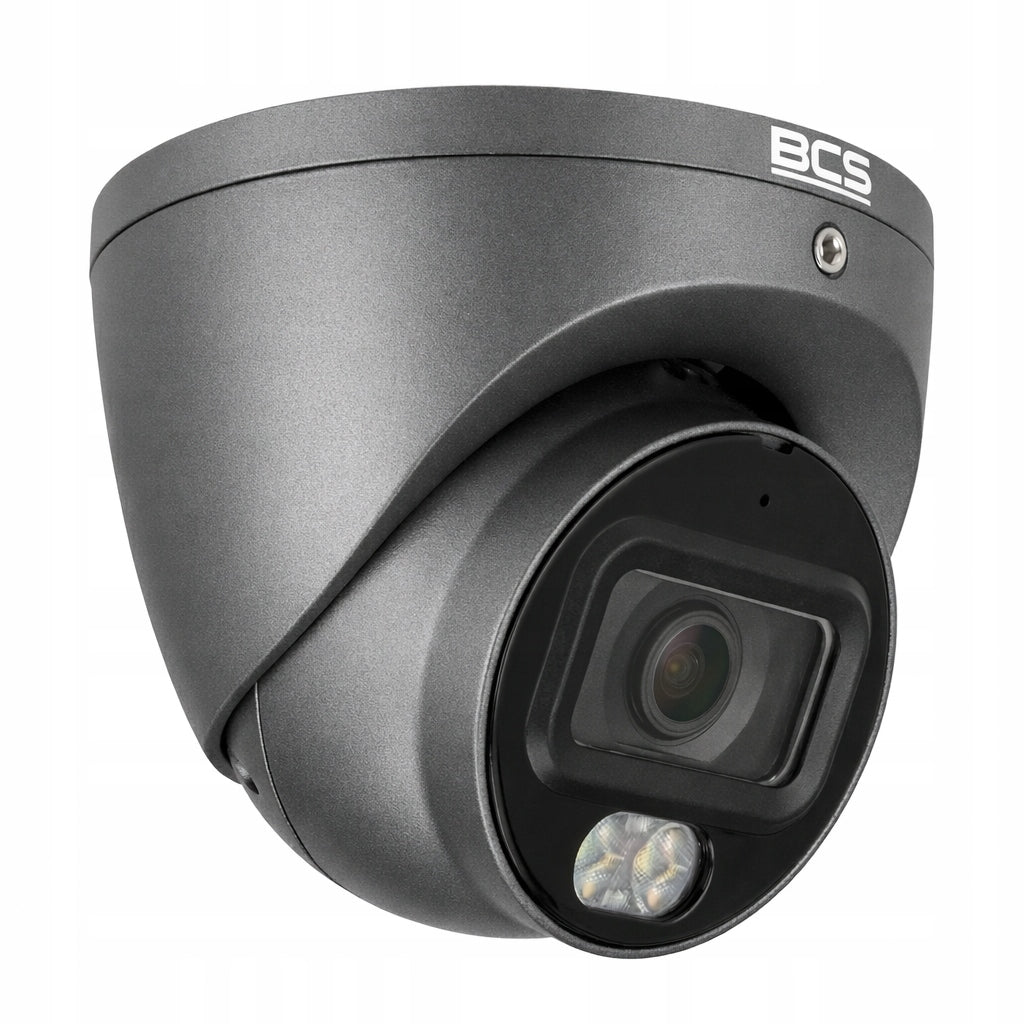

BCS-EA15FR3L3-G is a 5 Mpx analogHD dome camera with a 2.8 mm fixed lens, wide viewing angle and support for HD-CVI / AHD / HD-TVI / ANALOG CVBS standards. The model is equipped with IR 30m, WhiteLight 30m, NightColor function and built-in microphone, so it works well where clear image after dark and additional sound context count. The IP67 metal housing allows you to use the camera both indoors and outdoors.

✅ Key parameters

• Resolution / scanning: 5 Mpx, Progressive Scan – clear image in analogHD systems
• Transmission standard: HD-CVI / AHD / HD-TVI / ANALOG CVBS – makes it easy to fit into a compatible recorder
• Lens / viewing angle: 2.8 mm, H: 113.3° V: 62.1° D: 134.3° – wide shot of the scene
• Night light: IR 30m + WhiteLight 30m – important for observation after dark
• Audio: built-in microphone – additional sound context when previewing and recording
• Housing / application: metal, IP67 – camera for indoor and outdoor applications

💡 What makes it worth choosing this model

• Universality of standards: support for several transmission formats increases flexibility when upgrading or expanding installations
• Practical feature set: wide lens, two types of illumination and microphone – makes the camera suitable for many applications
• Compact design: dome mold, metal housing and IP67 rating make it easy to select the camera for different mounting locations

🔬 Technologies and functions in practice

• Multisystem: HD-CVI, AHD, HD-TVI and ANALOG CVBS→ support makes it easy to adjust the camera to a compatible DVR infrastructure
• IR LED + WhiteLight: camera uses two types of illumination with a range of 30m → increases the usability of the image after dark
• DWDR: digital contrast scene correction → improves detail visibility in more difficult lighting
• 3D DNR: image noise reduction → helps keep your frame cleaner in low light

🎯 Where this model works best

The model will work well in analogHD systems, where a wide field of view, work after dark, built-in microphone and the possibility of mounting both inside and outside the object are important. This is a sensible solution where simple integration with the recorder and a clear image in everyday supervision count.

⚠ Important before purchase

• System type: this is an analogHD camera – it is worth checking compatibility with your DVR before buying
• Remote configuration: access to the OSD menu and camera settings is done from the BCS-XVR recorder
• Permanent lens: 2.8 mm focal length offers a wide view, but no optical zoom
• Power Supply: device requires 12V DC power supply
• Working conditions: camera operates in the range from -40°C to +60°C (humidity up to 95%)

🧩 Compatibility and integration

• Transmission standard: HD-CVI / AHD / HD-TVI / ANALOG CVBS
• Support for OSD settings: by BCS-XVR recorder

⚙ Technical specifications

🏗 Identification and Optics

• Device name: BCS -EA15FR3L3-G
• Product line: BCS UNIVERSAL
• Camera type: Dome
• Lens: Fixed
• Focal length: 2.8 mm
• Aperture: F1.6
• Focus/Iris: Fixed / Fixed
• Viewing angle: H: 113.3° V: 62.1° D: 134.3°
• DORI (Detection/Observation/Recognition/Identification): 59.8m / 23.9m / 12m / 6m

🖼 Image and Transducer

• Sensor: PS CMOS
• Resolution: 5 Mpx
• Scanning system: Progressive Scan
• Pixels: 2880(H)×1620(V)
• Camera Sensitivity: 0.05Lux(F1.6) 0.005Lux(B/W,F1.6,30IRE) 0Lux(B/W,IR)
• S/N ratio: 65dB
• Resolutions: 5M(2880×1620) 4M(2560×1440) 1080p(1920×1080) 960H(960×576/960×480); TVI 5M 16:9(2960×1665)

🌙 Lighting and Image Correction

• Day/Night: ICR mechanical infrared cut filter
• Illuminator type: IR LED + WhiteLight
• IR range: 30m
• WhiteLight range: 30m
• NightColor: Yes
• White balance (AWB): Auto / manual
• WDR: Yes
• Backlight compensation: BLC / HLC / DWDR
• Shutter: Auto / manual 1/30s~1/100000s
• Gain Control (AGC): Auto / Manual
• Noise reduction: 3D DNR
• Image Rotation: Mirror

🔊 Interfaces and Audio

• Microphone: built-in
• Privacy Masks: 8
• Support: Support for camera OSD menu settings via BCS -XVR recorder

⚡ Power Supply and Operating Conditions

• Power supply type: 12V DC
• Power consumption: max 4.3W
• Operating conditions: -40°C to +60°C (humidity up to 95%)

📐 Physical Parameters

• Housing color: Graphite
• IP protection class: IP67
• Housing: Metal
• Dimensions: Ø94×85.7mm
• Weight: 0.32 kg

🧩 Optional accessories (sold separately)

• Mounting brackets and boxes: BCS -ATU-G, BCS -AD11-G, BCS -ADU-G, BCS -ADU100, BCS -ADU125, BCS -ADU170, BCS -L-UD2, BCS -L-AT48, BCS -L-AT135-G(2)

🏭 Get to know the BCS brand

BCS is a polish brand present on the market since 2008, with extensive experience in the electronic security systems sector. The company develops its own software and provides full technical, design and service support in Poland . The offer includes CCTV monitoring, video intercoms, access control and network equipment.

Why BCS ? A well-established brand that combines a very wide range of devices with solid technical support and efficient service on the local market.

📂 Documentation and technical materials

Below are available for download auxiliary materials that facilitate the selection, installation, configuration and daily operation of the device:

➡ product data sheet

➡ installation / use instructions

➡ guides, application manuals and additional materials
