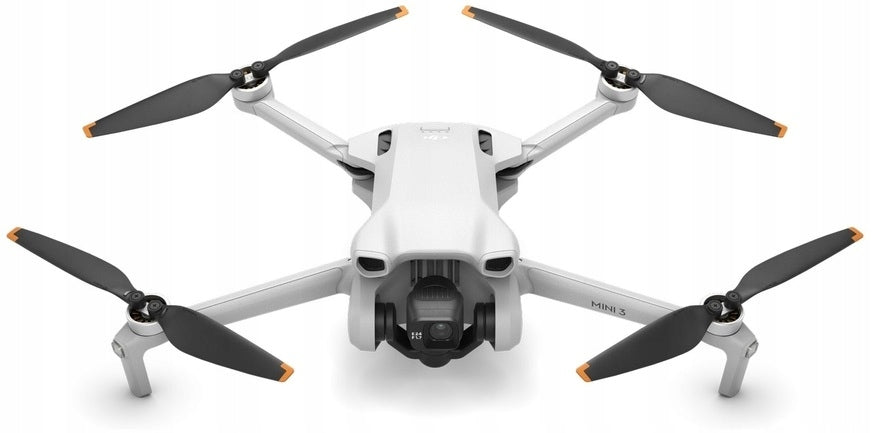

Dronas DJI Mini 3 (RC-N1), 4K HDR, skrydžio laikas 38 min.

Trumpai apie prekę

Prekė: Dronas DJI Mini 3 (RC-N1), 4K HDR, skrydžio laikas 38 min.. Kategorija: Dronai ir multikopteriai.

• Gamintojas: DJI
• Modelis: MINI 3

( GL ) ( RB )

6941565955890

new pre-wrapped packaging

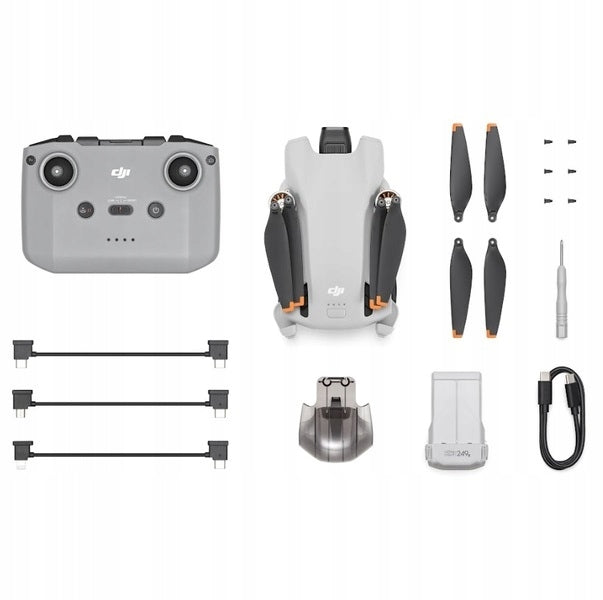

Included:

• DJI Mini 3 x1
• DJI RC-N1 Control apparatus x1
• DJI RC-N1 RC Cable (USB Type-C connector) x1
• DJI RC-N1 RC Cable ( Lightning Connector) x1
• DJI RC-N1 RC Cable (Standard Micro-USB Connector) x1
• Battery x1
• Spare propellers (pair) x1
• Spare screws x6
• Screwdriver x1
• Gimbal protection x1
• PD Type-C to Type-C Cable x1

Starting mass

< 249 g

*Standard drone weight (including battery, propellers, and microSD card). The weight of the actual product may vary due to differences in the materials used in the production process and external factors. Registration is not required in some countries or regions. Please check your local regulations before use. The above specification was determined on the basis of tests carried out using the latest firmware. Software updates can improve device performance, so we recommend that you perform them.

Dimensions

Folded (without propellers): 148 x 90 x 62 mm (D x S x W);

Folded (with propellers): 251 x 362 x 72 mm (D x S x W);

Max. Ascension speed

5 m/s

Max. descent speed

3,5 m/s

Max. Horizontal speed (at sea level, without wind)

16 m/s

*Maximum horizontal speed depends on local restrictions. During the flight, the applicable regulations must be observed.

Max. ceiling

Max. flight time

*Measured in a controlled test environment. The detailed test conditions were as follows: forward flight at a constant speed of 21,6 km/h in a windless laboratory environment, in photo mode (without taking photos during flight) and from 100% battery charge level to 0%. Results may vary depending on the environment, actual usage and firmware version.

Max. hovering time

*Measured in a controlled test environment. The detailed test conditions were as follows: hovering in a windless laboratory environment, in photo mode (without taking photos during flight) and from 100% battery charge level to 0%. Results may vary depending on the environment, actual usage and firmware version.

Max. flight distance

Max. resistance to wind

10,7 m/s

Max. angle of inclination

40°

Operating temperature

From -10°C to 40°C (14°F to 104°F)

GNSS

GPS + GLONASS + Galileo

Range of hover accuracy

Vertical: ±0,1 m (with video positioning), ±0,5 m (with GNSS positioning);

Horizontal: ±0,3 m (with video positioning), ±1,5 m (with GNSS positioning);

Internal memory

Not applicable

Camera

Matrix

1/1,3-inch CMOS sensor, effective pixels: 12 MP

Lens

Field of view (FOV): 82,1°;

Focal length equivalent: 24 mm;

Aperture: f/1.7;

Focus range: 1 m to ∞;

ISO Scope

Video: 100-3200;

Photos: 100-3200;

Shutter speed

Electronic shutter: 2-1/8000 s

Max. image size

4000×3000

Photography modes

Single Shot: 12 MP;

Interval (Timed): 12 MP;

JPEG: 2/3/5/7/10/15/20/30/60 s;

JPEG + RAW: 5/7/10/15/20/30/60 s;

Bracketing (AEB): 12 MP, 3 frames with 2/3 EV change in exposure;

Panorama: Sphere, 180°, Wide Angle;

HDR: Single Shot mode allows you to get HDR images.;

Format of photos

JPEG/DNG (RAW)

Video resolution

4K: 3840×2160 @ 24/25/30FPS;

2.7K: 2720×1530 @ 24/25/30/48/50/60FPS;

FHD: 1920×1080 @ 24/25/30/48/50/60FPS;

HDR: recording at 24/25/30FPS allows you to get HDR images.;

Video format

MP4 (H.264)

Max. video bitrate

100 Mbps

Supported file system

FAT32 (≤ 32 GB); exFAT (> 32 GB);

Color profiles

Normal

Digital Zoom

4K: 2x;

2.7K: 3x;

FHD: 4x;

QuickShots Modes

Drones, Helix, Rocket, Circle and Boomerang

Gimbal

Stabilisation

3-axis mechanical gimbal (tilt, roll, pan)

Mechanical range

Tilt: from -135° to 80°;

Roll: from -135° to 45°;

Pan: from -30° to 30°;

Scope of control

Tilt: from -90° to 60°;

Roll: -90° or 0°;

Max. control speed (tilt)

100°/s

Angular vibration range

±0,01°

Sensor system

• Visual system: Lower vision system
• Lower: Precision hover range: 0,5-10 m
• Working environment: Lower: diffuse reflecting surface with a clear pattern and a reflectivity > 20% (e.g. walls, trees or people), suitable lighting (> 15 lux, normal lighting conditions in the room)

Video transmission

Video transmission system

DJI O2

Quality of live preview

Control apparatus: 720p/30FPS

Operating frequency

2,400-2,4835 GHz;

5,725-5,850 GHz;

Transmission power (EIRP)

2,400-2,4835 GHz: < 26 dBm (FCC), < 20 dBm (CE/SRRC/MIC);

5,725-5,850 GHz: < 26 dBm (FCC/SRRC), < 14 dBm (CE);

Max. transmission range (no interference)

FCC: 10 km;

CE: 6 km;

SRRC: 6 km;

MIC: 6 km;*Measured in an outdoor environment free of obstacles and disturbances. The above data shows the furthest communication range for one-way flights, no return, within any standard. During the flight, pay attention to RTH notifications in the DJI Fly app.

Max. transmission range (with interference)

Severe disturbances: urban landscape, approx. 1,5-3 km;

Average disturbance: suburban landscape, approx. 3-6 km;

Low interference: suburb/coast, approx. 6-10 km;*FCC compliant data, tested in an obstacle-free environment with typical interference. The information provided here is only a reference point and does not guarantee the actual flight distance.

Max. download speed

DJI O2:

5,5 MB/s (with DJI RC-N1 control apparatus);

5,5 MB/s (with DJI RC control apparatus);

Wi-Fi 5:

25 MB/s*

*Measured in a laboratory environment with minor interference in countries/regions supporting both 2,4 GHz and 5,8 GHz, with footage stored on an SD card. Download speeds may vary depending on the actual conditions.

Lowest delay

Okay. 200 ms

*Depends on the actual work environment and mobile device.

Antenna

2 antennas, 1T2R

Battery

Capacity

Weight

80,5 g

Nominal voltage

7,38 V

Max. charging voltage

8,5 V

Type

Li-ion

Energy

Charging temperature

From 5°C to 40°C (from 41°C to 104°C)

Charging time

Okay. 64 min (with DJI 30W USB-C Charger and with battery mounted on the drone);

Okay. 56 min (with DJI 30W USB-C Charger and with battery placed in the charging hub);

Charger

Recommended charger

DJI 30W USB-C Charger or other USB chargers that support Power Delivery (30W)*

*When the battery is mounted on a drone or placed in a two-way hub, the maximum supported charging power is 30W.

Hub for charging

Entrance

5 V, 3 A;

9 V, 3 A;

12 V, 3 A;

Output

USB-A: max. voltage 5 V, max. intensity: 2 A

Method of charging

Sequential charging of three batteries.

Compatible batteries

Saving files

• Recommended microSD cards: SanDisk Extreme 32GB V30 A1 microSDXC,SanDisk Extreme 64GB V30 A1 microSDXC, SanDisk Extreme 128GB V30 A2 microSDXC,SanDisk Extreme 256GB V30 A2 microSDXC, SanDisk Extreme Pro 32GB V30 A1 microSDXC,Kingston Canvas Go!Plus 64GB V30 A2 microSDXC, Kingston Canvas Go!Plus 256GB V30 A2 microSDXC,Kingston Canvas React Plus 64GB V30 A1 microSDXC, Kingston Canvas React Plus 128GB V30 A1 microSDXC,Samsung PRO Plus 256GB V30 A2 microSDXC

Control apparatus

Max. working time

Control apparatus DJI RC-N1

Without charging the mobile device: approx. 6 hours;

When charging a mobile device: approx. 4 hours;

Max. supported mobile device size

Control apparatus DJI RC-N1

180 x 86 x 10 mm

Operating temperature

Control apparatus DJI RC-N1

From -10°C to 40°C (14°F to 104°F)

Transmission power (EIRP)

Control apparatus DJI RC-N1

2,400-2,4835 GHz: < 26 dBm (FCC) < 20 dBm (CE/SRRC/MIC);

5,725-5,850 GHZ: < 26 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE);

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	DJI
Parametry	Assembly	for assembly
Parametry	Model	MINI 3
Parametry	Drive type	electric
Parametry	Camera	drone with camera
Parametry	Number of propellers	4
Parametry	Flight time	38 min
Parametry	Battery capacity	2453 mAh
Parametry	Flight control range	4000 m
Parametry	EAN (GTIN)	6941565929402
Parametry	Manufacturer code	6941565955890
Parametry	Maximum speed	58 km/h
Parametry	Camera resolution	12 Mpx
Parametry	Product weight	249 g
Parametry	Video recording resolution	4K,1080p (FullHD)
Parametry	Certificates of conformity	CE,WEEE
