Dujinė krosnelė balionams, ketaus, 5 kW

Trumpai apie prekę

Prekė: Dujinė krosnelė balionams, ketaus, 5 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Hosseven
• Modelis: HDU5DK

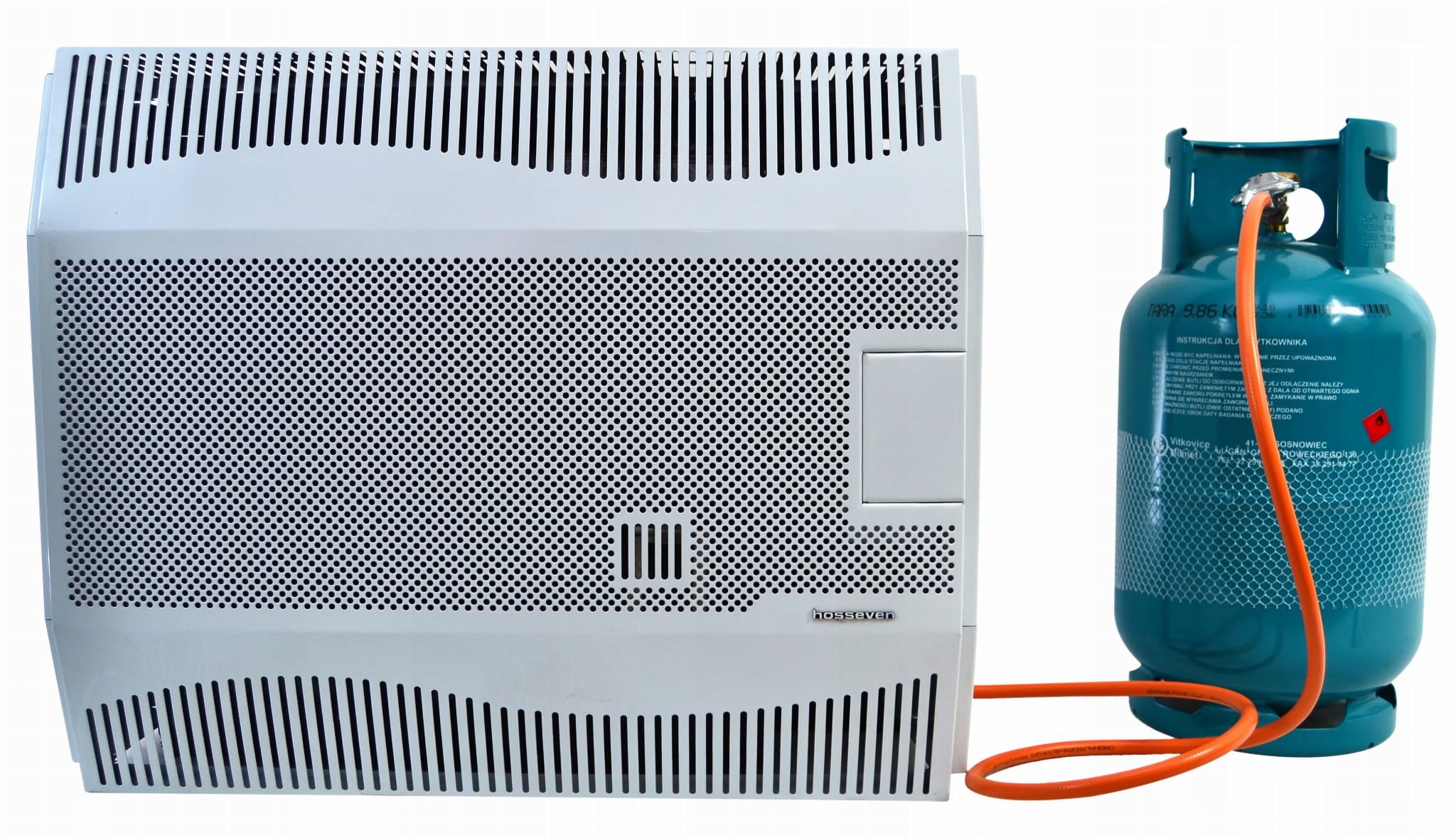

Gas heater with a power of 5 kW with a cast-iron combustion chamber, and with a chimney (exhaust gas ejection / air consumption).

The gas stove is powered by natural gas, propane, or propane-butane (LPG).

The HDU 5 DK series convector has a minimalistic appearance. It will complement the decoration of your room. The burner is modulated. It has an iron heat exchanger, which is called a combustion chamber.

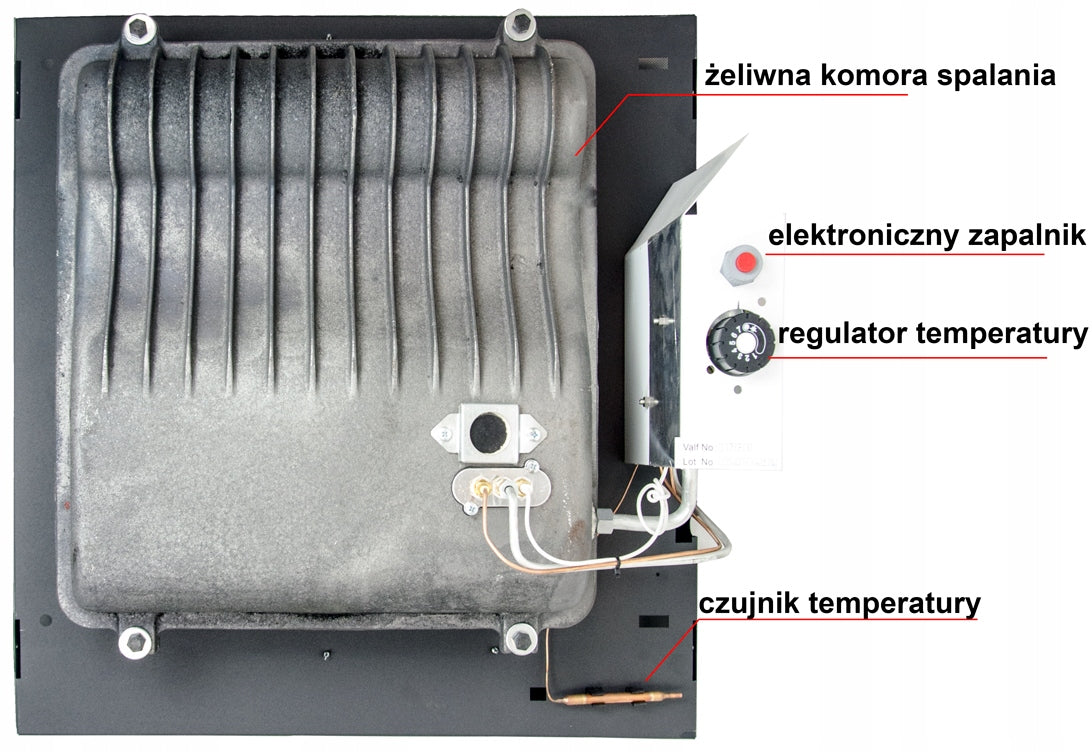

Cast iron heat exchanger is characterized by high durability, heat accumulation - the ability to accumulate heat, and dependent on thermal accumulation high heat stability, i.e. the ability to long keep heat despite the completion of the heating process. The gas burns inside the closed combustion chamber, so that does not draw air from inside. Exhaust gas ejection, and air intake occurs through the double chimney -pipe in the pipe.

The pipe in the pipe system ensures ease of installation and safety of use. Exhaust gases escape outside the room through an internal pipe with a smaller diameter. The external pipe, on the other hand, draws the oxygen necessary to burn the gas. This solution also guarantees lower chimney temperature.

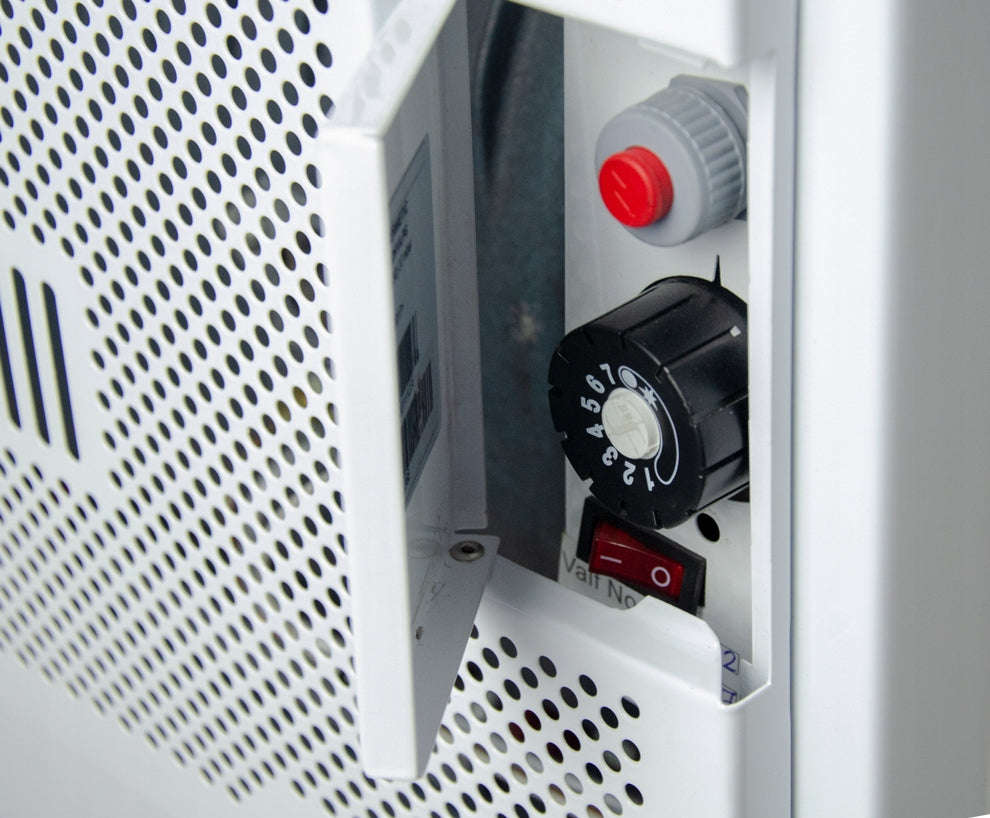

The heater has an adjustable thermostat, on which the user sets the desired temperature. When the set temperature reaches, the stove automatically turns off and only the remote control lights up. The thermostat has a 7 degree adjustment. Suitable for rooms ranging from 20to 50 m2. The stove was manufactured in Turkey.

In the order, please indicate in the "information for the seller" section what gas the stove is to be adapted to.

Technical data:

• Nominal power: 5 kW
• Gas consumption: 0,52 m³/h | 0,39 kg/h
• Gas type: Natural gas | Propane-butane
• Gas operating pressure: 11 mbar | 26 mbar
• Gas connection: 1/2"
• ⌀ air intake: 160 mm
• ⌀ exhaust outlet: 80 mm
• Power supply for spark plug: AA 1,5V battery
• Heat efficiency: 85 %
• Width: 62 cm
• Height: 62,5 cm
• Depth (thickness): 27 cm
• Weight: 33 kg
• Fan: none
• Color: white
• Temperature control range: 13-35 °C
• Combustion chamber: cast iron

Advantages of the HDU 5 DKV gas convector:

• Compact size.
• Modulating the flame. The flame is modulated by the Eurosit valve. When approaching the set temperature on the thermostat, the flame decreases and gas consumption decreases.
• It is powered by natural gas or LPG (propane-butane).
• Built-in thermostat for 7 degree temperature control, ranging from 13°C to 35°C
• The burner is made of stainless steel, making it durable. The gas burns with a blue flame, with high thermal efficiency.
• It has an electronic igniter for 1 AA batteries and has a remote control flame.
• In the event of a flame failure on the burner, the magnetic valve will close the gas supply.
• The gas convector does not consume oxygen in the room, so it can be safely used in living rooms.
• Fast heating of the room, thanks to the mounted fan.
• The combustion chamber is coated with enamel, which greatly increases temperature resistance and guarantees a longer service life.
• The hermetic gas convector is made in accordance with European Standards (EN), has CE certificate and TS EE 613 quality certificate.
• It has an exhaust chimney / air intake with a length of 60 cm. Chimneys are adjustable, they can be shortened.

Termostats - types of stove control:

Mechanical thermostat – this is the easiest way to control the operation of a gas stove for a cylinder or from an installation. The control is carried out through a knob with a smooth 7-step adjustment in the range of 13°C-30°C. In the thermostat of the stove is mounted a sensor (copper insert containing an expanding liquid connected to the thermostat by a capillary) room temperature. When the sensor detects that the room temperature is close to the set temperature on the thermostat, it will reduce the power of the gas stove burner or turn it off.

Mechanical thermostat controlled "KonvekPro" with programmable thermostat - more efficient control of the gas stove. “KonvekPro” is a controller that directly controls the operation of the gas heater. It receives information from the programmable thermostat, on which the expected temperature is set – 5°C-25°C regulation and the operating hours of the stove. "KonvekPro", depending on the needs, heats the sensor of the mechanical thermostat in the gas convector, which closes or limits the gas supply to the burner. This allows us to save gas, more convenient use of the stove. The whole set of "KonvekPro" and programmable thermostat is simple to install, you can do it yourself. It can be used to modernize a new gas convector purchased in our store and an already owned gas stove.

KonvekPro controlled mechanical thermostat with Wi-Fi programmable thermostat – even more efficient, more convenient and easier control of the gas stove via wifi thermostat. “KonvekPro” is a controller that directly controls the operation of the gas heater. It receives information from the programmable thermostat, on which the expected temperature is set – 5°C-25°C regulation and the operating hours of the stove. The working schedule of the gas convector is set daily and/or weekly. In this case, we have a choice of setting the schedule through the phone application and through the thermostat control panel. It is designed to modernize new gas convectors purchased in our store as well as to existing heaters.

All types of thermostats are suitable for gas stoves with a closed combustion chamber and those with an open one.

All programmable thermostats and KonvekPro available in our store!
