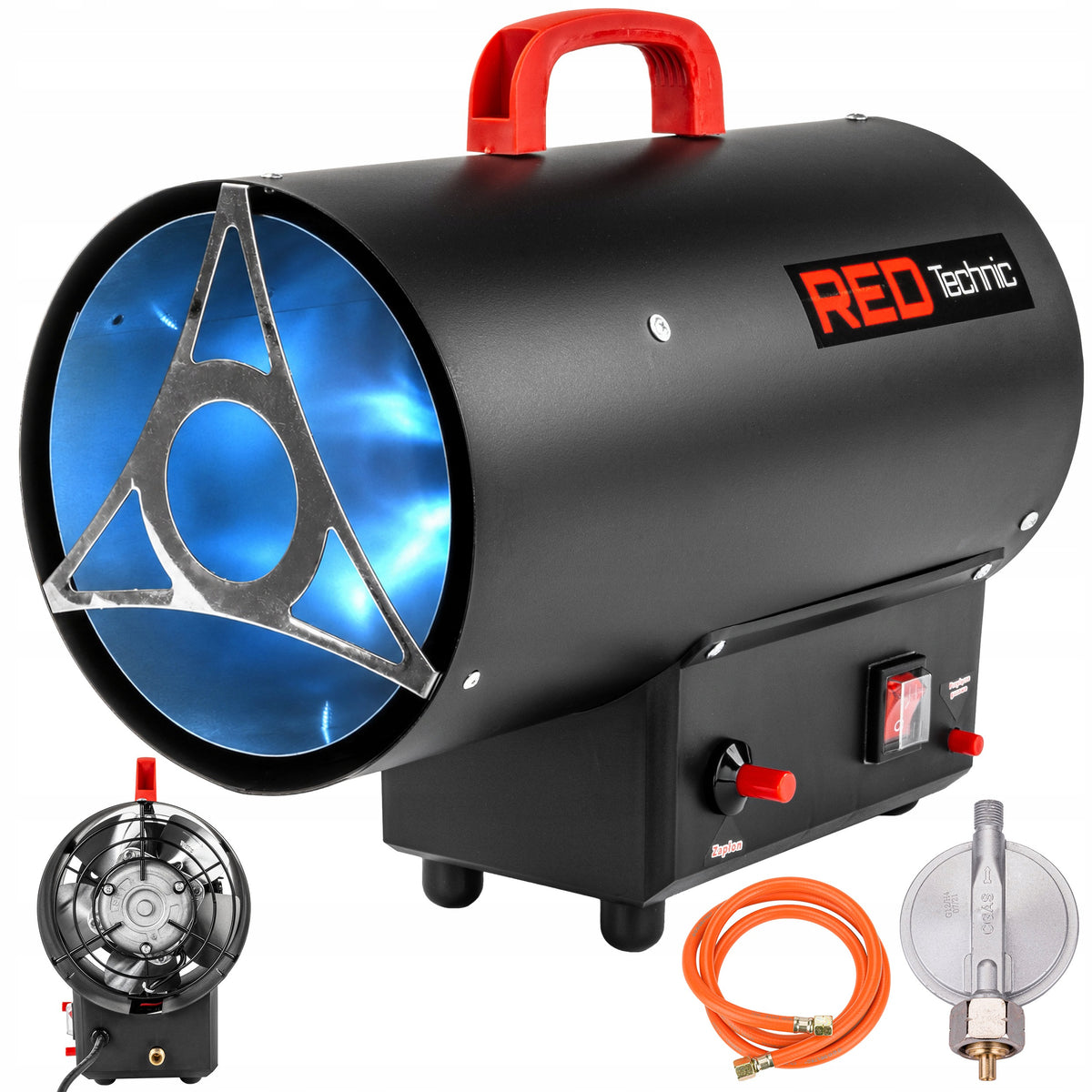

Dujinis šildytuvas, 25 kW, su žarna ir reduktoriumi

Trumpai apie prekę

Prekė: Dujinis šildytuvas, 25 kW, su žarna ir reduktoriumi. Kategorija: Oro šildytuvai.

• Gamintojas: RED TECHNIC
• Modelis: RTNGG0119

POWER 25 kW | 520 m³/h | PIEZOELECTRIC IGNITION | HOSE AND REDUCER

Model: RTNGG0119

The 25 kW gas heater allows you to heat your workshop, hall or warehouse and prepare your workspace. The fan distributes warm air with a flow rate of 520 m³/h, and thanks to the weight of 3,3 kg and the handle, you can easily move the device where you need heating. Hose and reducer are included.

⚫ COLD IN THE WORKSHOP? PROVIDE HEAT

▪ Warm up your workplace with 25 kW and 520 m³/h.

▪ Thanks to the handle and the weight of 3,3 kg, you can easily move the heater where you need it.

🔴 WHY CHOOSE OUR PRODUCT?

🔻 HEATING OF THE WORKSHOP AND LARGER SPACES

You can use the power of 25 kW to heat a workshop, warehouse or production hall. A five-bladed fan with a flow rate of 520 m³/h distributes warm air, helping to prepare your workspace.

🔻 TRANSFER WITHOUT UNNECESSARY EFFORT

The weight of 3,3 kg and the transport handle make it easy to change the location of the device. The compact housing with dimensions of 360 × 185 × 310 mm allows you to comfortably move the heater between stations.

🔻 PROTECTION DURING HEATING

Overheating protection cuts off the gas supply when the protection works. The engine also has thermal protection, which reduces the risk of damage due to excessive temperature. You gain protections that include both heating and fan drive.

🔴 WHY DOES THIS MODEL STAND OUT FROM THE REST?

🔻 COOPERATION WITH 5 AND 11 KG CYLINDERS

You can connect this model to a propane-butane cylinder 5 or 11 kg. You can choose one of two cylinder sizes.

🔻 PIEZOELECTRIC IGNITION

You start the burner with the built-in piezoelectric ignition. This solution makes it easier for you to start heating in the workplace.

🔻 CONNECTION ACCESSORIES INCLUDED

The set includes a gas hose and a pressure reducer. You do not need to separately complete these elements to connect the cylinder.

🔴 HEATING POWER 25 kW

Gas heating with a capacity of 25 kW can be used in a workshop, hall or warehouse.

The device reaches an exhaust temperature from 60°C to 300°C, delivering warm air to the heated space. The fuel source is propane-butane gas.

The ability to connect bottles 5 or 11 kg allows you to choose its size for the organization of the workplace.

🔴 AIR BLOWING

Five-blade fan forces air to flow through the heater and supports heat distribution in your workplace.

The capacity of 520 m³/h allows you to deliver heated air to the space of the workshop, hall or warehouse.

Thanks to the forced circulation, heat moves outside the immediate surroundings of the device. The fan with power 30 W is powered from the 230 V / 50 Hz mains.

⚫ TAKE CARE OF THE HEAT BEFORE STARTING WORK

Prepare your workshop for your next task with 25 kW gas heating. Pay attention to the work in the space to which the fan delivers warm air.

🔴 TECHNICAL DATA

• Heating power: 25 kW
• Fan power: 30 W
• Electrical power supply: 230 V / 50 Hz
• Airflow: 520 m³/h
• Number of fan blades: 5
• Type of gas: Propane-butane
• Gas operating pressure: 0,7 bar
• Maximum gas consumption: 1,09 kg/h
• Outlet temperature: 60 – 300°C
• Ignition type: Piezoelectric
• Degree of protection of the regulator: IP44
• Power cord length: 140 cm
• Dimensions: 360 × 185 × 310 mm
• Weight of the device: 3,3 kg

🔴 CONTENTS OF THE SET

• Gas heater RED Technic RTNGG0119
• Rubber hose for connecting a gas cylinder
• Pressure reducer for gas cylinder
• User manual
• Original packaging

⚫ POWER AND BLOW TO YOUR WORKSHOP

Use 25 kW of heating power to heat your workspace. Air flow of 520 m³/h supports heat distribution in the workshop, hall or warehouse.

🔴 USE IN WORKSHOPS, HALLS AND WAREHOUSES

You can use the gas heater to heat a workshop or warehouse, preparing your workspace. The power of 25 kW allows the device to be used also in production halls of considerable height.

The range of applications also includes economic buildings, greenhouses and tunnels. With a weight of 3,3 kg and a transport handle, you can easily move your equipment between places that require heating.

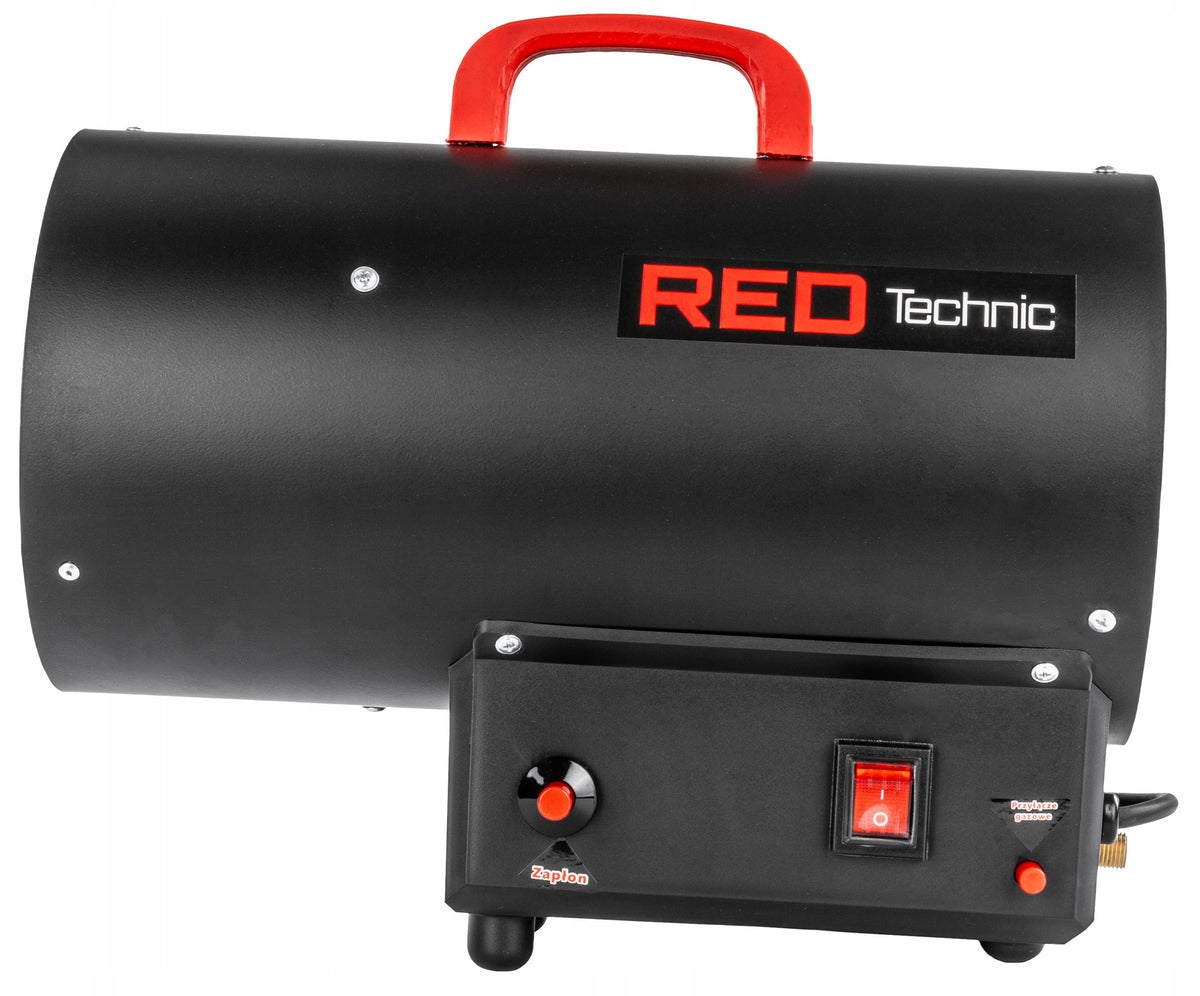

🔴 CONVENIENT HANDLING AND PIEZOELECTRIC IGNITION

Transport handle and weight of 3,3 kg make it easy for you to move the heater between workplaces.

The compact housing with dimensions 360 × 185 × 310 mm makes it easy to store and transport the device. Once the equipment is set up and connected, you will start the burner with built-in piezoelectric ignition. Placed on the side panel ignition button provides convenient access during operation.

🔴 CONNECTION TO GAS CYLINDER AND NETWORK

The heater works with 5 or 11 kg propane-butane cylinders, so you can choose from two cylinder sizes.

The included gas hose and pressure reducer allow you to prepare the connection without completing these accessories separately. The gas system of the device requires working pressure of 0,7 bar.

The fan needs to be connected to a 230 V / 50 Hz network, which powers the forced air blowing. The power cord has a length of 140 cm, which is worth considering when choosing the location of the equipment.

🔴 HOSE AND REDUCER FOR CYLINDER CONNECTION

The set also includes a pressure reducer, so you don't have to complete this connection element separately.

The device supports 5 or 11 kg propane/butane cylinders, giving you a choice of their size. The working pressure of the gas is 0,7 bar and the maximum fuel consumption is 1,09 kg/h, which allows you to take into account the gas demand when planning work.

⚫ HEATING TAILORED TO YOUR TASKS

▪ If you need heating of a workshop or hall, you have at your disposal power 25 kW.

▪ The hose and reducer are included, and the weight of 3,3 kg makes it easy for you to carry the device.

⚫ FAQ

▪ WHAT CYLINDER CAN THE HEATER BE CONNECTED TO?

The device works with 5 kg or 11 kg gas cylinders filled with propane-butane. The set includes a hose and pressure reducer to connect the cylinder.

▪ DOES THE HEATER NEED TO BE CONNECTED TO ELECTRICITY?

Yes. The fan requires a power supply of 230 V / 50 Hz and has a power of 30 W. The power cord has a length of 140 cm.

▪ HOW MUCH GAS DOES THE DEVICE CONSUME?

The maximum gas consumption is 1,09 kg/h. The working pressure of the gas is 0,7 bar.

▪ HOW DOES THE BURNER START?

A built-in piezoelectric ignition is used to start the burner. The ignition button is located on the side panel of the device.

▪ DOES THE HEATER HAVE OVERHEATING PROTECTION?

Yes. Overheating protection automatically shuts off the gas supply when it is activated. The engine is also protected from overheating.
