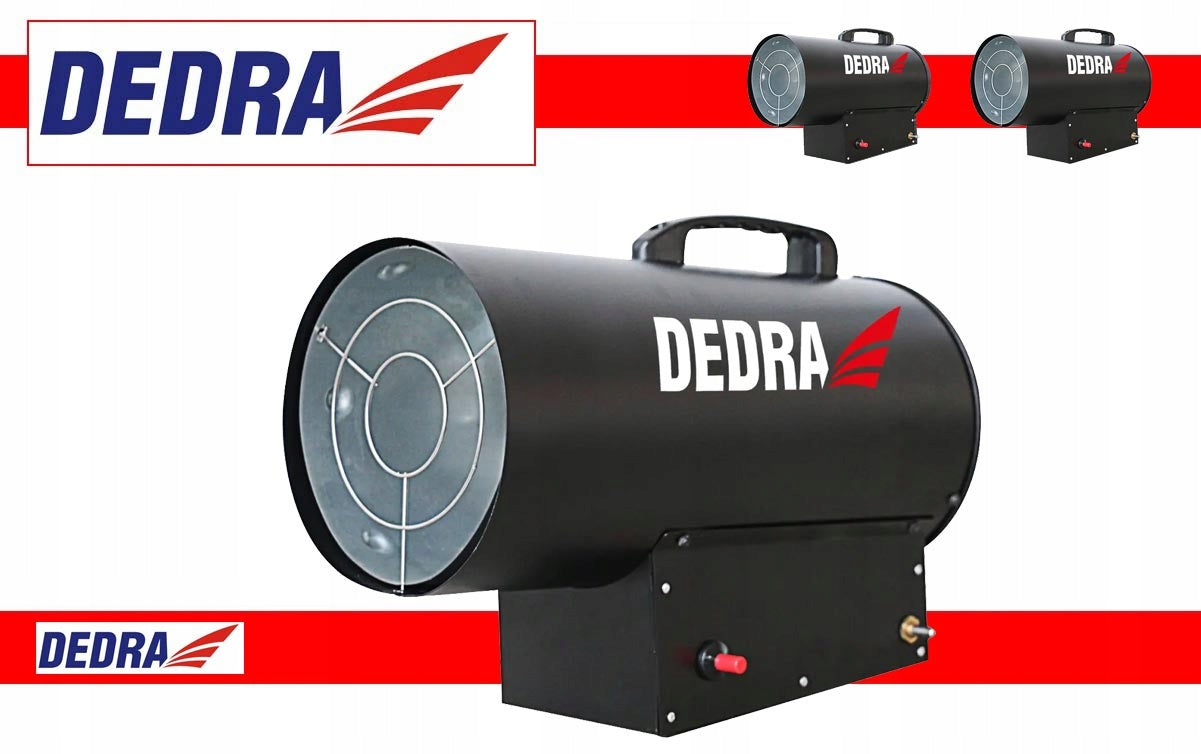

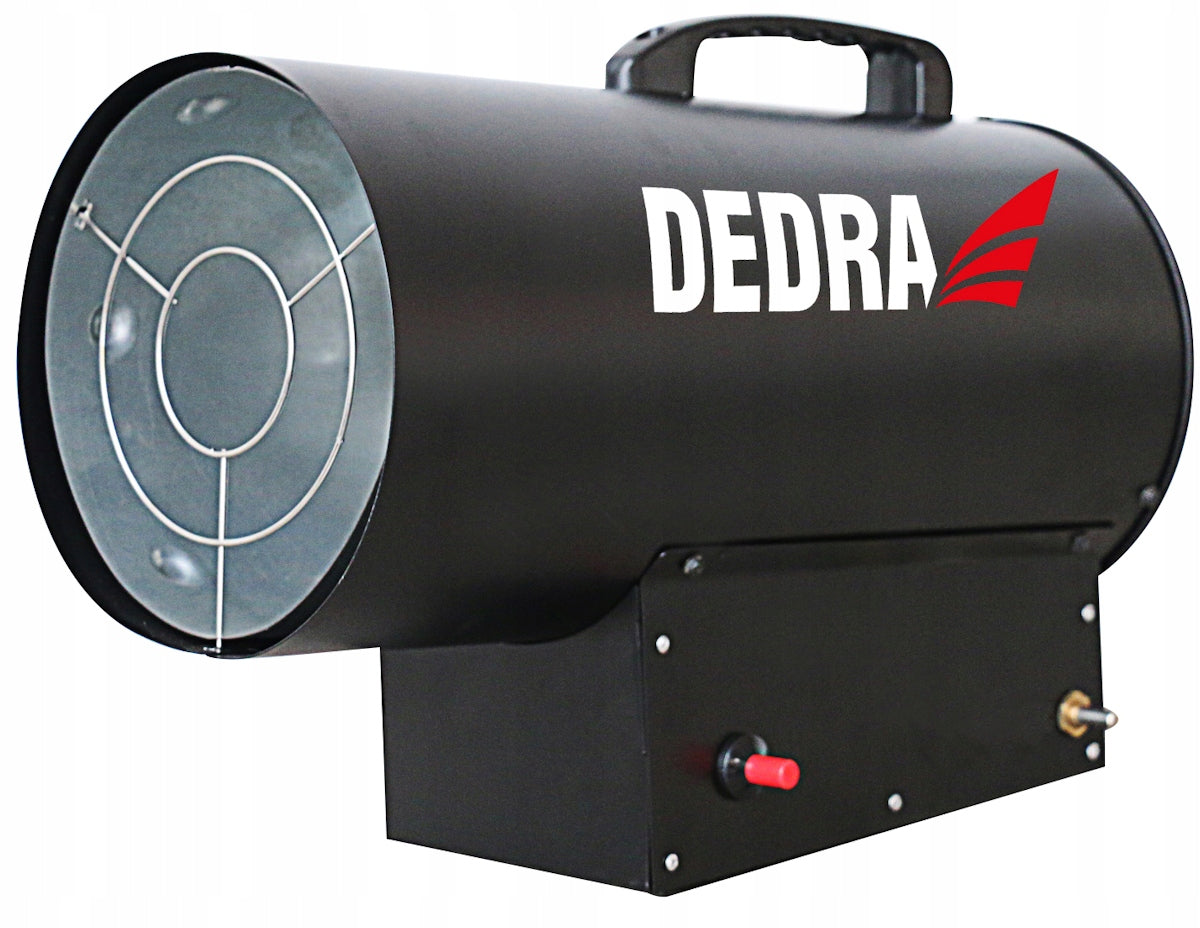

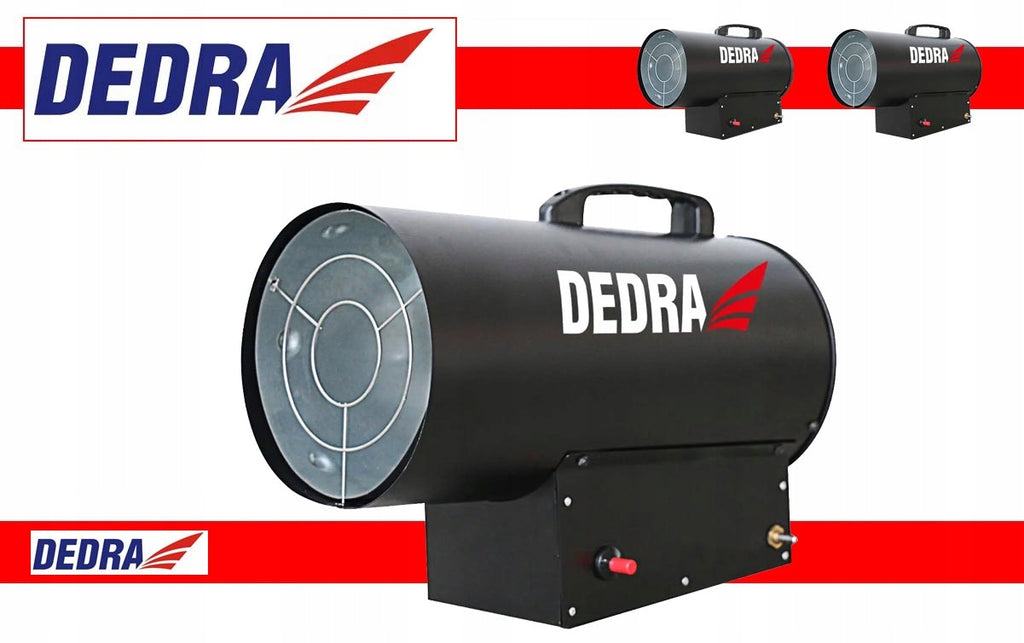

Dujinis šildytuvas DEDRA 35 kW DED9943

Trumpai apie prekę

Prekė: Dujinis šildytuvas DEDRA 35 kW DED9943. Kategorija: Oro šildytuvai.

• Gamintojas: Dedra
• Modelis: DED9943

Gas heater DEDRA DED9943 is a device designed for effective heating of air in rooms where it is important to maintain a stable temperature.

It is characterized by high efficiency, solid construction and long service life. Adequate heating power allows you to quickly raise the temperature even in larger rooms, such as workshops, garages, small warehouses or tent halls.

The housing made of durable plastic protects the heater from mechanical damage, protecting its key elements from the influence of external factors. Robust workmanship translates into reliability and safety of work.

The heater is equipped with a piezoelectric igniter, which allows you to start the device quickly and without any problems. Thanks to this, starting the heater does not require additional tools or complicated activities – just press the button so that the flame is safely and immediately initiated. This solution allows you to quickly start working in all conditions.

The device also has a fan that forces efficient air flow. The air drawn in from the back of the heater is heated in the combustion zone and then distributed evenly throughout the room. Thanks to this, the right temperature is obtained in a short time.

NOTE: This product is only suitable for occasional use or for use in well insulated rooms. Do not use in basements and rooms below ground level!

Features of the DEDRA DED9943 gas heater:

Fast PIEZO ignition – allows you to start the device immediately with one click

Heating assist fan – forces air flow, heats up quickly and distributes heat evenly

High heating efficiency – quickly raises the temperature in rooms

Work safety – stable construction and appropriate protection ensure reliable use

Robust and durable housing – protects the heater from mechanical damage

Mobility and ease of use – light weight and transport handle make it easy to carry

Long lifespan - high-quality components extend the lifespan of the device

Technical data of gas heater DEDRA DED9943:

• Voltage: 230V~50Hz
• Heating power: 35 kW
• Capacity: 750 m³/h
• Fuel: LPG G30
• Redutkor Type: Z80

Pressure:

• Input: 1-16 Bar
• outputs from reducer: 700mBar
• Fuel consumption: 2,41 kg/h
• Degree of protection against direct access: IPX0
• Protection class: I
• Storage temperature: 5-20°C
• Weight: 6,5 kg
• Completion:
• Gas heater 35kW [1 pc]
• Gas cable ~1,5m [1 pcs]
• Reducer [1 pc]
• Handle [1 pcs]

Before choosing a heater, it is necessary to determine the necessary minimum heating power for a given room.

Formula for calculating the required heat output

V – volume of the room to be heated (W x L x H) q m³

ΔT – temperature increase required (°C)

K – thermal insulation coefficient

K=3,0-4,0 Simple building made of wood or corrugated sheet - Non-insulated

K=2,0-2,9 Simple structure, single layer of bricks, straight windows and roof - Poor insulation

K=1,0-1,9 Standard construction, double layer of bricks, few windows, standard closed roof - Medium insulation

K=0,6-0,9 Advanced construction, double insulated brick, few double windows, solid foundation, roof of well insulating materials - Good insulation

Example: heat output required

144 x 23 x 4 = 13 248 kcal/h

• 1 kW/h = 860 kcal/h
• 1 kcal/h = 3,97 Btu/h
• 1 kW/h = 3412 Btu/h
• 1 Btu/h = 0,252 kcal/h

Now you can choose the device that best suits your needs.

- WELL-PROTECTED GOODS

- BRAND NEW

- COMPLETE ORIGINAL EQUIPMENT

- ORIGINAL PACKAGING

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Dedra
Parametry	Kind	gas
Parametry	Heating power	35 kW
Parametry	Model	DED9943
Parametry	Product weight with unit packaging	6.5 kg
Parametry	Manufacturer code	DED9943
Parametry	Packaging status	original
Parametry	Energy efficiency class	A
Parametry	Range of energy efficiency classes	A++ - G
