Dujų balionų laikiklis 4 x 33 kg, su jungtimi keliems balionams

Trumpai apie prekę

Prekė: Dujų balionų laikiklis 4 x 33 kg, su jungtimi keliems balionams. Kategorija: Reduktoriai.

• Gamintojas: no brand
• Modelis: Zestaw gazowy typ K-4 na 33kg

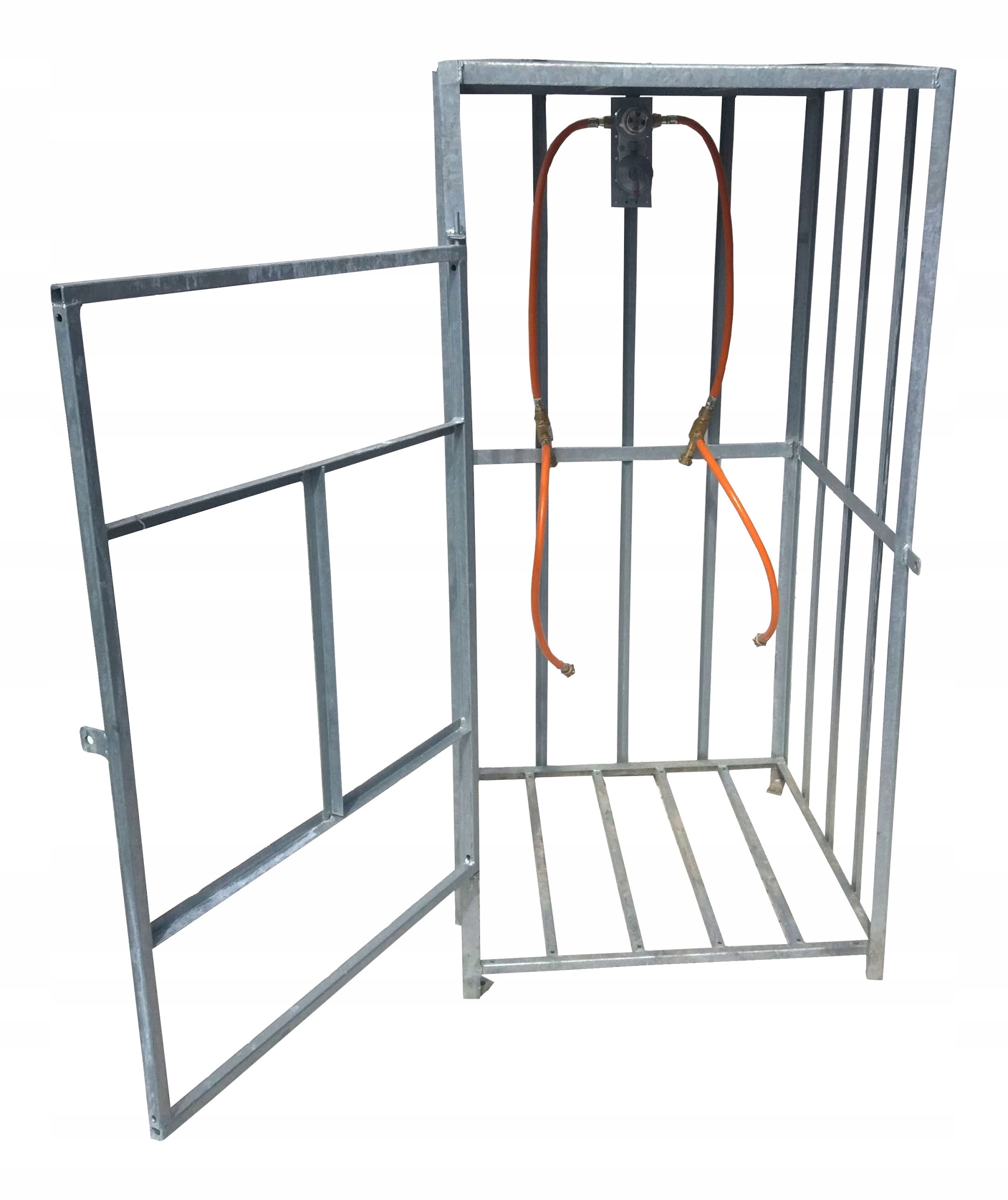

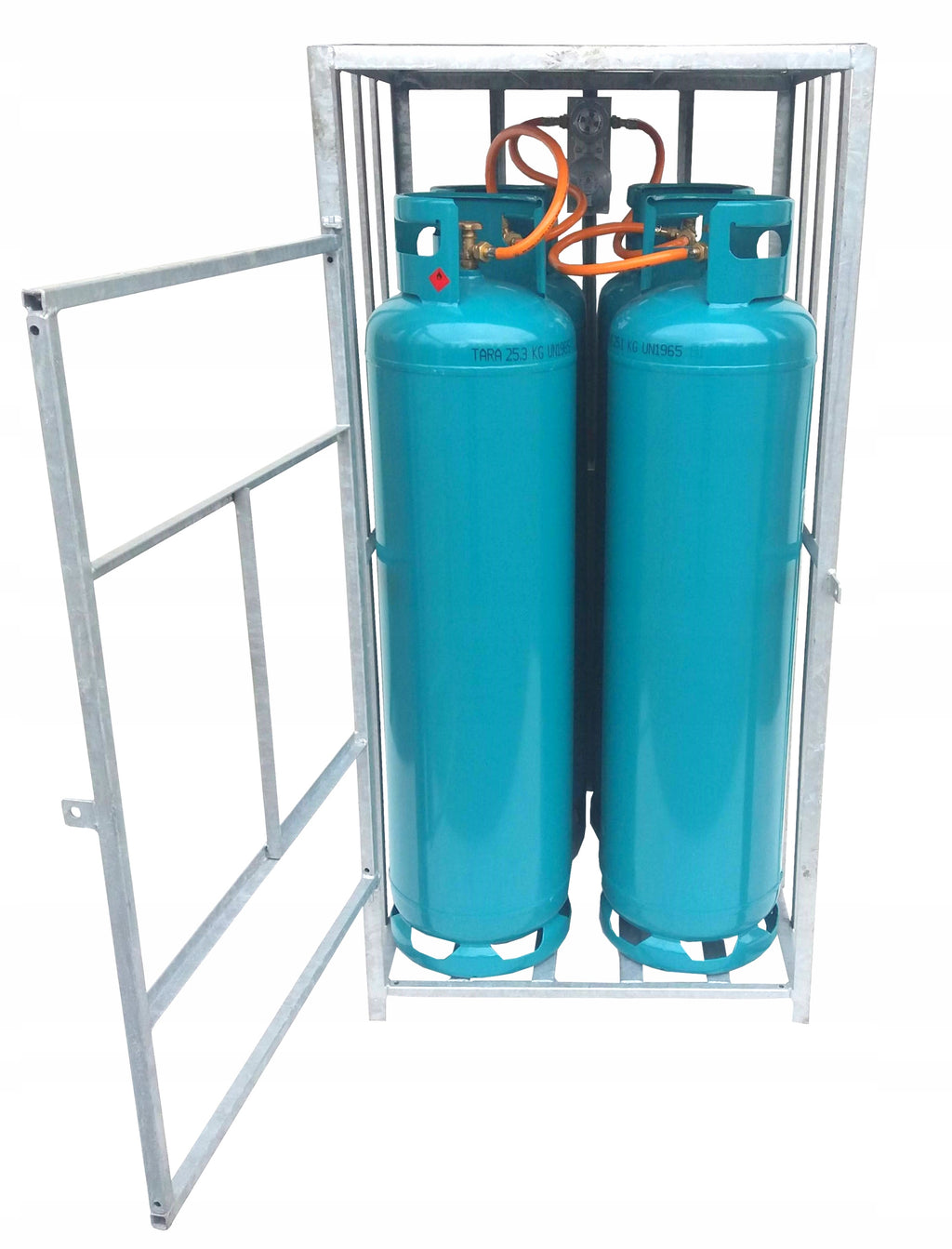

STEEL CONTAINER FOR STORAGE OF 4 CYLINDERS 33 KG WITH INSTALLATION KIT FOR 4 CYLINDERS

Containers are made of steel angles, the door frame is made of a closed profile. The steel container is welded and/or hot-dip galvanized, which guarantees durability and resistance to weather conditions. Containers are equipped with a sheet metal canopy. They also have oppositely mounted door hinges, and the possibility of putting a padlock protection as part of protection against third parties. Containers display cylinders very well, and look great at points of sale as well as at petrol stations.

CONTAINER TECHNICAL DATA:

• Length 720mm
• Width 720mm
• Height 1500mm
• Weight approx. 40 kg
• Sheet metal canopy
• Padlock holder

TECHNICAL DATA OF THE SELF-SWITCHING SET:

• Capacity: 12kg/h
• Input pressure: 1 - 20 bar
• Output pressure: 37 mbar
• Input thread: M20x1,5
• Output thread: 3/8" internal
• check valve built into the switch

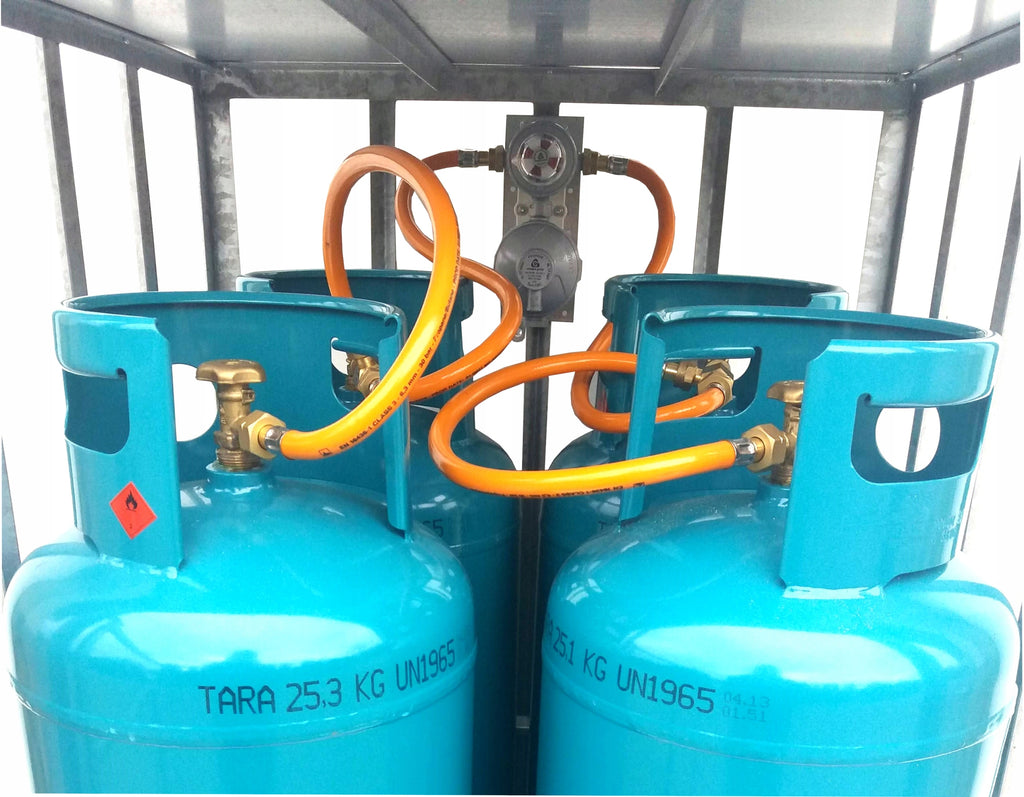

COMPOSITION OF THE CONNECTION SET FOR 4 CYLINDERS:

• automatic reducer
• 4 encased high-pressure hoses with cylinder connection
• 2 tees

The reducer is designed for use in cylinder batteries. The gas intake switch located in the reducer is equipped with check valves that prevent gas from escaping during cylinder replacement during installation. The arrow on the switch valve and the green color of the indicator indicate that the gas is taken from the cylinder currently indicated by the arrow. The second cylinder of the switch valve is backup. The gas is taken from the cylinder until the pressure drops below 0,8 bar. At this pressure value, the switch valve automatically opens the valve input from the backup cylinder: therefore, the necessary condition for the correct operation of the device is the opening of the valves of both cylinders. When the switch is working, the indicator changes from green to red, indicating that the cylinder from which the gas was previously taken is empty. The knob on the switch should be set with an indicator in the direction of the currently active cylinder.

THE AUCTION CONCERNS A STEEL CONTAINER FOR STORING 4 CYLINDERS 33KG WITH A CONNECTION KIT FOR CYLINDER

In our offer we also have other containers new or used for 11kg cylinders:

• K-1 for storing 1 cylinder 11kg
• K-2 for storing 2 cylinders 11kg
• K-3 for storing 3 cylinders 11kg
• K-4 for storing 4 cylinders 11kg
• K-6 for storage of 6 cylinders 11kg
• K-8 for storing 8 cylinders 11kg
• K-10 for storage of 10 cylinders 11kg
• K-12 for storage of 12 cylinders 11kg
• K-20 for storage of 20 cylinders 11kg
• K-24 for storage of 24 cylinders 11kg

on 33kg cylinders:

• K-2 for storing 2 cylinders 33kg
• K-3 for storing 3 cylinders 11kg
• K-4 for storing 4 cylinders 33kg
• K-6 for storage of 6 cylinders 33kg
• K-7 for storage of 7 cylinders 33kg
• K-8 for storing 8 cylinders 33kg
• K-12 for storage of 12 cylinders 33kg

as well as in the reinforced (reinforced) version, and transport pallets, baskets for technical cylinders.

Welding accessories on sale, i.e. reducers, hoses, fuses, bands, reductions, quick couplers, fittings, valves, valve covers, tourist stoves, burners, gas accessories, balloon pumping kits, soldering kits, multi-bottle connection systems, etc. as well as containers -baskets, transport pallets, gas cylinders, tourist cylinders and cylinders for technical gases of different capacities:

• EVERY 2
• Argon
• Oxygen
• Hel
• Nitrogen
• Acetylene
• Mix (Argon + CO 2)
• Hydrogen
• Propane
• Propane-Butan
• Mixtures of gases
