Dujų detektorius EDG-7K oro kondicionavimui, tinkamas LPG ir vandeniliui

Trumpai apie prekę

Prekė: Dujų detektorius EDG-7K oro kondicionavimui, tinkamas LPG ir vandeniliui. Kategorija: Detektoriai.

• Gamintojas: Engler
• Modelis: 12144519

➥AIR CONDITIONING GASES, LPG, HYDROGEN

Manufacturer: Engler ®

Symbol: EDG-7K

⭐⭐For professional use ❗ ⭐⭐

TECHNICAL DATA:

• Sensor type: TGS2630 – C00 by FIGARO
• Gas concentration measurement:

✔️ LEL scale, from 0.0% to 20%

✔️ ppm scale, from 0 ppm to 10000 ppm

Detectable gases:

1. Hydrogen - H2 (hydrogen), including hydrogen with nitrogen (5% hydrogen, 95% nitrogen)
2. Hydrocarbons - R-600a, LPG, R-1234yf, propane, butane
3. HFC - R-134a, R-404a, R32, R-125, R-152a, R-407a, R-407c, R-410a, R-417a, R-419a, R-424a, R-427a, R-507
4. HCFC - R-22, R-123, R-124, R-408a, R-409a, R-502
5. CFC - R-12, R-11, R-500, R-503

• Audible alarm with variable frequency and user-adjustable threshold
• Power supply: Nickel-metal hydride rechargeable batteries 4 x 1.2 V / 2600mAh (no memory effect – formatted), continuous operation time - minimum 10 hours
• Battery charging time: 10 to 12 hours
• Battery charging status indication: Red LED next to the socket
• Operating temperature: -20°C to +50°C
• Probe length: 420 mm
• Ready to work: After 40 seconds from power on
• Housing dimensions: 180mm x 63mm x 27mm
• Weight: 390 grams

Applications - leak detection for:

1. Explosive gases – in cars, factories, buildings, etc.
2. Air conditioning systems – in cars, factories, offices, and shops
3. Refrigeration systems – in cold stores, refrigerators, refrigerated counters, etc.
4. Heating systems – in buildings, factories, and other facilities.
5. Pumps and heat exchangers

Included in the set:

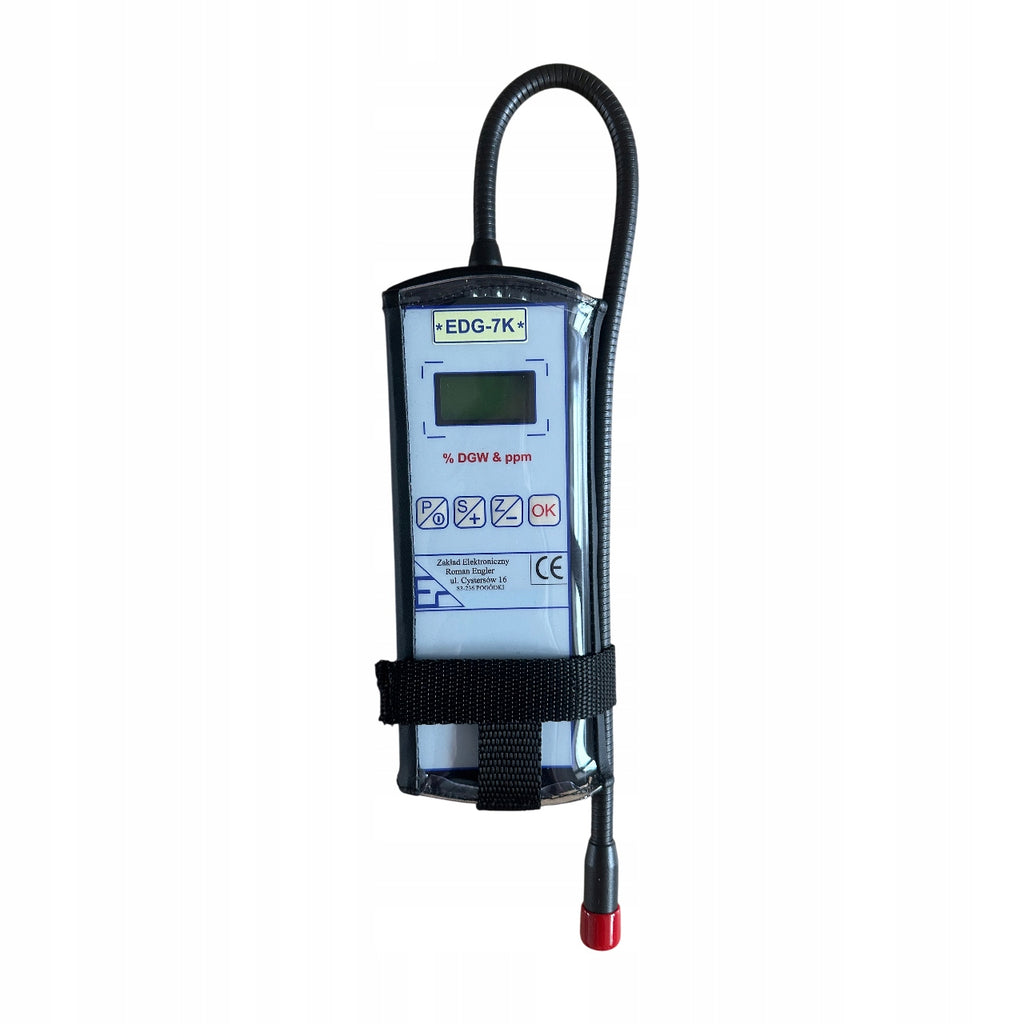

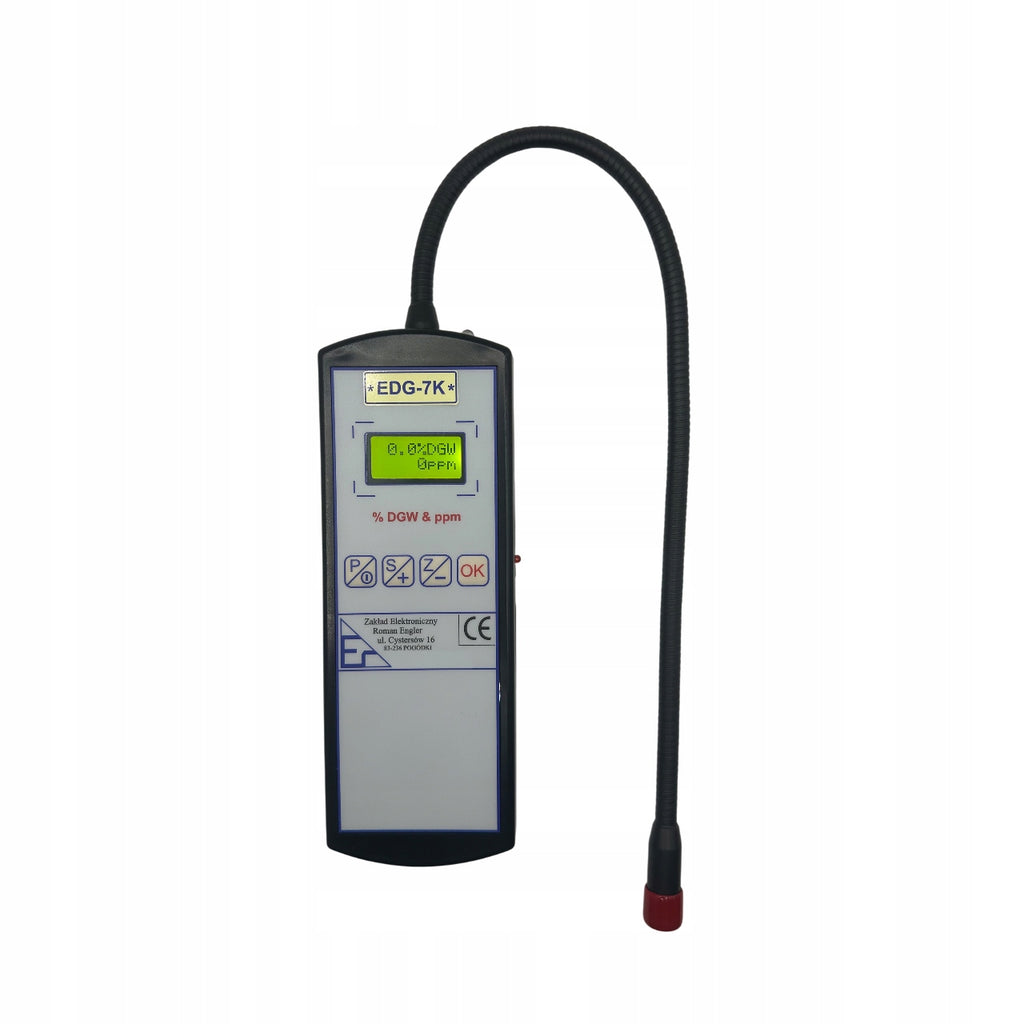

✔ Gas detector EDG-7K

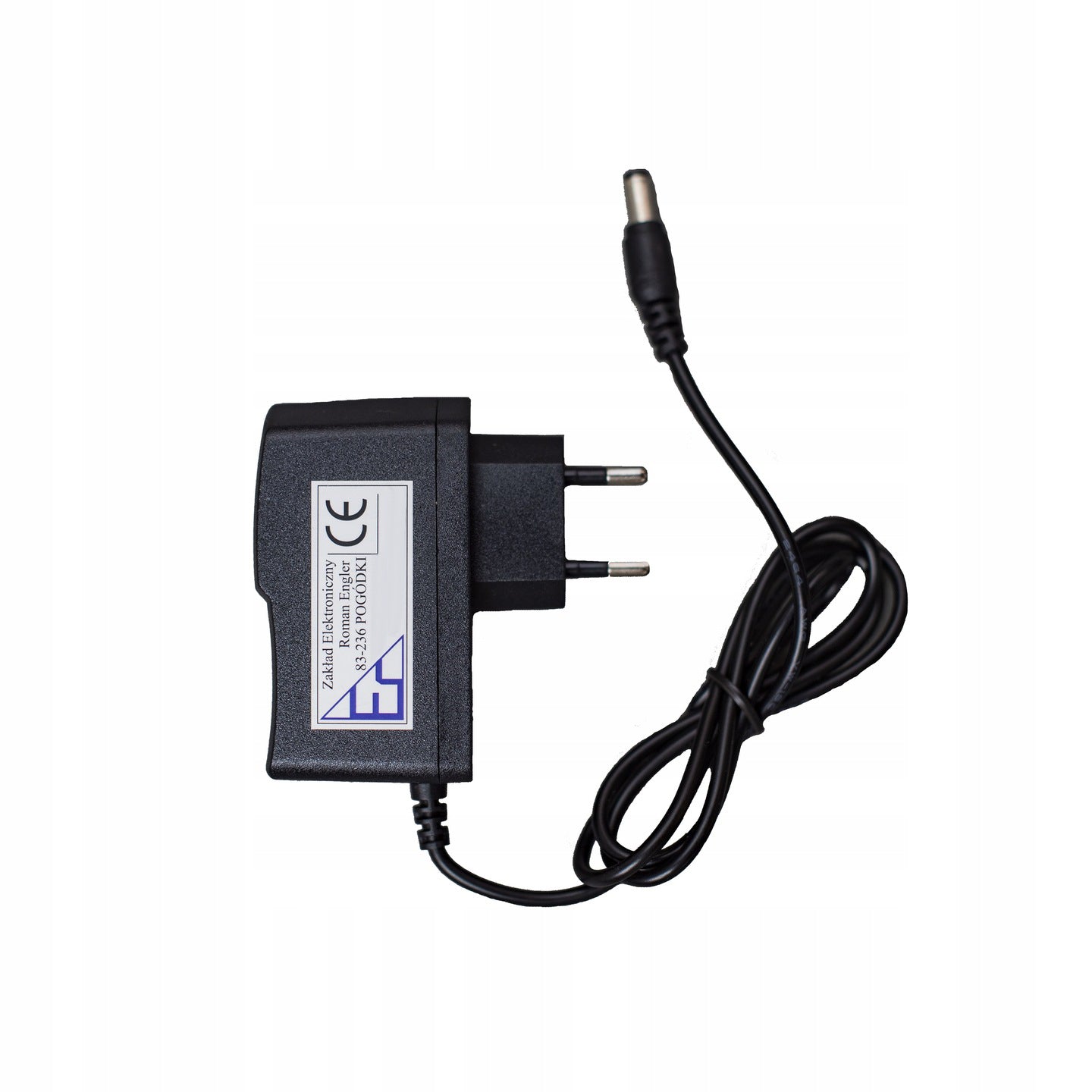

✔ Charger

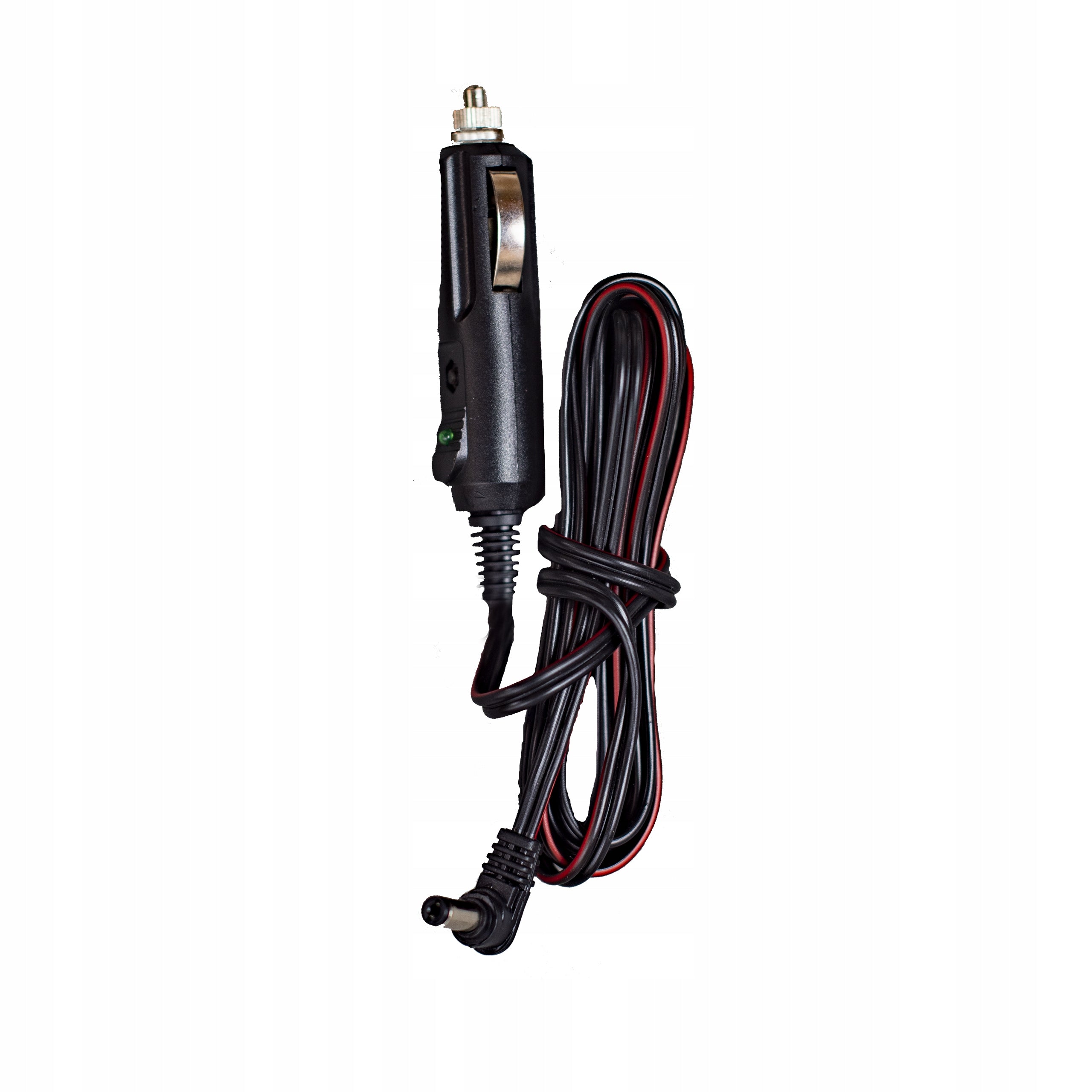

✔ Adapter for charging the detector in the car

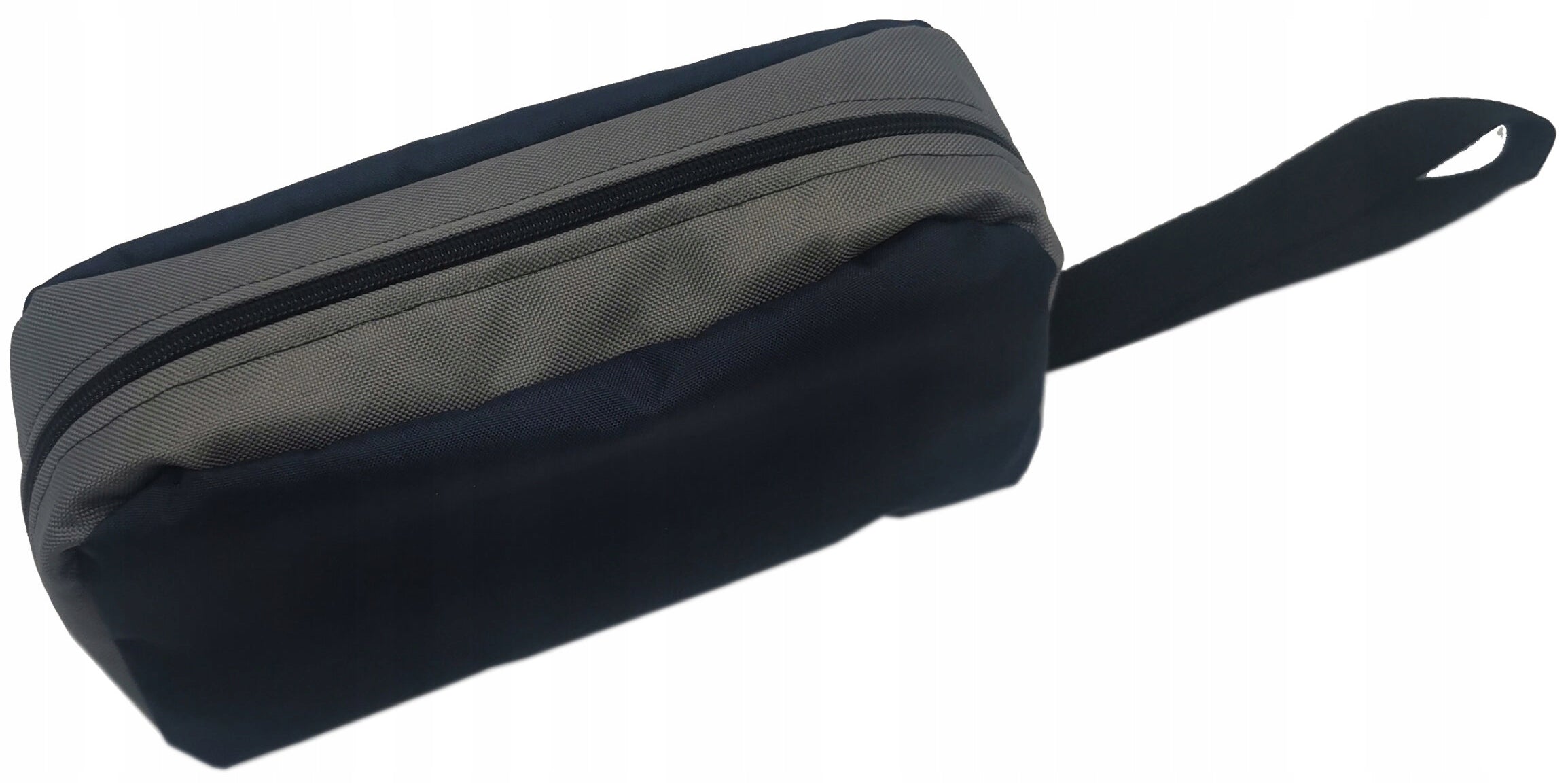

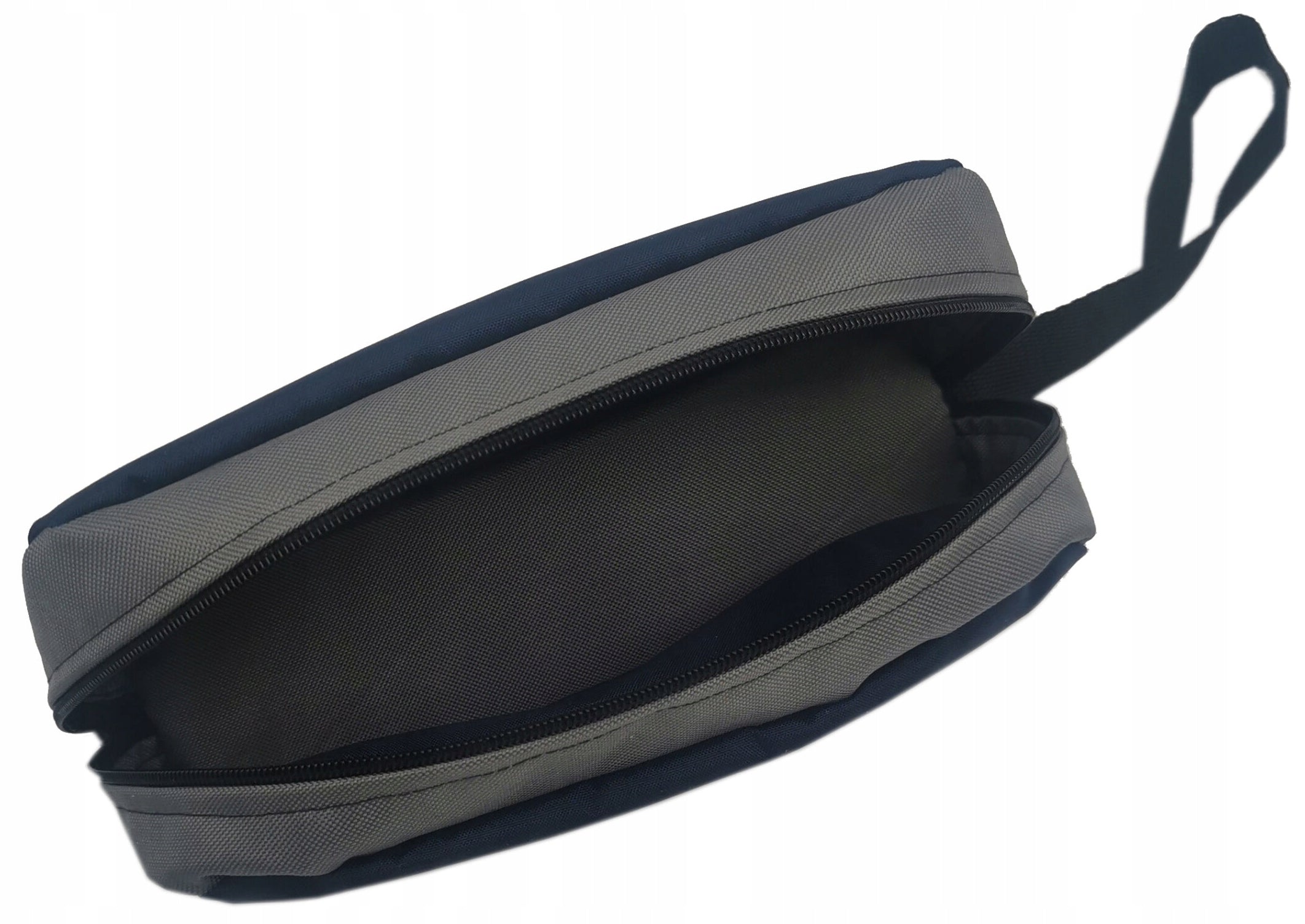

✔ case (cover)

✔ Sachet

✔ Set of required documents in Polish

Additional information :

• The product has a CE certificate and a certificate of legalization.
• We provide warranty and post-warranty service as well as legalization (calibration) of the device.
• The warranty does not cover rechargeable batteries.

FEATURES:

⭐ The detector meets the requirements of the F-gas Act and detects leakage of the agent in the amount of a minimum of 2 grams / year.

⭐ Solid Polish product ❗ Quality, precision and service life is unbeatable compared to cheaper counterparts.

✅ Over 12 thousand users use our detectors.

✅ We still receive for calibration detectors produced by our company in the years 2010-2012.

✅ The sensor of the Japanese company FIGARO provides very high sensitivity (from 0 to 10000ppm) and quick response to gas (less than 1 second). Sensor life minimum 5 years.

✅ Detected gases :

• H2 - hydrogen (hydrogen), also hydrogen with nitrogen (5% hydrogen, 95% nitrogen)
• R-134a , R-404a , LPG , R-600a , R-1234yf and many others (read. TECHNICAL DATA).

✅ Flexible probe length 42cm allows you to reach hard-to-reach places.

✅ Super power supply : nickel-hydrogen rechargeable batteries (without memory effect), 4 x 1,2V/2500mAh, ensure continuous operation time – minimum 10 hours. Easy replacement of rechargeable batteries by the user.

✅ Digital display LCD indicates gas concentrations simultaneously in two scales (% DGW and ppm).

✅ Acoustic signaling (the higher the concentration, the higher the sound), where the user chooses from how many ppm the sound is active.

✅ Vibration alarm.

✅ Memory of the results of the last measurement.

✅ Adjustment of the measuring range (sensitivity) – x 1, x 2, : 2, : 4 .

✅ Integrated flashlight illuminating the place of measurement.

FEATURES:

The meter is microprocessor-controlled, ensuring high accuracy. A specially developed algorithm ensures ease of use and initial auto-calibration after power-on.

The instrument's LCD display shows the measured gas concentration in two scales:

• Gas concentration as a percentage of the lower explosive limit (% LEL)
• Gas concentration in ppm (parts per million).

The instrument uses a high-quality semiconductor sensor TGS 2630 from FIGARO, which detects the following gases:

1. Hydrogen - H2 (hydrogen), including hydrogen with nitrogen (5% hydrogen, 95% nitrogen)
2. Hydrocarbons - R-600a, LPG, R-1234yf, propane, butane
3. HFC - R-134a, R-404a, R32, R-125, R-152a, R-407a, R-407c, R-410a, R-417a, R-419a, R-424a, R-427a, R-507
4. HCFC - R-22, R-123, R-124, R-408a, R-409a, R-502
5. CFC - R-12, R-11, R-500, R-503

The sensor structure contains a heater that causes rapid evaporation of the gas that has penetrated it during measurement. Placing the sensor on a flexible arm allows measurements to be made even in hard-to-reach places.

The audible alarm generates sounds with a frequency that varies depending on the gas concentration (the higher the concentration, the higher the sound). The user can activate a vibration alarm, which is active when the audible signal is heard.

The keyboard containing 4 buttons allows the meter to be operated in an intuitive and "user-friendly" way.

The user can use many additional functions to facilitate measurements:

• Gas type selection
• Measurement range (sensitivity) adjustment
• Last measurement result memory
• Audible signal threshold selection (from which ppm the audible signal is active)
• Vibration alarm activation
• Battery voltage reading
• Possibility to turn on a flashlight illuminating the measurement location
• Possibility to program a password used when turning on the instrument.

The meter is powered by 4 AA 1.2V/2600mAh rechargeable batteries. They are charged with a charger (included), connected to the meter's power socket. We also supply an adapter that allows charging from a car cigarette lighter socket.

A red LED lights up next to the power socket during charging.

Please charge the batteries for 10-12 hours. The LED does not turn off after they are charged. There is no risk of "overcharging" them because the detector has a built-in current limiting element. During charging, the temperature of the batteries rises to safe limits. It is recommended that the detector be switched off during charging. Fully charged batteries have a total voltage in the range of 5.2 - 5.6 V. When the battery voltage drops to 3.8 V, the device stops working.

• Spare batteries can be easily replaced.
• Instead of rechargeable batteries, AA 1.5V alkaline batteries ("finger batteries") can be used - but they must not be charged in the device.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Engler
Parametry	Kind	gas detector
Parametry	Power supply	rechargeable battery
Parametry	Manufacturer code	12144519
Parametry	EAN (GTIN)	5907056133162
Parametry	Batteries included	yes
