Dujų jutiklis RIDGID CD-100

Trumpai apie prekę

Prekė: Dujų jutiklis RIDGID CD-100. Kategorija: Detektoriai.

• Gamintojas: Ridgid
• Modelis: 36163

Detector for locating gas leaks

Detector for locating gas leaks, used to determine the presence of combustible gases such as methane, propane, butane, ammonia, carbon monoxide and many others. The device is complete with a practical transport cover.

• detects even low concentrations of combustible gases within seconds;
• the accumulated gas is detected through an internal sensor;
• The detector's natural gas sensors heat up during operation and react with the gas, so that the detector immediately informs about the presence of combustible gases;
• signalling of the presence of combustible gases is carried out by means of visual, vibrational and audible alarms;
• in the range of two sensitivity settings (low and high), there are five threshold measurement levels;

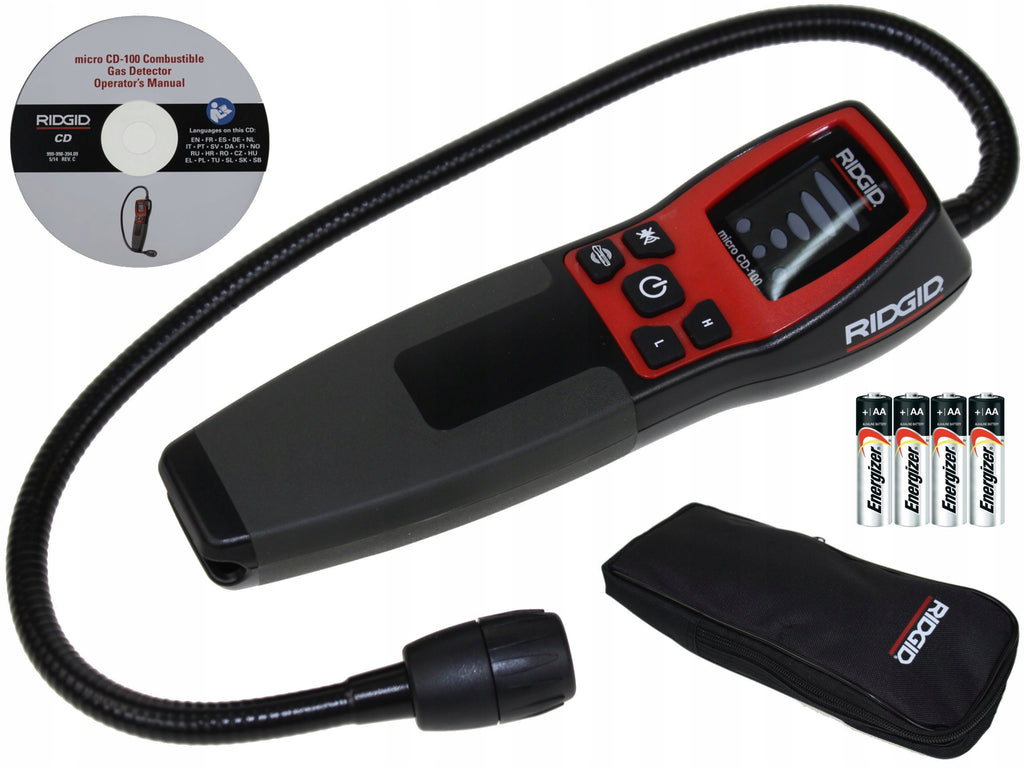

• The micro CD-100 detector is supplied with a flexible 50 cm long probe, a built-in gas sensor, four 1,5 V batteries (AA). It is possible to replace the gas sensor after its use;

Detected gases:

• methane, also GZ50 high methane natural gas;
• hydrogen;
• carbon monoxide;
• propane;
• butane;
• ethylene;
• ethane;
• hexane;
• benzene;
• isobutane;
• ethanol;
• acetaldehyde;
• formaldehyde;
• toluene;
• p-xylene;
• ammonia;
• hydrogen sulphide
• and popular mixtures of natural gas and gasoline.

Technical parameters:

• weight 0,45 kg;
• measuring range: 0 – 6400 ppm (methane);
• sensitivity: 40 ppm (methane);
• visual alarm: 5 red LEDs;
• audible alarm (85 db): Loud timing of the sound signal (with continuous modulation proportional to the gas concentration);
• vibration alarm: Standard;
• Response time: < 2 seconds;
• sensitivity level (methane) (high H) 5 item: 40/80/160/320/640 ppm;
• Sensitivity level (methane) (low L) 5 item: 400/800/1600/3200/6400 ppm;
• heating and calibration: Automatic;
• warm-up time: max. 50 s;

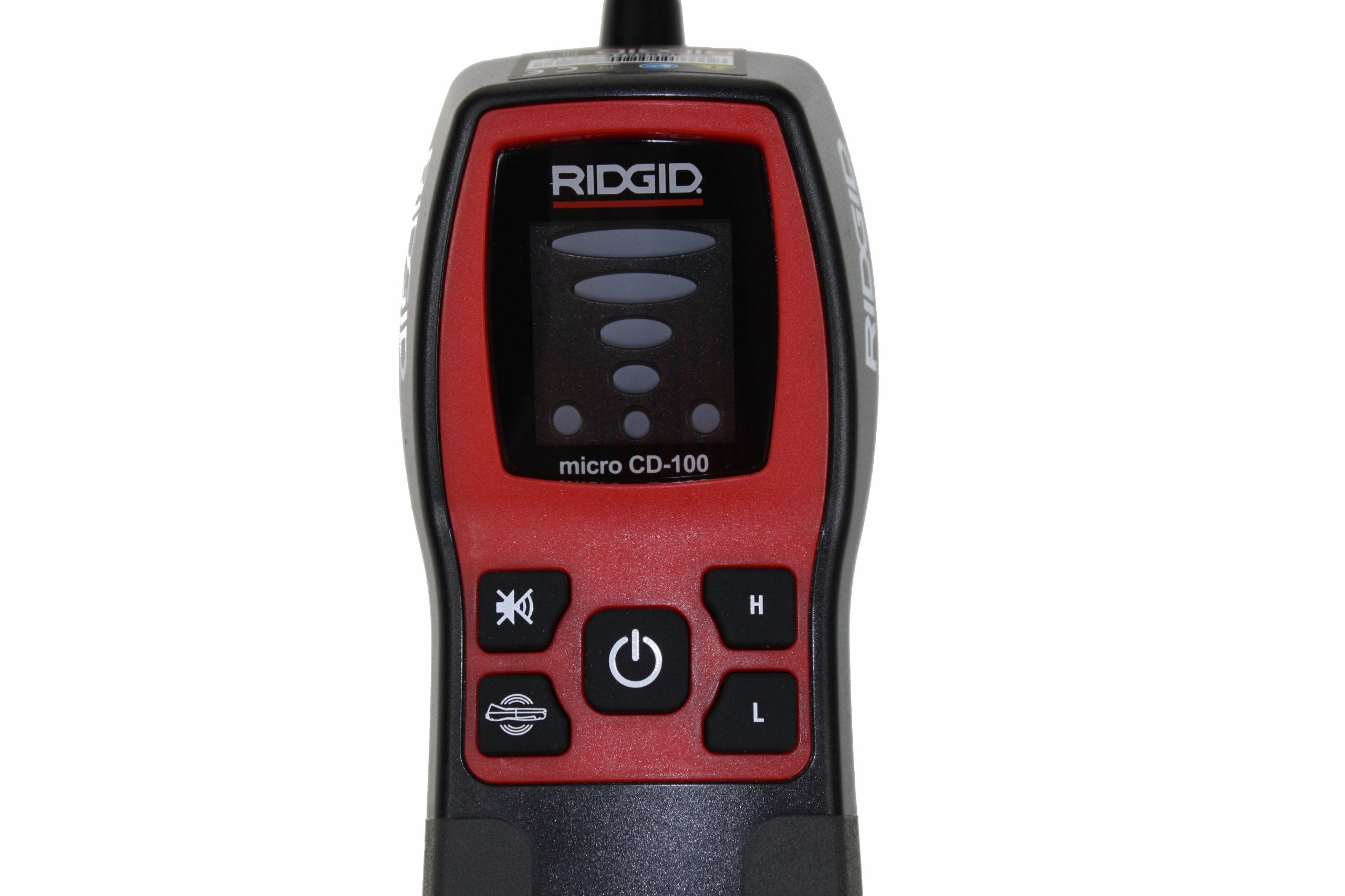

• Operation buttons: Five: On. /off. power supply, high sensitivity H, low sensitivity L, sound alarms, vibration alarms;
• Batteries: 4 x AA (included);
• low battery indication: Continuous illumination of low and high sensitivity LEDs;
• expected sensor life: 5 years, replaceable;

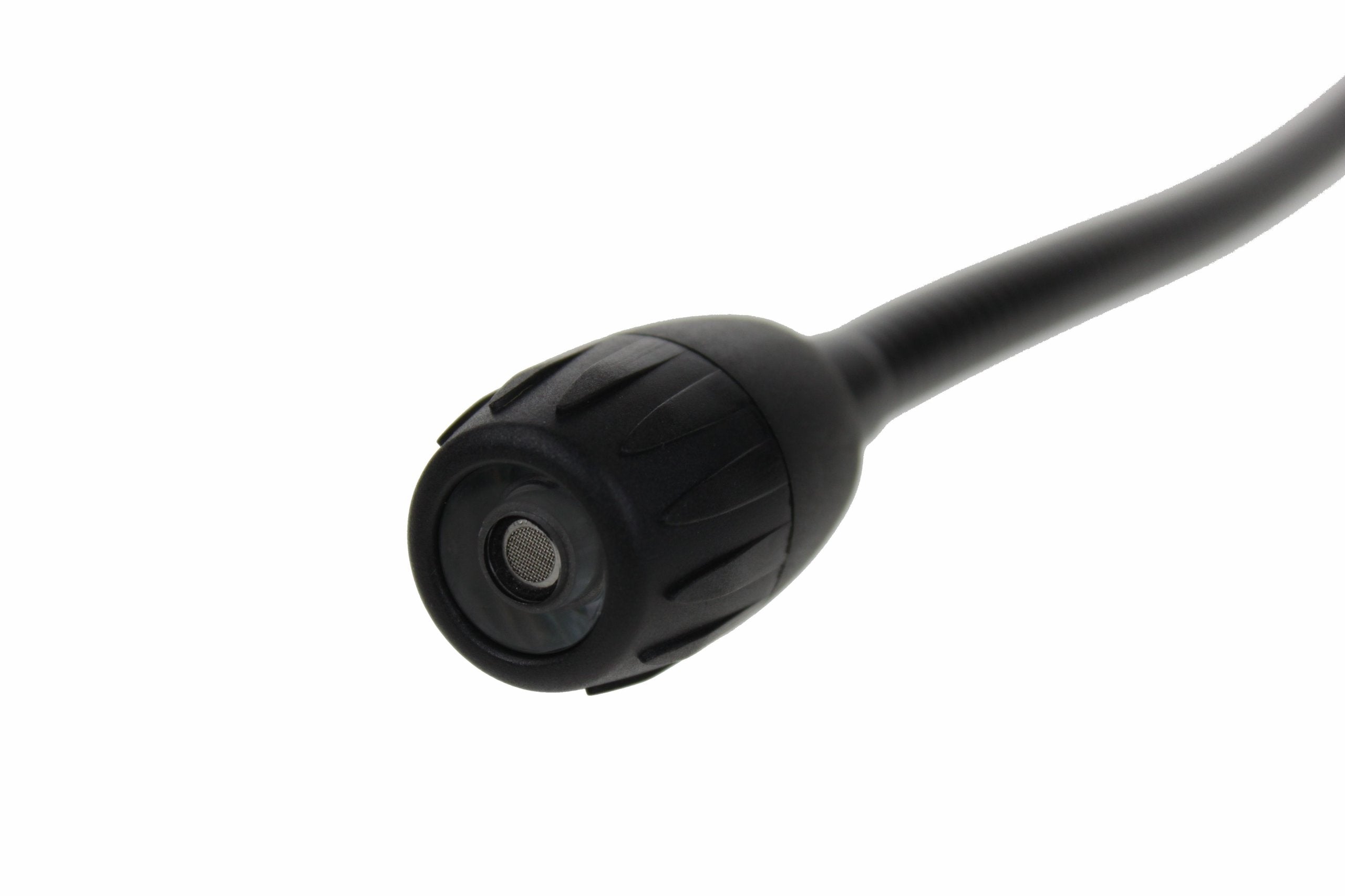

• probe: flexible with a length of 50 cm.

The micro CD-100 detector is supplied together with an instruction manual, a declaration of conformity / CE certificate in PDF (DOWNLOAD DOCUMENTS )
