Dūmtraukio laikiklių rinkinys 5 m su 1,5 m cinkuotu plieniniu stiebu Luxon

Trumpai apie prekę

Prekė: Dūmtraukio laikiklių rinkinys 5 m su 1,5 m cinkuotu plieniniu stiebu Luxon. Kategorija: Antenų laikikliai.

• Gamintojas: Luxon
• Modelis: KM515

Product Polish

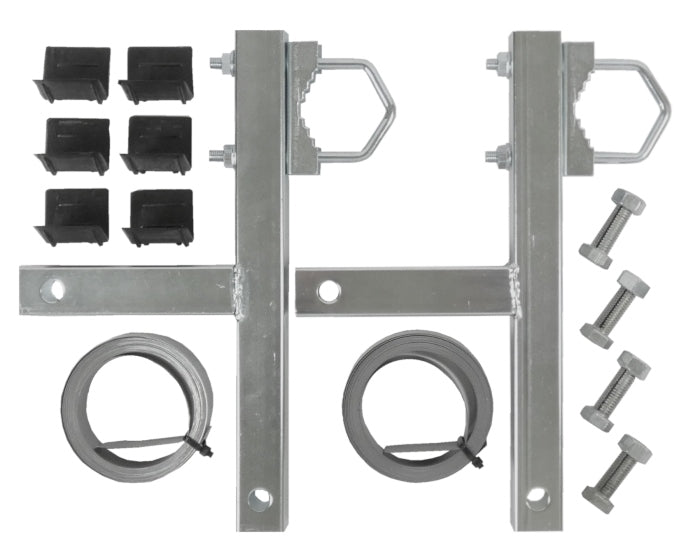

Mast chimney clamp K0500 Luxon

• tape length: 2 x 5m
• tape thickness: 0,5mm
• tape width: 25mm
• shaper: 2 pcs. (30mm x 30mm x 1,5mm)
• tape tensioning screw: 4 pcs. – M12
• mast cover: 2pcs. – M8 clamp
• maximum mast diameter: 50mm
• protective corner: 6 pcs.
• mast distance from the chimney wall: 10cm

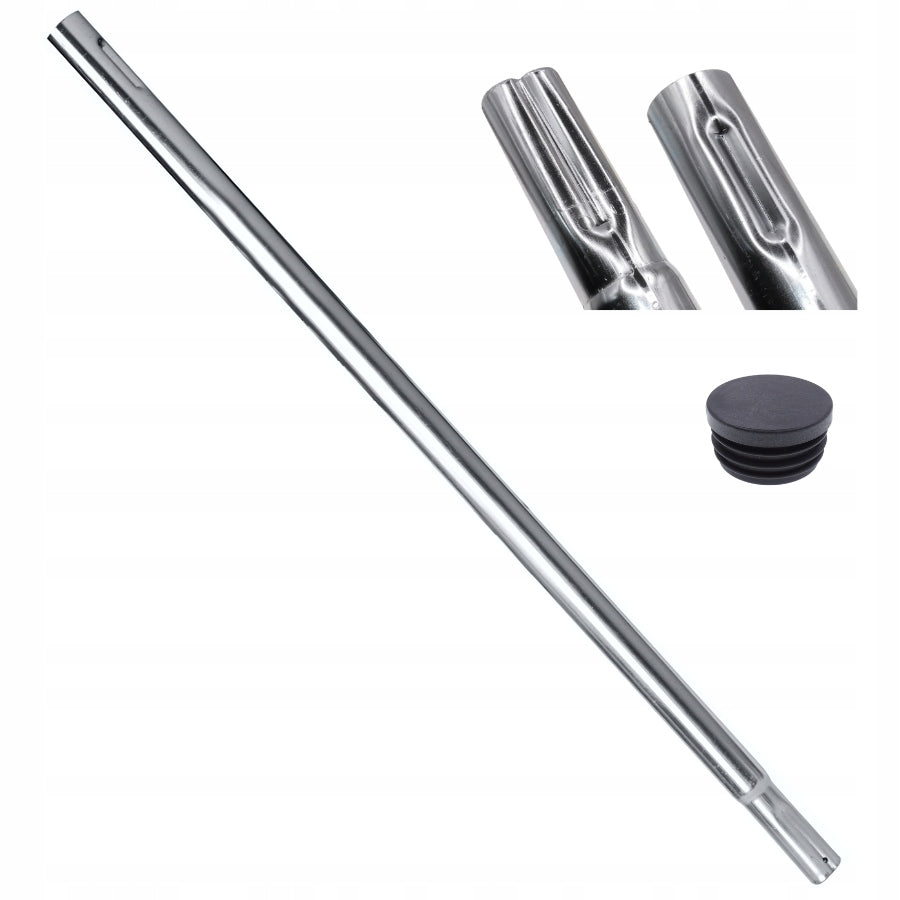

M0150 Luxon Mast

Steel, galvanized with a length of 150 cm + cap

• Tube diameter: 38 mm
• Wall thickness: 1,5 mm
• Permissible mast length difference +/- 2 cm

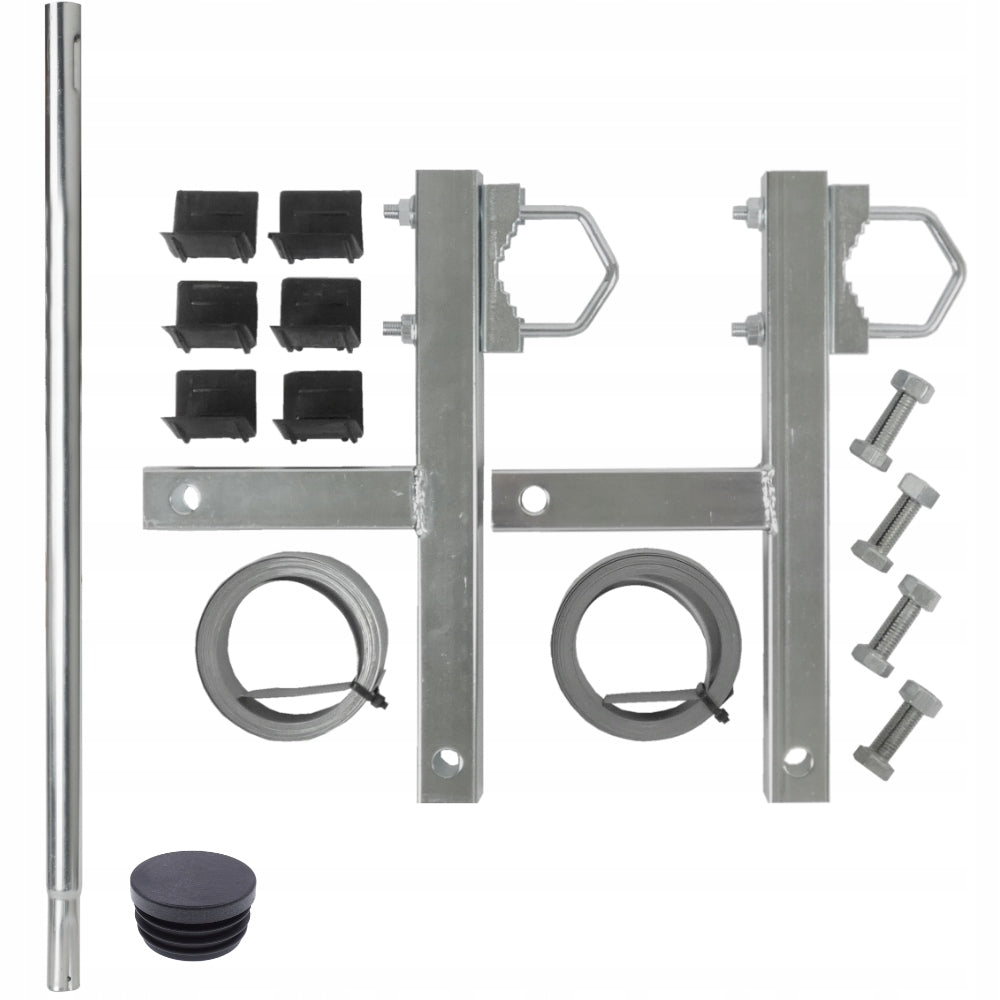

The KM515 Luxon kit is an ideal solution for mounting antennas (TV, radio, satellite, GSM, etc.) on a chimney where it is not possible to drill holes for standard holders.

Possibility of connecting masts.

The Luxon M0150 (1,5m) and M0100 (1m) masts have specially shaped ends so that they can be combined with each other. After driving one mast into another, we get a uniform structure.

The mast cap is included.

The cap protects the inner part of the mast from water.

Mast dimensions

Steel tapes.

The set includes two steel strips, each with a length of 5m. The thickness of the tape is 0,5mm, width 25mm.

M12 screws.

The set includes four tape tensioning screws. The screws are properly cut.

Corners.

The set includes 6 plastic corners. They are used to protect the chimney from abrasions from steel tape. Corners are made of weather-resistant material.

Clamping clamps.

The set includes two large clamp clamps UZ-50 M8 Luxon. The covers are used to attach the mast to the chimney clamp. The maximum diameter of the mast must not exceed 50mm.

Dimensions of the clamp

Dimensions of cybant

Specifications
