Dūmtraukio spaustukas Famaval E863M, 5 m, tipas L

Trumpai apie prekę

Prekė: Dūmtraukio spaustukas Famaval E863M, 5 m, tipas L. Kategorija: Antenų laikikliai.

• Gamintojas: no brand
• Modelis: E863M

At this auction we propose:

Famaval E863M with L-type mast for satellite dish or DVB-t :

...

Usage and technical parameters of the handle:

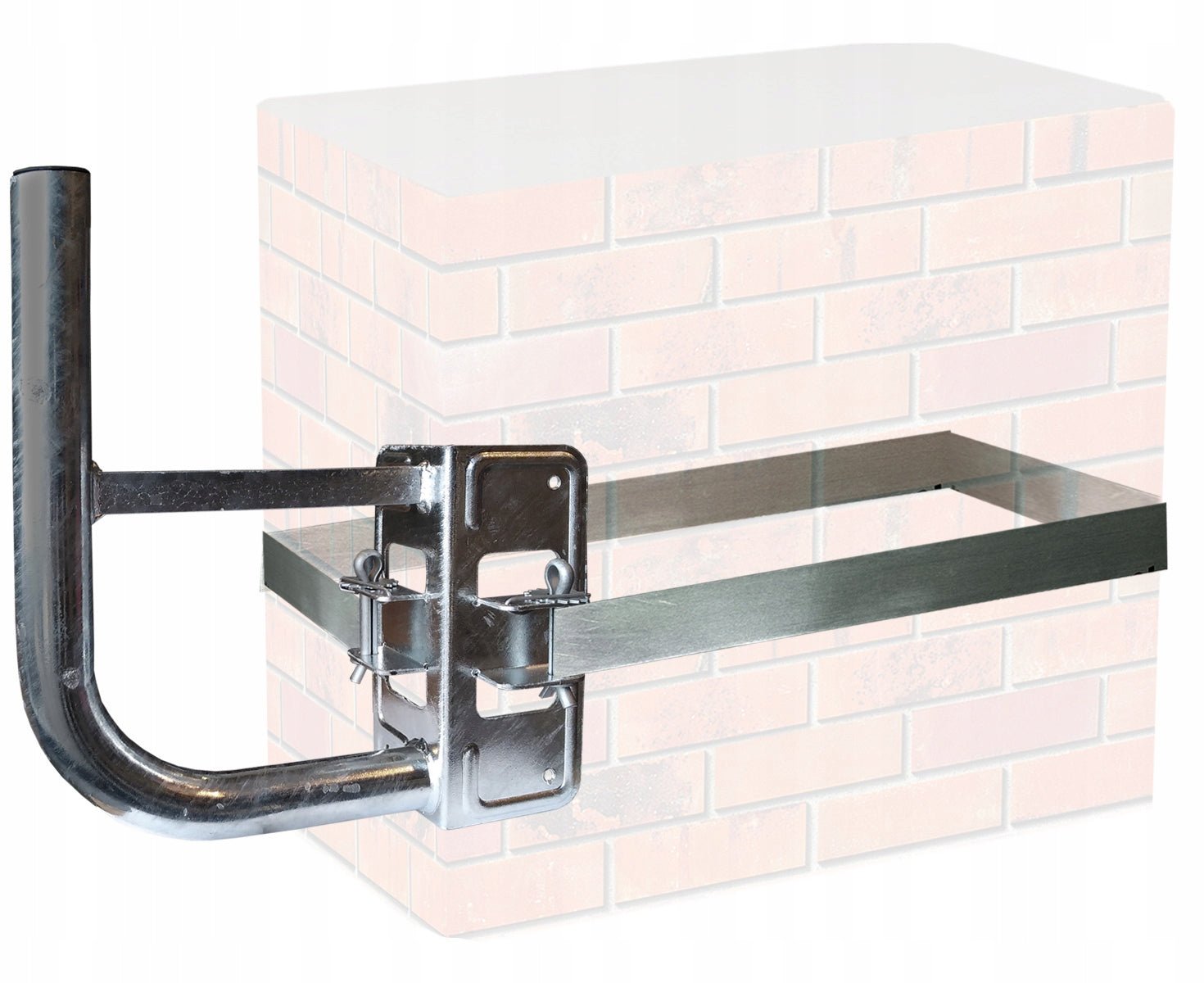

• very solid handle with a small mast to attach to the chimney without drilling, by strapping it with sheet metal tape stretched around the chimney,
• very good non-invasive solution for weak chimneys with movable bricks, which after strapping with tape and corners are additionally strengthened by the chimney clamp,
• whole steel handle, hot-dip galvanized, made of a profile with a wall thickness of 2mm, and bent with a pipe with a diameter of 38mm,
• it is possible to attach one satellite dish up to 100 cm or one DVB-t antenna to the mast,
• distance of fixed mast from the corner of the chimney approx. 18 cm, the height of the mast bent in the shape of "L" is 30 cm,

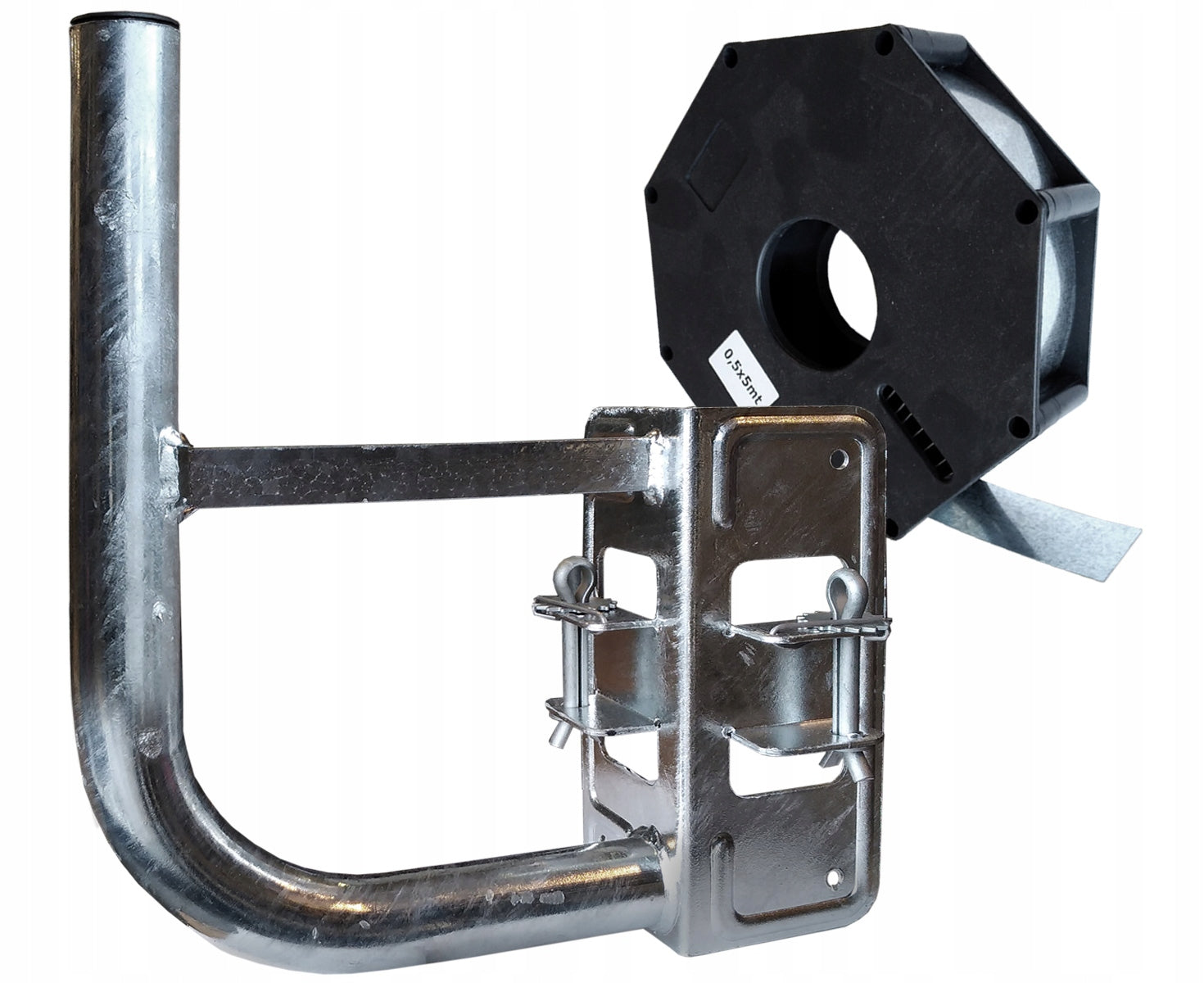

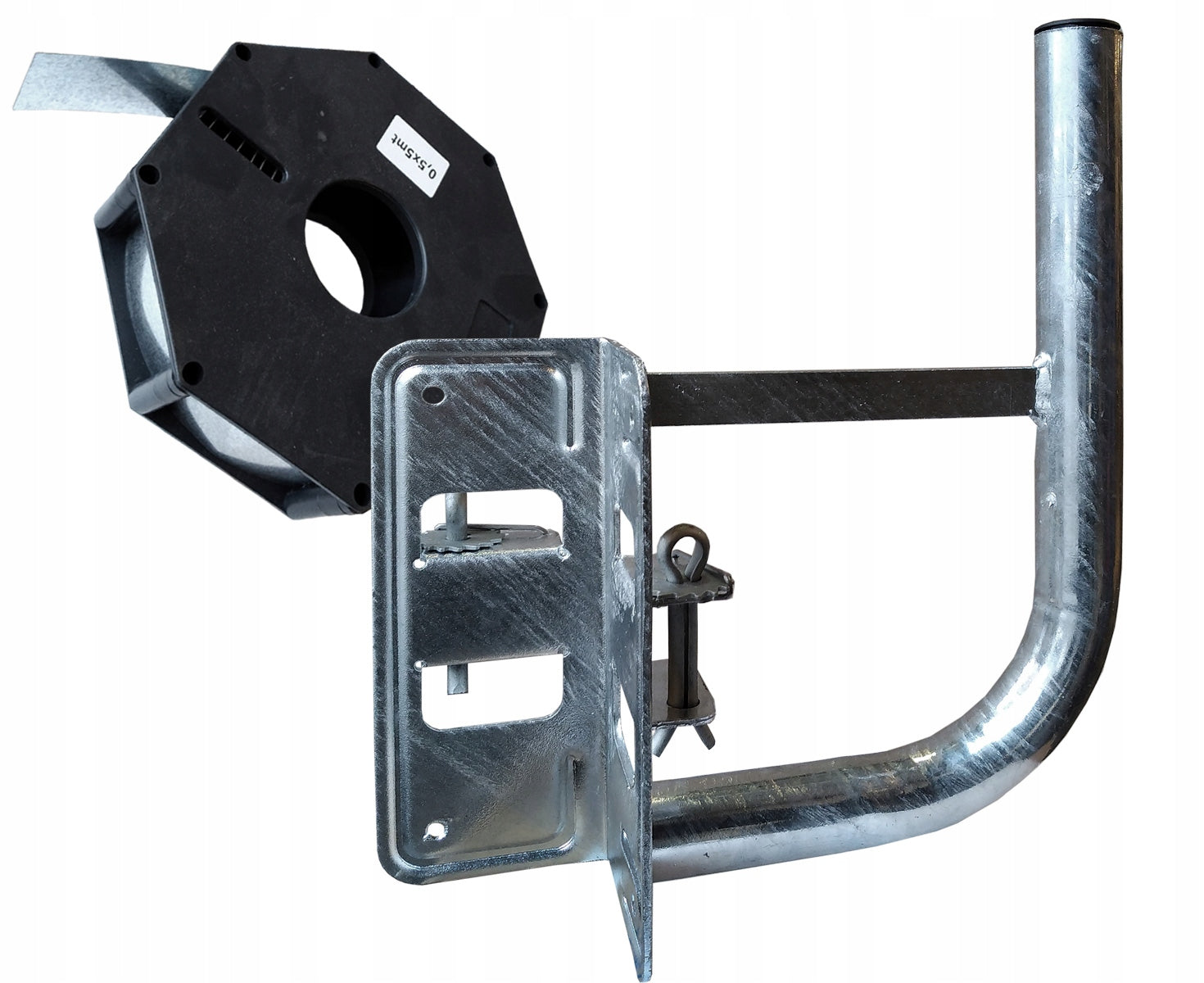

• The set includes:
• (1) one corner handle with mast made of 30/30 mm profiles and 2 mm thick corner sheet with belt tensioning mechanism,
• (2) steel strip for Famaval chimney holders length 5mb, width 40mm, thickness 0,5mm, wound on plastic roller makes it easy to unroll and store
• product of the Portuguese company Famaval,
• net weight of the handle: 4,1 kg, roll weight of tape 5 mb: 1,2 kg, the whole package 7,2 kg,

.

Recommendations:

• the maximum diameter of the canopy of the mounted antenna was adopted as 100 cm,
• the antenna will be mounted in the wind load zone up to 72 km/h (in gusts of 158 km/h),
• the total weight of the mounted satellite dish should not exceed 8 kg,

.

Below are photos of items from this listing :
