Dūmtraukio tvirtinimo juosta 5 m, Famaval E863A

Trumpai apie prekę

Prekė: Dūmtraukio tvirtinimo juosta 5 m, Famaval E863A. Kategorija: Antenų laikikliai.

• Gamintojas: no brand
• Modelis: E863A

At this auction we propose:

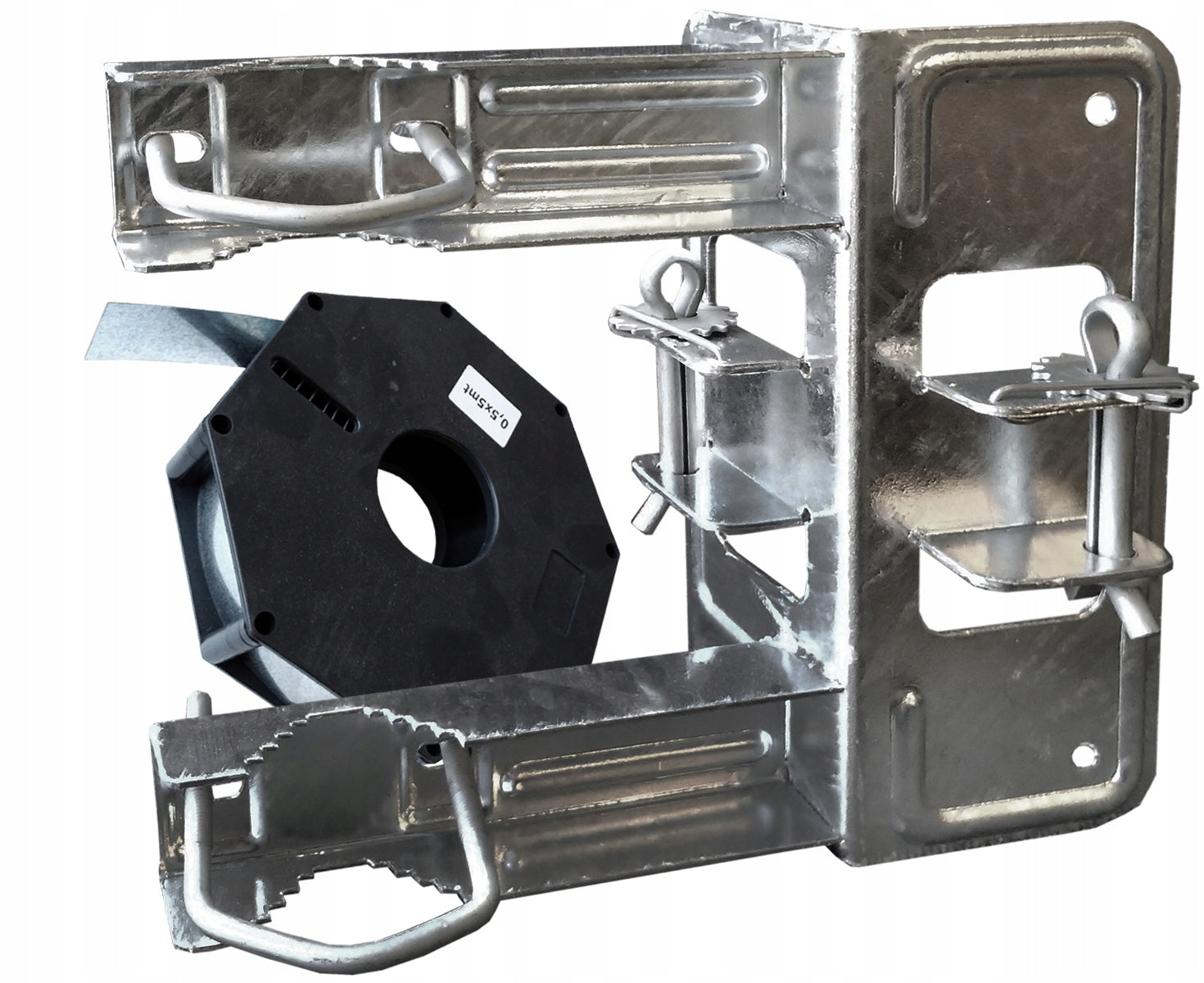

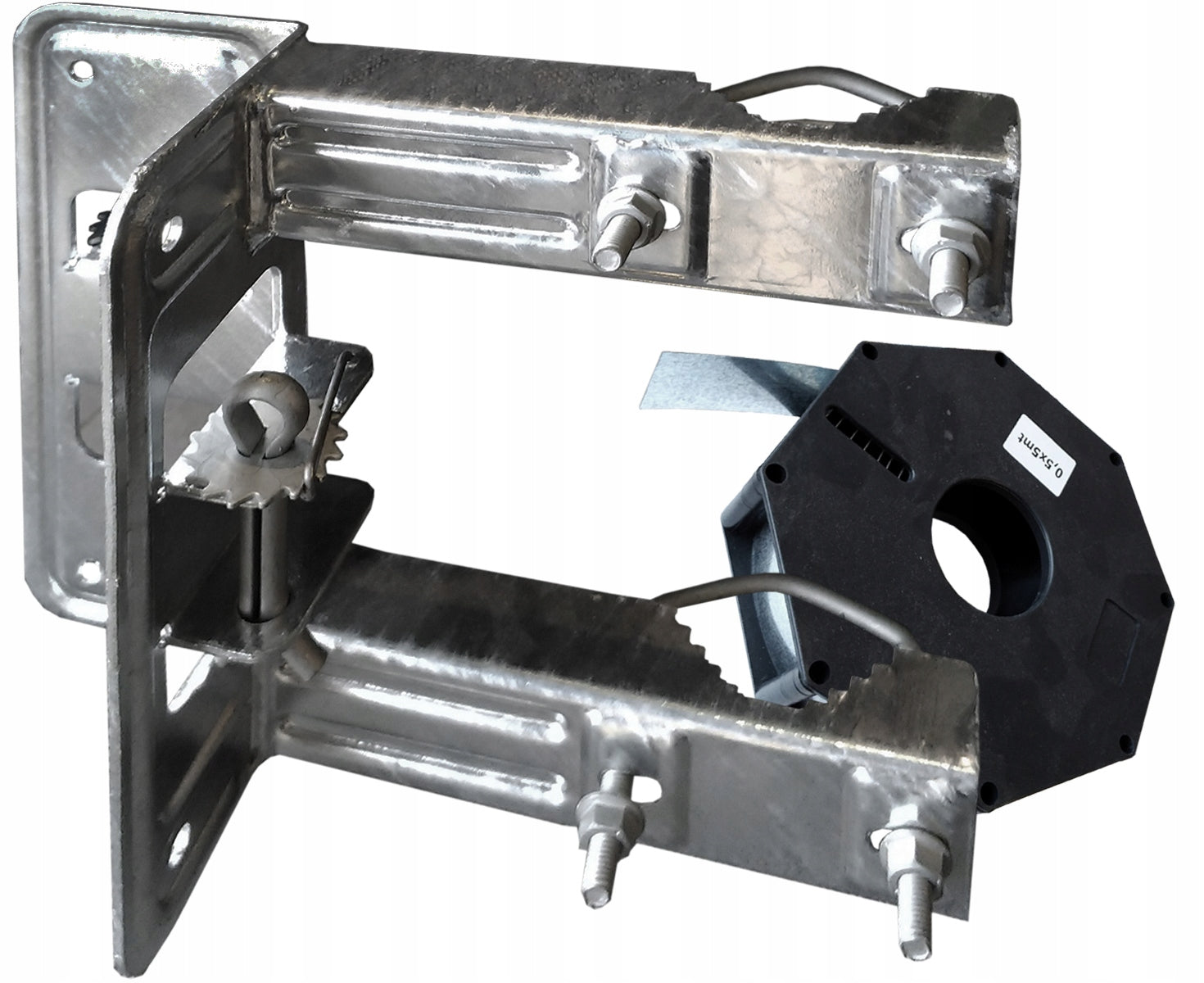

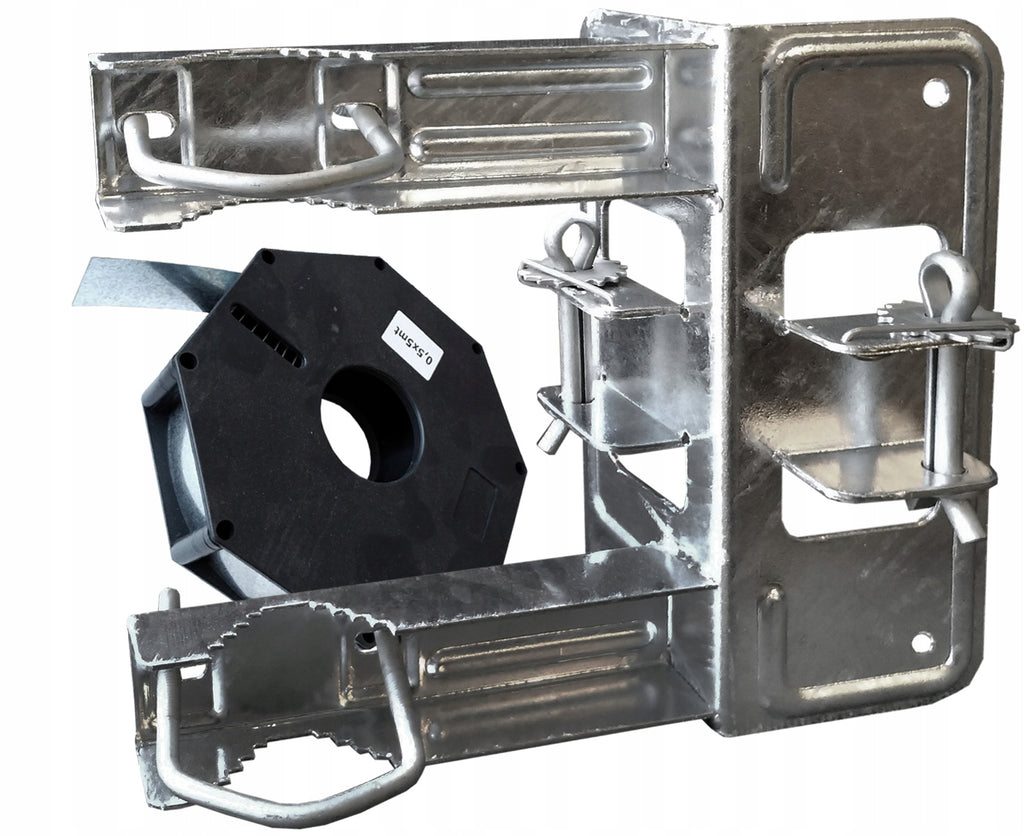

TAPE CHIMNEY CLAMP (5 mb) Famaval E863A for antenna mast:

...

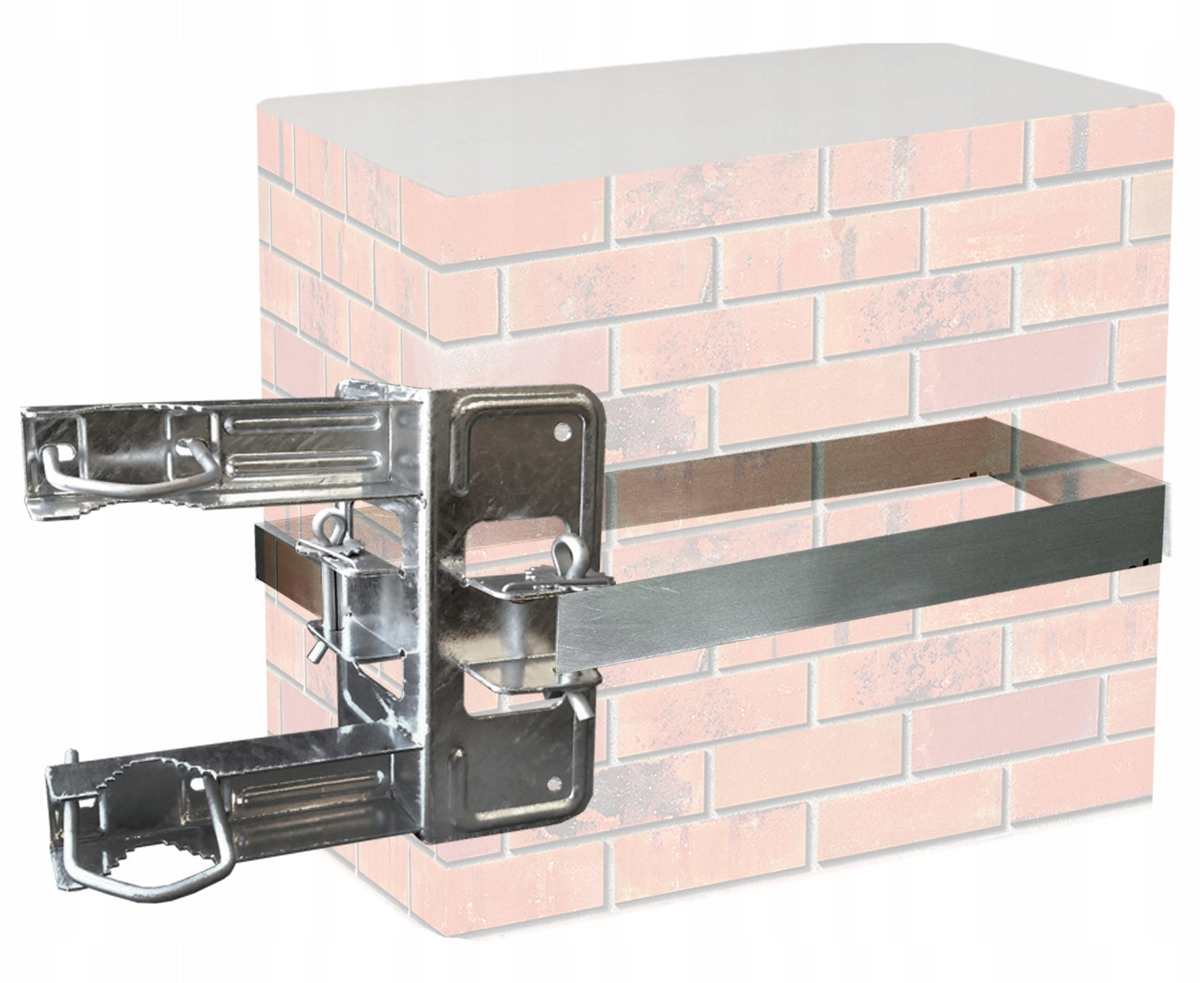

chimney cover, handle attached to the chimney without drilling by strapping it with sheet metal tape stretched to the corner handles, one corner double handle and 5 mb of steel tape included,

.

Usage and technical parameters of the handle:

• very solid double handle for fixing on the chimney without drilling, by strapping it with sheet metal tape stretched around the chimney,
• very good non-invasive solution for weak chimneys with movable bricks, which after strapping with tape and corners are additionally strengthened by the chimney clamp,
• whole steel handle, hot-dip galvanized, made of profile with a wall thickness of 2mm,
• it is possible to fix a mast with a diameter of up to 60 mm,
• distance of fixed mast from the corner of the chimney approx. 14 cm,
• The set includes:
• (1) one corner double sheet metal handle 2 mm thick with belt tensioning mechanism,
• (2) steel strip for Famaval chimney holders length 5mb, width 40mm, thickness 0,5mm, wound on plastic roller makes it easy to unroll and store
• product of the Portuguese company Famaval,
• net weight of the handle: 3,8 kg, roll weight of tape 5 mb: 1,2 kg, the whole package 7,0 kg,

.

Recommendations :

• the maximum diameter of the canopy of the mounted satellite dish to the mast was adopted as 100 cm,
• the antenna will be mounted in the wind load zone up to 72 km/h (in gusts of 158 km/h),
• the total weight of the mounted satellite dish should not exceed 8 kg,
• a steel mounting mast with a diameter of 38 to 50 mm is recommended,
• The mounting point of the satellite dish canopy shall be between the mast attachment points or slightly above the upper mast attachment point.

.

Below are photos of items from this listing :
