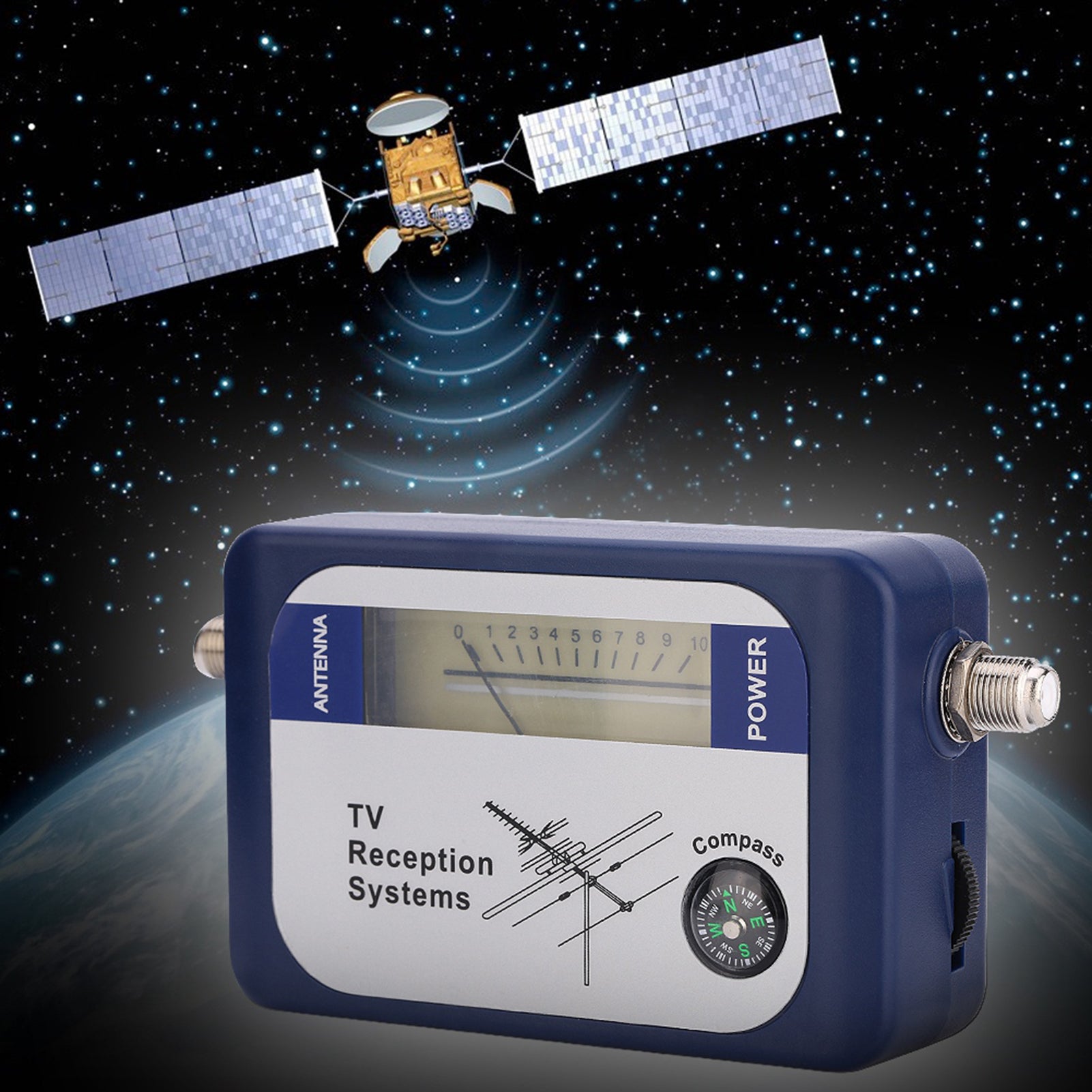

DVB-T antžeminės televizijos signalo matuoklis

Trumpai apie prekę

Prekė: DVB-T antžeminės televizijos signalo matuoklis. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: no brand
• Modelis: XD00924

Features:

• With its backlight function, you can use this digital signal finder at night.
• Elegant exterior design and convenient to carry.
• Perfect for remote satellite dishes.
• This is a great professional digital TV signal finder with excellent sensitivity.
• Create an era of digital television to enjoy a happy life.

Technical data:

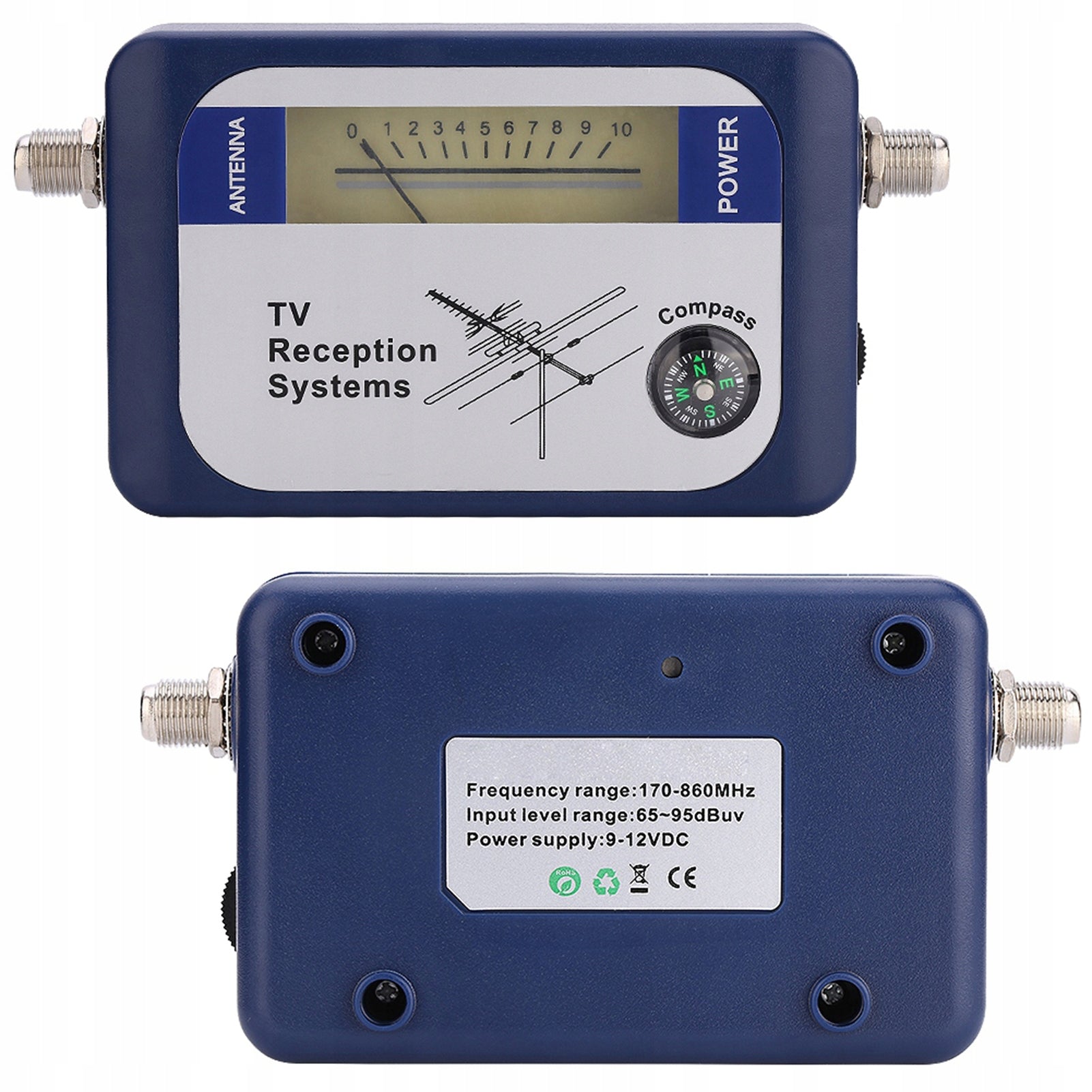

• Frequency Range: 170~862MHz
• Input Level Range: -40~-10dBm
• Input Level Range: 65~95 dBuv
• Dimension: 100*35*65mm/3.94*1.38*2.56 inch
• Package Weight: 194g

Operation:

• Connect the antenna cable to the left female F connector and the battery cable to the right female F connector. Remove any external amplifiers* that may be connected to the antenna.
• Position the antenna in the best position by observing the meter indications. A higher scale gives a better signal. If the finder reading reaches full scale, adjust the level adjustment knob to reduce the reading to about 5 (turning the knob clockwise will reduce the reading), continue moving the antenna until you get the highest possible reading of the meter.
• Remove the finder and replace the disconnected amplifier.

List of packages:

• 1 x Signal Finder
• 1 x Power Cable
• 1 x AA battery pack (batteries not included)
• 1 x User Manual

Specifications
