Aprašymas
Trumpai apie prekę

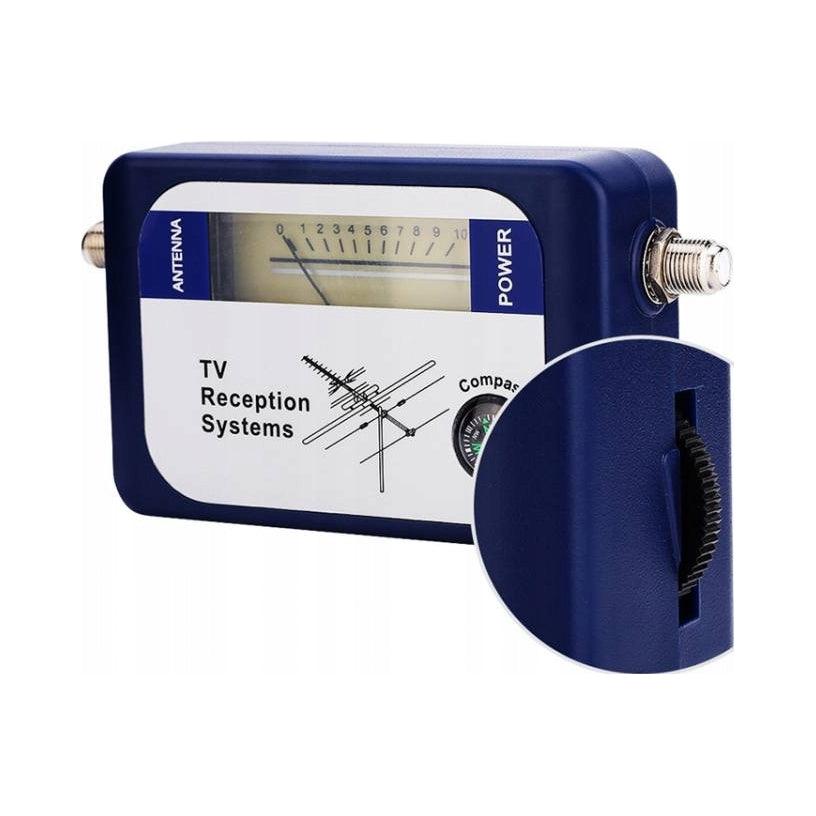

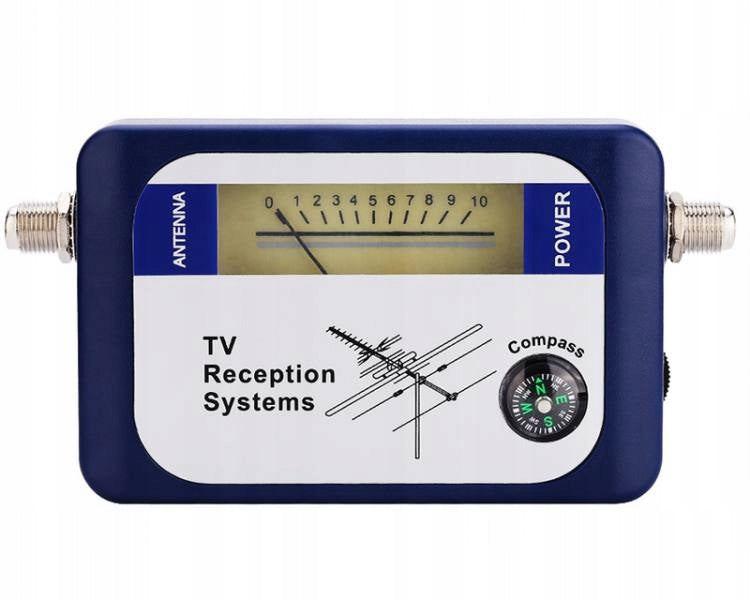

Prekė: DVB-T2 antžeminės televizijos signalo matuoklis. Kategorija: Matuokliai, signalo stiprintuvai.
- Gamintojas: Lamex
- Modelis: LXU98
- Sensitivity level adjustment
- Analog and audible signal power indicator
- Battery basket for power supply
- Built-in compass
- Illumination of the indicator
The device is equipped with a signal level tilt indicator, which facilitates precise and fast adjustment of the antenna position. The built-in compass allows you to easily orient yourself in the directions of the world and the same position of the transmitters. The backlit signal level indicator and small compact design of the device allow for easy and intuitive control. Power supply is required for proper operation of the device (batteries are not included).
EASY TO USE
The meter just needs to be connected by. Scheme included in the kit and start measuring. The meter will respond to the detected signal with a floating hand and sound. When the hand reaches level 10, reduce the sensitivity and adjust the antenna again to get the best signal quality.
READY FOR DVB-T2
The meter has been prepared for the new DVB-T2 standard.
Thanks to DVB-T2, it is possible to transfer more data than in the case of DVB-T.
UNIVERSAL
SPECIFICATION
- Frequency Range: 170 ~ 862MHz
- Input level range: -40 ~ -10dBm
- Input Level Range: 65~95 dBuv
- Dimension: 100*35*65mm/3.94*1.38*2.56 inch
- Package weight:194g
- Compliance mark: CE
- Brand: Lamex

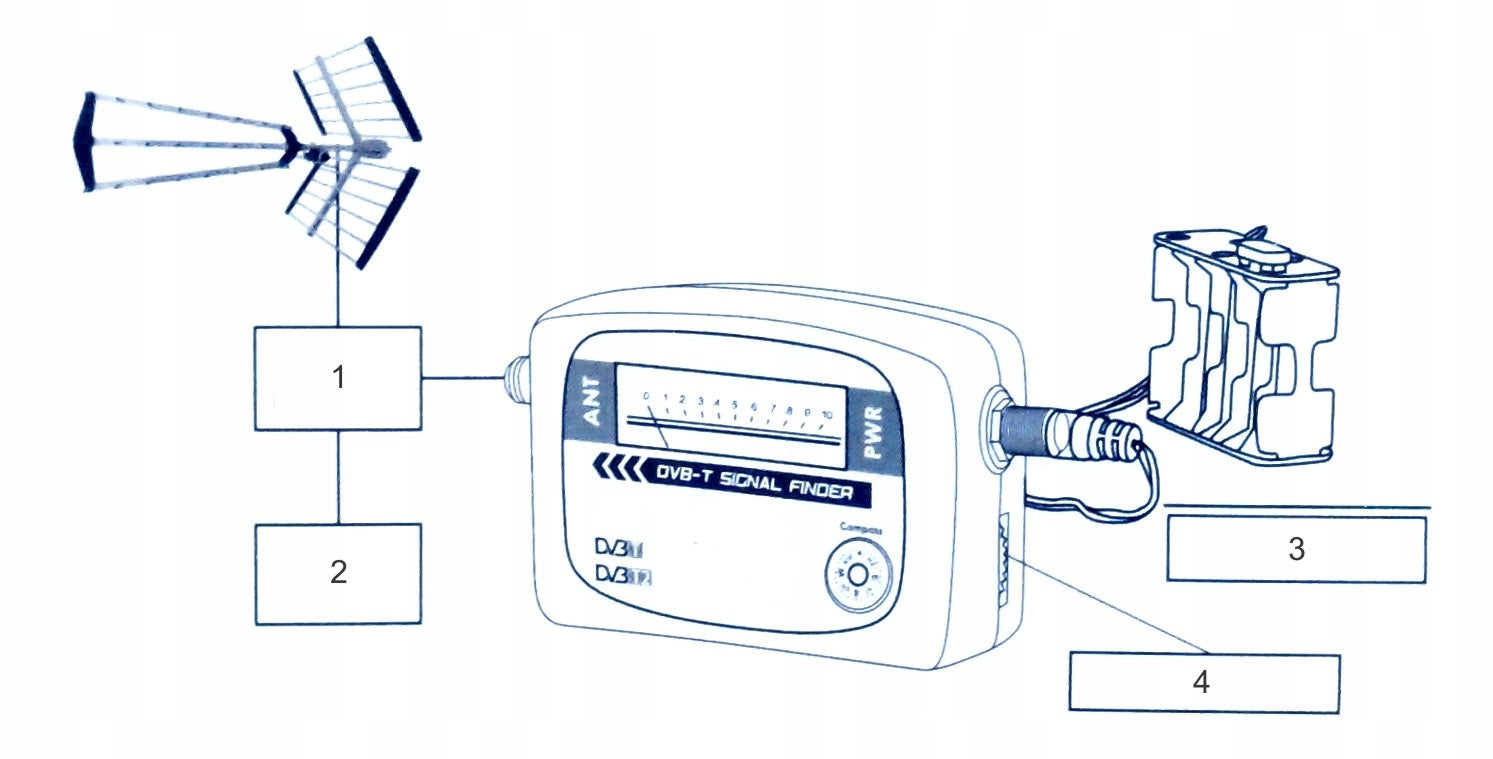

Scheme of connection of the meter.
The meter works with antennas that have an amplifier and power supply.
- Antenna Amplifier
- Amplifier and antenna power supply
- 12 V power supply
- Sensitivity adjustment
Battery basket included with the meter.
When connected to a passive antenna, the meter will not work properly, which is the reason for many doubts of users.
1. Connect the antenna cable to the left female F connector and the battery cable to the right female F connector. Remove any external amplifiers* that may be connected to the antenna.
2. Position the antenna in the best position by observing the meter indications. A higher scale gives a better signal. If the finder reading reaches full scale, adjust the level adjustment knob to reduce the reading to about 5 (turning the knob clockwise will reduce the reading), continue moving the antenna until you get the highest possible reading of the meter.
3. Remove the finder and replace the disconnected amplifier.
COMPOSITION OF THE SET
- LX98 meter by Lamex
- Battery power supply with cable
- Instructions PL
- Retail box
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | LXU98 |
| Parametry | Brand | Lamex |
| Parametry | Model | LXU98 |
| Parametry | Product weight with unit packaging | 0.3 kg |
| Parametry | EAN (GTIN) | 5902270786668 |
| Parametry | Certificates of conformity | CE |
