DVB-T2 COMBO MUX8 LTE 4K antžeminė TV antena su maitinimo bloku ir stiprintuvu

Trumpai apie prekę

Prekė: DVB-T2 COMBO MUX8 LTE 4K antžeminė TV antena su maitinimo bloku ir stiprintuvu. Kategorija: Antenos.

• Gamintojas: TAMDEL
• Modelis: TAZ-13 + WZMACNIACZ + ZASILACZ
• Spalva: silver

▶ Active COMBO directional antenna for receiving free DVB-T / DVB-T2 terrestrial television.

▶ 20 dB amplifier and 12 V power supply included — antenna ready for operation when connected.

▶ Receives MUX-1 / MUX-2 / MUX-3 / MUX-4 and MUX-8 — VHF + UHF band.

▶ Possibility of receiving MUX-8 in horizontal and vertical polarization – depending on the setting of the VHF element.

▶ Antenna gain: VHF 6 – 8 dB / UHF 16 – 18 dB.

▶ Reception range up to 160 km — in favourable terrain conditions and with the correct antenna positioning.

▶ LTE filter reduces interference from mobile networks.

▶ Aluminum construction adapted for external installation.

📡 DVB-T2 / HEVC / 4K – compliant with the current standard

▶ Supports DVB-T / DVB-T2 with H.265 / HEVC compression.

▶ Allows you to receive Full HD and 4K channels if they are broadcast in a given location.

▶ For DVB-T2/HEVC reception, a TV or decoder supporting this standard is required.

📳 LTE filter – less signal interference

▶ Built-in LTE filter reduces interference from mobile networks, including LTE 800 MHz.

▶ Helps improve the stability of DVB-T / DVB-T2 reception in areas exposed to interference.

▶ Can be helpful near buildings, GSM masts and base stations.

🔄 How to set the antenna to receive MUX-8?

The TAMDEL TAZ-13 antenna has two dipoles:

• larger VHF dipole — for receiving MUX-8

• smaller UHF dipole — for receiving MUX-1 / MUX-2 / MUX-3 / MUX-4

In many regions, MUX-8 is broadcast in vertical polarization, therefore:

▶ Turn the larger VHF dipole o 90° — position it vertically.

▶ No need to rotate the entire antenna – just change the setting of the VHF element.

▶ Other UHF channels can still be received in horizontal polarity.

▶ Before installation, it is worth checking the direction of the transmitter and the polarity of the MUX-8.

🛠 Simple installation and connection

▶ Mount the antenna outside — preferably as high as possible, e.g. on the mast, balcony or facade.

▶ Position the antenna towards the nearest DVB-T / DVB-T2 transmitter.

▶ Connect the amplifier 20 dB to the antenna output.

▶ Connect the antenna cable, and at the end of the cable mount the power supply with separator.

▶ Connect the output from the separator to the TV or decoder.

▶ Enable automatic DVB-T / DVB-T2 channel search.

🌦 Weather resistant

▶ Aluminum construction – lightweight and corrosion resistant.

▶ The antenna box protects the antenna connection from moisture.

▶ Design adapted to outdoor installation — rain, sun and changing weather conditions.

⚙ Technical specification – TAMDEL TAZ-13 (with 20 dB amplifier)

▶ Antenna type: directional, external

▶ Operating system: active, with amplifier

▶ Compatibility: DVB-T / DVB-T2 / HEVC H.265

▶ Supported bands: VHF + UHF

▶ Multiplexes: MUX-1 / MUX-2 / MUX-3 / MUX-4 / MUX-8

▶ LTE filter: yes

▶ Installation: mast, balcony, facade

▶ Impedance: 75 Ohms

▶ Working channels: 5 to 57

▶ Frequency Range:

• VHF: 168 – 230 MHz

UHF: 470 – 790 MHz

▶ Antenna gain:

• VHF: 6 to 8 dB

• UHF: 16 to 18 dB

▶ Signal Amplifier:

• Gain: up to 20 dB

• Range: 5 to 862 MHz

• Reception range: up to 160 km*

*In favorable conditions – depending on the transmitter power, mounting height and terrain.

▶ 12 V power supply:

• Input: 100 to 240 V

• Output: 12 V / 100 mA

• Separator: yes

▶ Dimensions: according to the graphic below

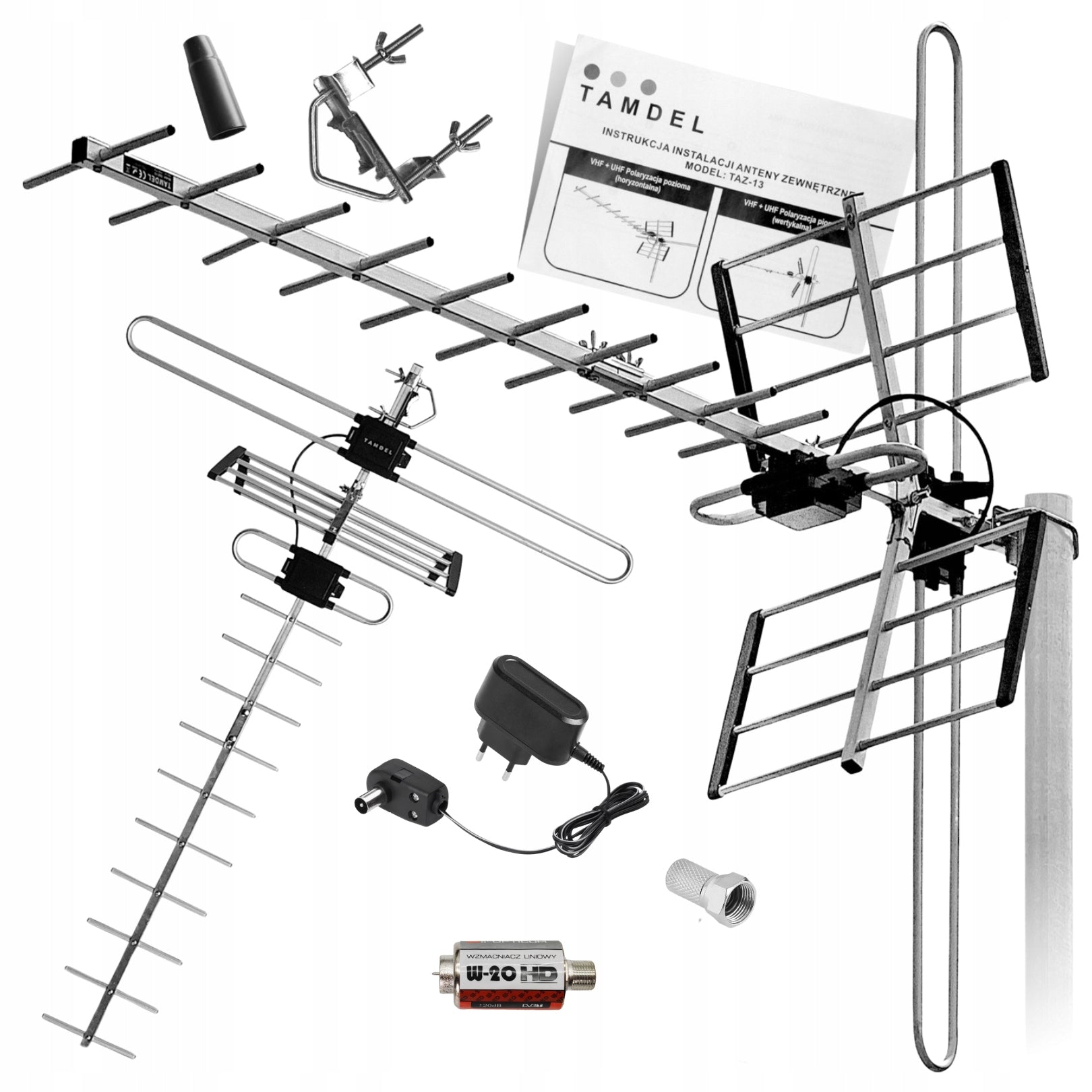

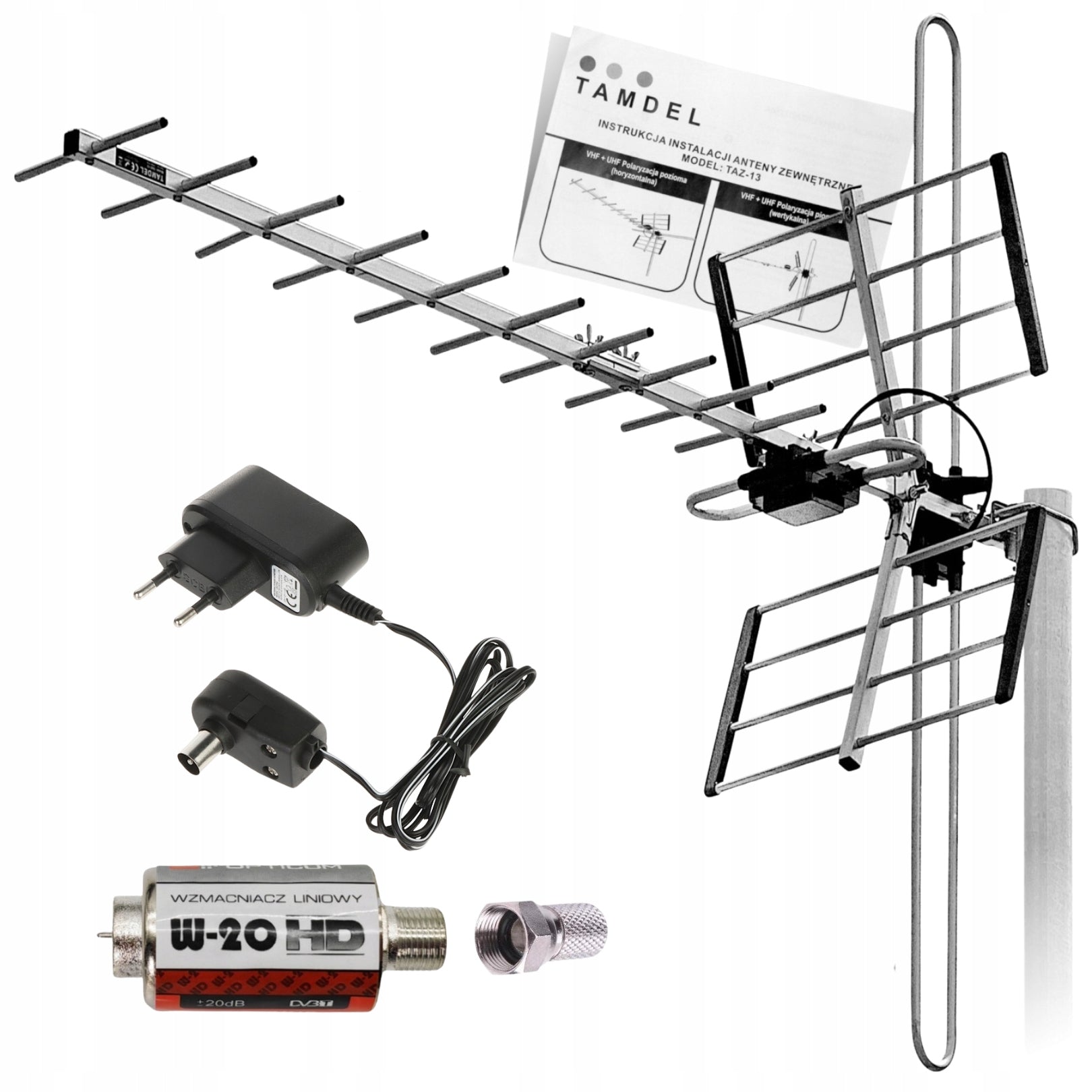

📦 Set includes

▶ Outdoor Directional Antenna TAMDEL TAZ-13

▶ Set of mounting elements — handle and screws

▶ Antenna amplifier 20 dB

▶ Antenna power supply 12 V with separator

▶ Plug F with gasket

▶ Assembly instructions in Polish

▶ Original manufacturer packaging
