DVB-T2 imtuvas EMOS EM190-S HD

Trumpai apie prekę

Prekė: DVB-T2 imtuvas EMOS EM190-S HD. Kategorija: Tiuneriai.

• Gamintojas: Emos
• Modelis: EM190-S
• Spalva: black

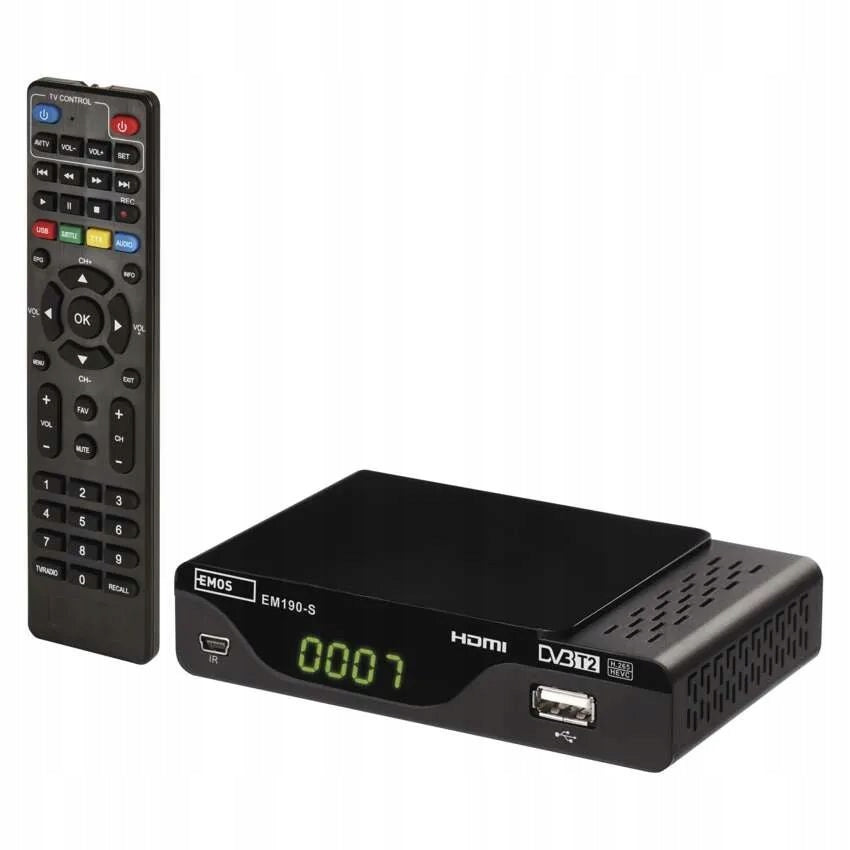

Small but very advanced DVB-T and DVB-T2 receiver

This very small set top box EM190-S (slim) is the ideal solution for hospitals, hotels, guesthouses, nursing homes where there are thousands of TVs without DVB-T2 support. Equipping these places with a decoder with remote control means many benefits not only for older users, but also for installers, who will no longer have to repeatedly leave for complaints from people who only misconnected the TV entrance. It will also be appreciated by everyone who wants to use only one remote control.

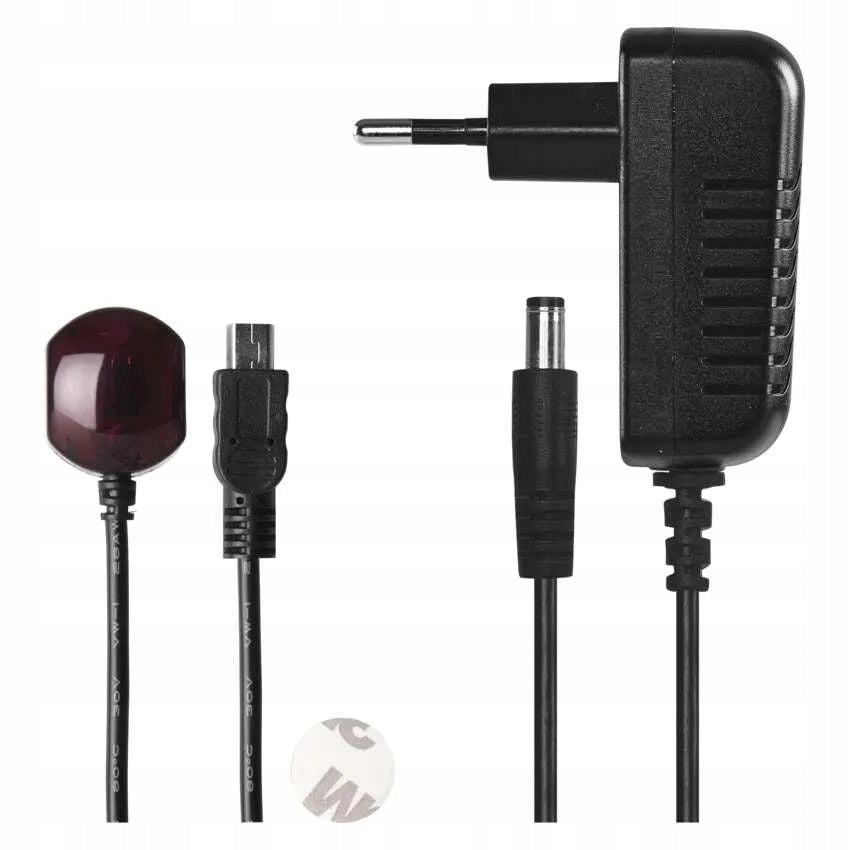

External sensor included

Thanks to its small dimensions, this set top box EMOS EM190-S can be placed very conveniently on the back of the TV, which will make it invisible. You only need to output an external IR sensor (cable with a length of 1 m), program a universal remote control, and in the menu turn off the front panel so that it does not interfere with the TV. Then we use only one remote and we do not even notice that we have a decoder on. Of course, the receiver also includes an integrated IR signal sensor and if the receiver is classically installed under the TV, it is not necessary to disconnect the external IR sensor.

Easy installation

EMOS EM190-S can be easily connected to any TV, antenna and other electronic devices thanks to a large number of inputs and outputs on its back side. Once connected, you can also easily master its launch – intuitive menus in many languages, installation guide and automatic program tuning will help you.

Play and record on USB

On the front of this model there is an input to which we connect a USB or external drive (up to 1 TB). And at any time you can watch your favorite movies or series on a wide-angle screen and without ads. On USB you can also record movies from TV working on 2 channels simultaneously (within one multiplex). You can control the beginning and end of the recording yourself, or you can use the “timer” function. With its help, recording will turn on and off automatically at the right time.

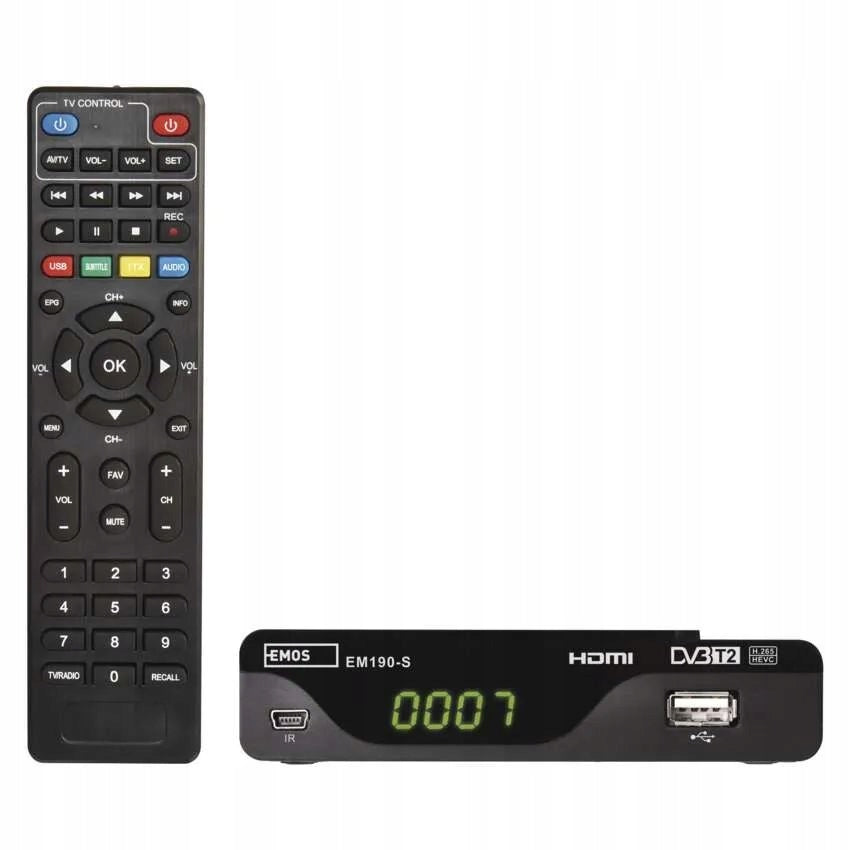

Intelligent remote control included

The long-range remote control included gives us many possibilities. Through it, you can easily edit programs, set your favorites and open the 7-day programmable guide (EPG). The set-top box immediately responds to commands from the remote control, and therefore allows very fast switching between channels. The remote control has a learning function, thanks to which you can easily program the buttons from the existing remote control to the TV and then use only one remote control.

Multimedia Center

This is not just an ordinary set-top box, but an advanced multimedia center that will offer you thousands of hours of great entertainment. In addition to many TV channels you can also tune many radio stations, you will be able to play movies and music from a USB drive or use the presentation of photographs accompanied by music.

Enjoys all conscious parents

The list of channels or stations not suitable for children can be easily blocked using the password setting. This way you can decide for yourself what your child is watching on TV. And if you also want to control the time you spend in front of the screen, take an interest in the parental lock function. The entire set-top box can be subjected to access passwords.

Set-top box with certificate

Only in digital TV sets with the certificate “DVB-T2 verified” you can be sure that this receiver can actually decode this way of broadcasting. České Radiokomunikace a.s. grants it only to those decoders that have passed independent tests. EMOS EM190-S H265 is one of them.

Technical data:

• Brand EMOS
• Main order code J6014
• Product code 2520236400
• EAN 8592920083987
• 1× USB 2.0, 1× HDMI 1.4, 1× miniUSB, 1× IEC, 1× SCART
• mpeg 2, mpeg 4, h.264, h.265, HEVC
• automatic and manual tuning
• copy of the list of channels on USB yes
• remote control yes
• method of tuning (automatically/manually) yes/yes
• recording capability (PVR) yes, via USB up to 1 TB
• signal reception (SD/HD) SD, HD
• Number of tuners 1×
• menu language OSD CZ, PL, SK, HU, EN, SI, GER, HR, RU, TU, SRB, LT, LV, SE, FI, BG, NL, FR, NO, IT, ES, PT
• maximum Number of simultaneous recordings 1
• timeshift (time shift) yes
• teletext yes
• ability to edit the channel list yes
• the ability to receive radio signal yes, via DVB-T, DVB-T2
• Updating via USB yes
• 4:3PS/4:3LB/16:9 aspect ratio
• OSD subtitles, srt
• Tuner frequency band 174 – 230MHz, 474 – 860 MHz
• hard drive file system FAT16, FAT32, NTFS
• EPG Program Guide 7 days
• 5 V/100 mA antenna power supply
• video formats . avi, . mpg, . dates, . vob,. div,. mov, . mkv, . mjpeg,. ts, . trp, mpeg2, mpeg4, mpeg1, h264, h265
• power supply 220 – 240 V AC 50/60 Hz
• video resolution 1080p/1080i/720p/480p/576p/480i/576i
• TS recording format for free playback
• photo formats jpeg, bmp, png
• audio formats mp3, aac, m4a, mpa
• game not applicable
• integrated CI interface no
• parental block yes
• power consumption (on/stand-by) 5 W/< 1 W
• DVB-T/DVB-T2 DVB-T2
• input signal level -75,2 to -23,9 dBm
• dimensions 120 × 75 × 25 mm
