DVB-T2 televizijos antena Digital360 VAYOX, universali, su 5G/LTE filtru, palaiko 4K, MUX8

Trumpai apie prekę

Prekė: DVB-T2 televizijos antena Digital360 VAYOX, universali, su 5G/LTE filtru, palaiko 4K, MUX8. Kategorija: Antenos.

• Gamintojas: Vayox
• Modelis: VA0039
• Spalva: black

Antenna adapted to receive the latest H.265 DVB-T2, MUX 1,2,3,6,8 encoding

✅ Reception 360 degrees ✅ Reception VHF AND UHF ✅ Active amp ✅ RENOWNED POLISH BRAND Vayox

📽 Antenna presentation and installation instructions in video form: https://youtu.be/y-HIxTaueus

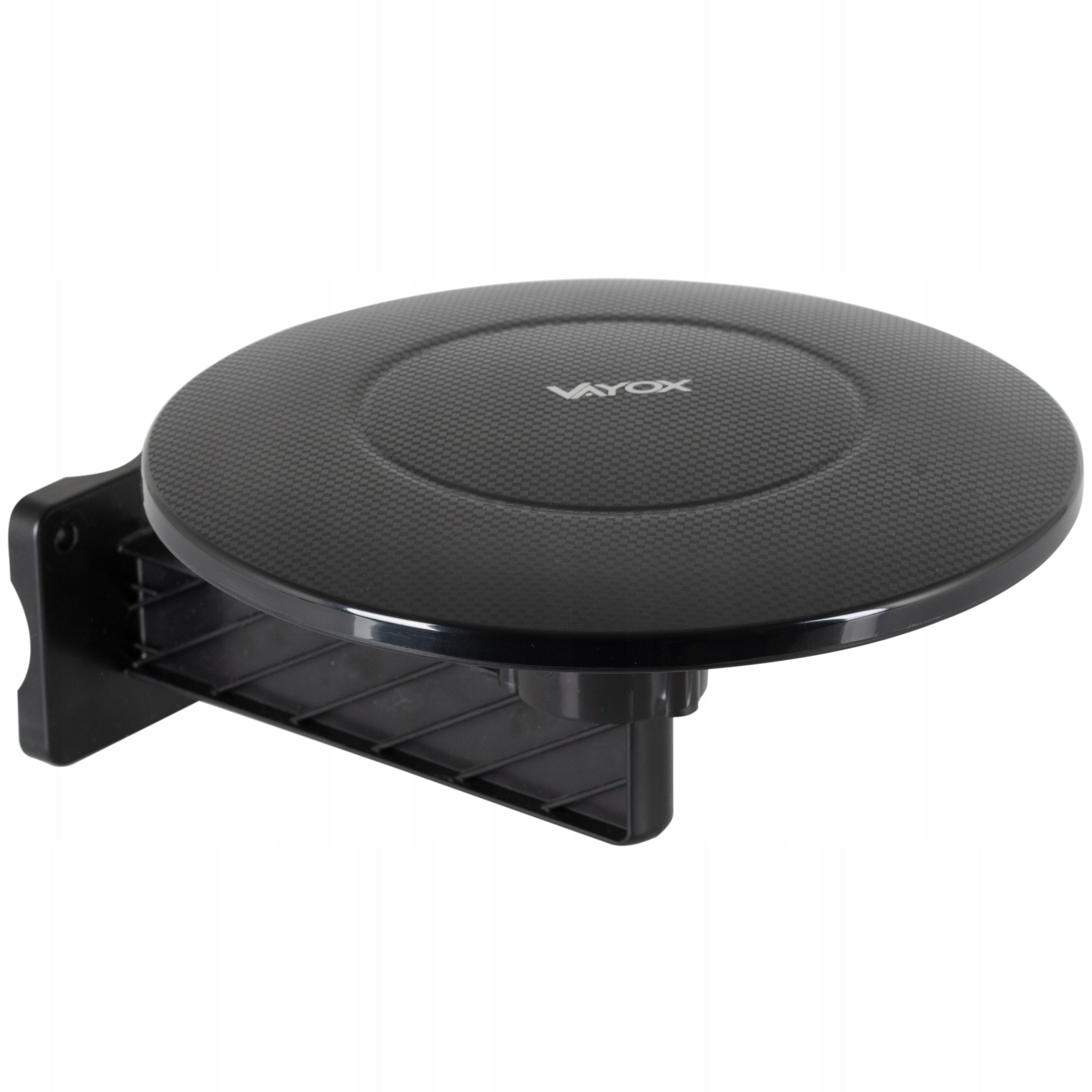

Model VA0039

• Suitable for digital terrestrial TV reception - DVB-T/DVB-T2, Full HD,4K
• Suitable for MUX8
• Receives VHF and UHF frequencies
• Maximum output signal level: 100dbuv
• Omnidirectional antenna (collects signal from all directions)
• Built-in Antenna AMPLIFIER
• Noise level < 3 dB
• Adjustable handle in two planes
• Antenna gain: 28dB
• Built-in LTE filter (gsm signal attenuation)
• High resistance to adverse weather conditions (Waterproof ABS housing with UV coating)
• Simple installation with no tools required.
• Diameter 25cm

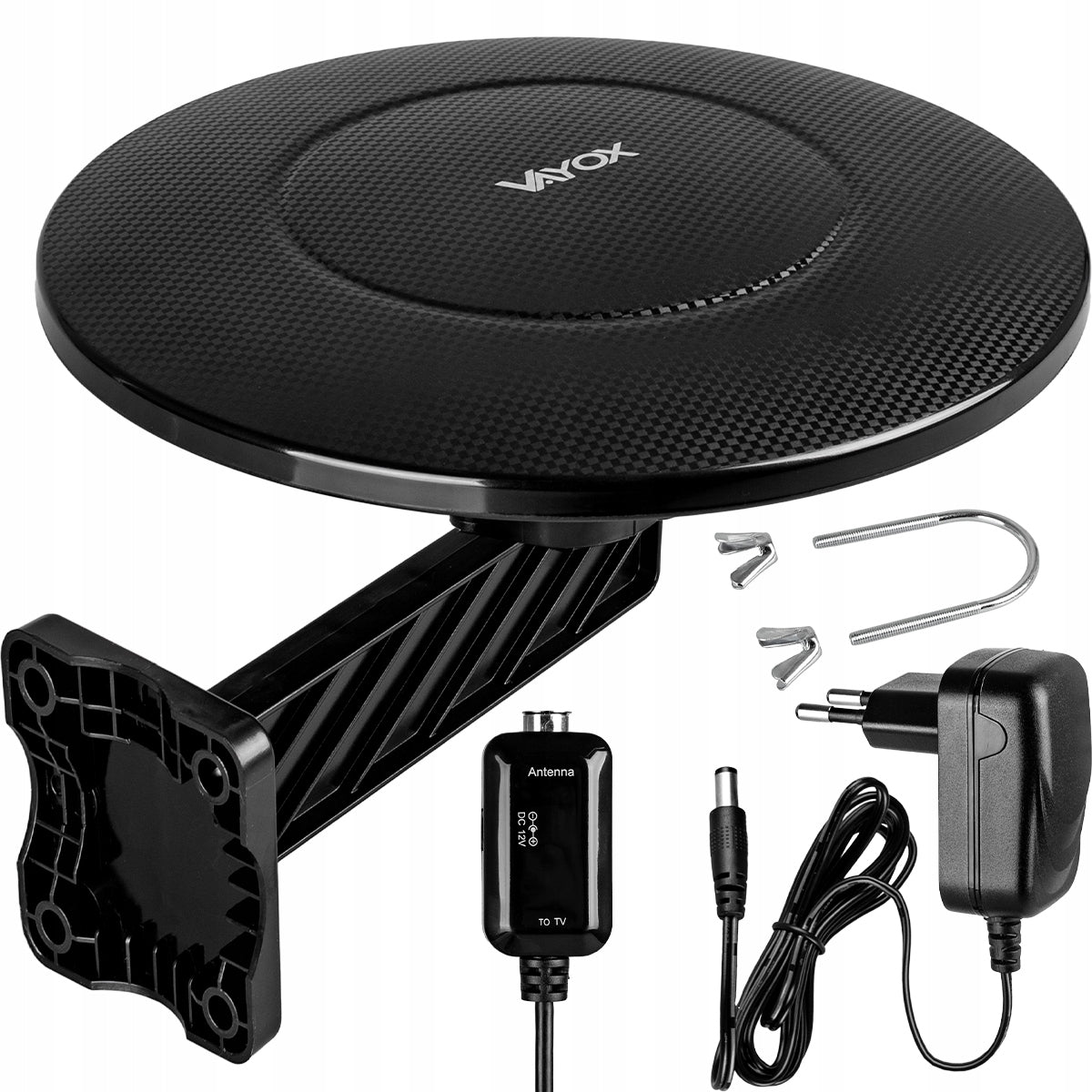

• Digital360LITE antenna
• 12V Antenna Power Supply
• Power adapter
• Amplifier (built-in antenna)
• Mounting cybant
• Wall Mount
• Rubber plug cover
• Antenna installation instructions

We present you an antenna designed to receive digital terrestrial television (DVB-T) including MUX8 (depending on the transmitter strength).

The Digtal360lite is a new more compact version of the Digital360, with a reduced chassis that incorporates the power and technology of the larger model.

• Maximum output signal level: 100dbuv
• Antenna gain: 28dB

Thanks to its light weight and compact dimensions diameter(25cm), the antenna can be used both in professional home installation and on the go. The antenna is equipped with a convenient mount that allows you to maneuver in virtually any plane. Omnidirectional antenna, receives signal from each direction (360 degrees), and the receiving radius is approx. 100 km from the broadcasting station, of course, the reception depends on the signal strength in a given area.

The DigiActiv antenna is designed with Polish in mind. The market makes it ideal for our conditions, the antenna is adapted to receive channels in the highest resolution 4K and DVB-T2 encoding

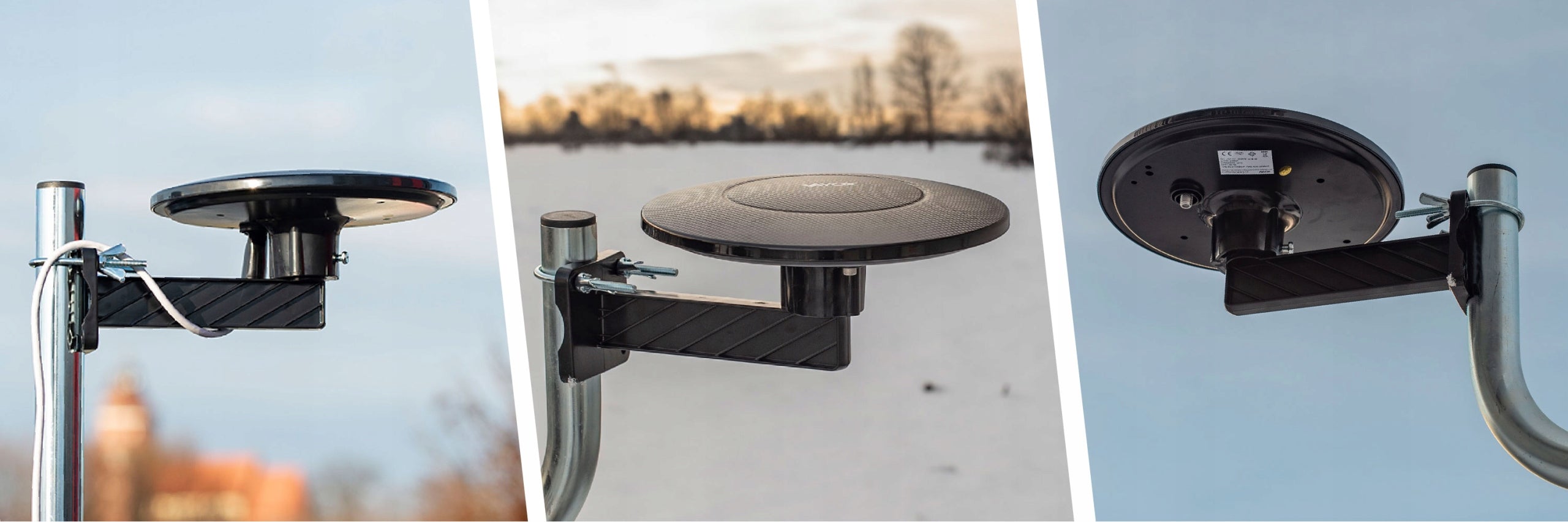

The high value of the rear/front radiation coefficient guarantees the antenna is insensitive to signals reflected from obstacles behind the antenna. The antenna is designed for horizontal installation on the walls of buildings, balconies, roofs, it can also be mounted on caravans.

The antenna is characterized by a very low standing wave coefficient value of ≤3 which means that it is very well matched impedance.

You can set the antenna according to your needs, you can rotate it in the range of 360 degrees.

Additionally, the digital amplifier regulates the power needed, no more spinning the antenna on the roof

Digital360lite has a built-in digital amplifier with a power of 28db to, which distinguishes against the competition is automatic selection of the gain level depending on the need.

With the included mount, you can drill the antenna directly into the facade of your building.

With the included cybant, you can screw the antenna directly to the antenna mast or balcony railing

• The antenna has a waterproof housing made of ABS
• The antenna is coated with a radiation resistant coating UV
• The set includes a special rubber cover to protect the F socket from rain

• Anti-interference LTE filter allows you to get rid of problems with DVB-T signal caused by the fact,that LTE wireless internet frequencies are also frequencies used by DVB-T digital television signal. In this case, the most important frequencies may overlap and lead to a signal problem,This filter eliminates interference generated by, among others, mobile phones and 4G networks and allows for full reception of DVB-T signal without interference.

Very often we hear the question whether omnidirectional antenna is as effective as directional antennas?

• We answer, of course, that YES

Below is a link under which a link and comparison of the VA0039 antenna to the directional antenna is available

https://www.youtube.com/watch?v=JSJ0-1NMaL4&t=978s

• The horizontal design allows you to receive signals from any direction without the need to calibrate the antenna.
• Integrated circuit made in SMD technology, affecting better properties at high frequencies.
• Compatible with all UHF and VHF bands. Compatible with HDTV digital terrestrial television signal.

• Digital360lite antenna
• 12V Antenna Power Supply
• Power adapter
• Amplifier (built-in antenna)
• Mounting cybant
• Wall Mount
• Rubber plug cover
• Antenna installation instructions

📽 Quick installation instructions in video form available at the link: https://youtu.be/y-HIxTaueus
