DVB-T2 televizijos antena Televes Boss MiX, UHF/VHF, kryptinė

Trumpai apie prekę

Prekė: DVB-T2 televizijos antena Televes Boss MiX, UHF/VHF, kryptinė. Kategorija: Antenos.

• Gamintojas: Televes
• Modelis: TForce
• Spalva: silver

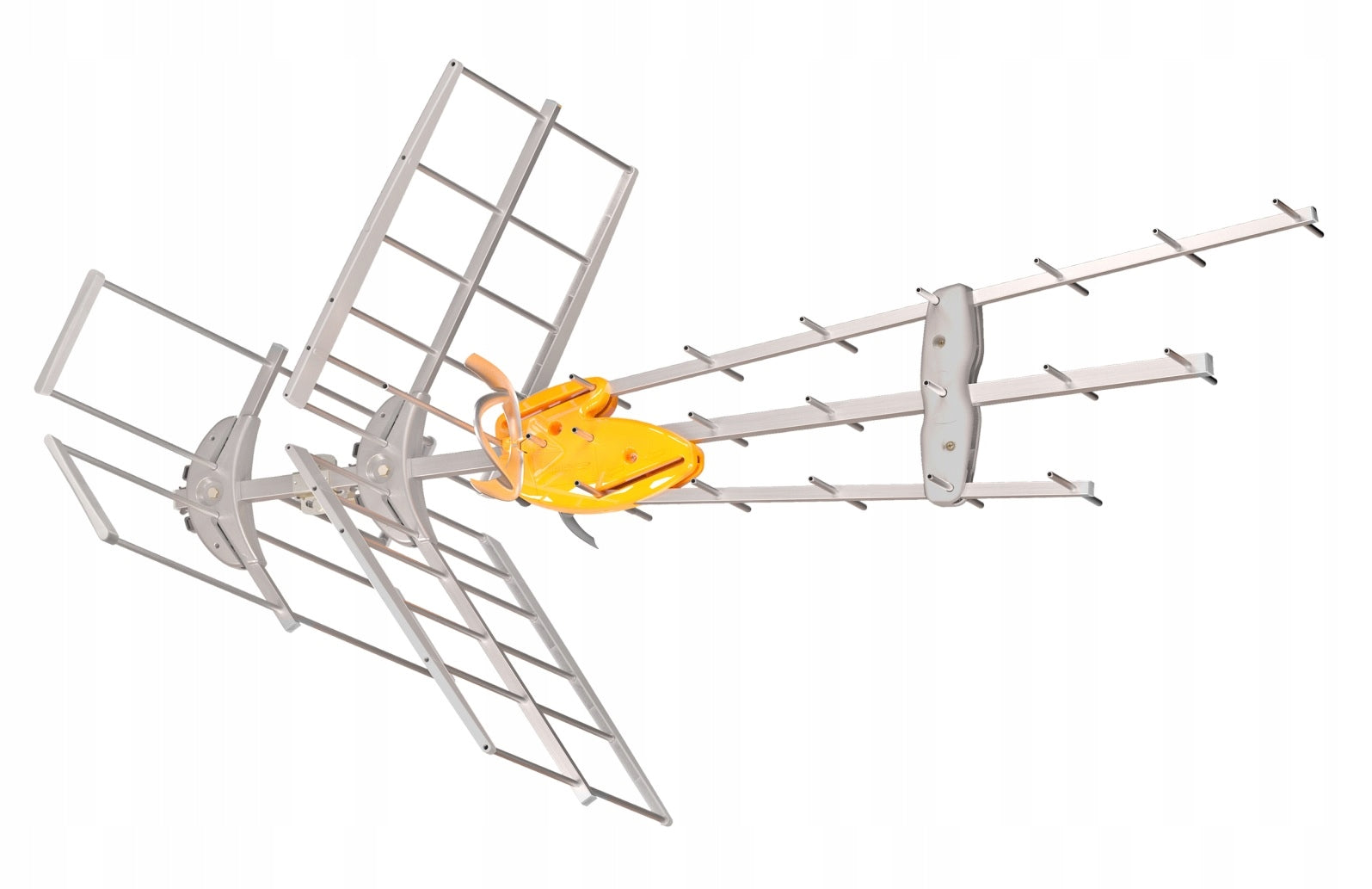

High quality, reputable Spanish brand TELEVES, modern directional antenna Televes DAT HD Boss Mix Tforce (ref. 149421). Antenna specially designed to receive the VHF band - Mux 8 (broadcast in horizontal or vertical polarization*) and UHF - Mux 1, 2, 3.

The antenna has a built-in LTE filter. It provides excellent HD TV reception from terrestrial digital transmitters. The antenna provides optimal performance in terms of both bandwidth and gain. Undoubtedly, its advantage is ease of installation. It is made of high quality aluminum with high mechanical resistance.

DAT BOSS MiX with TForce technology is a unique and universal system for receiving terrestrial TV signals.

High quality is guaranteed by the Spanish manufacturer - Televes brand.

*ATTENTION! Only in this offer is the possibility of purchasing an antenna enabling the reception of an additional VHF band (so-called MUX 8) in vertical polarization (standard models allow only horizontal polarization reception). If you need such a version, please clearly indicate it in the comment to the order, then we will make appropriate modifications at no additional charge. Leaving a comment is necessary to get an antenna with such a modification.

If you are not sure which version of the antenna to choose, please use the advice of our employees who will be happy to analyze and advise the best solution for your location. The fastest way to obtain information is to send a question, indicate the location of the installation (postal code, city) and the number of recipients.

The intelligence of this antenna relies on the patented "BOSS TECH" (Balanced Output Signal System) technology, which automatically regulates the output signal level. Televes applied its three European patents to this antenna, which m.in. They're supposed to defend this antenna from Chinese fakes. The antenna is made of metal elements - aluminium with a suitable tin cover. Plastic elements in yellow and white are made of very resistant ABS plastic. The whole was tested and certified in its own laboratory in Santiago de Compostela.

All innovative electronic parts from the DAT HD antenna are fully built-in, which means that noise is significantly reduced, which improves the signal/noise ratio in the UHF band. The antenna electronics were secured to achieve better elimination of interference from other bands (GSM). In this way, gain has been optimized to better support the imbalance signal to the antenna and improve the signal/noise ratio throughout the band.

Most importantly, all elements of the BOSS TECH and the dipole of the DAT HD antenna are connected and grounded. The concept of building a DAT HD antenna makes it electromagnetically one of the safest antennas on the European market.

Refined and robust construction and careful finishing of individual elements and precise assembly of the whole ensure reliable operation of the antenna for many years. The durability of the antenna has been comprehensively tested in terms of changing climatic conditions (changes in air temperature, humidity and salinity), vibrations and stresses, and wind pressure.

• VHF bandwidth: CH 5-12 (174-230Mhz)
• VHF gain: 8,5 dBi (passive mode) / 36,5 dBi (active mode)
• UHF bandwidth: CH 21-48 (470-694Mhz)
• UHF gain: 16 dBi (passive mode) / 41 dBi (active mode)

A detailed description of the antenna specification can be found in the product sheet, which is available in the "Additional information" tab.

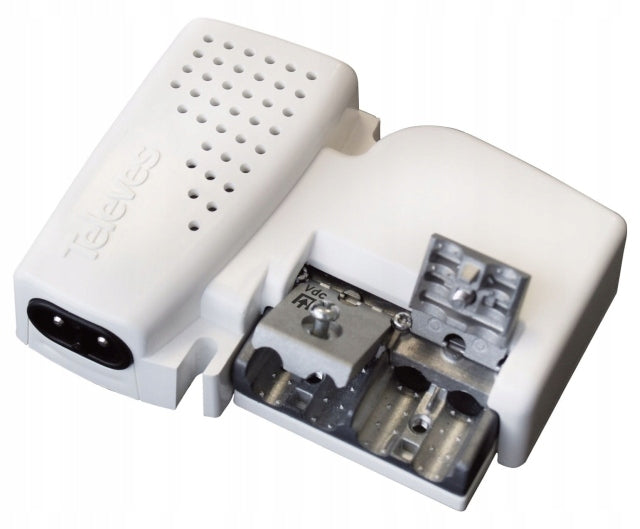

For the DAT HD BOSS antenna, we recommend buying a power supply or amplifier Televes Picokom, which is available in our other offers. This device allows power transmission (12V / 24V) to the antenna preamplifier and operation in active mode, with gain.

An additional advantage of the device are two easy F outputs, allowing direct connection of two receivers (without additional connectors).

Antenna Televes DAT Mix HD Boss adapted to receive band III (174-230 MHz) and UHF (470-694 MHz). It has a built-in LTE filter, thanks to which eliminates the effects of LTE signals ensuring the best quality of terrestrial TV reception. The installation of this antenna enables continuity of service quality and proper functioning of the installation, also with LTE 700/5G.

Antenna has an LTE filter above channel 48, i.e. filtering any unwanted signals above 700 MHz. Successively, subsequent transmitters are switched, and the band above 700 MHz is released within the so-called. "second digital dividend" for broadband services, including 5G.

If you are not sure whether an antenna is the right choice, please use the advice of our employees who will be happy to analyze and advise the best solution for your location. The fastest way to obtain information is to send a question, indicate the location of the installation (postal code, city) and the number of recipients.

• High dynamic range: allows signal reception in various critical situations - at a very long distance from the transmitter to installations with too high signal level
• Longer DVB-T range: up to 27% longer range compared to previous models
• More stable reception: resistant to various types of fluctuations and signal fading (fading)
• Optimal C/N: thanks to the noise factor, which is only 1,2dB
• BOSS automatically adjusts the gain level depending on the levels of signals received by the antenna
• Very high gain: TForce technology provides an increase of up to 13dB in UHF and BIII

• DAT design, based on 3 Yagi antennas with asymmetric directors, ensures high directionality and optimal radiation characteristics against echoes
• The special double dipole “U” features an open/closed format, ensuring optimal uniformity in frequency
• The fully shielded connection box protects the BOSS system from impulsive noise. Grounding protects antenna components from electrical discharges
• Fully automated European production and subjecting antennas to very strict quality controls as a guarantee of repeatability.
• Intelligent (small power consumption) or passive operating mode (without power supply)'
• The antenna can be mounted on masts up to 80mm in diameter.
• The antenna has filters that cut the LTE band
• Made of aluminium (stainless)
• Plastic components are made of UV resistant ABS
• Fastenings of elements are made of ZAMAK (aluminum and zinc alloy)

• Greater antenna gain - up to 44dBi (= 16dBi gain + 28dB auto-adjustable wzm. TFORCE), the previous DAT model had a gain of 32 dBi (= 17dBi gain + 15dB BOS TECH amplifier).
• Less self-noise of the amplification track 1,2 dB (0,8 dB less than in the previous DAT model).
• Greater operating range by about “one-third”.

• Televes Dat HD Boss Mix TForce antenna (no. corner. 149421)
• Instruction
• Mounting accessories

ATVS0749
