Aprašymas
Trumpai apie prekę
Prekė: DVB-T2 televizijos antenų LTE 700 5G GSM signalo filtras AXING. Kategorija: Antenos.
- Gamintojas: Axing
- Modelis: TZU198-65
- Spalva: silver

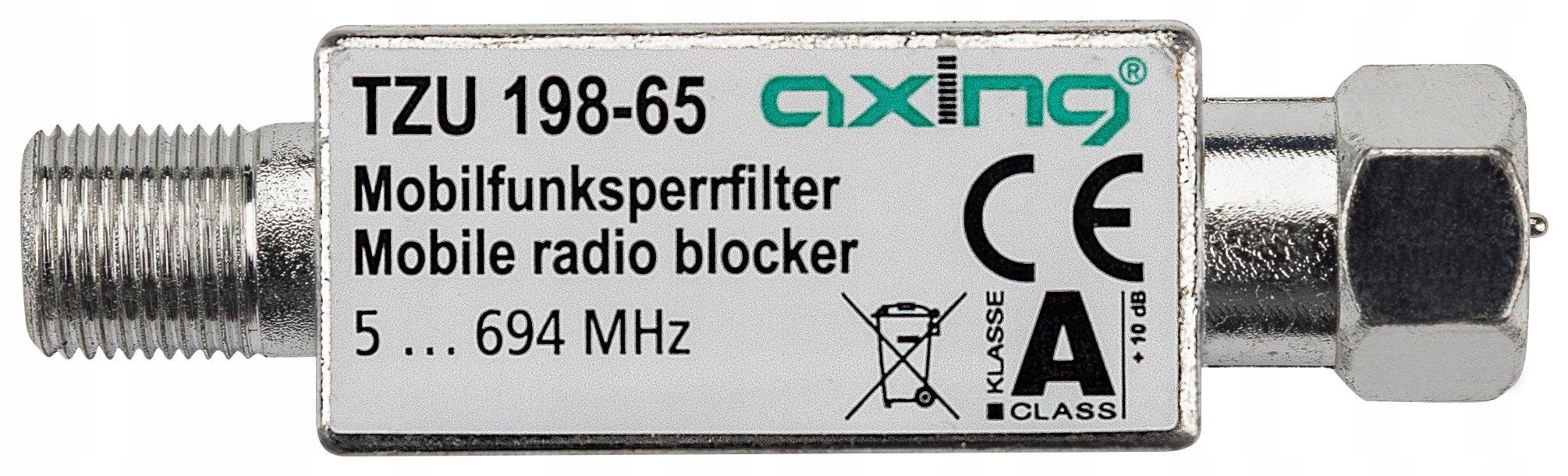

Axing TZU is an LTE / 5G filter designed to eliminate interference in the reception of DVB-T2 TV signal in the frequency range 5 - 694 MHz, which filter any unwanted signals above channel 48.
The filter cuts off interference from LTE700, LTE800, GSM and TETRA mobile signals. Enables power supply (DC) to DVB-T2 antenna preamplifier. It is suitable for individual and collective DVB-T2 terrestrial television installations , which involve the transmission of LTE700 and LTE800 mobile telephony signals in the 703-862 MHz band and the transmission of GSM and TETRA signals in the 870-960 MHz band.
The filter eliminates interference signals before amplifying the TV signal, obtaining attenuation in the LTE700 and LTE800 bands up to -60dB.
- Mobile network lock filter, 5-694 MHz transmission range for TV and radio
- Prevents interference of television and radio by cellular radio network (3G/4G/5G)
- Lock depth >40 dB at 738-2200 MHz, connections: F socket and F plug
- Suitable for FM radio reception, DAB+ digital radio, DVB-T2 digital television – not suitable for satellite reception
- DC voltage transition, e.g. for active antenna or mast amplifier. Pass-through attenuation 0,3 ... 2,7 dB
FILT0105
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Axing |
| Parametry | Color | silver |
| Parametry | Model | TZU198-65 |
| Parametry | Product weight with unit packaging | 0.2 kg |
| Parametry | EAN (GTIN) | 7611682400205 |
| Parametry | Manufacturer code | Filtr LTE 700 5G Axing TZU198-65 |
| Parametry | Packaging status | original |
| Parametry | Kind | internal,external |
