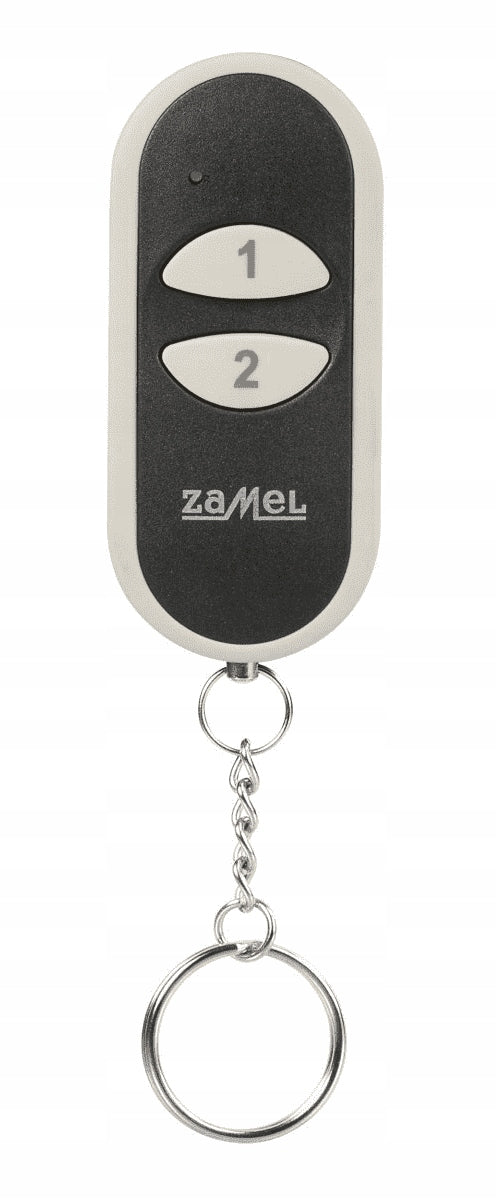

Dviejų kanalų nuotolinio valdymo pultas ZAMEL P-258/2

Trumpai apie prekę

Prekė: Dviejų kanalų nuotolinio valdymo pultas ZAMEL P-258/2. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: P-258/2

It controls all devices of the Y series, radio power switch type RWS-211 and RWS- 211/N, roller shutter controller type SR-NT, SR-PT, wireless bolt controller type BSR-207, RT-219 retransmitter. Optical signaling of the remote control's work; remote control type keychain - pendant in the form of a chain with a circle.

The given range of action concerns open space, i.e. ideal conditions, without obstacles. If there are obstacles between the receiver and the transmitter, it is necessary to provide for a reduction in the operating range for: wood and gypsum by 5 to 20%, bricks from 20 to 40%, reinforced concrete from 40 to 80%, respectively. With metal obstacles, the use of radio systems is not recommended due to the significant limitation of the operating range. The overhead and underground high-power lines and GSM network transmitters located in close proximity to the devices also have a negative impact on the operating range

TECHNICAL DATA:

• Colour Black
• Type of signal transmission Radio control
• Number of channels 2
• Transmitter range 250 m
• Material Plastic
• Surface Finish Matte
• Number of channels 2
• PKWiU 26.30.12.0
• 12 V remote control power supply
• Battery type CR2016
• Number of batteries 4 st
• Degree of protection of the remote control IP20
• Operating range 50/300 m
• Protection class III
• Temperature range of operation of the pilot 0/35 °C
• Operating frequency 433, MHz
• Transmitter power 0,00 W
• Remote control dimensions 74 x 33 x 11,5 mm

The instructions for assembly, connection or operation of the product are presented in an instructional video of each ZAMEL product separately depending on the model on the manufacturer's website.
