Dvigubas INVERTO monoblokinis LNB palydovinis konvertorius Astra/HotBird

Trumpai apie prekę

Prekė: Dvigubas INVERTO monoblokinis LNB palydovinis konvertorius Astra/HotBird. Kategorija: Keitikliai.

• Gamintojas: Inverto
• Modelis: KONW/MONOBLOCK-TWIN

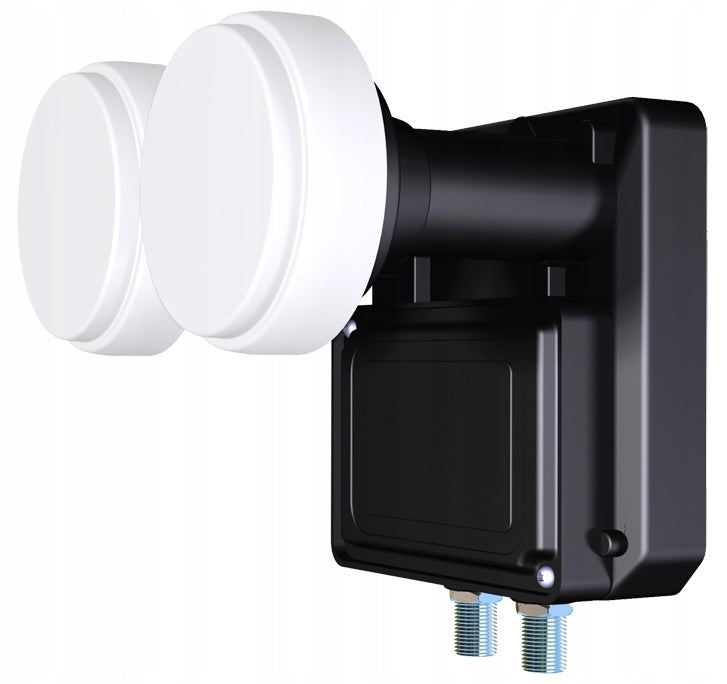

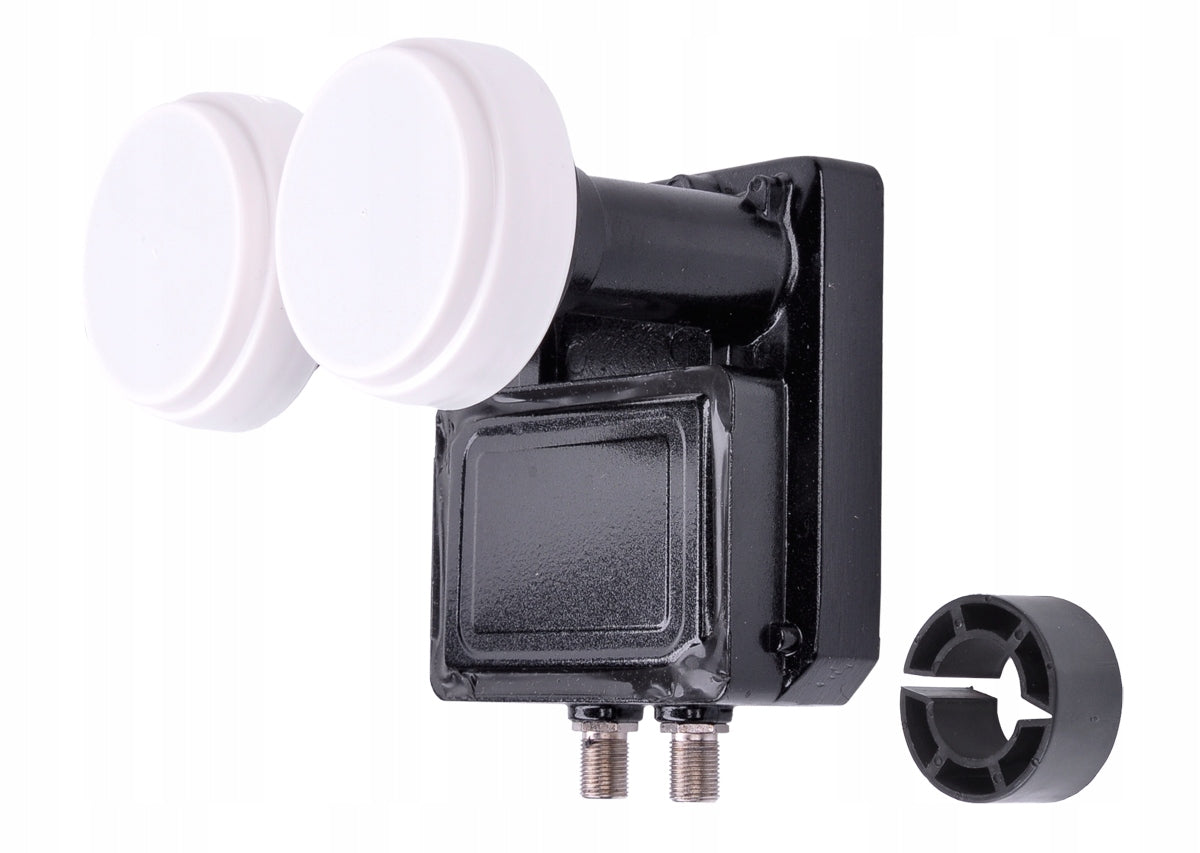

TV-SAT CONVERTER KONW/MONOBLOCK-TWIN

TWIN MONOBLOCK BLACK Pro converter is a product of the well-known Luxembourg company INVERTO, which is a leader among suppliers of converters for the Polish market. The TWIN MONOBLOCK BLACK Pro converter is designed for 80cm canopies. Monoblock provides a satellite signal for two single-head DVB-S/S2 tuners or one two-head PVR tuner. The main converter (center) should be set to receive the HOTBIRD signal. Once the antenna is set to receive the signal from the HOTBIRD, the signal from the ASTRA satellite will be available automatically. To switch the converter to receive from the ASTRA satellite, you need a DiSEqC signal generated from the tuner.

Technical data:

• size of the canopy for which the converter is dedicated: 80 cm
• satellite spacing: 6 degrees
• lower band - input: 10,7 - 11,7GHz
• lower band - output: 950 - 1950MHz
• Lower oscillator: 9,75 GHz
• upper band - input: 11,7 - 12,75GHz
• upper band - output: 1100 - 2150MHz
• Upper oscillator: 10,6 GHz
• Own noise: 0,2 dB (0,7 dB)
• Oscillator temperature drift: +/-3 MHzmax
• phase noise: -90 dBc/Hz max
• gain: 55 dB min
• Characteristic unevenness: 8dB
• control polarity V: 11.0 - 14.0V
• control polarity H: 16.0 - 20.0V
• VSWR: 2.5:1
• separation between polarities: 18 dBmin
• Current consumption: 150 mA max @ 11-20V
• Output Impedance: 75 Ohms
• Operating temperature: -30...+60 degrees C

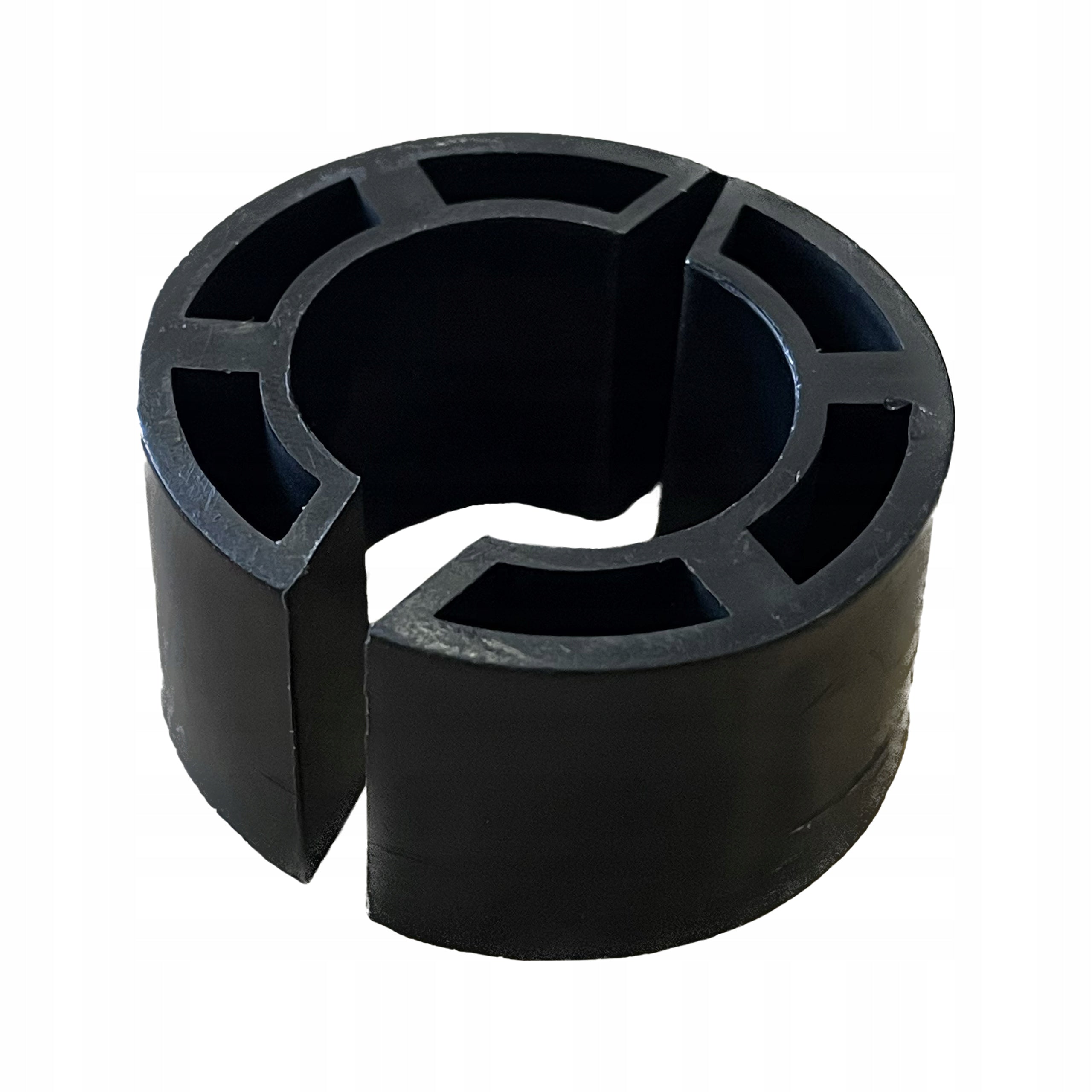

• Neck diameter: 23 mm (40 mm reduction included)
• neck length: 29 mm
• Connector: F
• Weight: 435 g
