Dvigubas palydovinis imtuvas Inverto Black Premium NC+ Polsat 4K

Trumpai apie prekę

Prekė: Dvigubas palydovinis imtuvas Inverto Black Premium NC+ Polsat 4K. Kategorija: Keitikliai.

• Gamintojas: Inverto
• Modelis: TWIN Inverto Black Premium 4K

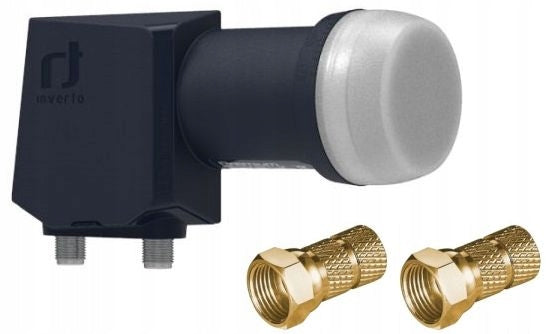

High quality double converter of Luxembourg brand Inverto. The Twin converter is used to receive signals from one satellite via two independent tuners or to tuners with two inputs. It has a rain cover.

The Twin converter allows you to receive digital and analogue TV and radio programs via satellite in SD and HD quality (including Ultra HD 4K). Twin is characterized by a dual output containing full satellite band. This allows to connect two independent decoders or one double head PVR satellite decoder.

The converter works perfectly with all digital tuners, e.g. NC+ Cyfrowy Polsat, including 4K and HD.

• Frequency range 10.7 – 12.75 GHz
• Noise Ratio 0,2 dB
• Resistant to changing weather conditions
• Operating temperature -30 ~ +60°C
• Durable electronics
• Diameter 40 mm
• Very easy installation

• Product symbol IDLP-TWL413-PREMU-OPN
• Lower band - 10,7-11,7GHz input
• Lower band - 950-1950MHz output
• Lower oscillator 9,75GHz
• Upper band -11,7-12,75GHz input
• Upper band -1100-2150MHz output
• Upper oscillator 10,6GHz
• Own noise 0,2dB (max 0,7dB)
• Temperature drift of oscillator +/-3MHz max
• Phase noise at 1 kHz- 70 dBc/Hz max
• Phase noise at 10 kHz- 80 dBc/Hz max
• Phase noise at 100 kHz- 90 dBc/Hz max
• Phase noise at 1 MHz- 100 dBc/Hz max
• 57dB ~ 67dB gain
• Volatility Maximum 4 dB (from peak to peak)
• Polarity control V 11.0~14.0 V
• Polarity control H 16.0~20.0 V
• VSWR 2.0:1
• Current consumption 180mA max @11~20V
• Output Impedance 75 Ω (Type F)
• Operating temperature -30...+60C
• Neck diameter Ø 40mm
• Connector F

• Twin Inverto Black Premium Converter

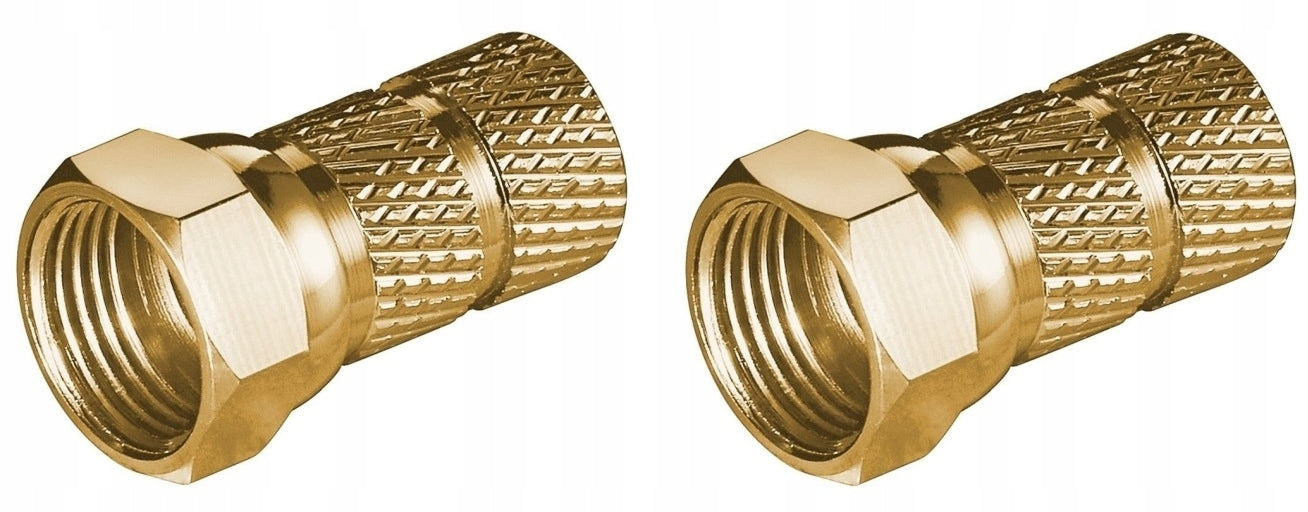

• 2szt. connector F
• Packaging

KONT0160F
