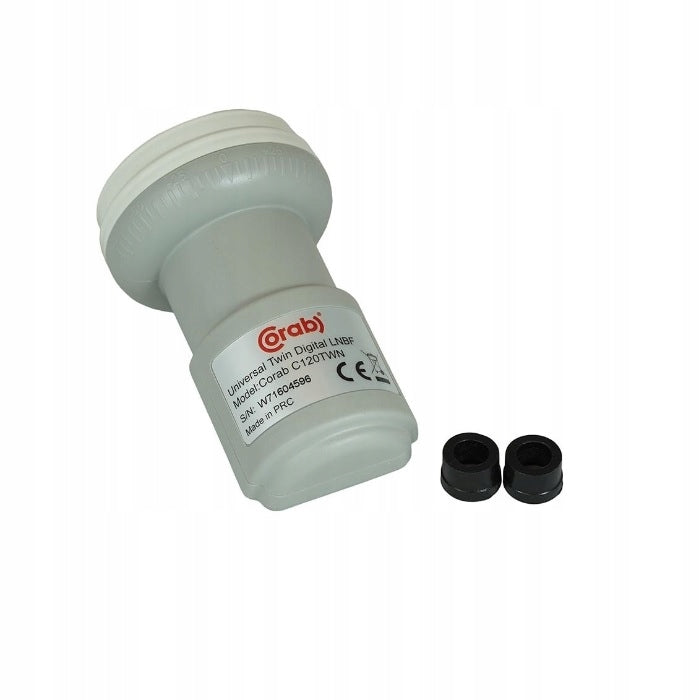

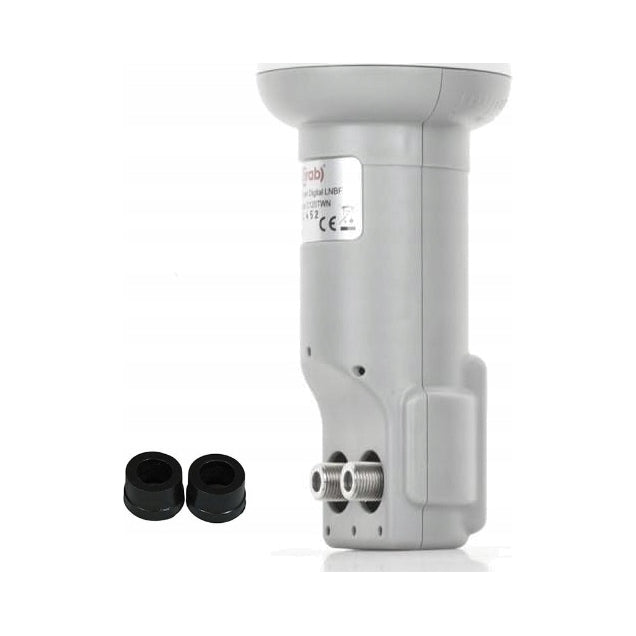

Prekė: Dvigubas signalų keitiklis Corab C120TWN. Kategorija: Keitikliai.
- Gamintojas: Corab
- Modelis: C120TWN
TWIN CORAB
The great advantage of the C120TWN converter is its innovation.
Technical data:
- Input frequency: lower band: 10,7-11,7 GHz, upper band: 11,7-12,75 GHz
- Output frequency: lower band: 950-1950 MHz, upper band: 1100-2150 MHz
- Standing Wave Ratio (VSWR): 2.0:1 (max.)
- Local generator stability: +/- 1 MHz (max.) (25°C)
- Phase noise: -55 dBc/Hz (1kHz), -75 dBc/Hz (10kHz), -95 dBc/Hz (100kHz)
- Gain: 55 dB (Typ. )
- Gain deviation: 5 dB (type. ) +/- 0,5 dB (Typ. ) / 26 MHz
- Noise power factor: lower band: 0,3 dB (type. ), upper band: 0,3 dB (type. )
- Polarity permeability: 25 dB (type. )
- Mirror frequency attenuation: 45 dB (min.)
- Operating voltage: vertical polarity: 11,5-14 V, horizontal polarity: 16-19 V
- Range switching: lower wave band: 0 Hz, upper band: 22+/-4 Hz
- Local generator frequency: lower band: 9,75 GHz upper band: 10,6 GHz
- Current consumption: 160 mA (max.)
- Output Type: 75 Ω Female
- Operating temperature: -40°C +60°C
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 000 |
| Parametry | Product weight with unit packaging | 0.17 kg |
| Parametry | Type | Twin |
| Parametry | Brand | Corab |
| Parametry | Model | C120TWN |
| Parametry | Noise factor | 0.1 dB |
| Parametry | Input frequency range | 10.7–12.75 GHz |
| Parametry | Energy consumption | 160 mA |
| Parametry | Handle diameter | 40 mm |
| Parametry | Product weight | 140 g |
| Parametry | EAN (GTIN) | 5907724515177 |
| Parametry | Certificates of conformity | CE |
